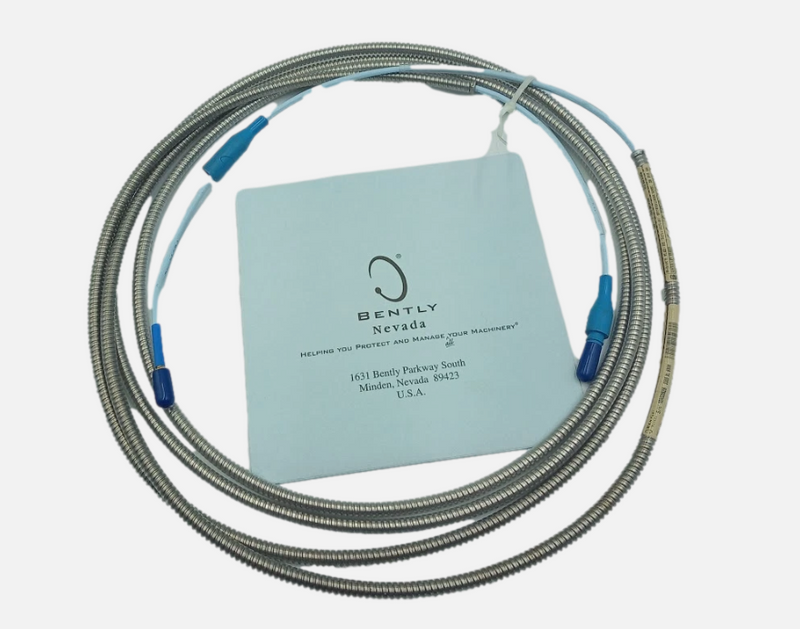

330192 is a high-temperature probe model under the 3300 XL 8mm Proximity Transducer System. This probe features 3/8-24 UNF threads and is armored. (Note: "3/8-24 UNF" refers to the Unified National Fine thread standard, with a 3/8-inch major diameter and 24 threads per inch. The UNF series offers broad compatibility.)
The main differences between this model and the 330101 are:
This model does not have threads and features a smooth cylindrical case.
The Total Length Option for this model does not include a 3-meter configuration.
The Connector and Cable-Type Option for this model is fixed and requires no additional selection.
This model is equipped with armor (the armored structure provides additional mechanical protection. While not completely leak-tight, it effectively resists physical damage).
This probe is primarily used for vibration and position measurement on fluid-film bearing machinery, as well as for Keyphasor reference and speed measurement. It fully complies with the American Petroleum Institute (API) 670 standard regarding mechanical configuration, linear range, accuracy, and temperature stability. It remains backward compatible and interchangeable with corresponding components from non-XL 3300 Series 5 mm and 8 mm systems.
The probe cable incorporates the patented CableLoc® design, which provides a pull-off resistance of 330 N (75 lbf), ensuring a more secure connection between the cable and the probe tip. For applications where the probe lead may exceed the standard 177°C (350°F) temperature specification, an Extended Temperature Range (ETR) probe is available. The ETR probe has an extended temperature rating for up to 218°C (425°F).
The ETR probe is compatible with standard temperature probes and cables; for example, you can utilize an ETR probe with the 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system.
Notes:
One-meter systems do not use extension cables.
Mixing model 330192 with corresponding components from non-3300 XL Series 5 mm and 8 mm systems will limit the overall system performance to the specifications of the non-3300 XL 5 mm and 8 mm transducer systems.
3300 Series 5 mm probes feature a smaller physical package; however, they do not reduce side-clearance or probe spacing requirements compared to 8 mm probes. The 5 mm probes are intended for use where physical (not electrical) constraints prevent the use of an 8 mm probe. If your application requires a narrow side-view probe, use the 3300 NSv eddy current sensor system.
8 mm probes feature a thicker probe coil package housed in a molded PPS plastic probe tip. This construction makes the probe more robust. The larger probe body diameter also contributes to a more rugged housing. It is recommended to use an 8 mm probe wherever possible to provide maximum robustness against physical damage.
