GE IS215UCVEM06A Controller

The IS215UCVEM06A is a high-performance VME bus single-board computer (SBC) designed by General Electric (GE) for its Mark VI turbine control system. As an enhanced multi-function model within the UCVE series controllers, this unit features a 6U height, single-slot form factor and mounts within a VME rack called the control module, serving as the core processing unit running turbine application code. Its operating system is QNX, a real-time, multitasking OS engineered for high-speed, high-reliability industrial applications.

The IS215UCVEM06A is a high-end, multi-functional model within the UCVE series, building upon all the features of the standard UCVEH2 controller and integrating multiple auxiliary communication interfaces, including several 10BaseT/100BaseTX Ethernet ports and Profibus DP interfaces, making it suitable for complex industrial communication scenarios. It utilizes a 300 MHz Intel Celeron processor, equipped with 32 MB of DRAM and either 16 or 128 MB of flash memory, providing ample computing resources for real-time control applications.

The M06 model is particularly suitable for complex application scenarios requiring simultaneous support for multi-network isolation, connection to multiple Profibus slave devices, and high-speed data exchange. Its rich communication interfaces make it an ideal choice for large combined-cycle power plants, multi-unit coordinated control systems, and industrial environments requiring communication with a large number of third-party devices.

II. Key Functions

1. Control Logic Execution

The IS215UCVEM06A controller is loaded with software specific to its application (e.g., steam turbine, gas turbine, aeroderivative turbine, or balance of plant). It can execute control logic at rates up to 100,000 rungs or blocks per second. It supports both analog and discrete processing, with data types encompassing Boolean, 16-bit/32-bit signed integers, and 32-bit/64-bit floating points, meeting complex industrial control requirements.

2. Multi-Channel Ethernet Communication

• Primary Ethernet Interface: One 10BaseT/100BaseTX (RJ-45) interface for connection to the UDH, supporting TCP/IP, EGD, and Modbus protocols.

• Auxiliary Ethernet Interfaces: Multiple additional 10BaseT/100BaseTX (RJ-45) interfaces, independently configurable for separate IP logical subnets, supporting:

• EGD protocol

• Modbus protocol
  These interfaces are configured through the Toolbox. Each interface can be assigned a separate subnet address, enabling network isolation, redundant communication, or dedicated data channels. Each time the rack is powered up, the controller validates its Toolbox configuration against the existing hardware.

3. Profibus DP Communication

The IS215UCVEM06A integrates multiple Profibus DP master Class 1 interfaces for connecting various Profibus slave devices, such as remote I/O, drives, and intelligent instruments. This makes it an ideal choice for industrial applications requiring communication with numerous fieldbus devices.

4. VME Bus Communication

Exchanges data with I/O boards via the VCMI communication board. In a simplex system, data comprises process inputs and outputs from I/O boards. In a Triple Modular Redundant (TMR) system, data includes voted inputs, computed outputs for output hardware voting, and internal state values exchanged between controllers.

5. Serial Communication

Two RS-232C interfaces (COM1 and COM2):

• COM1: Reserved for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit.

• COM2: Used for serial Modbus slave communication, supporting 9600 or 19200 baud.

6. System Synchronization and Real-Time Performance

The controller can synchronize with the clock on the VCMI communication board via an external clock interrupt, achieving accuracy within ±100 microseconds, ensuring strict synchronization requirements in multi-controller systems.

7. Online Programming and Diagnostics

Supports online modification of application software without requiring a system restart. When a failure is detected, the controller generates an internal fault code readable via the Toolbox. Each time the rack is powered up, the controller validates its Toolbox configuration against the existing hardware.

8. Redundancy and Fault Tolerance Support

In TMR systems, the IS215UCVEM06A can operate in conjunction with two other controllers to perform input voting, output voting, and state exchange, significantly enhancing system reliability.

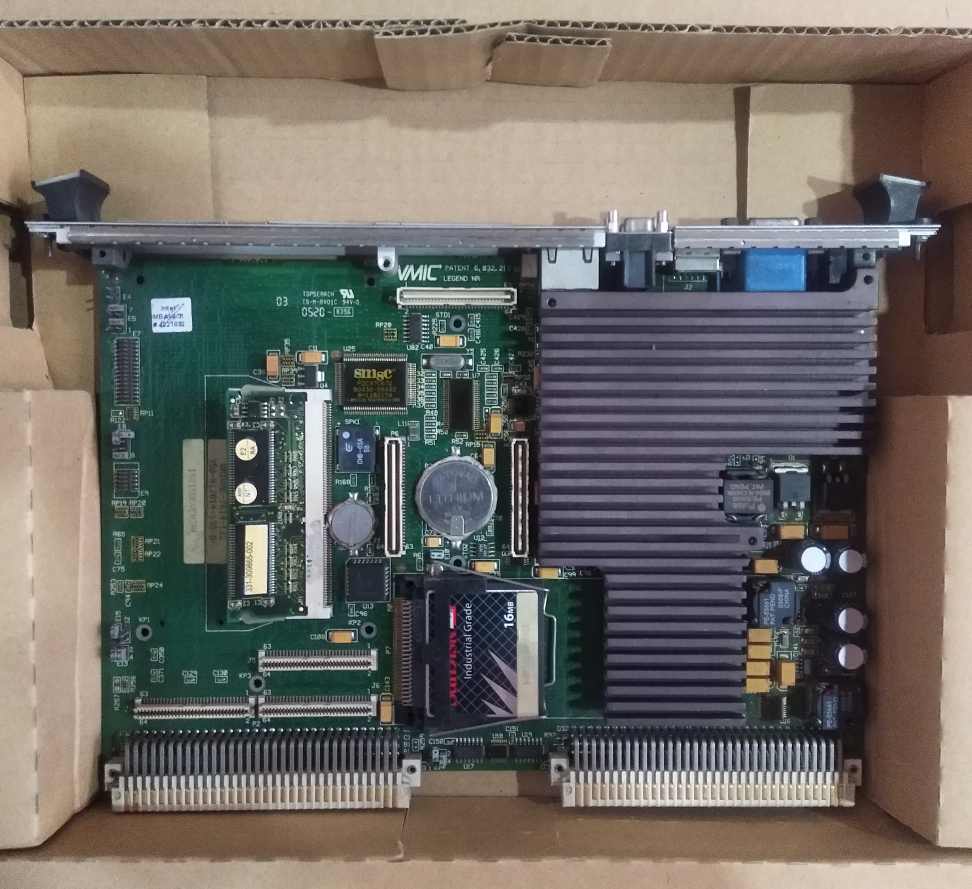

III. Hardware Architecture

1. Processor and Memory

• Processor: Intel Celeron 300 MHz

• Main Memory: 32 MB DRAM

• Storage: 16 MB or 128 MB Compact Flash Module

• Cache: 128 KB L2 cache

• NVRAM: 8 KB battery-backed SRAM allocated for controller functions

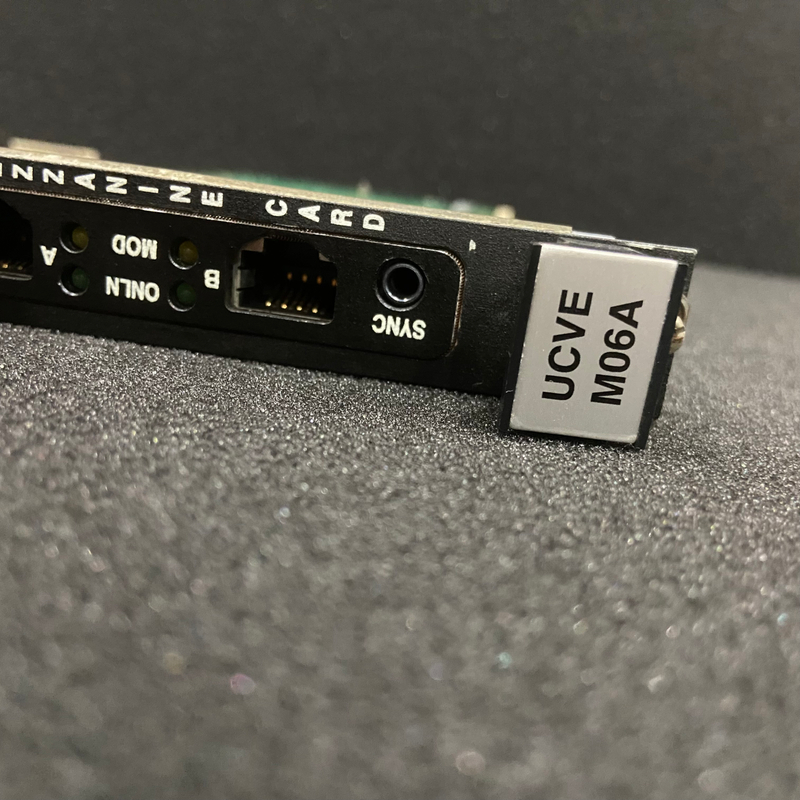

2. Front Panel Indicators

The UCVE series controllers feature front panel status LEDs to indicate operational status. Unlike the earlier UCVD series, the UCVE series does not use dual-column LEDs to display error codes; instead, internal fault codes are read via the Toolbox software.

3. Interfaces and Connectors

• Primary Ethernet Interface: 1 RJ-45 connector, 10BaseT/100BaseTX

• Auxiliary Ethernet Interfaces: Multiple RJ-45 connectors, 10BaseT/100BaseTX (see technical specifications for exact quantity)

• Profibus DP Interfaces: Multiple 9-pin D-sub connectors, compliant with Profibus standards

• Serial Interfaces: 2 micro-miniature 9-pin D-type connectors (COM1, COM2)

• VME Bus Connectors: P1/J1 and P2/J2 backplane connectors for power and bus communication

• PMC Expansion Site: One site compliant with IEEE 1386.1 5V PCI standard for installing additional function modules

4. Battery and Configuration Switch

The controller contains a Type 1 Lithium battery rated at 3.3 V, 200 mA, used to maintain the real-time clock and backup SRAM data during power loss. Important Note: The battery is factory-shipped in the disabled position. To enable the battery, set switch SW10 to the closed position. When replacing the battery, use an equivalent type.

IV. Detailed Interface Description

1. Primary Ethernet Interface

The primary Ethernet interface connects to the UDH for data exchange with the Toolbox, HMI, and other control equipment. This interface supports auto-negotiation for 10BaseT/100BaseTX speeds. Each time the rack is powered up, the controller validates the Toolbox configuration against the hardware.

2. Auxiliary Ethernet Interfaces

The multiple auxiliary Ethernet interfaces are a core feature of the IS215UCVEM06A. Each interface can be configured for a separate IP logical subnet, enabling network isolation or dedicated communication. Typical applications include:

• Grouping different process areas or devices onto separate networks to reduce network load and collisions.

• Building multiple private EGD networks for high-speed data exchange between different groups of controllers.

• Providing multiple redundant Ethernet channels for network-level fault tolerance.

• Completely isolating the real-time control network from monitoring networks and corporate business networks to enhance cybersecurity.

These interfaces are configured via the Toolbox software. Each interface must be assigned a separate subnet address (e.g., 192.168.1.0, 192.168.2.0, 192.168.3.0, etc.). The controller validates the configuration of all interfaces upon startup.

3. Profibus DP Interfaces

The multiple Profibus DP master interfaces allow the IS215UCVEM06A to connect to several Profibus networks simultaneously, with each network capable of supporting up to 125 slave devices. Key features include:

• Master Class 1: Compliant with Profibus DP-V0 and DP-V1 standards, enabling cyclic exchange of process data with slaves and acyclic parameterization, diagnostics, and alarm handling.

• Data Transfer Rate: Supports baud rates from 9.6 kbit/s to 12 Mbit/s, with auto-detection or manual configuration options.

• Number of Slaves: Each Profibus interface can theoretically connect up to 125 slave devices (actual number limited by bus length and baud rate).

• Typical Applications:

• Connecting remote I/O stations to expand the control system's I/O capacity.

• Communicating with variable frequency drives, soft starters, etc., for drive control.

• Connecting intelligent instruments such as pressure transmitters, flow meters, analyzers.

• Exchanging data with third-party PLCs or control systems.

4. Serial Interfaces (COM1 and COM2)

Both serial interfaces are micro-miniature 9-pin D connectors, with pin assignments conforming to RS-232C standards.

• COM1: Fixed for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit. Users can obtain controller status and error information via a serial terminal, facilitating on-site debugging and troubleshooting.

• COM2: Configurable for Modbus slave communication, supporting 9600 or 19200 baud. Used for connecting to distributed control systems or other serial devices for data exchange.

5. VME Bus Interface

The controller connects to the VME bus via backplane connectors P1 and P2, facilitating data exchange with I/O boards and the VCMI communication board. P1 provides power and basic bus signals, while P2 is used for extended address and data lines. The controller acts as a VME bus master and can initiate data transfers.

6. PMC Expansion Site

The IS215UCVEM06A is equipped with one PMC expansion site compliant with the IEEE 1386.1 5V PCI standard. This site can be used to install additional function modules to further enhance the controller's communication capabilities or add specialized functions, such as:

• Additional Ethernet interfaces.

• Dedicated fiber optic communication modules.

• Encryption or security modules.

• Specialized co-processors for computation.

7. Battery and Configuration Switch

The controller contains a Type 1 Lithium battery rated at 3.3 V, 200 mA, used to maintain the real-time clock and backup SRAM data during power loss. Important Note: The battery is factory-shipped in the disabled position. To enable the battery, set switch SW10 to the closed position. When replacing the battery, use an equivalent type.

V. Operation and Diagnostics

1. Operational Status

After loading the specific application software, the IS215UCVEM06A controller begins executing control logic. During normal operation, the controller maintains communication with external systems via multiple Ethernet interfaces, Profibus interfaces, and serial interfaces. If rotating status LEDs are supported (on certain models), the front panel LEDs display a rotating pattern; otherwise, the status must be monitored via the Toolbox software.

2. Fault Diagnostics

If a failure occurs in the controller while it is running application code, the following will happen:

• Rotating status LEDs stop (if supported).

• An internal fault code is generated, readable via the Toolbox.

• Diagnostic alarms are displayed in the Toolbox, showing error numbers and descriptions.

For UCVE series controllers, error codes are no longer displayed via flashing front panel LEDs but are read through the Toolbox software. Additional information can be obtained via the COM1 serial port.

3. Common Fault Codes

Refer to the fault codes listed in the documentation (applicable to all controller types), including but not limited to:

Users can view detailed error information in the controller trace buffer via the Toolbox (e.g., View General Dump the trace buffer).

VI. Installation and Maintenance

1. Pre-Installation Preparation

• Ensure the VME rack is correctly installed and grounded.

• Verify that the required slot in the rack is free and meets the single-slot width requirement.

• Prepare an anti-static wrist strap to prevent electrostatic damage to the board.

• If the battery needs to be enabled, pre-set the SW10 switch accordingly.

• Plan the network configurations for all communication interfaces, including IP addresses, subnet masks, and Profibus parameters.

2. Installation Steps

1. Power Off the Rack: Ensure the rack power is turned off before inserting or removing any board.

2. Configure Battery Switch: If enabling the battery, set SW10 to the closed position.

3. Insert the Controller: Align the IS215UCVEM06A with the rack guides and push it in smoothly until the backplane connectors are fully engaged.

4. Secure the Front Panel: Tighten the captive screws at the top and bottom of the front panel to secure the board.

5. Connect External Cables: Connect the primary Ethernet cable, auxiliary Ethernet cables, Profibus cables, serial cables, etc., as required.

6. Power On and Verify: After powering on, use the Toolbox software to verify that the controller is correctly recognized and communicating, and check that all communication interfaces are configured correctly.

3. Maintenance Recommendations

• Regular System Status Checks: Monitor controller status, CPU load, temperature, traffic on each communication interface, and other parameters via the Toolbox.

• Ensure Adequate Ventilation: Verify that rack fans are operational and filters are clean to prevent controller overheating (multiple communication interfaces may increase power consumption and heat generation).

• Anti-Static Precautions: Always wear a grounded wrist strap when handling the board. Store the board in an anti-static bag when not in use.

• Battery Maintenance: Be aware of the battery's service life. Check periodically and replace when necessary (using only an equivalent type).

• Firmware Upgrades: If a firmware upgrade is necessary, strictly follow GE's official procedures to avoid interruption during the process.

• Profibus Network Maintenance: Periodically check Profibus cables, connectors, and terminating resistors to ensure the physical layer of the network is healthy.

• Spare Parts Management: It is recommended to keep at least one identical controller on-site as a spare to minimize downtime in case of failure.

4. Upgrade Considerations

When replacing an older UCVB or UCVD controller with the IS215UCVEM06A, note the following:

• Backplane Upgrade Required: The UCVE series is not directly compatible with backplanes for earlier controllers.

• Ethernet Cabling Upgrade: Upgrade from 10Base2 (coaxial) to 10Base-T/100BaseTX (twisted pair).

• Profibus Cabling: Ensure Profibus cables meet specifications and terminating resistors are correctly installed.

• Verify Configuration Compatibility: Ensure the Toolbox configuration matches the new hardware, particularly the configuration for multiple auxiliary Ethernet interfaces and Profibus interfaces.

VII. Applications

With its rich communication interfaces, the IS215UCVEM06A controller is widely used in the following complex scenarios:

• Large Combined-Cycle Power Plants:

• Coordinating the operation of multiple gas turbines, steam turbines, and heat recovery steam generators.

• Using different Ethernet interfaces to connect to individual unit control networks, plant-wide monitoring networks, and grid dispatch networks respectively.

• Connecting numerous field instruments and actuators via Profibus interfaces.

• Multi-Unit Coordinated Control Systems:

• Serving as a coordination controller in power plants with multiple units, exchanging data with individual unit controllers via multiple EGD networks.

• Implementing load distribution, reserve capacity management, and overall efficiency optimization across units.

• Complex Process Industry Control:

• In industries like petrochemicals and metallurgy where connecting a large number of Profibus field devices is required.

• Using different Ethernet interfaces to isolate the process control network, safety instrumented system network, and corporate management network.

• Compressor Station Control:

• Acting as a station controller in facilities with multiple compressors operating in parallel.

• Connecting vibration monitoring systems, anti-surge valves, and auxiliary equipment for each compressor via Profibus interfaces.

• Connecting to the dispatch center, local HMI, and remote maintenance network via separate Ethernet interfaces.

• Generator Excitation and Substation Automation:

• Interfacing with excitation systems, connecting to power cabinets, de-excitation cabinets, etc., of static excitation systems via Profibus.

• Communicating with substation automation systems and protection information management systems via Ethernet interfaces.

• Upgrade and Retrofit Projects Requiring High Network Flexibility:

• Replacing older UCVB and UCVD controllers to gain modern communication capabilities.

• Introducing Profibus and high-speed Ethernet communication while retaining existing I/O and field devices.
