GE IS200DSPXH2DBD Digital Signal Processor Control Board

The GE IS200DSPXH2DBD Digital Signal Processor Control Board represents a sophisticated and high-performance primary controller solution engineered by General Electric for demanding industrial control applications. This advanced control board serves as the cornerstone of the Innovation Series™ drives, providing comprehensive bridge and motor regulator functions alongside gating control capabilities. Additionally, the IS200DSPXH2DBD Digital Signal Processor Control Board excels in generator field control applications within the EX2100™ Excitation Control systems, demonstrating remarkable versatility across multiple industrial domains.

The IS200DSPXH2DBD Digital Signal Processor Control Board integrates a powerful high-performance digital signal processor with standard memory components and custom application-specific integrated circuit logic, delivering exceptional processing capabilities and interface functionality. This product introduction provides comprehensive technical specifications, functional descriptions, and operational guidelines for the IS200DSPXH2DBD Digital Signal Processor Control Board, serving as an essential reference for engineers, technicians, and procurement specialists involved in industrial automation and control systems.

The IS200DSPXH2DBD Digital Signal Processor Control Board is manufactured to the highest quality standards, featuring conformal coating for enhanced protection against environmental contaminants and moisture. This variant of the DSPX platform incorporates the H2DBD configuration, which includes specialized hardware features and firmware optimized for both drive and excitation control applications. The board's robust design and comprehensive feature set make it an ideal choice for critical infrastructure applications where reliability and performance are paramount.

Functional Architecture

The IS200DSPXH2DBD Digital Signal Processor Control Board implements a sophisticated functional architecture centered around its digital signal processor core. The board provides comprehensive logic, processing, and interface functions that enable precise control of industrial power systems. The architectural design incorporates multiple specialized subsystems that work in concert to deliver exceptional control accuracy and system responsiveness.

At the heart of the IS200DSPXH2DBD Digital Signal Processor Control Board lies a high-performance digital signal processor operating at 60 MHz, providing substantial computational power for real-time control algorithms. The DSP executes complex control routines including proportional-integral-derivative regulation, pulse-width modulation generation, and advanced vector control algorithms essential for modern motor and generator control applications. The processing architecture supports four external interrupts during normal operation: stack overflow detection, inner loop load pulse synchronization, and two configurable input channels that provide flexibility for various application requirements.

The memory subsystem of the IS200DSPXH2DBD Digital Signal Processor Control Board incorporates multiple memory technologies to support different operational requirements. FLASH memory provides storage for DSP boot images, application code execution, and configurable item storage along with system history records. Random access memory supports data storage and code execution during normal operation. Non-volatile random access memory preserves critical configuration data during power cycles, while add-only memory stores board revision identification information essential for system maintenance and upgrade planning.

The IS200DSPXH2DBD Digital Signal Processor Control Board implements custom logic functions through field programmable gate arrays and application-specific integrated circuits. Most specialized and support functions are consolidated within a single ASIC, which integrates numerous interface and control functions to minimize component count and enhance system reliability. This ASIC provides serial interfaces, load pulse synchronization, watchdog timer functionality, and various I/O management capabilities.

Standard Hardware Features

The IS200DSPXH2DBD Digital Signal Processor Control Board incorporates an extensive array of standard hardware features designed to support diverse control applications. The board's digital signal processor operates at 60 MHz, providing substantial processing bandwidth for demanding real-time control algorithms. Four external interrupts are provided during normal operation to support various system events and synchronization requirements.

The memory configuration of the IS200DSPXH2DBD Digital Signal Processor Control Board includes FLASH memory for boot images and code execution, RAM for data storage and runtime operations, NVRAM for persistent data retention, and add-only memory for board identification. This comprehensive memory architecture ensures reliable operation under various conditions and supports sophisticated control algorithms that require substantial data storage and retrieval capabilities.

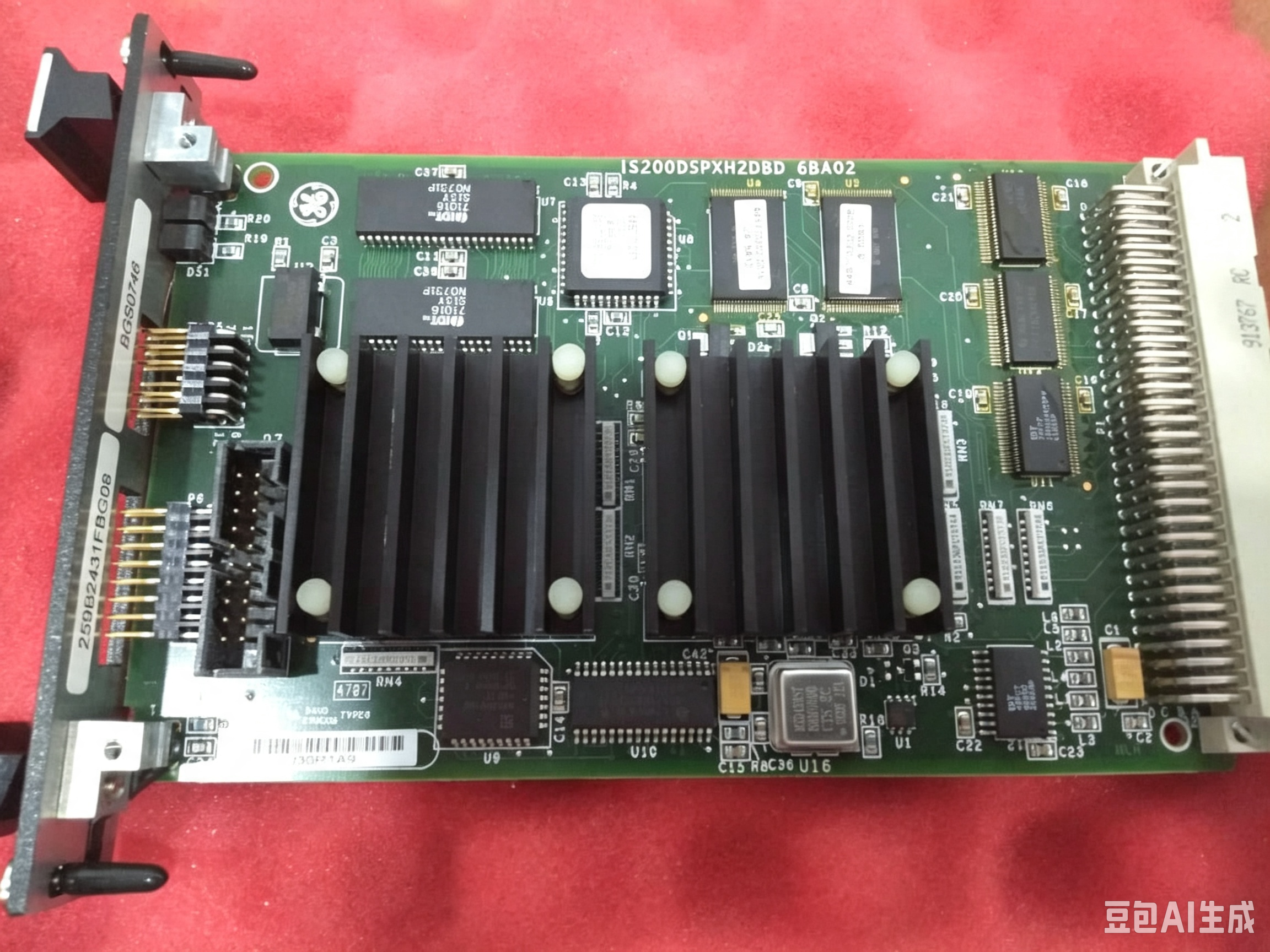

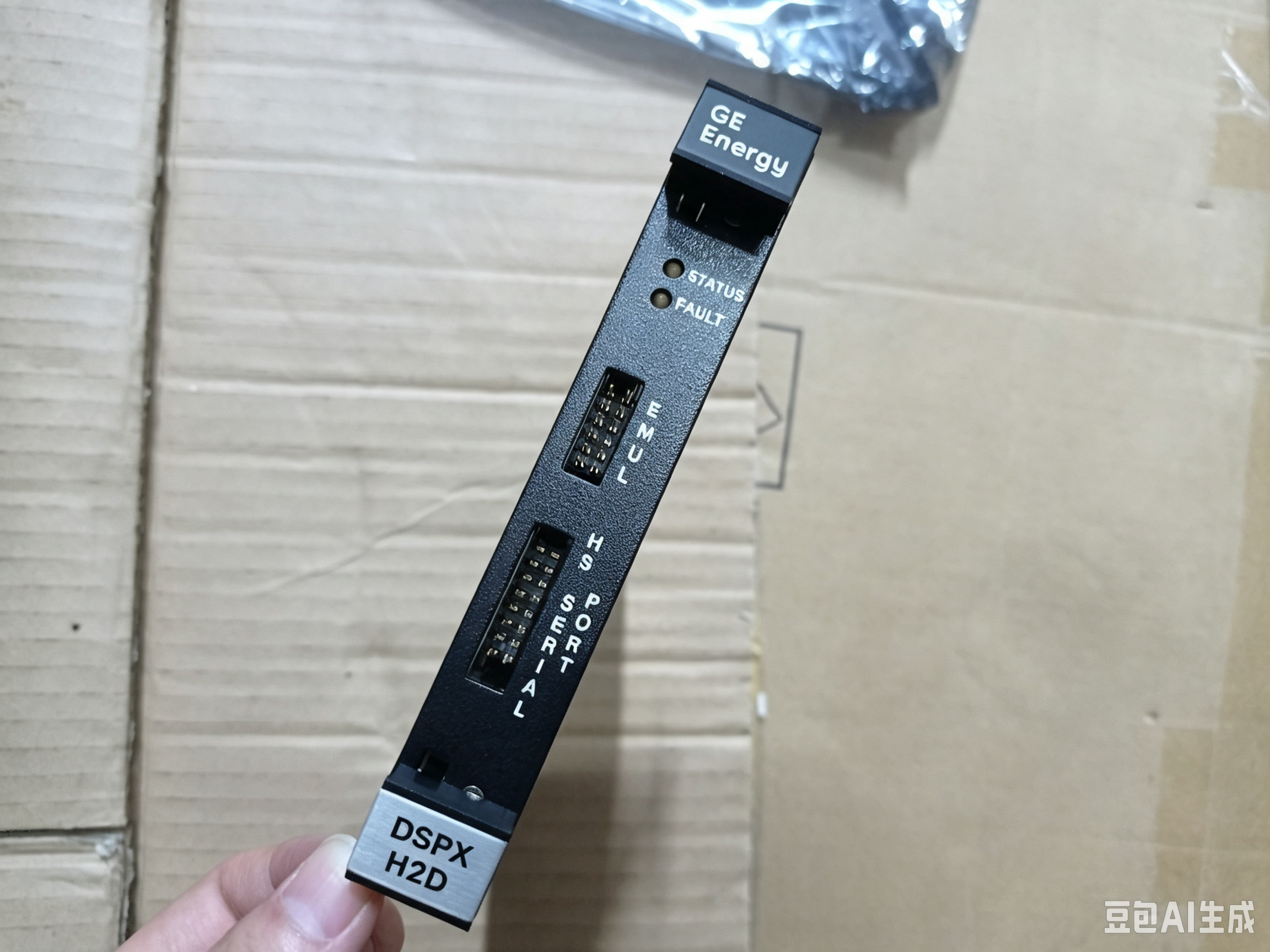

The IS200DSPXH2DBD Digital Signal Processor Control Board includes two LEDs on its front panel for visual status indication. The red FAULT LED indicates fault conditions or reset states, while the green STATUS LED provides operational status information. These indicators enable rapid diagnostic assessment of board condition without requiring external test equipment.

Specialized Hardware Functions

The IS200DSPXH2DBD Digital Signal Processor Control Board provides numerous specialized hardware functions through its custom ASIC and supporting circuitry. A revision identification register readable by the DSP facilitates software configuration management and system integration. Four serial interfaces are provided through the P1 backplane connector, supporting various communication protocols and system integration requirements.

Two five Mb/s ISBus™ interfaces can operate in either master or slave mode, providing flexible system integration options. An asynchronous TTL interface supports connection to PC-based configuration tools through RX, TX, and TXEN/RTS data signals. An additional asynchronous TTL interface connects to programmer boards, facilitating firmware updates and system configuration. The IS200DSPXH2DBD Digital Signal Processor Control Board also includes a DSP emulator port that provides scan interface capabilities similar to JTAG, enabling emulation and FLASH programming functions.

Synchronizing load pulse signals represent a critical specialized function of the IS200DSPXH2DBD Digital Signal Processor Control Board. The inner loop load pulse signal captures I/O values including bridge, motor, and generator voltages, current VCOs, tachometer counters, and discrete inputs. This signal also synchronizes ISBus channels, software, and gating outputs to bridges. An application loop load pulse signal operates at sub-multiples or multiples of the inner loop load pulse, capturing values of other application VCOs and optional tachometer readings. A six-bit register facilitates firmware synchronization by incrementing on each inner loop load pulse and resetting on each application loop load pulse.

Stack overflow detection is implemented for both foreground and background stacks, enhancing system reliability. Interrupt INT0 is generated if either stack overflows, and a hard reset is generated if both stacks overflow simultaneously. A configuration register allows the stack overflow reset function to be disabled when required for diagnostic or development purposes.

The watchdog timer of the IS200DSPXH2DBD Digital Signal Processor Control Board is enabled and periodically toggled by the DSP with a configurable toggle interval. Watchdog timer timeout generates a hard reset, providing essential system monitoring and recovery capabilities. A 24-bit free-running timer serves as a reference for various timing-sensitive functions.

Application Input Processing

The IS200DSPXH2DBD Digital Signal Processor Control Board features five differential HIFI pair application inputs that support multiple configuration options. These inputs can function as two quadrature incremental tach interfaces, each with marker capability. The signals drive two 16-bit up/down counters that maintain their present state when inputs are at the same level and change state when inputs are differentially opposite. A five MHz timer resets with each counter increment or decrement, and a state register records the direction of the last count.

Capture registers associated with each counter can be configured to capture values on either inner loop load pulse or application loop load pulse occurrence. The five differential HIFI inputs can alternatively serve as application layer VCO counters or single-channel tach interfaces. As VCO counters, five 16-bit counters increment on differentially decoded and filtered inputs, with values captured into registers readable by the DSP upon application loop load pulse. The inputs can also function as up to ten discrete inputs, each filtered for three system clock cycles and directly readable by the DSP in a buffer.

Six inputs from the backplane are digitally filtered and provided to VCO counters. These 16-bit counters feature capture registers latched by the inner loop load pulse and readable by the DSP. The inputs originate from technology-specific I/O cards such as bridge interface or exciter interface cards, enabling comprehensive system integration and monitoring.

Output Capabilities

The IS200DSPXH2DBD Digital Signal Processor Control Board provides two PWM outputs operating at a fixed 24 kHz frequency with 10-bit resolution each. These outputs occupy one 20-bit register and can drive instrumentation meters or other output devices requiring precise analog control signals. The PWM outputs provide flexibility for various auxiliary control functions, expanding the board's application versatility.

A SYNC OUT expansion board I/O provides synchronization functions at the BIC board layer, enabling coordinated operation across multiple control boards. Miscellaneous output signals including load pulse outputs, keypad interface signals, and tool interface signals extend the board's connectivity options. The BIC disable output provides power control capability during system startup, enhancing system reliability and protecting connected equipment.

Onboard Firmware Architecture

The IS200DSPXH2DBD Digital Signal Processor Control Board stores onboard firmware in FLASH memory, organized into three main types. The boot loader controls the power-up sequence and performs essential initialization functions. This critical component should not be reloaded in the field under normal circumstances, as it provides fundamental system startup capabilities.

Application code defines the specific control functions for the drive or exciter product implementation. This code is loaded through the Tool port on the exciter, enabling field configuration and updates when required. Configuration parameters are loaded using the toolbox, with exciter parameters transmitted over the Unit Data Highway and drive parameters loaded through serial ports, ISBus, or Ethernet to the Application Control Layer when applicable.

Indicating Lights and Diagnostics

The IS200DSPXH2DBD Digital Signal Processor Control Board includes comprehensive diagnostic indicators that facilitate rapid system assessment and troubleshooting. The two front-panel LEDs provide essential operational status information visible to operators and maintenance personnel.

The red FAULT LED serves as the primary fault indicator, driven directly by the digital signal processor. When illuminated or flashing, the FAULT LED indicates that a fault condition has occurred or the system is in reset state. The LED remains off when no faults are present, providing clear visual confirmation of normal operation. This simple but effective diagnostic indicator enables rapid fault detection without specialized test equipment.

The green STATUS LED provides operational status monitoring. The LED flashes during normal running operation, indicating active control execution. When the STATUS LED is continuously illuminated, the system is stopped but operational. The LED turns off during fault conditions or reset states, providing immediate visual indication of abnormal conditions. Together with the FAULT LED, the STATUS LED enables operators to assess system status at a glance.

I/O Connectors and Interfaces

The IS200DSPXH2DBD Digital Signal Processor Control Board features three primary I/O connectors that provide comprehensive system connectivity. The P1 backplane connector serves as the primary system interface, providing power, data, and control signal connections. The P5 DSP emulator port provides interface to the TI emulator port, supporting development, debugging, and FLASH programming activities. The P6 engineering monitor port connects to the DSP synchronous serial port at TTL levels, providing connection to terminals for GE engineering use.

The P1 connector provides memory-mapped process bus address space with four chip select signals supporting interfaces to bridge and customer I/O. This connector includes individual controls for a standard UART serial interface to programmer boards and configuration tools, plus two additional ISBus proprietary serial interfaces for Application Control Layer or local expansion functions. The comprehensive signal set includes data bus, address bus, control signals, VCO inputs, ISBus serial channels, and various specialized I/O signals.

The P5 emulator port located on the board front panel provides scan interface capabilities similar to JTAG, enabling emulation and FLASH programming functions. This port supports development and debugging activities essential for system integration and maintenance. The P6 engineering monitor port provides access to the DSP synchronous serial port for engineering use only, typically employed during system development and testing.

Power Supply Specifications

The IS200DSPXH2DBD Digital Signal Processor Control Board receives its +5 V power supply input through the P1 backplane connector. The power supply specification requires +5 V at -2% to +5% tolerance, ensuring stable operation across various system configurations. The board distributes power to its various subsystems while maintaining isolation between digital and analog power domains for optimal performance.

Power supply returns are provided through DCOM pins for digital circuitry and ACOM pins for analog circuitry. This separation minimizes noise coupling between digital and analog sections, enhancing measurement accuracy and control precision. The power supply architecture supports the board's comprehensive I/O capabilities while maintaining reliable operation in industrial environments.

Physical Specifications

The IS200DSPXH2DBD Digital Signal Processor Control Board mounts in a standard board rack and connects to the backplane through a 4-row, 128-pin DIN connector. In EX2100 applications, the IS200DSPXH2DBD Digital Signal Processor Control Board attaches to an EISB board, with these two boards detachable for replacement and maintenance procedures.

The board's physical design incorporates ejector tabs at the top and bottom, facilitating removal and installation procedures. Captive screws secure the board in the rack, preventing accidental dislodgement while enabling straightforward removal when required. The front panel layout provides access to status LEDs, emulator port, and engineering monitor port.

Handling and Installation Precautions

The IS200DSPXH2DBD Digital Signal Processor Control Board contains static-sensitive components that require proper handling techniques. All boards should be stored in anti-static bags or boxes when not installed. Personnel handling boards or board components must wear grounding straps to prevent electrostatic discharge damage.

For Innovation Series drive applications, power must be turned off and verified before touching the IS200DSPXH2DBD Digital Signal Processor Control Board or any connected circuits. Board connections should never be removed, inserted, or adjusted while power is applied to the equipment. When removing the board from the rack, the screws should be loosened, ejector tabs raised, and the board gently pulled from the bus rack using both hands.

For offline excitation control replacement, comprehensive de-energizing procedures must be followed. This includes verifying that power indicators on EPDM and EPSM power supplies are off and the IS200DSPXH2DBD Digital Signal Processor Control Board LEDs are off. Fiber-optic cables must be disconnected from the EISB front panel before board removal.

For redundant excitation control systems operating online, special procedures apply. The failed IS200DSPXH2DBD Digital Signal Processor Control Board can be replaced while the exciter continues running on the remaining controller. Care must be taken as other controllers, power supplies, and terminal boards remain energized and active during the replacement procedure.

Board Identification and Configuration

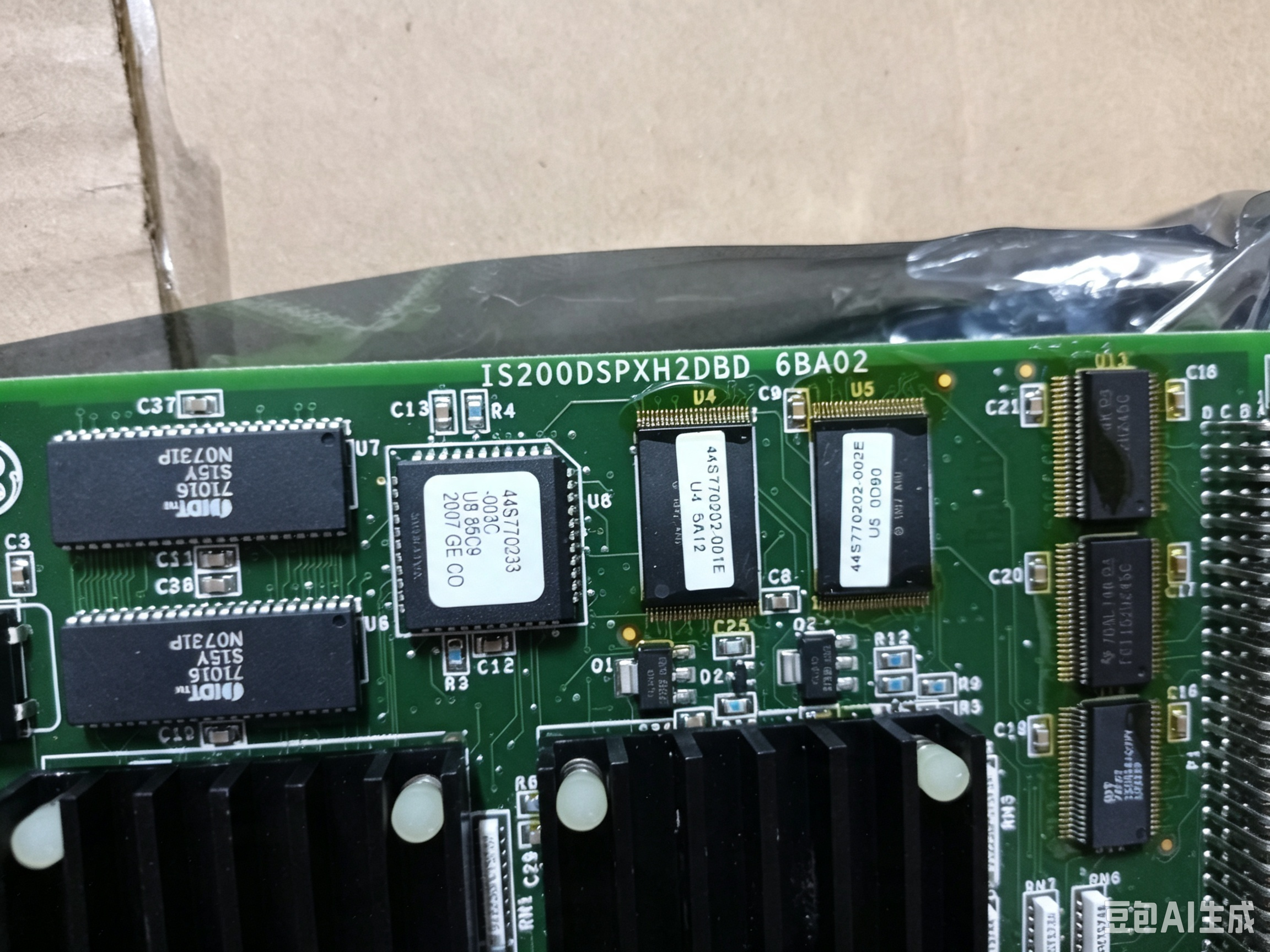

The IS200DSPXH2DBD Digital Signal Processor Control Board is identified by its alphanumeric part number located near the board edge. The board's functional acronym DSPX derives from its Digital Signal Processor Control Board designation. The part number structure follows GE's convention, where "H2" indicates the specific hardware configuration, "D" denotes conformal coating for environmental protection, and the suffix "BD" indicates specific board options and firmware configuration.

Several variations of the DSPX board exist, with the IS200DSPXH2DBD Digital Signal Processor Control Board specifically configured for applications requiring conformal coating protection. When ordering replacement boards or specifying systems, the complete part number is essential to ensure compatibility and proper functionality.

Warranty and Ordering Information

GE provides comprehensive warranty coverage for the IS200DSPXH2DBD Digital Signal Processor Control Board under the terms detailed in the GE Terms and Conditions brochure. This documentation outlines warranty periods, parts coverage, and service support available for the product. Warranty information can be obtained from the nearest GE Sales Office or authorized GE Sales Representative.

When ordering the IS200DSPXH2DBD Digital Signal Processor Control Board, the complete part number and description must be included. For drive or exciter applications, the serial number and Material List number of the associated equipment should be provided to ensure correct configuration and compatibility. Parts still under warranty may be obtained directly from the factory, while renewals and spares should be ordered through the nearest GE Sales or Service Office.

GE Energy ensures backward compatibility of replacement boards, though later versions may be substituted based on availability and design enhancements. All digits in the part number are important when ordering or replacing the IS200DSPXH2DBD Digital Signal Processor Control Board, as even minor variations can affect functionality and compatibility.

Product Specifications Table
