The IS215ACLEH1C Application Control Layer Module (ACLE) is a high-performance, microprocessor-based master controller developed by GE Energy for its EX2100 Excitation Control System. As a core intelligent unit of the EX2100 series, the ACLE module is responsible for executing complex control algorithms, managing data communications, and coordinating the functions of various boards within the system. It is a critical component ensuring stable and efficient operation of the generator excitation system.
The module features a compact design, occupying two slots in a standard EX2100 control rack. It can be installed in racks with various backplane configurations, including simplex thyristor control racks, warm backup thyristor control racks, simplex regulator control racks, and redundant regulator control racks, demonstrating excellent compatibility and flexibility. As a complete replacement for the earlier IS215ACLAH1A (ACLA) module, the ACLE has been comprehensively upgraded in terms of performance, storage, and processing capability to meet more complex control demands and harsher industrial environments. The IS215ACLEH1C model specifically refers to a version equipped with a high-performance processor and a specific operating system, designed to provide powerful computational support and real-time response capabilities for the EX2100 system.
Its core function is to achieve data exchange between upper and lower-level devices, execute control logic, and monitor the entire excitation system's status through various communication networks such as Ethernet. It runs specialized control block languages and libraries, supports online configuration loading, I/O point forcing, comprehensive diagnostic functions, and non-volatile event logging, providing engineers with powerful debugging and maintenance tools. Combined with GE's Control System Toolbox software, configuring, upgrading firmware, and modifying application logic for the ACLE module becomes intuitive and efficient, significantly enhancing engineering implementation and maintenance convenience.
2. Core Functions and Features
The design of the IS215ACLEH1C module fully considers the stringent requirements of industrial control, integrating multiple advanced features to ensure system reliability, real-time performance, and maintainability.
Powerful Processing Capability: Equipped with a high-performance Central Processing Unit, it can quickly execute complex control algorithms and process large amounts of I/O data, meeting the high-performance demands of modern large generator sets for excitation control.
Rich Communication Interfaces: Standard features include two 10/100BaseT auto-negotiating Ethernet ports and two RS-232 serial communication ports. The Ethernet ports support protocols such as TCP/IP, EGD (Ethernet Global Data), and Modbus TCP/IP. They can be used to connect to engineering stations for configuration and monitoring, access the plant-level Unit Data Highway, and expand remote I/O. The serial ports can be used for system debugging or as a backup for Modbus RTU communication.
Modularity and Expandability: The ACLE module itself consists of a carrier board and a high-performance PC/104-Plus processor board, resulting in a compact structure. Via its Ethernet interface, it can easily expand remote I/O stations, such as GE Fanuc VersaMax, to build a distributed control system.
Large Local Storage: Onboard 16 MB CompactFlash non-volatile flash memory stores the operating system, runtime code, and application configuration files. Even if the system loses power, all data is safely preserved, ensuring quick system startup and reliable operation.
Real-time Performance and Determinism: Through dedicated hardware logic on the backplane and 4k x 32 Dual Port RAM, the ACLE performs high-speed, deterministic data exchange with the Digital Signal Processor board. Additionally, it provides a precise 1 ms periodic time synchronization signal to the Digital Signal Processor board via the backplane, ensuring the real-time performance of the entire control loop.
Comprehensive Diagnostics and Status Indication: The front panel features multiple LED status indicators, including OK, ACTIVE, ENET, FLASH, and STATUS. These intuitively display the module's operating status, network activity, flash memory operations, and fault codes during the startup process, greatly facilitating on-site fault troubleshooting.
High Reliability and Redundancy Support: Supports online hot-swap replacement in redundant control systems (subject to specific firmware conditions), allowing for the replacement of a faulty module without shutting down the system. This minimizes the impact of a single point of failure on system operation, significantly improving the overall availability of the excitation control system.
3. Hardware Architecture and Components

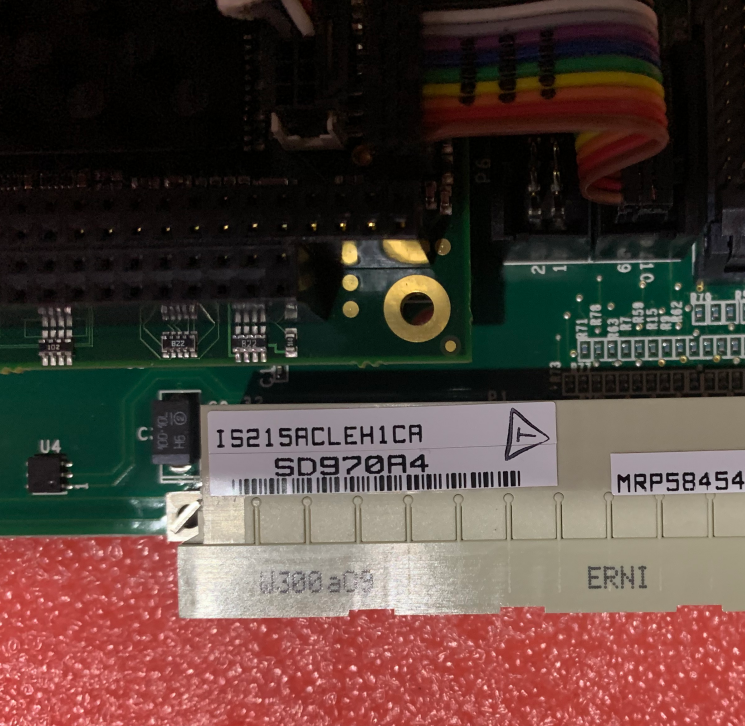

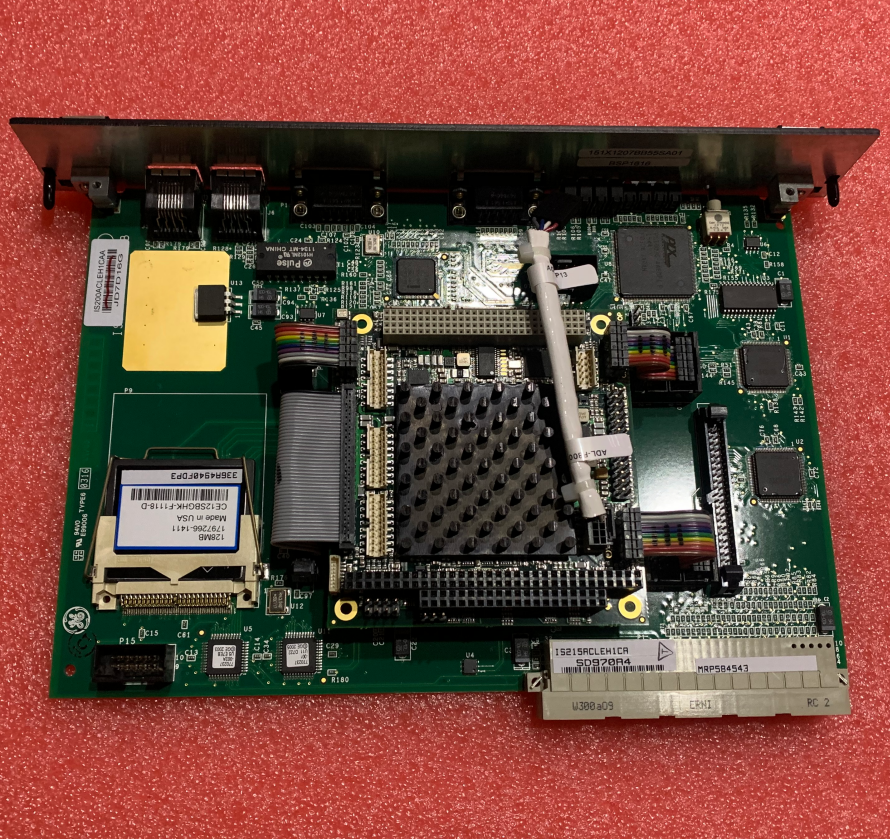

The IS215ACLEH1C module adopts a two-board architecture: an IS200ACLE carrier board and a PC/104-Plus format processor board. This design separates the core computing unit from I/O interfaces and backplane communication logic, ensuring both advanced performance and good stability.
Processor Board: This board integrates the system's core computing unit. Depending on the model, it may feature a Pentium P5 266 MHz or Tualatin Celeron 400 MHz Central Processing Unit, equipped with 256 KB of L2 cache. It has 128 MB of onboard Dynamic Random Access Memory (expandable) for running programs and storing temporary data. Additionally, the processor board includes flash memory for the BIOS, PCI bus interface, PC/104 bus interface, and standard PC/AT compatible components. Jumpers on the processor board are preset at the factory and require no field adjustment.
Carrier Board: Serving as the bridge connecting the processor board to other parts of the EX2100 system, the carrier board provides a wealth of functional interfaces. It integrates the 16 MB CompactFlash disk, the primary Ethernet port (ENET1), the Dual Port RAM for backplane communication, 8 KB of Non-Volatile RAM, reset logic, and status LED drive circuits. The carrier board also contains internal ribbon cable headers for connecting to the processor board, including interfaces for reset, CF card, second Ethernet port, and two serial ports. All connections are correctly installed and secured at the factory.
4. Interfaces and Communication Capabilities
The ACLE module offers a variety of physical interfaces, enabling flexible integration into various control system architectures.
Front Panel Interfaces:

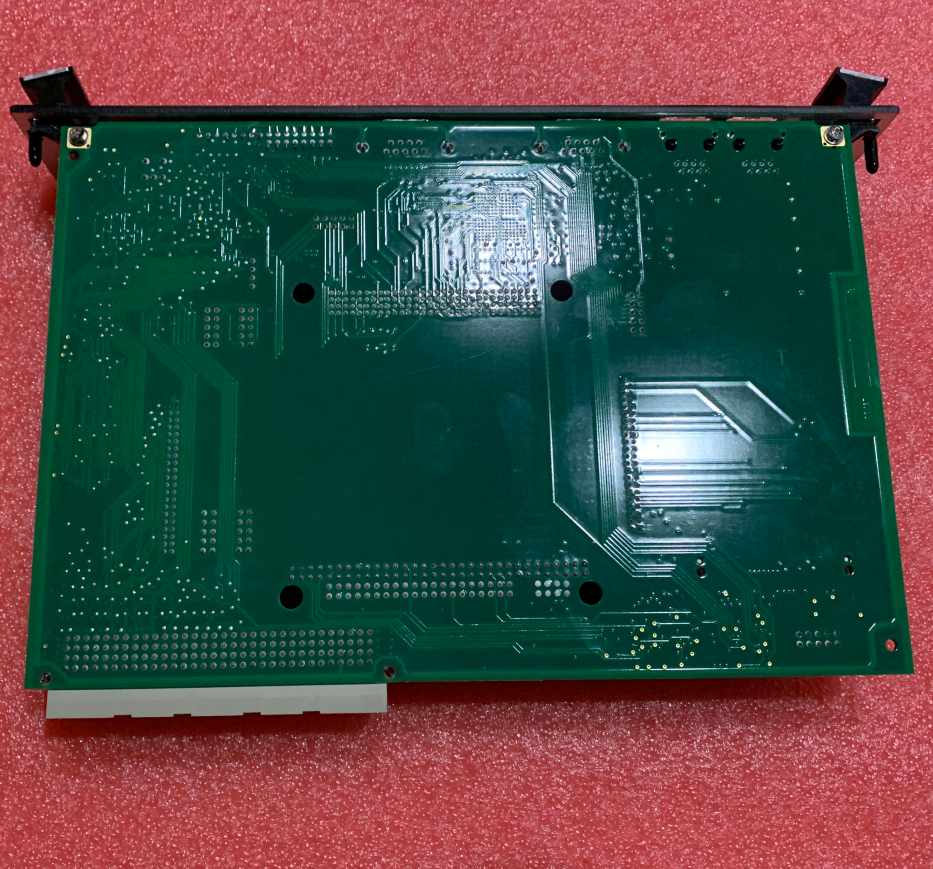

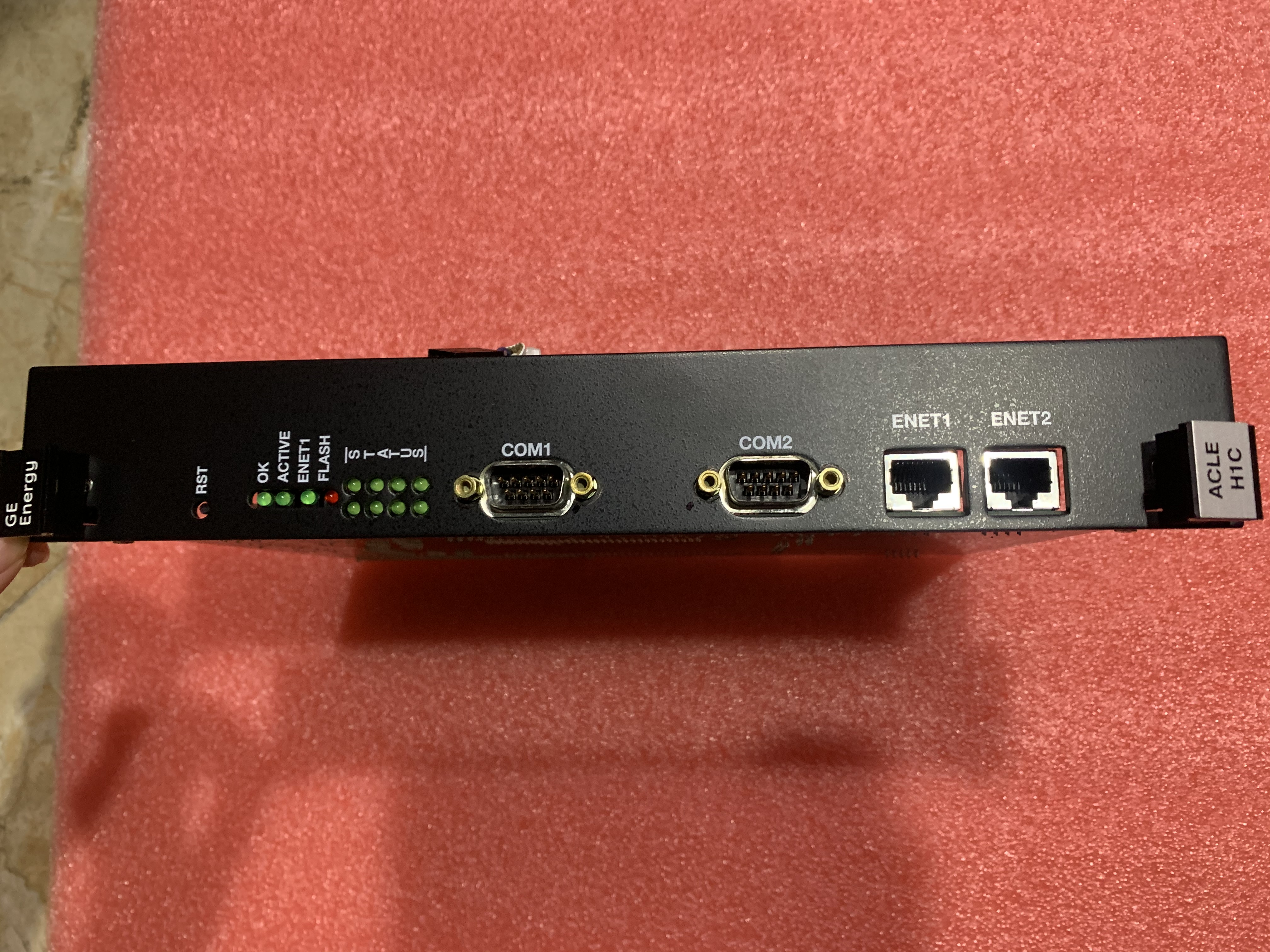

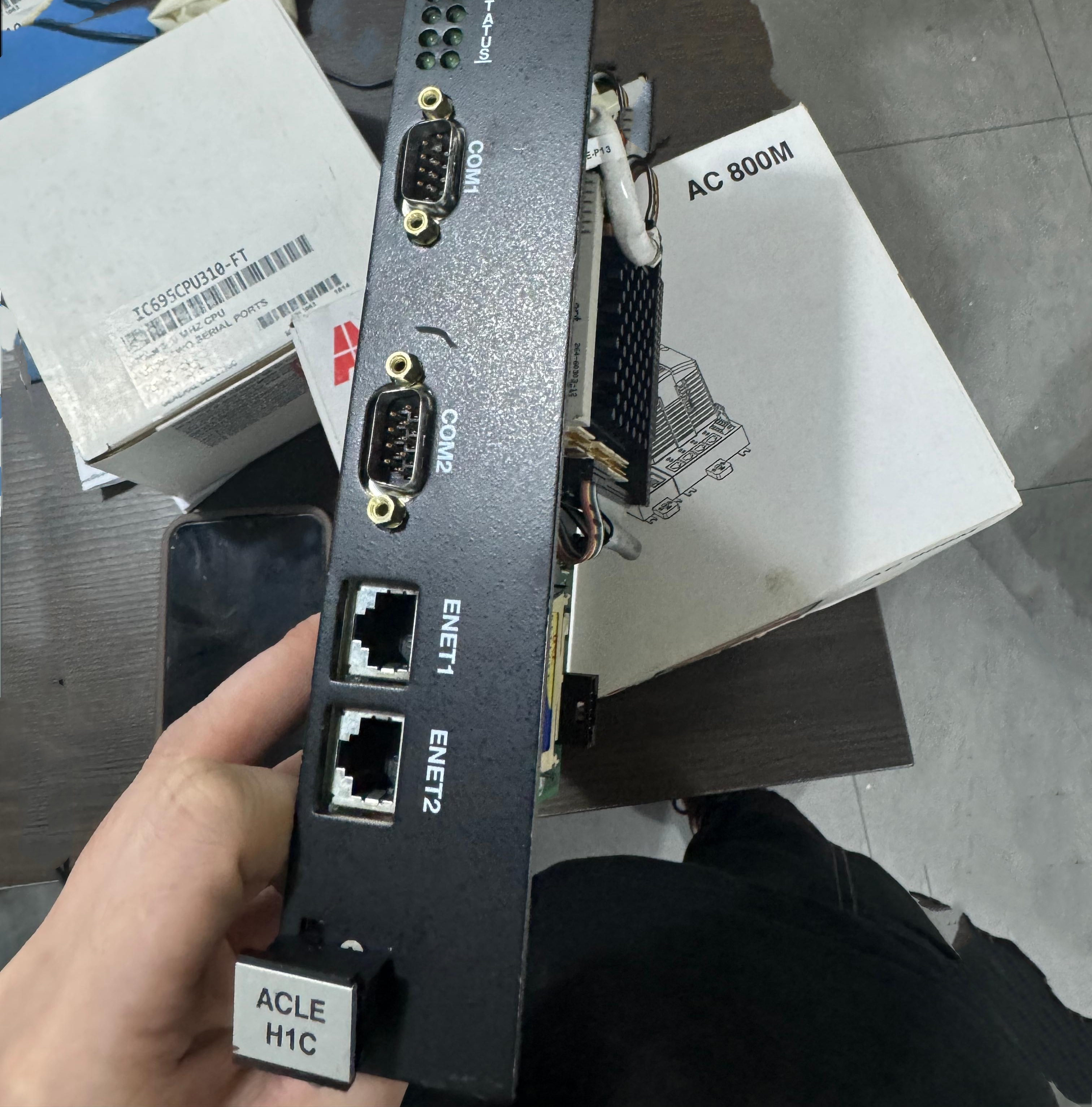

Serial Ports COM1 and COM2: Two standard 9-pin D-sub male connectors. COM1 is primarily used during system commissioning. A dedicated serial cable connects a laptop to configure the TCP/IP address of ENET1 using the Toolbox software. This port is typically unused during normal operation and should be disconnected. COM2 can be used for serial Modbus communication applications.
Ethernet Ports ENET1 and ENET2: Two standard RJ45 connectors supporting 10/100 Mbps auto-negotiating networks. ENET1 is typically used to connect the Toolbox software and the plant-level Unit Data Highway. ENET2 can be used to expand I/O on a private network, for example, connecting to GE Fanuc VersaMax remote I/O stations. The shields of both ports are connected to the system chassis ground, but this feature is unused when Unshielded Twisted Pair cables are employed.
Backplane Interface:
P1 Connector: Through this connector, the ACLE plugs into the EX2100 rack's backplane. Its primary function is high-speed data exchange with the Digital Signal Processor board in the same rack via the onboard Dual Port RAM. Additionally, it sends a 1 ms periodic time synchronization signal to the Digital Signal Processor board via the INT_LAN signal. The signals on this interface are complex and require a special extender board for measurement, which is not part of standard field maintenance procedures.
Internal Connections: The carrier board also features several internal ribbon cable headers for connecting to the processor board, including P6 (Reset), P3 (CF Card), P13 (ENET2), P5 (COM1), and P4 (COM2). These connections are factory-installed and require no user intervention. Additionally, a P9 connector on the carrier board allows for the insertion or removal of the CompactFlash disk.
5. Software Functions and Configuration
The functionality of the IS215ACLEH1C is defined not only by its hardware but also by a layered software system. This software is structured into several levels, ensuring system flexibility, maintainability, and security.
Basic Input/Output System: This is the standard industry-grade Phoenix BIOS stored in the flash memory of the processor board. It is responsible for hardware initialization, identification, and providing low-level services for operating system loading. The BIOS is pre-programmed at the factory, and its configuration parameters are stored in EEROM. Users typically do not need and are not required to modify it.
Core Load Software: Stored on the CompactFlash disk, this includes the QNX real-time operating system, the file system, and the Ethernet TCP/IP stack. This forms the foundation for system startup, enabling the ACLE with basic network and serial communication capabilities. When only the core load software is present, the STATUS LEDs on the front panel display a walking pattern, indicating the system is ready to receive Ethernet configuration via the COM1 port. This software is pre-installed at the factory.
Runtime Code: This is the essential software required for the ACLE to support full static exciter or regulator functionality. It contains core components like the control scheduler and function block libraries. The runtime code needs to be downloaded to the module via the Toolbox software through Ethernet port ENET1.
Application Code: This contains the specific control logic, parameters, and settings for a particular application. It is stored in a binary format called PCODE and is also downloaded by the Toolbox software via ENET1. The Toolbox supports online parameter modification and minor logic adjustments, saving the changes to the module's flash memory.
All software configuration, downloading, and upgrades are managed through GE's Control System Toolbox software. Running on the Windows platform and communicating with the ACLE via Ethernet, it provides engineers with a unified engineering environment.
6. Installation, Maintenance, and Replacement
The IS215ACLEH1C module is designed with industrial environment installation convenience and maintenance needs in mind.
Installation: Before inserting the module into the rack, ensure all internal ribbon cables are securely connected. To install, first slide the module along the rack guides, then use your thumbs to press simultaneously on the top and bottom of the front panel to initially seat the module into the backplane connector. Finally, alternately tighten the top and bottom captive screws on the front panel assembly to ensure even pressure and full, square seating of the module.
Status Indication and Fault Diagnosis: The front panel LEDs are the primary indicators for determining the module's operating status.
OK LED: Solid green indicates the watchdog timer is enabled and functioning correctly. It is off during startup and turns on solid after startup completes.
ACTIVE LED: Green, blinks when the Central Processing Unit accesses memory. It blinks during startup and may blink or remain solid after the application starts running.
ENET LED: Green, blinks when the ENET1 port is connected and activity is detected.
FLASH LED: Red, lights solid during CompactFlash read/write operations. Special Note: Never turn off module power when this LED is on, as it may corrupt the file system, requiring a core load reload.
STATUS LEDs: A group of green LEDs displaying BIOS steps during startup or fault codes during application loading. Observing the flashing patterns of these LEDs helps diagnose system startup failures.
Replacement Procedure:
Simplex or Offline Redundant Systems: Before replacement, power down the entire control cabinet and verify all power indicators are off. Disconnect all front panel cables, loosen the captive screws, lift the ejector tabs, and pull the module out of the rack. After installing the new module, the runtime code and application configuration file must be re-downloaded using the Toolbox software.
Online Replacement in Redundant Systems: For redundant systems supporting online hot-swap, a faulty ACLE can be replaced without shutting down the system. Before operating, verify that the section containing the module to be replaced (M1 or M2) is not the active master. Power off that specific section using the appropriate Power Distribution Module. After confirming all power indicator LEDs on boards in that section are off, disconnect cables and remove the old module. After installing the new module and restoring power, use the Toolbox software to configure and download data to it. Finally, test the new module's functionality by transferring control from the active master.
