GE DS200FCGDH1B Gate Pulse Amplifier Board

The DS200FCGDH1B is a Gate Pulse Amplifier Board designed by General Electric (GE) Energy for its LS2100 static starter system. Belonging to the FCGD (Gate Pulse Amplifier Board) series, this board is a core component of the LS2100 static starter control system, used to drive the gate trigger circuits of SCRs (silicon-controlled rectifiers), enabling precise control of the power bridge.

The primary function of the FCGD Gate Pulse Amplifier Board is to receive gate trigger command signals from the control system and amplify them into power signals sufficient to drive the SCR gates. This board works in conjunction with the FGPA Gate Pulse Amplifier Board to complete the trigger control of the SCR bridge. The FCGD board also integrates multiple functions, including current feedback processing, voltage feedback processing, and overcurrent protection, making it a critical component for achieving precise control and reliable protection in the LS2100 static starter.

The DS200FCGDH1B board is designed to meet the demands of industrial static starter applications and features the following characteristics:

• Gate Pulse Amplification: Amplifies control signals into power pulses required to drive SCR gates.

• Current Feedback Processing: Processes current feedback signals from current transformers for closed-loop control and protection.

• Voltage Feedback Processing: Processes AC line voltage and DC link voltage feedback signals.

• Overcurrent Protection: Built-in hardware overcurrent protection circuit with fast response time and high reliability.

• Testpoints: Provides multiple testpoints for commissioning and fault diagnostics.

• LED Indicators: Displays gate pulse status via LED indicators for on-site inspection.

This product is widely used in LS2100 static starter systems, large synchronous motor starting, gas turbine starting, and other industrial applications, particularly in high-power power electronics applications requiring highly reliable SCR gate drive.

II. Key Functions

1. SCR Gate Pulse Amplification

The core function of the DS200FCGDH1B board is to amplify gate trigger command signals from the control system into power pulses sufficient to drive the SCR gates. The board receives low-level trigger signals from the control system and, through internal power amplification circuits, generates sufficient gate current to ensure reliable SCR conduction. Gate pulse waveforms must have adequate amplitude and width to meet SCR conduction requirements.

2. Current Feedback Processing

The DS200FCGDH1B board processes current feedback signals from current transformers (CTs). These signals are used for:

• Current Closed-Loop Control: Provides real-time current feedback values to the control system for precise current regulation.

• Overcurrent Protection: Detects whether current exceeds the set threshold and triggers protective actions.

• Current Monitoring: Provides current display data for the operator interface.

The board provides multiple current feedback testpoints, including:

• IA: Phase A current feedback

• IB: Phase B current feedback

• IC: Phase C current feedback

• IFB: DC link current feedback

3. Voltage Feedback Processing

The DS200FCGDH1B board processes voltage feedback signals from potential transformers (PTs). These signals are used for:

• Voltage Closed-Loop Control: Provides real-time voltage feedback values to the control system.

• Synchronization Detection: Detects AC line voltage phase and frequency for synchronization control.

• Voltage Monitoring: Provides voltage display data for the operator interface.

The board provides multiple voltage feedback testpoints, including:

• FBAR: Phase A voltage feedback

• FCBR: Phase B voltage feedback

• FACR: Phase C voltage feedback

4. Hardware Overcurrent Protection

The DS200FCGDH1B board incorporates a built-in hardware overcurrent protection circuit. When current exceeds the set threshold, it quickly triggers protective actions, shutting off SCR gate pulses to prevent equipment damage. The overcurrent protection threshold is adjusted via an onboard potentiometer (IOC SET) and can be monitored at testpoint OC_SP.

5. Gate Status Indication

The DS200FCGDH1B board displays the trigger status of each SCR gate via LED indicators, facilitating on-site commissioning and fault diagnostics. When a gate trigger command is active, the corresponding LED indicator flashes, providing visual indication of gate pulse operation status.

6. Testpoints and Commissioning

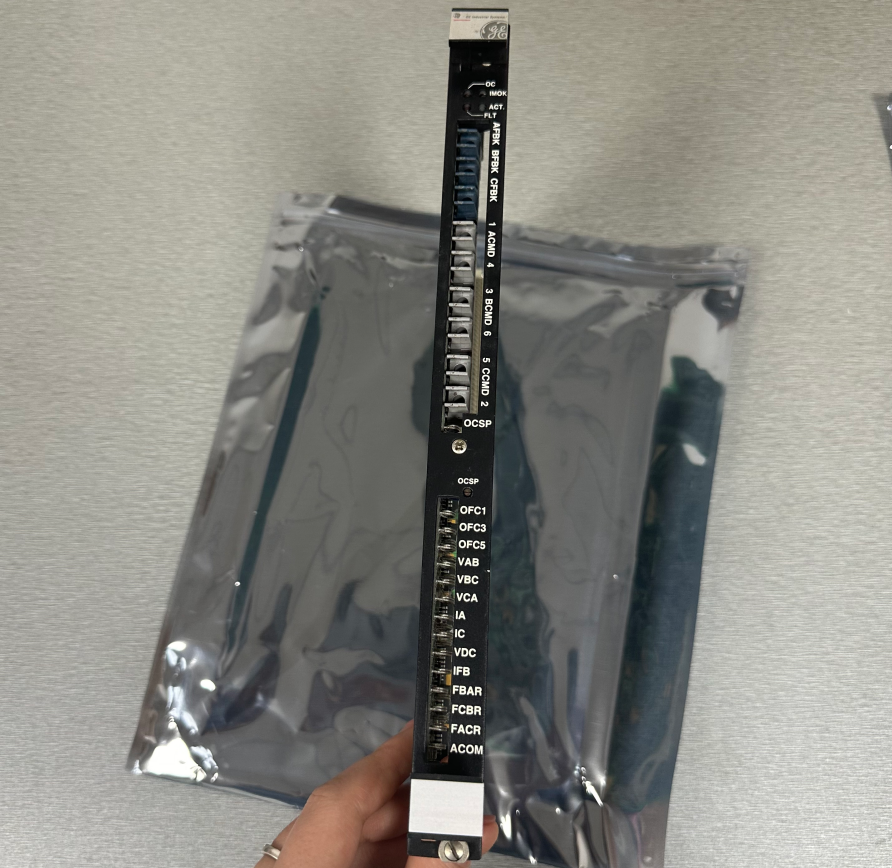

The DS200FCGDH1B board provides multiple testpoints that support oscilloscope and multimeter measurements, facilitating on-site commissioning and fault diagnostics:

• Voltage Feedback Testpoints: FBAR, FCBR, FACR

• Current Feedback Testpoints: IA, IB, IC, IFB

• Overcurrent Setting Testpoint: OC_SP

• Gate Trigger Testpoints: OFC1, OFC5, etc.

III. Hardware Architecture

1. Board Structure

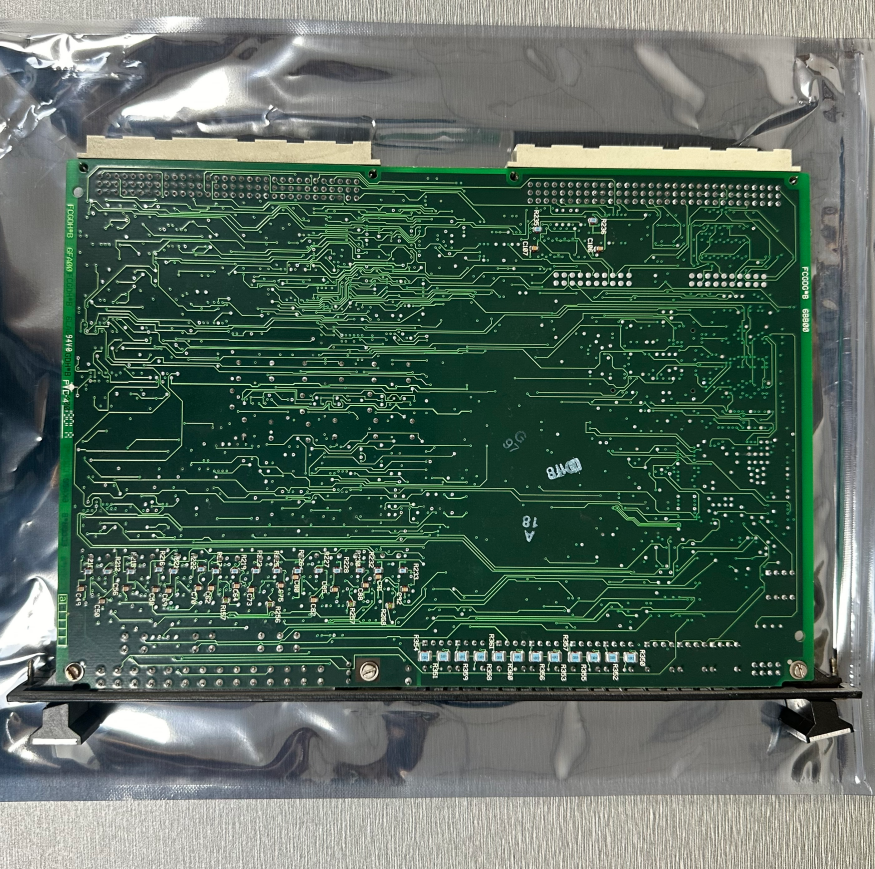

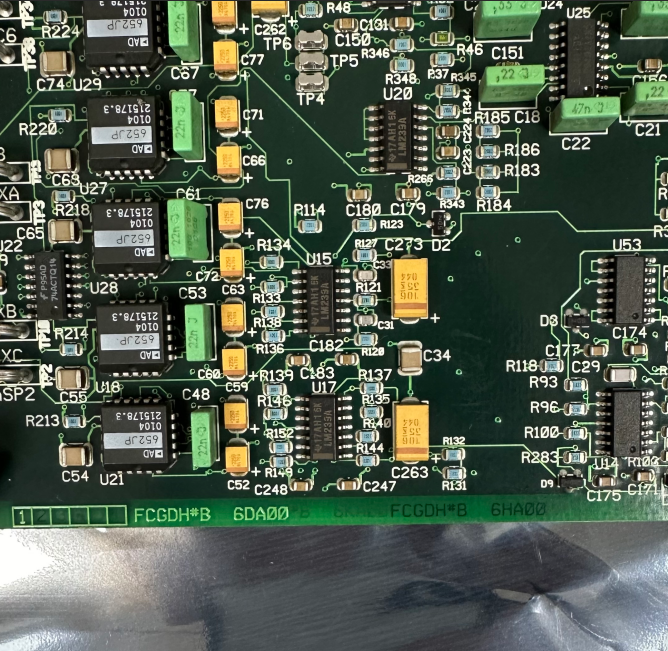

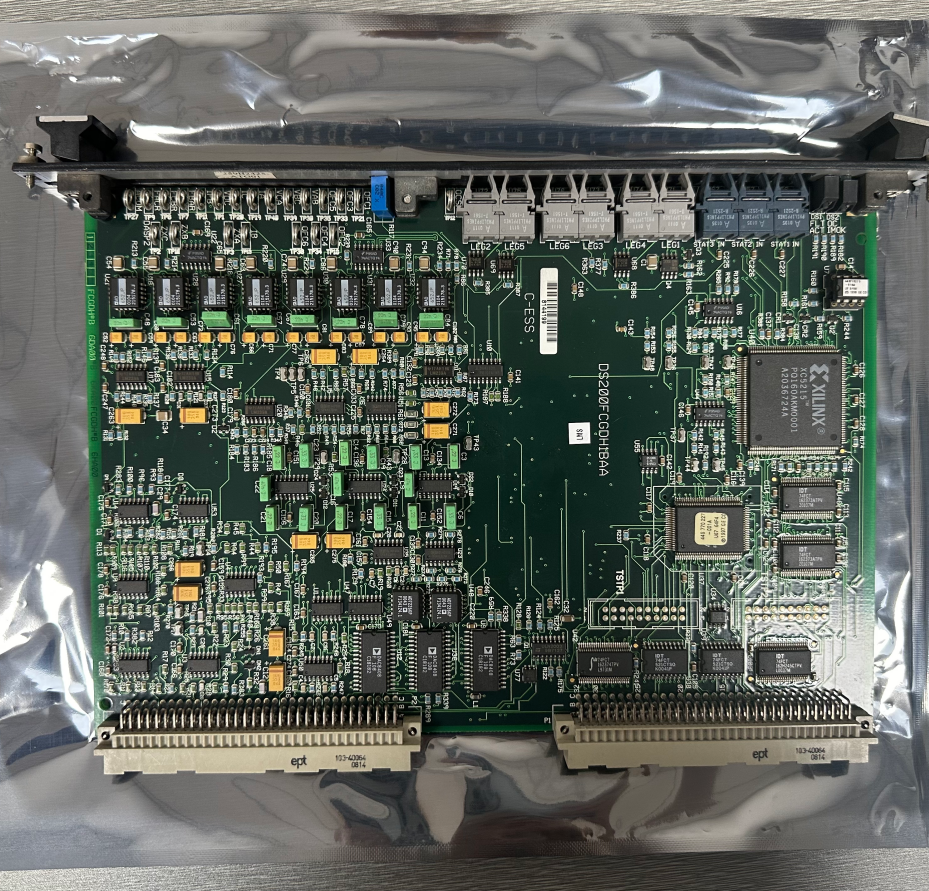

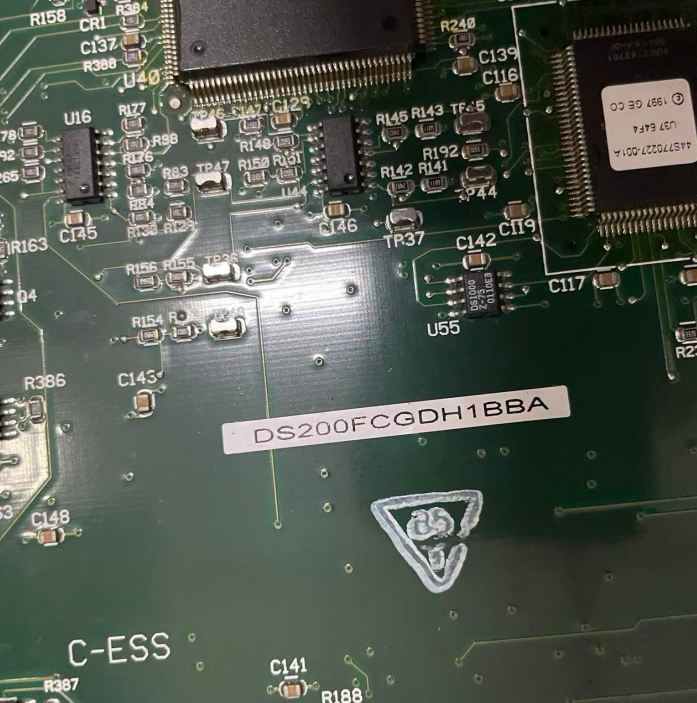

The DS200FCGDH1B board uses a standard printed circuit board structure and is installed in the control rack of the LS2100 static starter. The board includes:

• Gate Pulse Amplification Circuits: Amplify low-level control signals to SCR gate drive power.

• Current Feedback Processing Circuits: Process current feedback signals from CTs.

• Voltage Feedback Processing Circuits: Process voltage feedback signals from PTs.

• Hardware Overcurrent Protection Circuit: Provides fast overcurrent protection.

• LED Indicators: Display gate pulse status.

• Testpoints: Multiple metal test posts for signal measurement.

• Connectors: For connection to the control system and other boards.

2. Mounting Location

The DS200FCGDH1B board is installed in the front of the LS2100 static starter control rack, located at the bottom of the control rack, connecting to the VPBL backplane. The FCGD board works in conjunction with the FGPA Gate Pulse Amplifier Board to complete SCR bridge trigger control.

3. Testpoint Description

4. LED Indicators

The LED indicators on the FCGD board display the trigger status of the SCR gates. The correspondence between LEDs and SCR gates is as follows:

5. Potentiometer

The DS200FCGDH1B board features an overcurrent protection setting potentiometer (IOC SET) for adjusting the hardware overcurrent protection trigger threshold. During adjustment, the setting value is monitored via testpoint OC_SP and should match the requirements specified in the system electrical drawings.

IV. Detailed Interface Description

1. Voltage Feedback Inputs

The FCGD board receives three-phase AC voltage feedback signals from potential transformers (PTs):

• FBAR: Phase A voltage feedback for voltage closed-loop control and synchronization detection.

• FCBR: Phase B voltage feedback for voltage closed-loop control and synchronization detection.

• FACR: Phase C voltage feedback for voltage closed-loop control and synchronization detection.

The amplitude of these signals is proportional to the actual system voltage and can be measured at testpoints on the VPBL backplane.

2. Current Feedback Inputs

The FCGD board receives three-phase AC current feedback signals from current transformers (CTs) and DC link current feedback:

• IA: Phase A current feedback for current closed-loop control and overcurrent protection.

• IB: Phase B current feedback for current closed-loop control and overcurrent protection.

• IC: Phase C current feedback for current closed-loop control and overcurrent protection.

• IFB: DC link current feedback for monitoring DC link current.

3. Gate Pulse Outputs

The FCGD board amplifies gate trigger commands from the control system through internal circuits and outputs them to the SCR gates. Each output corresponds to one SCR leg, with a total of 6 outputs.

4. Overcurrent Protection Setting

The potentiometer (IOC SET) on the FCGD board is used to set the hardware overcurrent protection trigger threshold. During adjustment, the voltage value is monitored at testpoint OC_SP. This voltage is proportional to the current threshold. The setting should be referenced to the system electrical drawings.

V. Configuration and Settings

1. Overcurrent Protection Threshold Setting

During LS2100 static starter commissioning, the hardware overcurrent protection threshold on the FCGD board must be set:

1. Connect a multimeter to testpoint OC_SP and ACOM.

2. Use a small screwdriver to adjust the onboard potentiometer (IOC SET).

3. Adjust to the voltage value specified in the system electrical drawings (e.g., 1.5 V dc).

4. Verify that the adjusted value meets requirements.

Important Note: The overcurrent protection threshold setting must match the system electrical drawings; otherwise, protection may malfunction or fail.

2. Voltage Feedback Scaling Adjustment

During LS2100 commissioning, the voltage feedback scaling may need adjustment:

1. Modify relevant parameters (e.g., P.sa_scale_vba, P.sa_scale_vcb, P.sa_scale_vac) using the Toolbox software.

2. Measure the voltage values at testpoints FBAR, FCBR, and FACR using a multimeter.

3. Adjust the parameters until the measured values meet the expected formula:
   FBAR = (Actual_System_Voltage / Normal_System_Voltage) × 4.75 V ac rms

3. Current Feedback Offset Adjustment

During LS2100 commissioning, the current feedback zero offset may need adjustment:

1. Modify relevant parameters (e.g., sa_facrmull, sa_fcbrnull, etc.) using the Toolbox software.

2. Measure the DC voltage at testpoints FACR, FCBR, and FBAR using a multimeter.

3. Adjust the parameters until the measured values are close to 0 mV.

VI. Installation and Maintenance

1. Mounting Location

The DS200FCGDH1B board is installed in the LS2100 static starter control rack, located at the front bottom of the rack, connecting to the control system via the VPBL backplane.

2. Installation Steps

1. Verify Power is Off: Ensure the LS2100 static starter system power is turned off and test to verify no power is present.

2. Locate the Slot: Identify the installation position for the FCGD board in the control rack.

3. Insert the Board: Align the FCGD board with the slot guides and push it in smoothly until the backplane connectors are fully engaged.

4. Secure the Front Panel: Tighten the captive screws on the front panel to secure the board.

5. Connect Cables: If necessary, connect the gate pulse output cables to the FGPA board.

3. Removal Steps

1. Verify Power is Off: Ensure the system has been de-energized and test to verify no power is present.

2. Disconnect Cables: Carefully disconnect all connection cables.

3. Loosen Front Panel: Loosen the captive screws on the front panel.

4. Remove the Board: Gently pull out the FCGD board.

4. Maintenance Recommendations

• Periodic Inspection: Regularly check LED indicator status to confirm normal gate pulse output.

• ESD Precautions: Always wear a grounding strap when handling boards. Store boards in anti-static bags.

• Overcurrent Threshold Verification: Periodically verify that the overcurrent protection threshold setting is correct.

• Spare Parts Management: It is recommended to keep at least one identical FCGD board on-site as a spare to minimize downtime.

VII. Applications

The DS200FCGDH1B Gate Pulse Amplifier Board is widely used in the following industrial applications:

• LS2100 Static Starter Systems: Serves as the core component for SCR gate drive, controlling the power bridge of the static starter.

• Large Synchronous Motor Starting: Controls the SCR bridge during synchronous motor starting to achieve soft start.

• Gas Turbine Starting: Controls the static starter during gas turbine starting to provide starting torque for the generator.

• Industrial Power Electronics Applications: Provides drive and feedback functions in various high-power power electronics applications requiring SCR gate drive.
