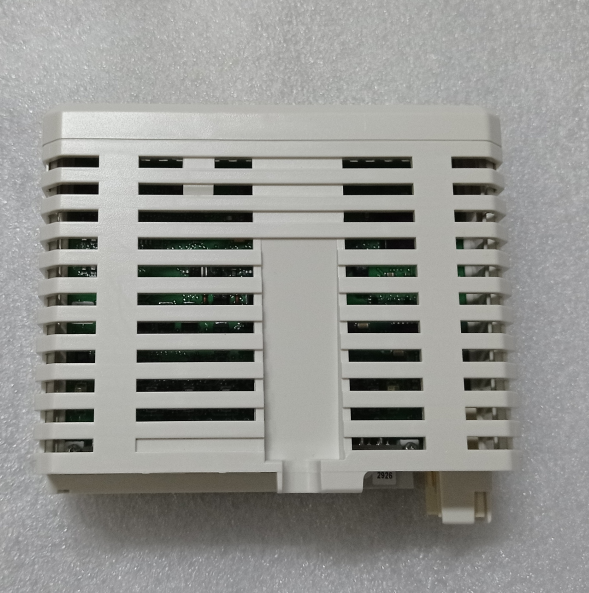

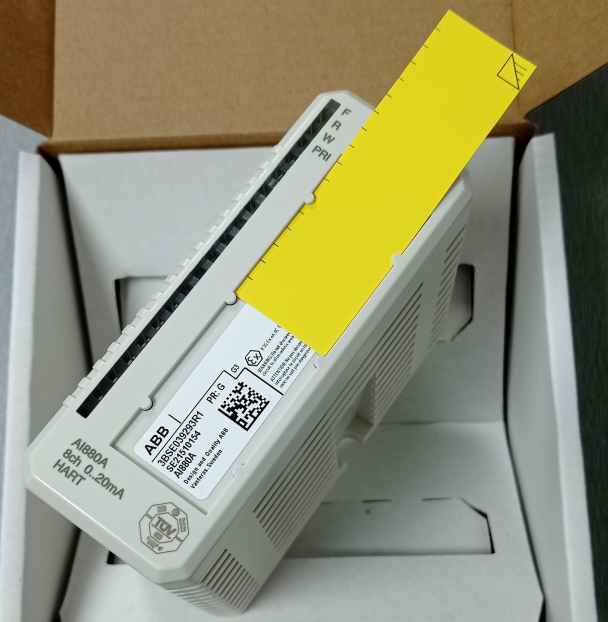

AI880A is a High Integrity Analog Input Module within the ABB Ability™ System 800xA® family, designed for industrial automation and process control systems. The module features 8 current input channels and supports both single and redundant configurations. It is suitable for applications with extremely high safety and reliability requirements, such as chemical, oil & gas, power generation, and pharmaceutical industries. AI880A complies with multiple international safety standards, including IEC 61508 SIL3 and EN 954-1 Category 4, and supports the HART communication protocol, enabling remote monitoring and diagnostics of smart transmitters.
AI880A adopts a modular design and can be used with various Module Termination Units (MTUs) in the S800 I/O system, offering flexible installation and expansion capabilities. Its Loop Supervised Digital Input (DI) function allows it to handle not only analog signals but also monitor the status of digital inputs, significantly enhancing system diagnostic capability and reliability.
2. Key Features & Benefits
| Feature | Description |
| Channel Count | 8 independent channels |
| Input Type | 0...20 mA, 4...20 mA, single-ended unipolar input |
| Resolution | 12-bit |
| Input Impedance | 250 Ω (with shunt stick TY801) |
| Isolation | 8 channels isolated from ground as one group |
| HART Support | HART pass-through communication (point-to-point only) |
| Redundancy | Supports single or redundant configuration |
| Diagnostics | Advanced on-board diagnostics; supports channel and module error reporting |
| Safety Certifications | IEC 61508 SIL3, EN 954-1 Category 4, ATEX Zone 2, cULus, etc. |
| Communication Interface | Powered via ModuleBus (24 V DC); supports external transmitter supply |
| Environmental Suitability | Operating temperature 0 to 55°C; Protection class IP20 |
Highlighted Functions in Detail
Loop Supervised Digital Input (DI)
AI880A can be configured for digital input monitoring, capable of detecting open circuit, short circuit, logic high, and logic low states. This function requires an external resistor network and is suitable for status monitoring of devices like mechanical contact switches and 2-wire proximity switches.
HART Pass-Through Communication
The module supports the HART protocol, enabling direct communication with HART-enabled smart transmitters for remote configuration, calibration, and diagnostics without additional wiring.
Advanced Diagnostics & Alarming
Monitors internal voltage, field power input/output.
Configurable over-range and under-range alarm thresholds.
Front-panel LEDs indicate Run, Fault, and Warning statuses.
Flexible Power Supply Design
The module is powered by 24 V from the ModuleBus and provides independent, current-limited transmitter supply for each channel, supporting 2-wire, 3-wire, and 4-wire transmitters.
3. Application Areas
AI880A is suitable for industrial scenarios requiring high reliability:
Process Automation: Chemical reactor control, refinery process monitoring.
Energy Management: Generator set monitoring, grid parameter acquisition.
Safety Systems: Fire & gas detection systems, Emergency Shutdown Systems (ESD).
Environmental Monitoring: Emission monitoring, water quality analysis.
Pharmaceutical & Food: Cleanroom monitoring, batch process control.
4. Installation & Wiring Guidelines
AI880A must be used with designated Module Termination Units (MTUs). Wiring guidelines are as follows:
Recommended Wiring Practices
Shielded Cables: Use shielded cables for all process connections. Overall shield or grouped shielding in multi-core cables is sufficient.
Grounding: Shield should be grounded at the MTU end. Avoid grounding at both ends to prevent ground loops.
Power Supply Isolation: Provide isolated power supplies for transmitters where possible to avoid common-mode interference.
MTU Compatibility Table
| MTU Model | Configuration | Keying Code |
| TU834 | Single | FD |
| TU844/TU845/TU854 | Redundant | FD |
5. Diagnostics & Maintenance
AI880A features comprehensive self-diagnostics. Status can be monitored in real-time via front-panel LEDs or system software:
| Diagnostic Level | Monitored Items | Reported As |
| Module Error | Microcontroller, FPGA, Memory, Internal Power Supply anomalies | Module Error |
| Channel Error | External Power Supply anomaly, Shunt Stick fault, Filter anomaly | Channel Error |
| External Channel Error | External Power Supply anomaly, External Shunt fault | External Channel Error |
7. Compliance & Certifications
AI880A complies with numerous international and industry standards, ensuring safe and lawful use worldwide:
| Compliance Area | Standard / Directive |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201 |
| Explosion Protection | ATEX Zone 2, cULus Class I Div 2 |
| Marine Certifications | ABS, BV, DNV, LR |
| EMC | EN 61000-6-2, EN 61000-6-4 |
| Environmental Compliance | RoHS (EU 2011/65/EU), WEEE (EU 2012/19/EU) |
| Functional Safety | IEC 61508 SIL3, IEC 61511 |
