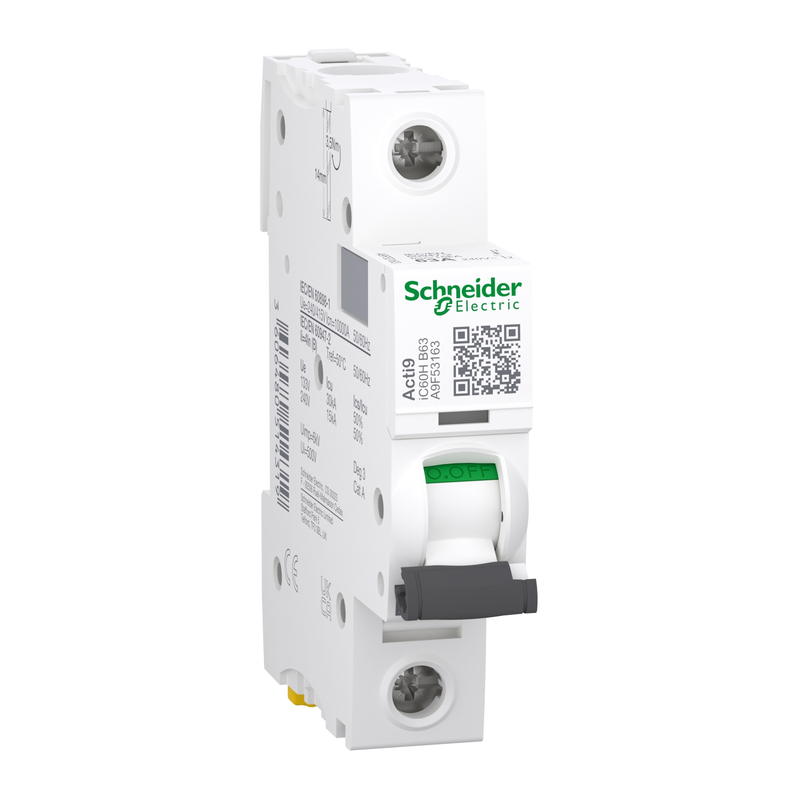

The A9F53163 is a high‑capacity, single‑pole miniature circuit breaker from Schneider Electric’s Acti9 iC60H series, designed for demanding 63A circuits where robust overload and short‑circuit protection are essential. With a B‑curve tripping characteristic (magnetic threshold at 4x In), it is particularly effective for protecting resistive or moderately inductive loads, such as large heating banks, distribution feeders, and industrial control panels. This MCB stands out for its dual‑certification approach—fully compliant with both the EN/IEC 60947‑2 industrial standard and the EN/IEC 60898‑1 residential norm—offering seamless integration across mixed‑use projects. The device incorporates practical diagnostic aids: the VisiTrip window instantly pinpoints the tripped pole to slash fault‑finding time, while the VisiSafe green strip provides undeniable visual confirmation that contacts are physically separated, a critical safety feature for maintenance personnel. Its quick‑make/quick‑break mechanism, independent of handle position, ensures consistent switching performance over an extended service life, rated at 10,000 electrical and 20,000 mechanical cycles. Despite its high current rating, the breaker retains a compact 18mm width (2 modular pitches) for space‑efficient DIN‑rail mounting. The double‑tunnel terminals accommodate substantial conductors, and the device operates reliably across a wide temperature range (-35°C to +70°C). Sustainability data is transparently disclosed: the product has a total lifecycle carbon footprint of 31 kg CO₂ eq., with 30 kg attributed to the use phase, and it carries a WEEE label for proper end‑of‑life disposal. However, note that this model contains halogen above thresholds, distinguishing it from lower‑rated variants in the same family.
