Parameter | Details |
General | |

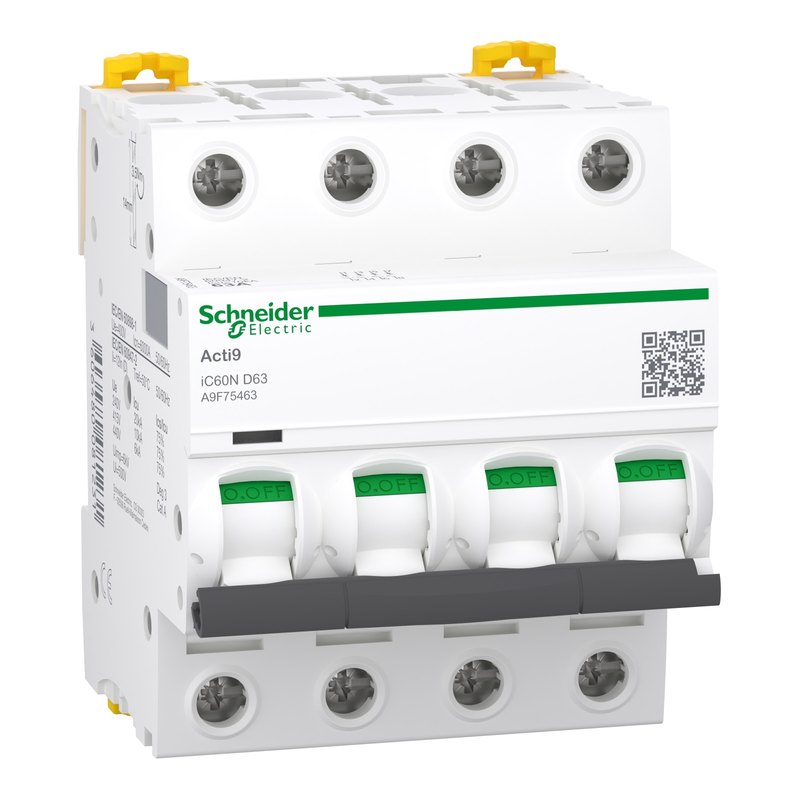

Product Model | A9F75463 |
Range | Acti9 |
Product Name | Acti9 iC60 |
Product or Component Type | Miniature circuit-breaker |
Device Short Name | iC60N |
Device Application | Distribution |
Poles Description | 4P |
Number of Protected Poles | 4 |
[In] Rated Current | 63 A |
Network Type | DC / AC |
Trip Unit Technology | Thermal-magnetic |
Curve Code | D |
Utilisation Category | Category A conforming to EN/IEC 60947-2 |
Suitability for Isolation | Yes conforming to EN/IEC 60898-1; Yes conforming to EN/IEC 60947-2 |
Standards | EN/IEC 60947-2; EN/IEC 60898-1 |
Complementary | |
Network Frequency | 50/60 Hz |
[Ue] Rated Operational Voltage | 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; ≤ 250 V DC |
Magnetic Tripping Limit | 12 x In ± 20 % |
Breaking Capacity | 36 kA Icu at 12...133 V AC 50/60 Hz; 20 kA Icu at 220...240 V AC 50/60 Hz; 10 kA Icu at 380...415 V AC 50/60 Hz; 6 kA Icu at 440 V AC 50/60 Hz; 10 kA Icu at ≤ 250 V DC; 6000 A Icu at 400 V AC conforming to EN/IEC 60898-1 |
[Ics] Rated Service Breaking Capacity | 27 kA 75% x Icu at 12...133 V AC; 15 kA 75% x Icu at 220...240 V AC; 7.5 kA 75% x Icu at 380...415 V AC; 4.5 kA 75% x Icu at 440 V AC; 10 kA 100% x Icu at ≤ 250 V DC |
Limitation Class | 3 conforming to EN/IEC 60898-1 |
[Ui] Rated Insulation Voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
[Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to EN/IEC 60947-2 |
Contact Position Indicator | Yes |
Control Type | Toggle |
Local Signalling | Trip indicator |
Mounting Mode | Clip-on; Removable comb busbar installed |
Mounting Support | 35 mm DIN rail |
Comb Busbar and Distribution Block Compatibility | Top or bottom: YES |
Connection Pitch | 18 mm between phases |
9 mm Pitches | 8 |
Height | 85 mm |
Width | 72 mm |
Depth | 78.5 mm |
Net Weight | 0.5 kg |
Colour | White |
Mechanical Durability | 20000 cycles |
Electrical Durability | 10000 cycles |
Connections - Terminals | Single terminal (top or bottom), for 1 cable(s), 1...35 mm², rigid, copper; 3.0 cable(s), 16 mm², rigid, copper, with accessory; 1.0 cable(s), 50 mm², rigid, aluminium, with accessory; 1.0 cable(s), 1...25 mm², flexible, copper; 1.0 cable(s), 25 mm², flexible with ferrule, copper; 1.0 cable(s) flexible, copper or aluminium, with ring terminal and accessory; 3 cable(s), 10 mm², flexible, copper, with accessory |
Wire Stripping Length | 14 mm for top or bottom connection |
Tightening Torque | 3.5 N·m top or bottom |
Earth-leakage Protection | Separate block |
Environment | |
IP Degree of Protection | IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529 |
Pollution Degree | 3 conforming to EN/IEC 60947-2 |
Overvoltage Category | IV |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative Humidity | 95 % at 55 °C |
Operating Altitude | 0...2000 m |
Ambient Air Temperature for Operation | -35...70 °C |
Ambient Air Temperature for Storage | -40...85 °C |
Packing Units | |
Package 1 (PCE) | 1 pc; H 7.500 cm × W 7.300 cm × L 9.500 cm; weight 508.000 g |
Package 2 (BB1) | 3 units; H 8.000 cm × W 9.800 cm × L 22.500 cm; weight 1.585 kg |
Package 3 (S03) | 33 units; H 30.000 cm × W 30.000 cm × L 40.000 cm; weight 18.331 kg |
Environmental Data | |
Total Lifecycle Carbon Footprint | 95 kg CO₂ eq. |
Manufacturing Phase (A1-A3) | 3 kg CO₂ eq. |
Distribution Phase (A4) | 0.1 kg CO₂ eq. |
Installation Phase (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 90 kg CO₂ eq. |
End-of-life Phase (C1-C4) | 1 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile available |
Packaging with Recycled Cardboard | Yes |
Packaging without Single-use Plastic | Yes |
SCIP Number | 26F71d1-98cf-4280-8725-455b9a6b2fb9 |
EU RoHS Directive | Compliant |
REACH Regulation | Reference contains SVHC above threshold |
OECD PFAS Regulation | Item contains PFAS Chemicals |
Halogen-free Status | Product contains halogen above thresholds |
PVC Free | Yes |
Silicone-free | Yes |
Recyclability Potential | 54% |
WEEE Label | Required for EU disposal (separate collection) |
