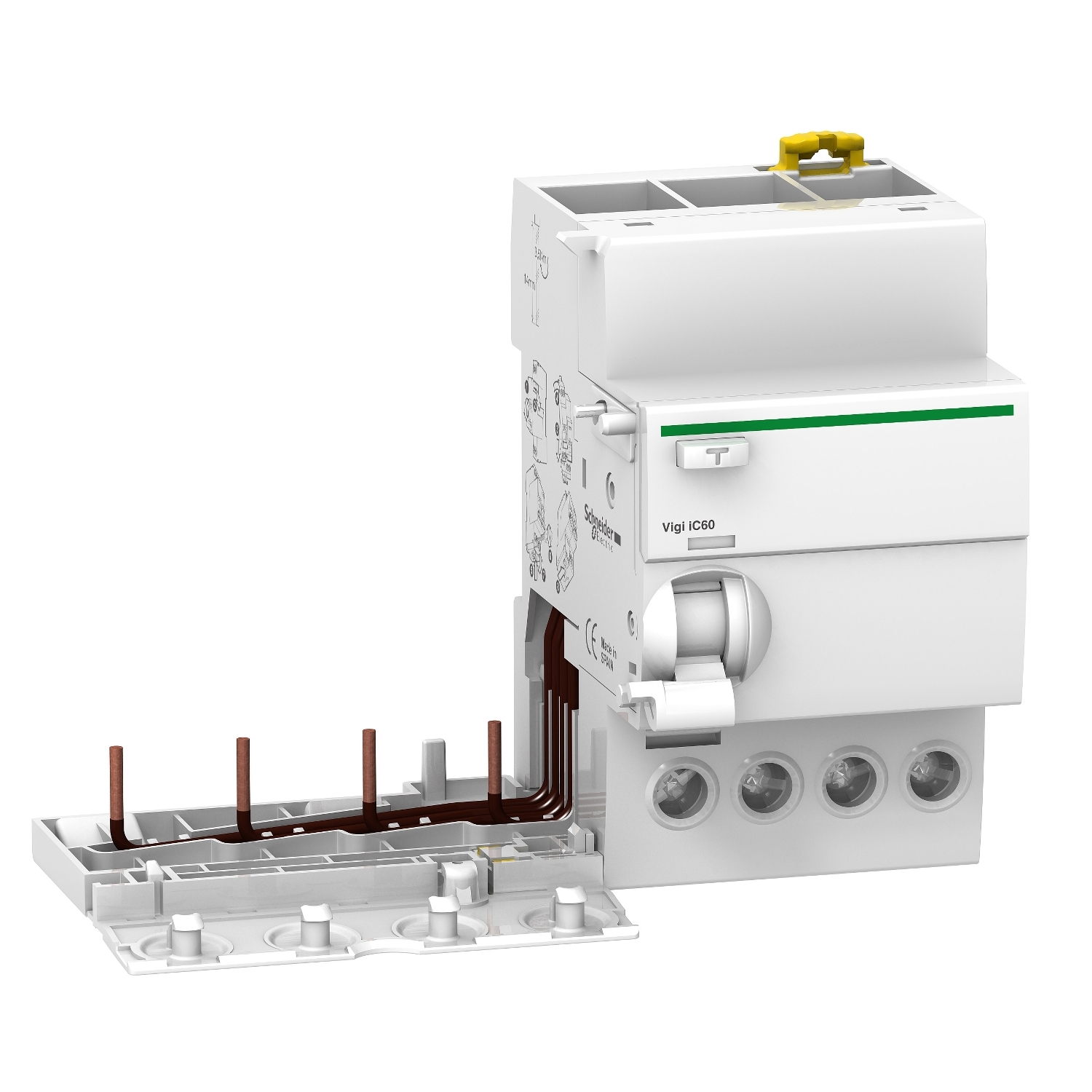

The Schneider Electric Acti9 Vigi iC60 A9V61425 is a modular add-on residual current device designed to work alongside iC60 or Acti9 Reflex iC60 circuit breakers. It is a four-pole unit rated 25 A with 30 mA earth leakage sensitivity and Type A-SI (Super Immunised) protection. Its voltage-independent tripping technology supports reliable residual current protection, while the A-SI design improves immunity to electrical interference and polluted or corrosive environments. When combined with a compatible breaker, it contributes to protection against indirect-contact electric shock, fire hazards, short circuits, and cable overloads. The device complies with IEC/EN 61009-1. It operates at 400–415 V AC, with a rated insulation voltage of 500 V AC and a rated impulse withstand voltage of 6 kV. Measuring 54 mm wide, 91 mm high, and 73.5 mm deep, it weighs 0.245 kg and occupies six 9 mm pitches on a DIN rail. It provides IP20 terminal protection and IP40 when installed in a modular enclosure, and it operates from -25 °C to +60 °C, with storage from -40 °C to +85 °C. Environmental data include a 5 kg CO₂ eq. lifecycle carbon footprint and a 28% recyclability potential.
