Parameter | Details |

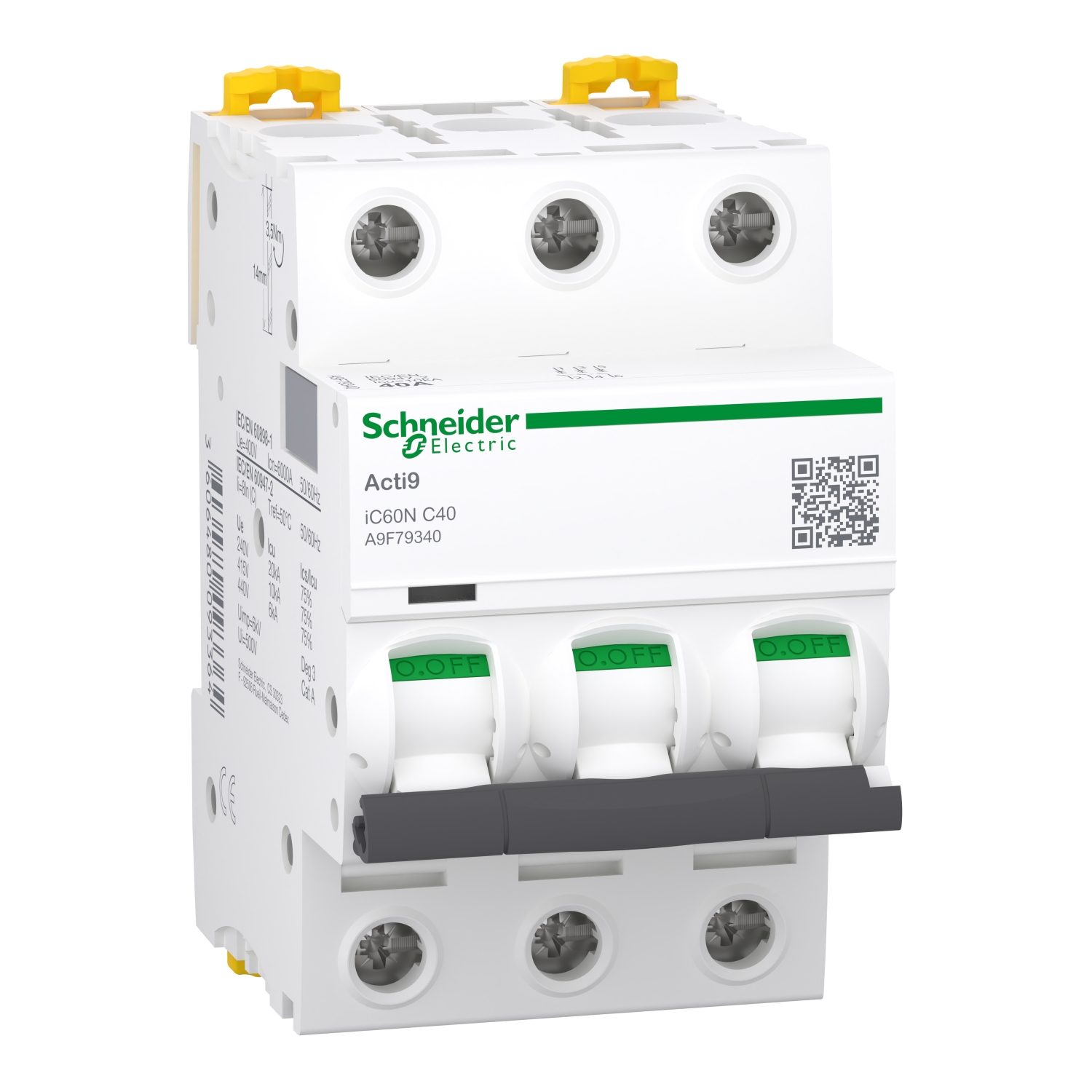

Product Model | A9F79340 |
Range | Acti9 |
Product Name | Acti9 iC60 |
Product or Component Type | Miniature circuit-breaker (MCB) |
Device Short Name | iC60N |
Device Application | Distribution |
Poles Description | 3P |
Number of Protected Poles | 3 |
Rated Current (In) | 40 A |
Network Type | AC / DC |
Trip Unit Technology | Thermal-magnetic |
Curve Code | C |
Magnetic Tripping Limit | 8 x In ± 20% |
Utilisation Category | Category A conforming to EN/IEC 60947-2 |
Suitability for Isolation | Yes conforming to EN/IEC 60898-1
Yes conforming to EN/IEC 60947-2 |
Standards | EN/IEC 60947-2, EN/IEC 60898-1 |
Breaking Capacity (Icu) | |
– EN/IEC 60947-2 (AC) | 36 kA at 12…133 V AC 50/60 Hz
20 kA at 220…240 V AC 50/60 Hz
<10 kA at 380…415 V AC 50/60 Hz
6 kA at 440 V AC 50/60 Hz |
– EN/IEC 60947-2 (DC) | <10 kA at ≤180 V DC |
– EN/IEC 60898-1 (AC) | 6,000 A at 400 V AC 50/60 Hz |
Service Breaking Capacity (Ics) | |
– EN/IEC 60947-2 (AC) | 27 kA (75% x Icu) at 12…133 V AC 50/60 Hz
15 kA (75% x Icu) at 220…240 V AC 50/60 Hz
7.5 kA (75% x Icu) at 380…415 V AC 50/60 Hz
4.5 kA (75% x Icu) at 440 V AC 50/60 Hz |
– EN/IEC 60947-2 (DC) | 10 kA (100% x Icu) at ≤180 V DC |
Limitation Class | 3 conforming to EN/IEC 60898-1 |
Complementary | |
Rated Operational Voltage (Ue) | 12…133 V AC 50/60 Hz
220…240 V AC 50/60 Hz
380…415 V AC 50/60 Hz
440 V AC 50/60 Hz
≤180 V DC |
Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
Rated Impulse Withstand Voltage (Uimp) | 6 kV conforming to EN/IEC 60947-2 |
Network Frequency | 50/60 Hz |
Durability & Signalling | |
Mechanical Durability | 20,000 cycles |
Electrical Durability | 10,000 cycles |
Contact Position Indicator | Yes |
Control Type | Toggle |
Local Signalling | Trip indicator |
Mounting & Physical | |
Mounting Mode | Clip-on |
Removable Comb Busbar | Installed |
Mounting Support | 35 mm DIN rail |
Comb Busbar and Distribution Block Compatibility | Top or bottom: Yes |
Connection Pitch | 18 mm between phases |
Number of 9 mm Pitches | 6 |
Height | 85 mm |
Width | 54 mm |
Depth | 78.5 mm |
Net Weight | 0.375 kg |
Colour | White |
Terminals & Connections | |
Connection Type | Single terminal (top or bottom) |
Rigid Conductor (copper) | 1…35 mm² |
Rigid Conductor (copper, with accessory) | 3 × 16 mm² |
Rigid Conductor (aluminium, with accessory) | 1 × 50 mm² |
Flexible Conductor (copper) | 1…25 mm² |
Flexible with Ferrule (copper) | 1…25 mm² |
Flexible (copper or aluminium, with ring terminal and accessory) | 1 cable |
Flexible Conductor (copper, with accessory) | 3 × 10 mm² |
Wire Stripping Length | 14 mm for top or bottom connection |
Tightening Torque | 3.5 N·m top or bottom |
Earth-leakage Protection | Separate block |
Environmental & Protection Ratings | |
IP Degree of Protection | IP20 conforming to IEC 60529
IP40 in modular enclosure (Insulation class II) conforming to IEC 60529 |
Pollution Degree | 3 conforming to EN/IEC 60947-2 |
Overvoltage Category | IV |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative Humidity | 95% at 55 °C |
Operating Altitude | 0…2000 m |
Ambient Air Temperature for Operation | -35…70 °C |
Ambient Air Temperature for Storage | -40…85 °C |
Sustainability & Compliance | |
Halogen-free (plastic parts) | Halogen free plastic parts product |
PVC-free | Yes |
PFAS | Item contains PFAS Chemicals |
Recyclability Potential | 54% |
EU RoHS Directive | Compliant |
REACH Regulation | Reference contains SVHC above threshold |
SCIP Number | 26ff71d1-98cf-4280-8725-455b9a6b2fb9 |
Packaging with Recycled Cardboard | Yes |
Packaging without Single-use Plastic | Yes |
WEEE Label | Required for EU disposal (separate collection) |
Logistics & Packaging | |
Package 1 (PCE) | 1 pc; H 5.300 cm × W 7.300 cm × L 9.300 cm; weight 358.000 g |
Package 2 (BB1) | 4 units; H 8.700 cm × W 10.100 cm × L 22.100 cm; weight 1.484 kg |
Package 3 (S03) | 44 units; H 30.000 cm × W 30.000 cm × L 40.000 cm; weight 16.888 kg |
Carbon Footprint (Lifecycle) | |
Total | 62 kg CO₂ eq. |
Manufacturing (A1-A3) | 2 kg CO₂ eq. |
Distribution (A4) | 0 kg CO₂ eq. |
Installation (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 58 kg CO₂ eq. |
End-of-life (C1-C4) | 1 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile available |
