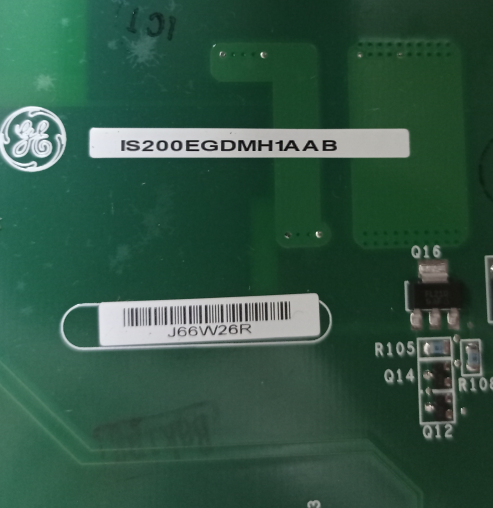

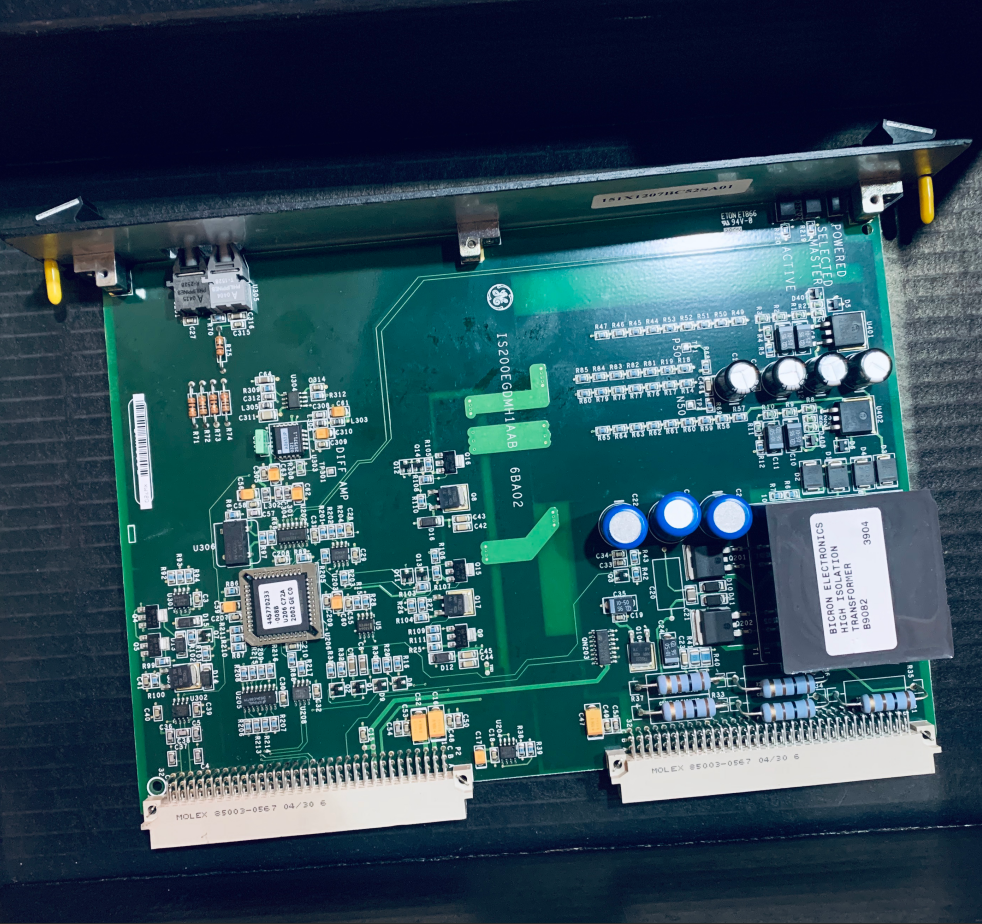

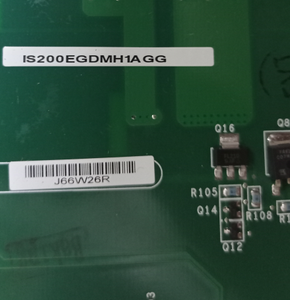

GE IS200EGDMH1AAB Exciter Ground Detector Module

The IS200EGDMH1AAB is a high‑performance exciter ground detector module from GE Industrial Systems, part of the EX2100™ excitation control series. This module is designed to detect ground faults in the field circuit of a synchronous generator, specifically measuring leakage resistance between any point in the generator field circuit (either AC or DC side) and ground. The IS200EGDMH1AAB mounts in the Exciter Power Backplane (EPBP) rack and has a double‑slot, double‑height (6U) form factor. In a simplex excitation system, one EGDM is used; in a redundant system, three modules operate together to provide high availability.

The IS200EGDMH1AAB works in conjunction with the EXAM attenuator module, which is mounted in the High Voltage Module inside the Auxiliary Panel. The EXAM module senses the voltage across the ground sense resistor and sends the signal to the EGDM(s) via a nine‑conductor cable. The EGDM processes this signal and communicates with the exciter control system over fiber‑optic links, providing continuous monitoring of field ground resistance. This capability is critical for preventing damage to the generator field winding and ensuring safe operation of the excitation system.

The IS200EGDMH1AAB suffix indicates a specific revision and configuration (AAB) that maintains full compatibility with all EX2100 control systems. It is a factory‑programmed module with no user‑adjustable settings, offering high reliability and easy replacement.

Functional Description

The IS200EGDMH1AAB is the core component of the ground detection function in the EX2100 excitation control system. Its primary purpose is to detect and measure the resistance between the generator field circuit and ground. A low resistance indicates a ground fault, which can lead to serious damage if not addressed promptly.

In a redundant configuration, three EGDM modules are configured as Controller (C), Master 1 (M1), and Master 2 (M2). The configuration for each EGDM is controlled by a set of program pins on the P2 connector. The DSPX (Digital Signal Processor) board in the controller rack determines which master provides the drive signal to the sense resistor in the EXAM attenuator module. This information is sent over the EISB (Exciter Internal Serial Bus) to the C module via a fiber‑optic link. Upon receiving this information, the C module either powers the relay in the EXAM module (if M2 is the driver) or leaves it unpowered (if M1 is the chosen master). Simultaneously, a differential signal is sent to M1 and M2 indicating the chosen master, enabling the signal generator on the active master and selecting the test command source on each module.

The active master receives an oscillator signal from the DSPX over the fiber‑optic link, which it converts into a positive or negative 50‑volt square wave. This voltage is sent by cable to the EXAM module and applied to one end of the sense resistor. The resulting voltage drop across the sense resistor is proportional to the field circuit resistance to ground. The signal conditioner in the EGDM receives an attenuated (10:1) differential signal from the sense resistor, amplifies it with a unity‑gain differential amplifier having high common‑mode rejection, and then converts it to a frequency via a voltage‑controlled oscillator (VCO). The VCO drives a fiber‑optic transmitter that sends the signal to the control system for processing.

The IS200EGDMH1AAB also includes test features. The signal conditioner can measure the power amplifier output level by grounding the bridge side of the attenuated sense resistor on command from the control section. The C module also generates a test command at each transition of the oscillator signal, which produces a 250 ms test signal on each module (non‑retriggerable) to verify proper operation.

Power Supply and Signal Generation

The power supply section of the IS200EGDMH1AAB receives 24 V dc from the appropriate EPSM (Exciter Power Supply Module) through the EPBP backplane. Using a DC‑DC converter, it generates:

• ±65 V dc (non‑isolated) for the power amplifier in the signal generator section.

• +5 V dc (isolated) for logic.

• ±15 V dc (isolated) for the signal conditioning circuits.

The power amplifier output is a voltage source with an output impedance less than 1.0 ohm. It produces a ±50 V square wave with a current limit of approximately 80 mA. During normal operation, the period is 5 seconds; during test operation, the period reduces to 400 ms.

Hardware Characteristics

Physical Form Factor

• Size: Double‑slot, double‑height (6U) – fits in the Exciter Power Backplane (EPBP) rack.

• Mounting: Horizontal insertion into backplane connectors.

• Front Panel: Provides fiber‑optic connectors, LED indicators, and captive screws with ejector tabs.

Connectors

Table 1 – J2C Connector Pin Description

LED Indicators

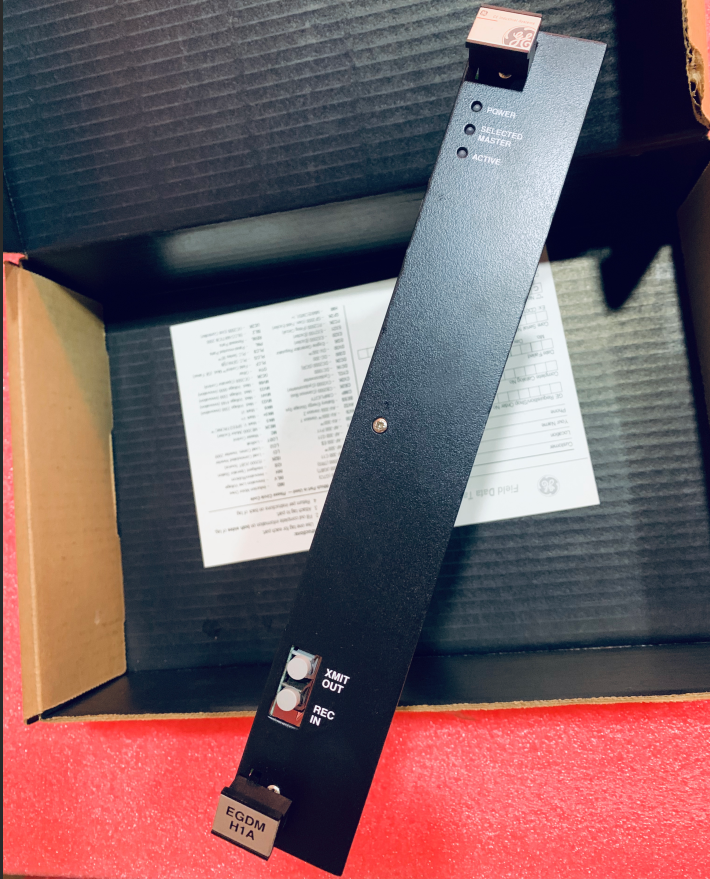

Three green LEDs are located at the top of the front panel. They provide visual status of the module:

Test Points

Ten test points are available on the board for troubleshooting and calibration. They are labeled on the printed wiring board:

Installation and Replacement Procedures

Handling Precautions

• Static sensitivity – The IS200EGDMH1AAB contains static‑sensitive components. Always handle the board using a wrist grounding strap and store it in an antistatic bag when not in use. Work only at a grounded workstation.

• Power off before handling – To prevent electric shock, de‑energize the exciter and verify zero voltage on all circuits before touching the board or any connected cables. Follow all local lock‑out/tag‑out procedures.

• Do not insert or remove with power applied – This may cause equipment damage or personal injury.

Offline Replacement (De‑energized System)

1. De‑energize the control panel following the EX2100 Installation and Startup Guide (GEH‑6631).

2. Open the cabinet door and test circuits for zero voltage.

3. Label and disconnect all cables from the EGDM:

   • Remove the two fiber‑optic snap‑in connectors (U201 and U305).

4. Remove the board from the rack:

   • Loosen the top and bottom captive screws near the ejector tabs.

   • Raise both ejector tabs to unseat the board.

   • Gently pull the board out using both hands.

5. Slide the replacement IS200EGDMH1AAB into the correct slot.

6. Seat the board by pressing firmly on the top and bottom of the faceplate simultaneously with your thumbs.

7. Tighten the top and bottom captive screws evenly to ensure the board is fully seated.

8. Reconnect the fiber‑optic cables and any other cables removed.

9. Close the cabinet door and restore power.

Online Replacement (Redundant System Only)

In a redundant EX2100 system, a failed EGDM can be replaced while the exciter remains online. The remaining two modules continue to provide ground detection.

1. Open the cabinet door and identify the failed EGDM using its LEDs and Toolbox diagnostics.

2. De‑energize only the section of the EPBP rack containing the failed EGDM by switching off the appropriate output of the Exciter Power Distribution Module (EPDM). Verify that the EPDM section’s LED is off and that the EPSM indicators are off.

3. Check that control has transferred to the other master (the middle LED on the active master will be on).

4. Disconnect the two fiber‑optic cables from the failed EGDM.

5. Remove the board using the ejector tabs and screws.

6. Install the new IS200EGDMH1AAB in the same slot, seat it, and tighten the screws evenly.

7. Reconnect the fiber‑optic cables.

8. Re‑apply power to that section of the EPBP rack via the EPDM. Verify that the power LED (upper) on the new EGDM illuminates and that the green power LEDs on the corresponding controller boards come on.

9. Close the cabinet door.

Ordering Information

When ordering the IS200EGDMH1AAB, use the complete part number as shown. The part number follows GE’s convention:

• IS200 – Innovation Series, 200‑class.

• EGDM – Functional acronym: Exciter Ground Detector Module.

• H1 – Generation/version.

• A – Base designator.

• A – Modifier (e.g., coating or feature set).

• B – Revision.

Warranty and Order Placement

• Warranty replacements (within warranty period): Contact GE Industrial Systems Product Service Engineering:
  GE Industrial Systems
  Product Service Engineering
  1501 Roanoke Blvd.
  Salem, VA 24153‑6492 USA
  Phone (US): +1 888 GEA SERV (888 434 7378)
  Phone (International): +1 540 378 3280
  Fax: +1 540 387 8606

• Spare parts or non‑warranty orders: Contact the nearest GE Sales or Service Office. Provide:

  • Complete part number: IS200EGDMH1AAB

  • Exciter serial number

  • Exciter Material List (ML) number

Note: All digits and letters are significant. GE may substitute later compatible revisions, but backward compatibility is assured.

Diagnostics and Maintenance

The IS200EGDMH1AAB does not require routine calibration or adjustment. However, periodic verification using the test points and LED status is recommended. The control system (via ToolboxST) provides diagnostic messages if a ground fault is detected or if the EGDM fails.

Common diagnostics:

• Upper LED off: No 24 V dc power from backplane. Check EPSM and EPBP connections.

• Middle LED off when expected (in redundant system): Module not selected as master – may be normal if another module is active. If no master LED is lit, the system configuration may be incorrect.

• Lower LED off when master should be driving: Signal generator not active. Check fiber‑optic oscillator input (U201).

• Ground fault alarm: Field resistance below threshold. Investigate generator field circuit.

• Hardware incompatibility fault: ID chip mismatch. Verify correct EGDM type and revision.
