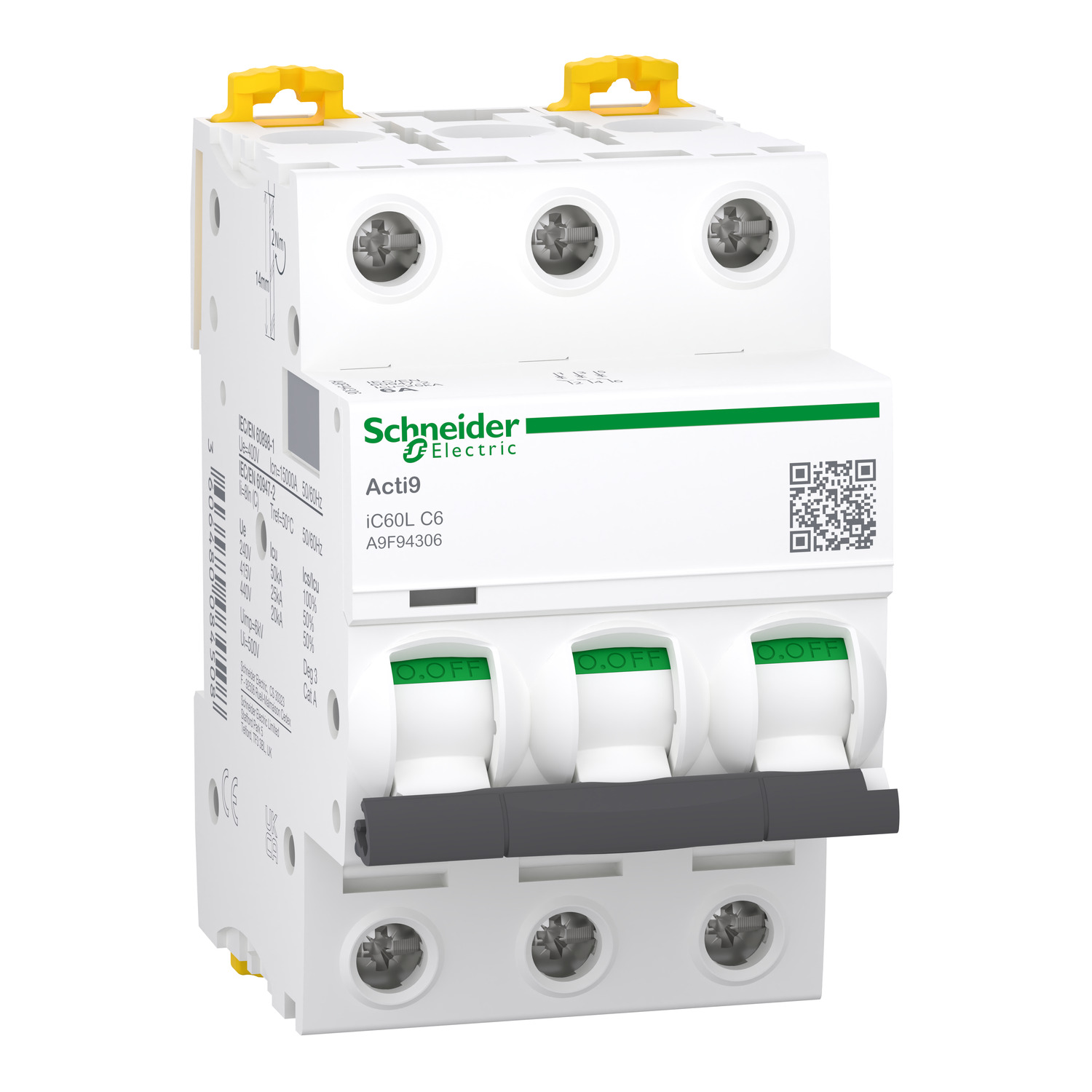

The Schneider Electric Acti9 iC60L A9F94306 is a three-pole miniature circuit breaker designed for low-voltage distribution systems. It is rated 6 A and uses a C-curve thermal-magnetic trip unit, making it suitable for circuits with moderate inrush currents. Its rated short-circuit breaking capacity reaches 25 kA at 380–415 V AC under EN/IEC 60947-2 and 15,000 A at 400 V AC under EN/IEC 60898-1, so it satisfies both industrial and residential requirements. Key features include the VisiTrip fault indicator for quick fault location and the VisiSafe green strip for confirming that contacts are physically open during maintenance. Its fast-closing mechanism, independent of the toggle, helps extend service life to 10,000 electrical and 20,000 mechanical cycles. The device offers 500 V AC insulation voltage, limitation class 3, pollution degree 3, and overvoltage category IV. It clips onto a 35 mm DIN rail, occupies six 9 mm pitches (54 mm width), and measures 85 × 54 × 78.5 mm with a net weight of 0.375 kg. It provides IP20 terminal protection (IP40 when enclosed), operates from -35 °C to +70 °C, and comes in white (RAL9003). With a 54% recyclability potential, it supports more sustainable installations.
