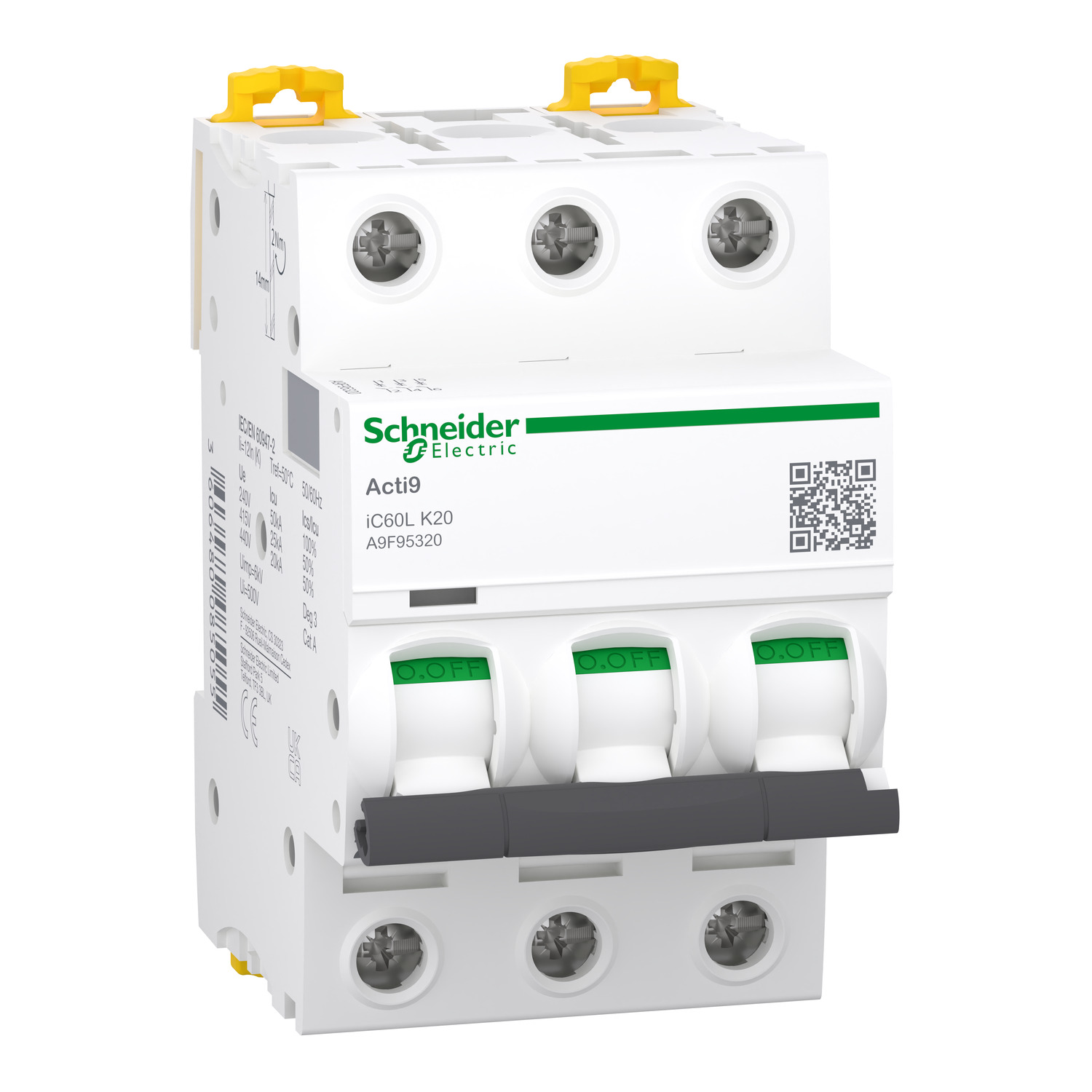

The Schneider Electric Acti9 iC60L A9F95320 is a three-pole miniature circuit breaker designed for low-voltage distribution systems that require reliable protection against short circuits and overloads. Rated at 20 A with a K-characteristic thermal-magnetic trip unit, it is particularly suited to circuits with high inrush currents. The device delivers a short-circuit breaking capacity of 50 kA at 220–240 V AC under EN/IEC 60947-2 and 15,000 A at 400 V AC under EN/IEC 60898-1, and it complies with both industrial and residential standards. Its VisiTrip indicator helps maintenance staff locate the faulted circuit quickly, while the VisiSafe green strip confirms that contacts are physically open for safe downstream work. A fast-closing mechanism, independent of the toggle, contributes to a long service life, rated for 10,000 electrical and 20,000 mechanical cycles. The breaker has a 500 V AC rated insulation voltage and Class 3 limitation, which helps reduce downstream protection costs. It clips onto a 35 mm DIN rail, occupies six 9 mm pitches (54 mm wide), and measures 85 × 54 × 78.5 mm with a net weight of 0.375 kg. It offers IP20 terminal protection (IP40 when enclosed), operates from -35 °C to +70 °C, and comes in white (RAL9003). With pollution degree 3, overvoltage category IV, and a 54% recyclability potential, it is a durable and sustainable solution for three-phase circuits.
