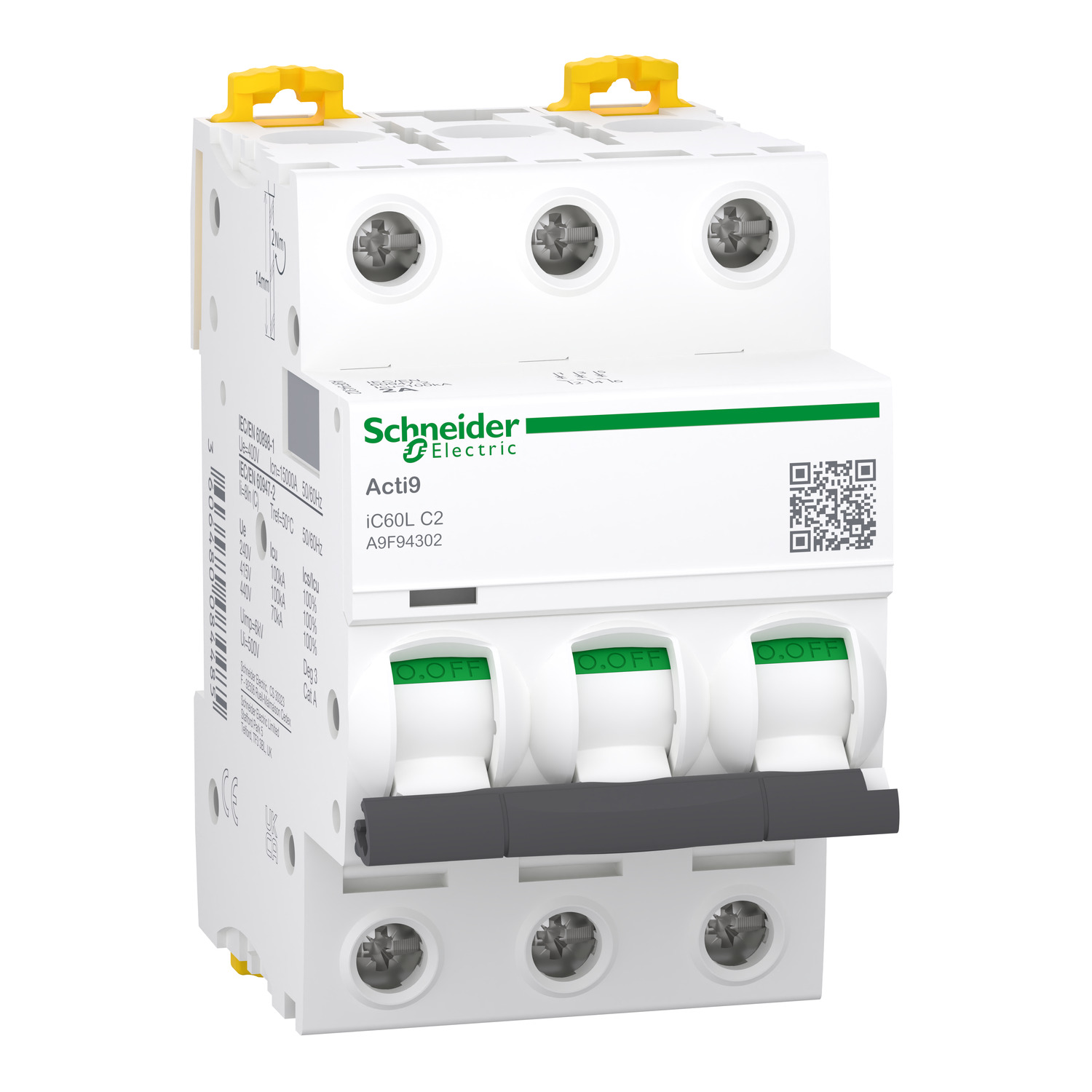

The Acti9 iC60L A9F94302 is a three-pole miniature circuit breaker from Schneider Electric's Acti9 range, designed for low-voltage distribution systems. It is rated at 2 A with a C-characteristic thermal-magnetic trip unit, making it suitable for circuits with moderate inrush currents. The breaker delivers a short-circuit breaking capacity of up to 100 kA at 220–240 V AC under EN/IEC 60947-2 and 15,000 A at 400 V AC under EN/IEC 60898-1. It complies with both industrial and residential standards. Key features include the VisiTrip fault indicator, which helps locate the faulted circuit quickly, and the VisiSafe green strip, which confirms that contacts are physically open for safe downstream maintenance. Its fast-closing mechanism, independent of the toggle, extends service life, with ratings of 10,000 electrical and 20,000 mechanical cycles. The device has a 500 V AC rated insulation voltage, a limitation class of 3, and a pollution degree of 3. It clips onto a 35 mm DIN rail and occupies six 9 mm pitches (54 mm width). Dimensions are 85 mm (H) × 54 mm (W) × 78.5 mm (D), with a net weight of 0.375 kg. It offers IP20 terminal protection (IP40 when enclosed), operates from -35 °C to +70 °C, and comes in white (RAL9003). With overvoltage category IV and a 54% recyclability potential, it is a durable and sustainable choice for three-phase protection.
