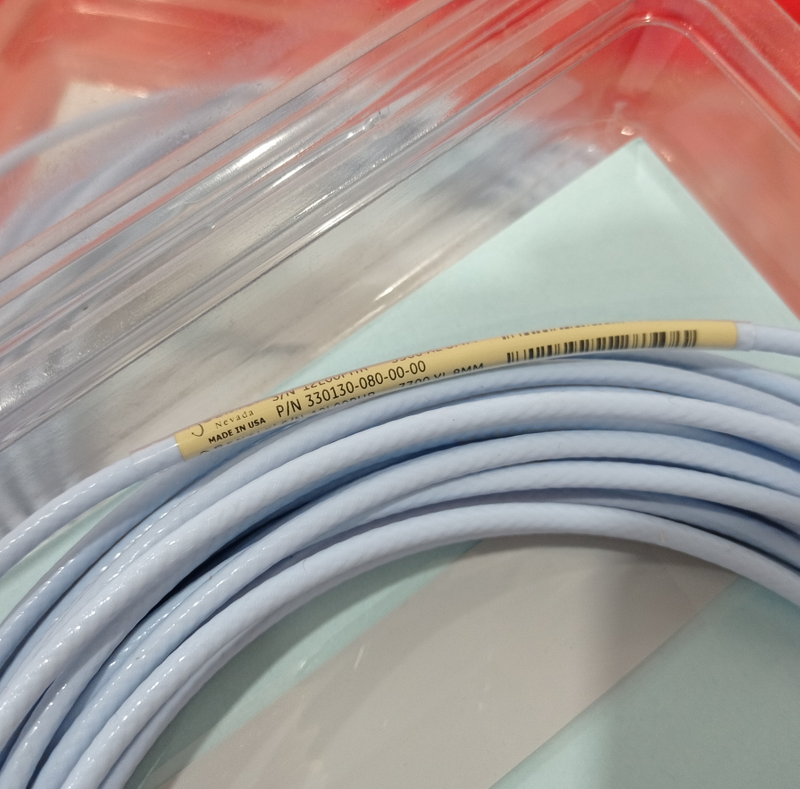

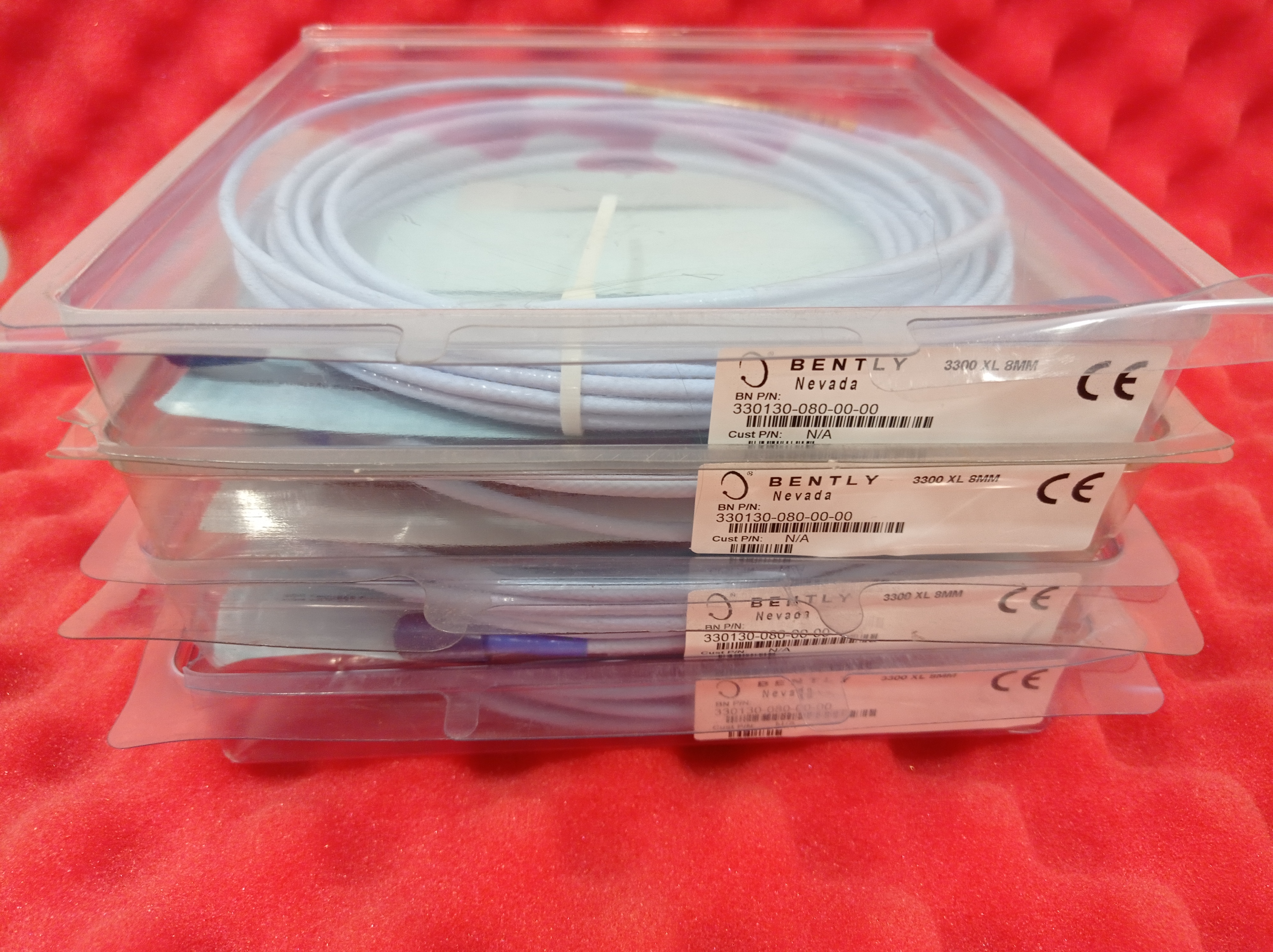

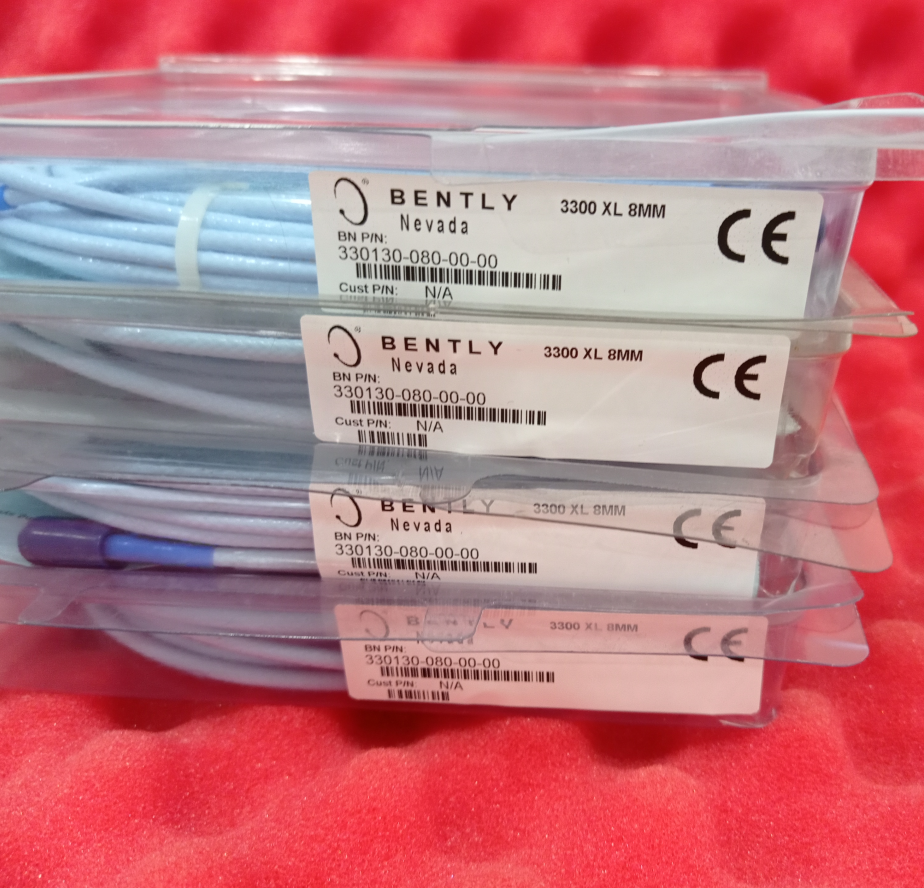

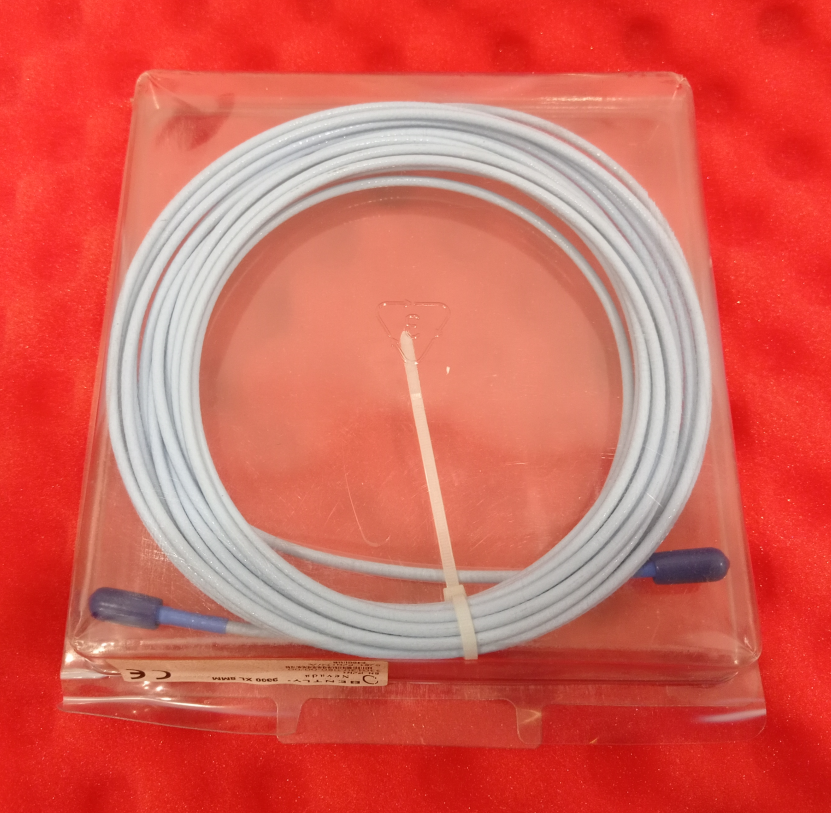

330130-080-00-00 is a Bently Nevada 3300 XL series standard extension cable with a total length of 8.0 meters (26.2 feet). It is a critical component of the 3300 XL 8 mm eddy current probe system, connecting the probe (such as the 330101 series) to the 3300 XL Proximitor Sensor to form a complete vibration and position monitoring loop.
This model features standard FEP-insulated cable and ClickLoc gold-plated connectors, offering excellent corrosion resistance and tensile strength. It is suitable for online monitoring of rotating machinery such as compressors and turbines in most industrial environments.
Model Breakdown: 330130-080-00-00 Configuration Details
Following Bently Nevada’s part number coding system, the fields in this model number represent the following:
Field | Code | Parameter | Description |
Base Model | 330130
| 3300 XL Standard Extension Cable | Compatible with 3300 XL 8 mm and 3300 5 mm series probes |
Length Option | 080
| 8.0 meters (26.2 ft) | Total cable length, suitable for installations requiring longer distance between probe and Proximitor Sensor |
Cable Option | 00
| Standard Cable | FEP-insulated triaxial cable, temperature rating -52°C to +177°C |
Agency Approval | 00
| Not Required | Standard industrial version for non-hazardous areas or applications where ATEX/IECEx certification is not needed |
Key Configuration Note: The 080 length option is the defining feature of this model. Compared to shorter versions such as 3.0 m or 4.0 m, the 8.0 m length allows the Proximitor Sensor to be installed in a control cabinet or safe area away from the probe mounting location, effectively reducing environmental exposure.
Application Scenarios & Selection Guide
330130-080-00-00 is suitable for the following typical applications:
Long-Distance Signal Transmission: When the probe mounting location is far from the Proximitor Sensor enclosure or control system, the 8.0 m cable provides sufficient cabling allowance, avoiding the need to install the Proximitor Sensor in a harsh environment.
Standard Industrial Environments: With the 00 approval option, it is ideal for non-hazardous industrial plants, compressor stations, or auxiliary equipment monitoring where explosion-proof certifications are not required.
Matching 9 m Systems: This cable is typically used in 9 m systems, combined with a 1.0 m probe to form a complete 9 m measurement chain.
Selection Notes:
Total Length Matching: Probe length + extension cable length = Proximitor Sensor total system length (5 m or 9 m). Verify your probe and Proximitor Sensor models to ensure total length matching; mismatched lengths may result in deviations from specified linear range and accuracy.
Ambient Temperature: If the application environment exceeds +177°C, consider the ETR (Extended Temperature Range) extension cable series (e.g., 330190 series).
Mechanical Dimensions & Installation
Cable Outer Diameter: Standard cable 3.68 mm (0.145 in) maximum; armored versions have larger diameters.
Connector: Features the ClickLoc design. Finger-tighten until an audible "click" is heard — no special tools are required for a reliable electrical connection and mechanical lock.
Connector Protection: For applications exposed to turbine oil or requiring conduit installation, connector protectors (sold separately) are recommended to enhance environmental sealing. This model does not include protectors by default.
Related Products & Compatible Configurations
For other lengths or configurations, refer to the following extension cable options:
Model | Length | Cable Type | Approvals | Application |
330130-030-00-00 | 3.0 m | Standard Cable | None | Short-distance connections, compact installations |
330130-040-00-00 | 4.0 m | Standard Cable | None | Standard 5 m system (paired with 1.0 m probe) |
330130-080-00-00 | 8.0 m | Standard Cable | None | Current model, long-distance standard applications |
330130-040-00-05 | 4.0 m | Standard Cable | ATEX/IECEx | Applications requiring hazardous area approvals |
330190-080-00-00 | 8.0 m | ETR High-Temp Cable | None | High-temperature environments exceeding +177°C |
Matching Probe: This cable is commonly used with the 330101 series probe. See 330101 Series Selection Guide (link to your 330101 series main page).
Inquiry & Technical Support
330130-080-00-00 is one of Bently Nevada’s standard stocked models. For availability, lead time, or technical drawings, please contact us:
Online Inquiry: Click the “Request a Quote” button and provide the model number for a prompt response.
Technical Support: If you need assistance verifying compatibility with your existing system, please share your probe and Proximitor Sensor model numbers, and we will help confirm total length matching.
