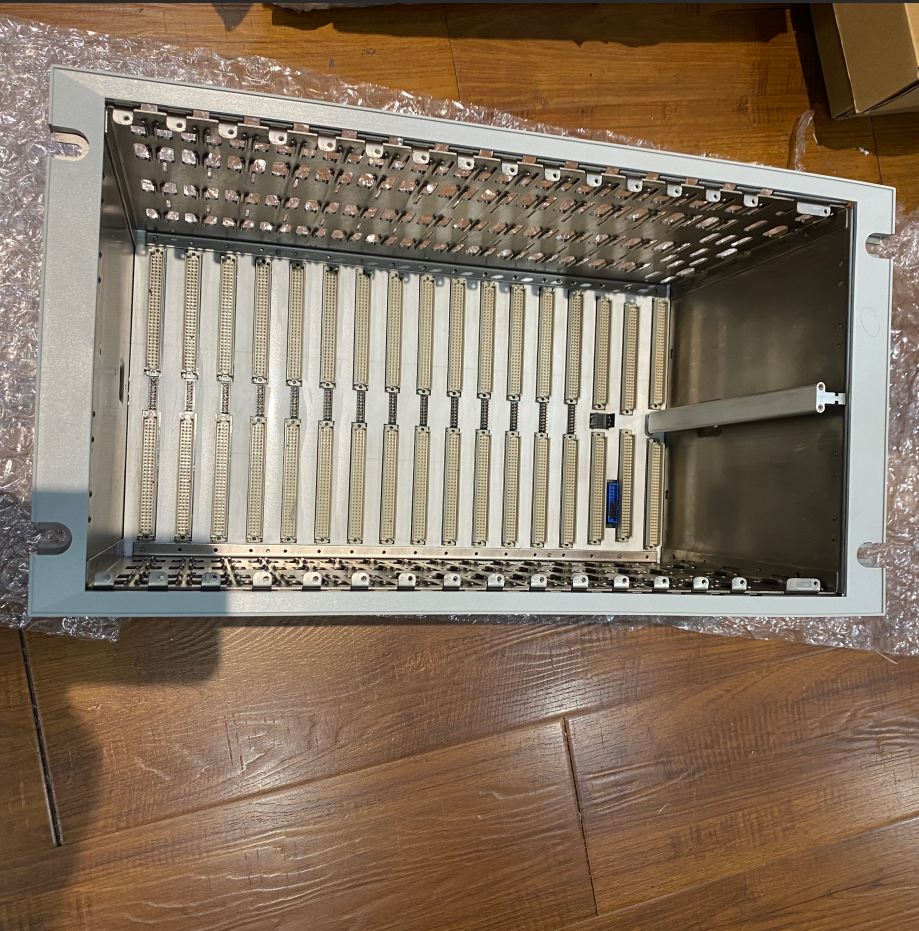

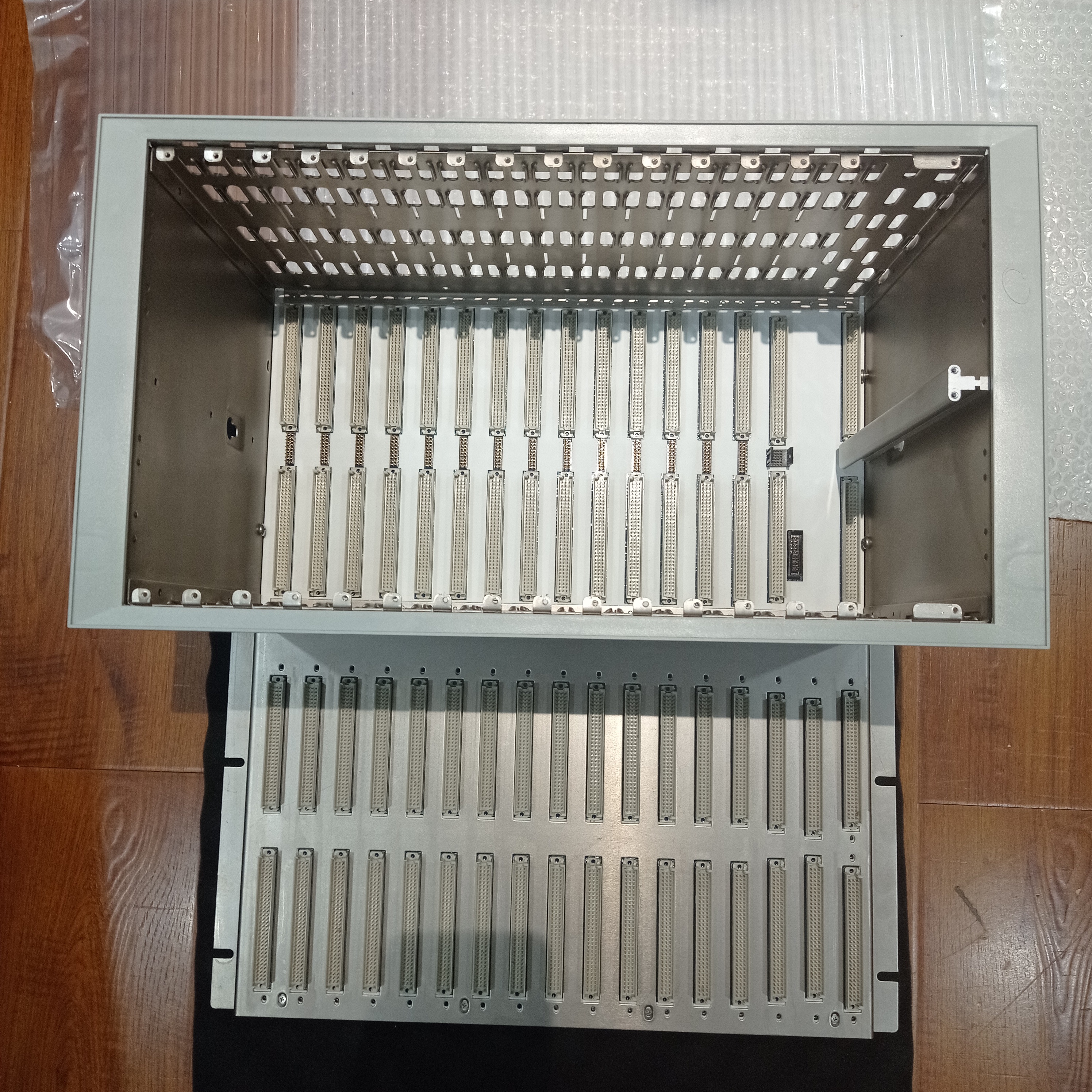

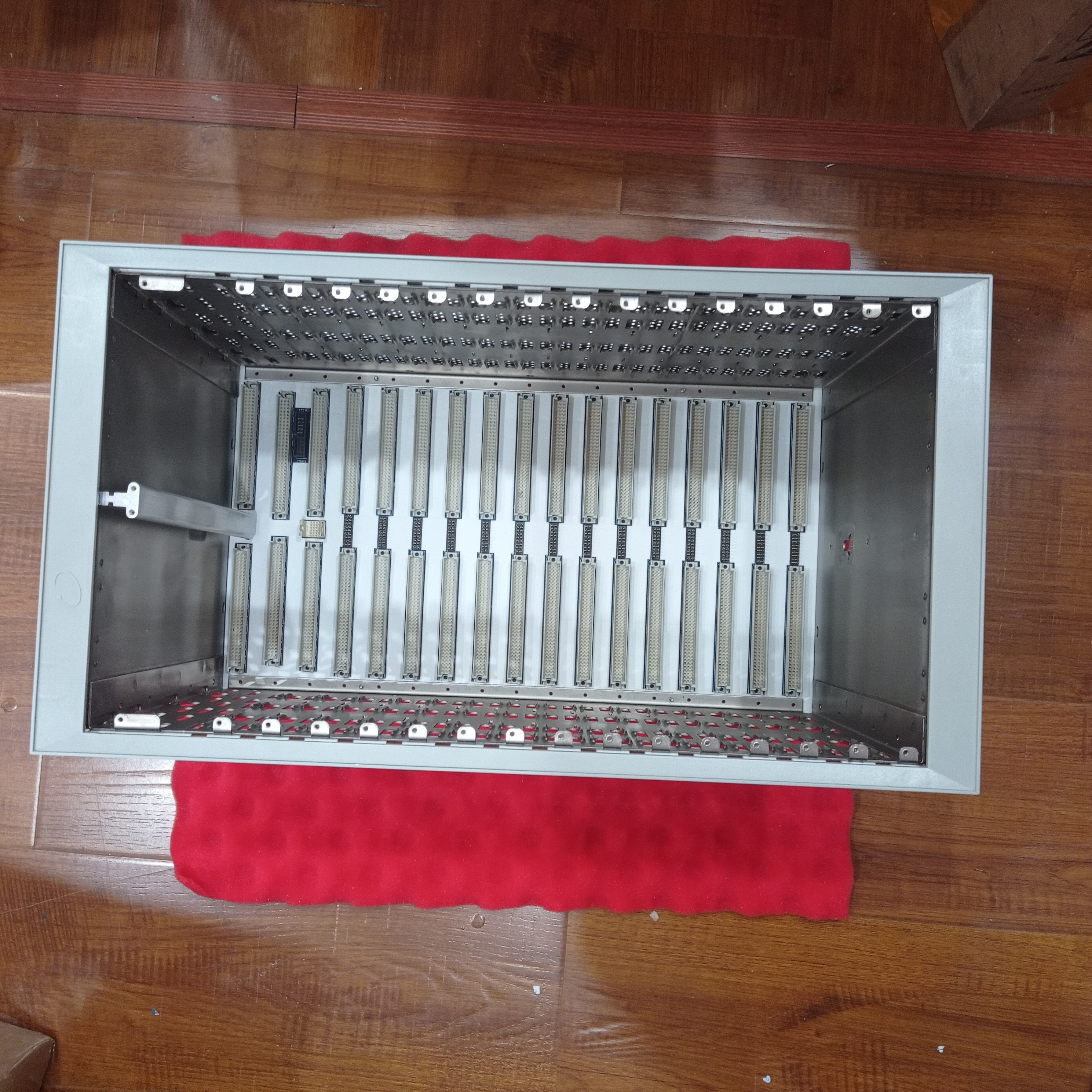

The Bently Nevada 3500/05 is the fundamental physical infrastructure component of the Bently Nevada 3500 series machinery condition monitoring system. It is a rugged, high‑integrity equipment rack designed to house, interconnect, and power all 3500 series monitor modules, power supplies, and associated interface modules. The Bently Nevada 3500/05 provides a structured and reliable platform that ensures seamless communication between modules, simplifies system integration, and facilitates efficient maintenance and expansion. Whether deployed in a full‑size 19‑inch EIA rack with 14 module slots or in a compact mini‑rack with seven slots, the Bently Nevada 3500/05 is engineered to meet the demanding requirements of critical turbomachinery protection and condition monitoring in power generation, oil and gas, petrochemical, and marine applications.
The primary function of the Bently Nevada 3500/05 is to physically mount all 3500 series modules in close proximity, enabling high‑speed backplane communication and shared power distribution. The rack incorporates a precision‑engineered backplane that carries both data and power, eliminating the need for complex point‑to‑point wiring between modules. This design enhances system reliability, reduces installation time, and simplifies troubleshooting. The rack also accommodates the necessary power supplies that convert incoming AC or DC power into the regulated voltages required by each module. The power supplies and the rack interface module (RIM) must occupy the far‑left positions of the rack, while the remaining slots are freely configurable with any combination of monitoring modules, such as vibration monitors, position monitors, speed monitors, and communication gateways.
The Bently Nevada 3500/05 is available in two distinct sizes to suit different application scales and physical space constraints. The full‑size rack is a standard 19‑inch EIA rack with 14 available module slots, providing ample capacity for large systems with multiple monitoring channels. The mini‑rack, at 12 inches wide, offers seven module slots, making it ideal for smaller installations, retrofits, or applications where panel space is limited. Both rack sizes are offered in multiple mounting formats – panel mount, rack mount, and bulkhead mount – giving system designers flexibility to integrate the rack into various enclosures, control cabinets, and equipment rooms.
The Bently Nevada 3500/05 is built to operate in harsh industrial environments. It meets stringent electromagnetic compatibility (EMC) standards, electrical safety requirements, and hazardous area certifications, including CSA, ATEX, and IECEx for Class I, Division 2 and Zone 2 installations. With its robust mechanical construction, clearances for thermal management, and provisions for internal barriers (for intrinsic safety applications), the Bently Nevada 3500/05 is the trusted foundation for monitoring the health of critical rotating machinery worldwide.
Construction and Design Philosophy
The Bently Nevada 3500/05 is constructed from high‑quality cold‑rolled steel with a durable powder‑coat finish, designed to withstand industrial vibration, temperature extremes, and electromagnetic interference. The rack features a rigid backplane that supports all modules and provides the electrical interconnections. Each module slot is guided by precision card guides that ensure proper alignment and secure seating of the modules. The rack also includes integral mounting provisions for power supplies, which are located at the far left of the rack, adjacent to the rack interface module.
The design of the Bently Nevada 3500/05 prioritises ease of access for installation, wiring, and maintenance. In panel‑mount and rack‑mount formats, all field wiring connections and I/O modules are accessible from the rear of the rack, allowing for neat cable management and separation of power and signal wiring. In the bulkhead‑mount format, which is available only for the full‑size rack, all connections are made from the front, enabling installation against a wall or panel where rear access is impossible. This versatility makes the Bently Nevada 3500/05 suitable for a wide range of mechanical configurations, from large central control rooms to cramped field enclosures.
Thermal management is a critical aspect of the rack design. The Bently Nevada 3500/05 provides adequate clearance around modules for natural convection cooling, and the metal chassis acts as a heat sink for power‑dissipating components. For installations requiring internal barriers – which are used to maintain intrinsic safety in hazardous areas – the rack depth increases to accommodate the barrier hardware, and a dedicated 3500/04‑01 Internal Barrier Earthing Module is required to provide the IS earth connection. This module occupies one slot, reducing the number of available monitoring slots accordingly.
The Bently Nevada 3500/05 also supports redundant power supply configurations for critical applications, ensuring uninterrupted operation even if one power supply fails. The rack’s backplane automatically distributes power to all modules, and status indicators on the power supplies provide local visual feedback on system health.
Key Features and Capabilities
The Bently Nevada 3500/05 offers a comprehensive set of features that make it the preferred choice for machinery protection systems:
Scalable Capacity: Choose between the 14‑slot full‑size rack for large systems or the 7‑slot mini‑rack for compact installations. This scalability allows the Bently Nevada 3500/05 to grow with your monitoring needs.
Flexible Mounting Options: The rack is available in panel mount, rack mount (19‑inch EIA), and bulkhead mount (full‑size only) formats, adapting to virtually any installation environment.
High‑Density Module Support: Each slot accommodates standard full‑height 3500 modules. Half‑height modules can be installed using optional adapters, allowing mixed configurations.
Integrated Backplane: The robust backplane carries both power and communication signals, reducing external wiring and improving reliability.
Hazardous Area Ready: With certifications for Class I, Division 2 and Zone 2 (CSA, ATEX, IECEx), the Bently Nevada 3500/05 can be deployed in potentially explosive atmospheres when installed per approved drawings.
Internal Barrier Compatibility: The rack can be fitted with internal barriers for intrinsic safety applications, with a dedicated earthing module to maintain the IS ground.
Ease of Maintenance: Front‑accessible modules in bulkhead mount or rear‑accessible in panel/rack mount simplify module replacement and wiring checks.
Comprehensive Accessory Support: Blank covers, card guides, mounting hardware, and adapter panels (for mini‑rack in 19‑inch EIA racks) are available to complete the installation.
Global Compliance: The Bently Nevada 3500/05 meets FCC Part 15, EMC Directive, Low Voltage Directive, RoHS, ABS, DNV GL marine rules, and multiple hazardous area standards.
Intended Applications
The Bently Nevada 3500/05 is the central enclosure for all 3500 series monitoring systems, which are deployed in the following critical applications:
Turbomachinery Protection: Steam turbines, gas turbines, compressors, and generators in power plants and industrial facilities.
Pump and Fan Monitoring: Large centrifugal pumps, axial fans, and blowers in petrochemical, water treatment, and mining operations.
Marine Propulsion Systems: Main engines, shaft lines, and auxiliary machinery on ships and offshore platforms, complying with ABS and DNV GL rules.
Oil and Gas Processing: Compressor trains, expanders, and pump sets in refineries, LNG plants, and pipeline stations.
Paper and Steel Mills: Large roll drives, shredders, and heavy machinery requiring continuous vibration and position monitoring.
**Any rotating equipment where predictive maintenance and machine protection are essential to avoid catastrophic failure and unplanned downtime.
The rack’s ability to host a mixture of monitoring modules – such as the 3500/40 Proximitor Monitor, 3500/42 Vibration Monitor, 3500/50 Tachometer, and 3500/60 Temperature Monitor – makes the Bently Nevada 3500/05 a universal platform for comprehensive machine health assessment.
Installation and Wiring Considerations
The Bently Nevada 3500/05 is designed for straightforward installation, but careful planning is essential to ensure optimal performance and compliance with safety regulations.
For panel‑mount configurations, a rectangular cutout must be made in the panel according to the recommended dimensions. The rack is inserted from the front and secured using the supplied clamps, which tighten against the panel. Wiring connections to the power supply inputs, I/O modules, and communication interfaces are made at the rear of the rack. In rack‑mount configurations, the rack slides into standard 19‑inch EIA rails and is secured with screws. Rear access is still required for wiring. Bulkhead mount installations allow the rack to be fixed to a wall or panel with the front facing outward; all wiring is performed from the front, which is advantageous when rear access is not feasible.
When internal barriers are used for intrinsic safety, the Bently Nevada 3500/05 requires a 3500/04‑01 Earthing Module to be installed. This module must be placed in a dedicated slot, reducing the number of available slots for monitoring modules. Additionally, the rack depth increases by approximately 2.9 inches (73.7 mm) to accommodate the barrier hardware. All barrier wiring must comply with the approved drawings (149243 or 149244) for the respective hazardous area certification.
Proper earthing is critical for system performance and safety. The rack provides grounding points for the chassis earth, and the power supply modules include dedicated earth terminals. For IS installations, the earthing module ensures a low‑impedance path to ground, maintaining the integrity of the intrinsic safety barrier.
The Bently Nevada 3500/05 supports hot‑swapping of modules (subject to specific module capabilities), allowing maintenance without powering down the entire system. Blank covers must be installed in any empty slots to maintain proper airflow and electromagnetic shielding.
Hazardous Area Compliance and Safe Use
The Bently Nevada 3500/05 is certified for installation in hazardous areas when configured with appropriate modules and installed per the relevant drawings. Key certification details are as follows:
CSA/NRTL/C (Class I, Division 2): The rack assembly, when fitted with approved modules and installed per drawing 149243 or 149244, is rated for Class I, Division 2, Groups A, B, C, D, and also for Class I, Zone 2 with AEx/Ex nA nC ic IIC T4 or AEx/Ex ec nC ic IIC T4. The temperature class is T4 for ambient temperatures from –20°C to +65°C.
ATEX/IECEx: The rack is certified as Ex 3 G, with types Ex nA nC ic IIC T4 Gc and Ex ec nC ic IIC T4/T5 Gc. The T4 rating applies for Ta = –20°C to +65°C. The installation must comply with the specific conditions of the certificate, including the use of approved cable glands and sealing methods.
The rack itself does not contain ignition sources; however, the modules installed within it may have their own entity parameters. Users must consult the module‑specific datasheets and the 3500 system manual to ensure overall system compliance.
Maintenance and Lifecycle Support
The Bently Nevada 3500/05 is designed for long service life with minimal maintenance. Routine visual inspections for dust accumulation, loose connections, and mechanical damage are recommended. Any damaged or missing blank covers should be replaced to maintain shielding and cooling. The rack’s backplane is passive and not user‑serviceable; if a backplane failure is suspected, the entire rack must be replaced.
Spare parts, including blank covers, card guides, and mounting hardware, are available from Bently Nevada. The Rack Installation and Maintenance Manual (129766‑01) and Field Wiring Diagrams (130432‑01) provide comprehensive guidance for troubleshooting and repair.
Bently Nevada offers global technical support and field service for the Bently Nevada 3500/05, ensuring that system integrators and end‑users can obtain expert assistance for installation, commissioning, and ongoing maintenance.
Comparison with Other Rack Systems
The Bently Nevada 3500/05 is the standard rack for the 3500 series, succeeding earlier racks such as the 3300 series racks. Compared to smaller or third‑party racks, the 3500/05 offers:
Dedicated backplane for high‑speed, noise‑immune communication between modules.
Certified hazardous area operation, which is essential for many industrial sites.
Integrated power distribution with redundant supply options.
Modular flexibility – mix and match any 3500 modules.
Global approvals – CSA, ATEX, IECEx, ABS, DNV GL, making it acceptable worldwide.
In contrast to the 3500/06 Weatherproof Housing, which is an external enclosure for outdoor installations, the 3500/05 is the internal rack that mounts inside such housings. The bulkhead mount option of the 3500/05 provides front‑access wiring, a feature not available in the mini‑rack.
