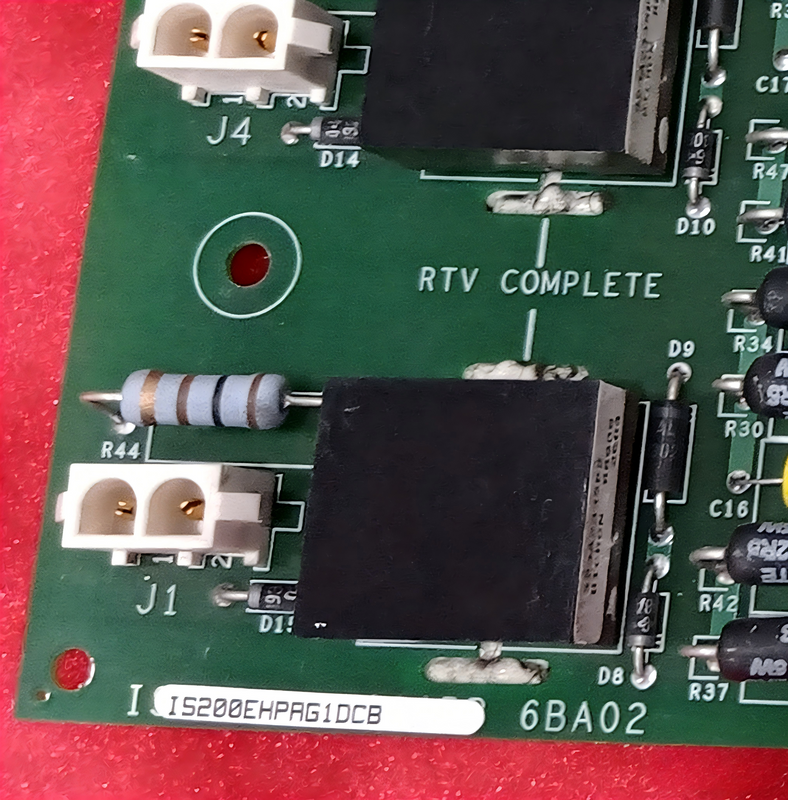

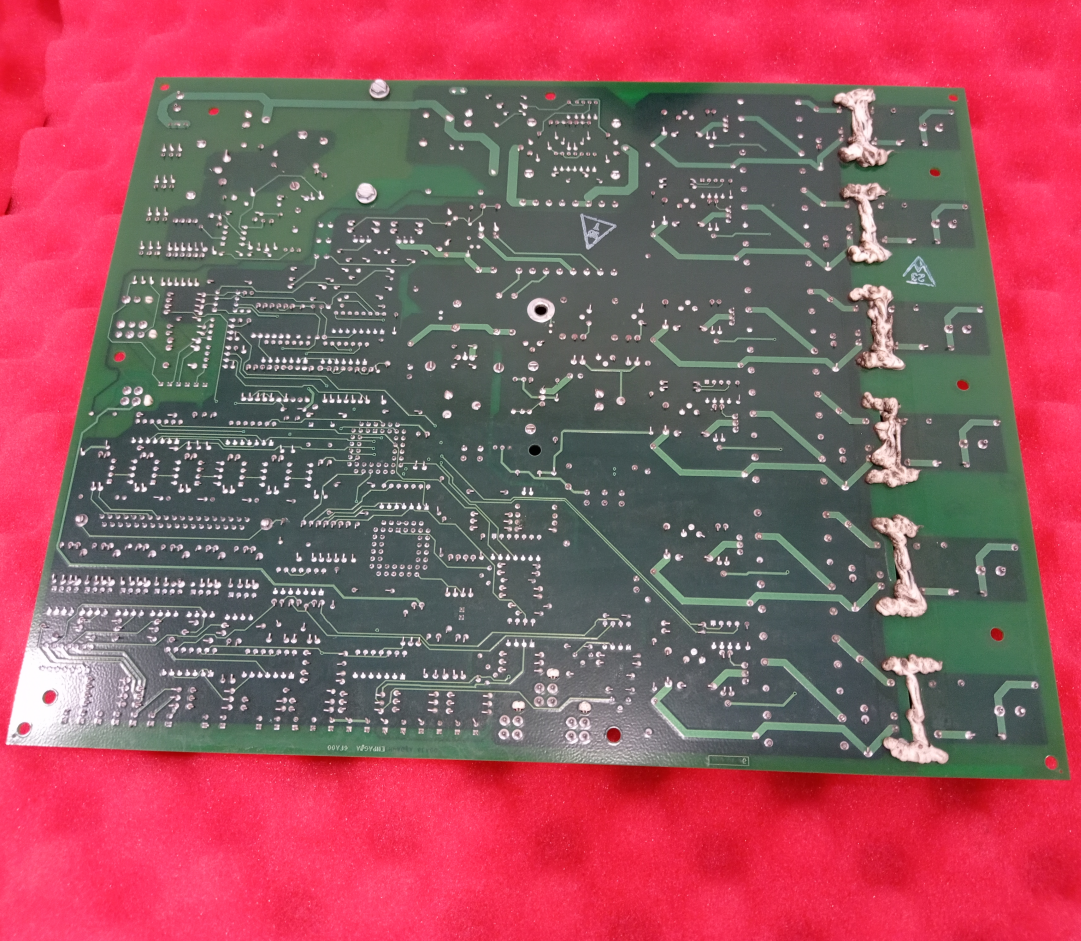

The IS200EHPAG1D is an Exciter Gate Pulse Amplifier Board designed by General Electric (GE) for its EX2100™ Excitation Control System. This board is a hardware revision within the EHPA series, specifically designed for controlling 100 mm SCR power bridges. The primary function of the IS200EHPAG1D is to receive gate commands from the ESEL board, amplify them, and fire up to six Silicon Controlled Rectifiers (SCRs) on the power bridge, enabling precise control of the excitation current.
In addition to gate firing, the IS200EHPAG1D also performs several critical monitoring and protection functions. It serves as the interface for current conduction feedback, monitoring the conduction status of the power bridge. It simultaneously monitors the airflow status of the bridge cooling system, the fuse status of the line filter, and the bridge temperature. These monitoring signals are processed by logic circuits to generate alarm or fault signals, which are sent to the control system, ensuring the safe and reliable operation of the power bridge.
The IS200EHPAG1D board supports an optional EHFC daughterboard, which enables start/stop control of the bridge cooling fan(s) or lead/lag control for redundant fans. The board uses a nominal 125 V dc power supply from the EPDM. An onboard DC/DC converter provides the various voltages required for SCR firing, maintaining stability across the entire input voltage range. Multiple LED indicators on the board provide visual status indication for power, gate command inputs, firing outputs, and various fault and alarm conditions.

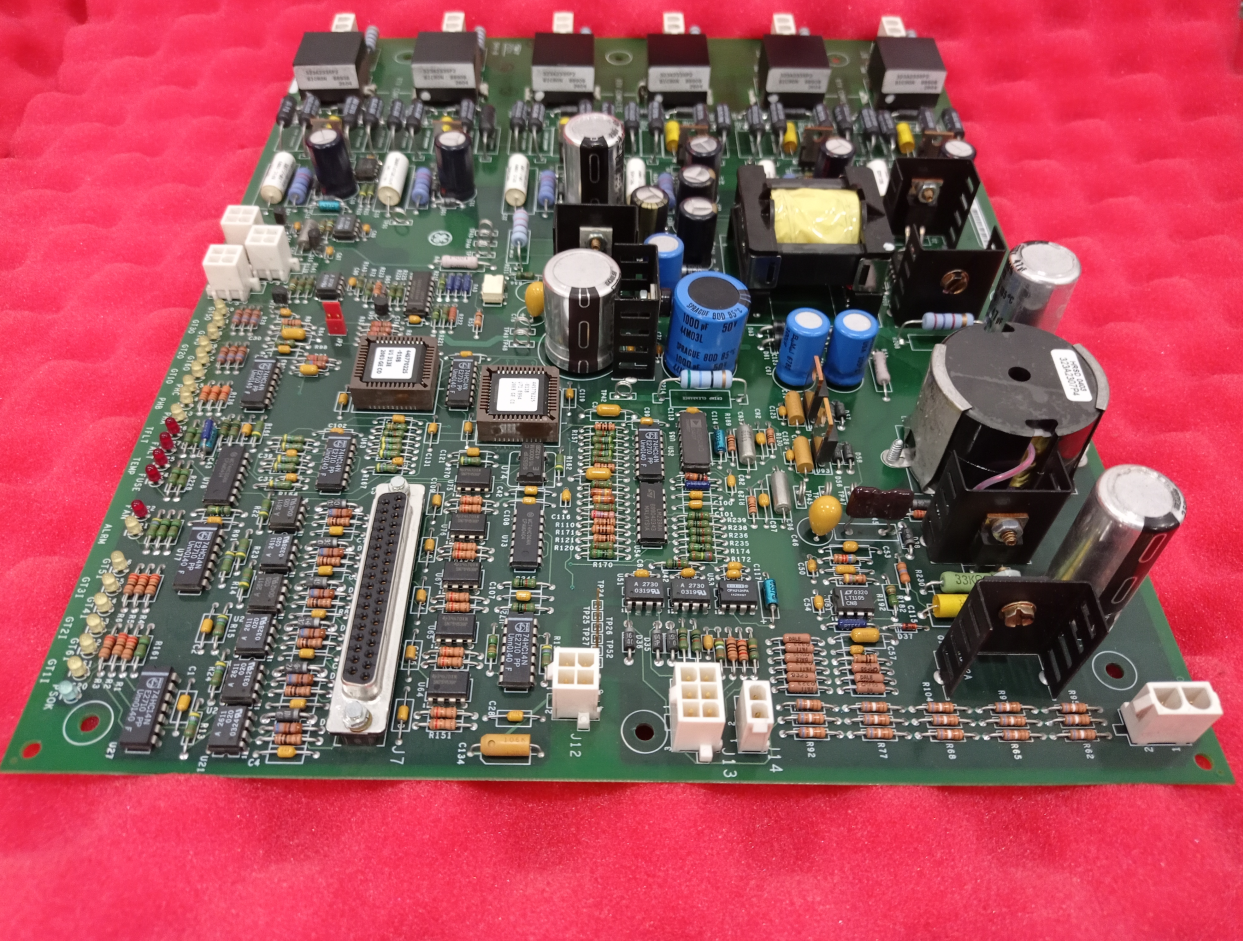

The IS200EHPAG1D board includes six SCR firing output connectors (J1-J6), one power input connector (J8), one 39-pin control signal connector (J7), three current sensor connectors (J9-J11), fan sensor connectors (J12, J20), a temperature sensor connector (J13), a fuse status connector (J14), several configuration jumpers (JP2, JP3, etc.), and multiple test points (TP40-TP54). The board design meets industrial-grade standards and is suitable for critical control applications in power plant excitation systems.
II. Main Functions
The primary functions of the IS200EHPAG1D include, but are not limited to, the following:
1. SCR Gate Firing
The IS200EHPAG1D board receives six gate command signals from the ESEL board (via connector J7). After power amplification, it delivers firing pulses to the corresponding SCR gate and cathode via connectors J1 through J6. Each SCR has an independent firing channel, ensuring precise firing timing.
2. Current Conduction Feedback
The board receives current sensor signals from phases A, B, and C of the power bridge via connectors J9, J10, and J11, monitoring the conduction status of the SCRs. These signals are processed and fed back to the control system (M1 and M2) via connector J7 for conduction monitoring and fault diagnosis.
3. Bridge Temperature Monitoring
An RTD (Resistance Temperature Detector) on the power bridge connects via connector J13 to monitor bridge temperature. An alarm is generated when the temperature exceeds an alarm threshold. A trip signal is generated, and firing outputs are stopped when the temperature exceeds a fault threshold, protecting the power devices.
4. Cooling System Monitoring
The board monitors the operational status of the bridge cooling fans via connectors J12 and J20. Fan sensors can be configured for pulse train mode (monitoring speed) or dry contact mode (monitoring run/stop). Fan failure triggers corresponding alarms or trip signals.
5. Fuse Status Monitoring
The fuse status of the line filter is monitored via connector J14. When a fuse blows, the corresponding contact closes. The board detects this status and generates an alarm signal.
6. Fault Logic and Protection
Internal fault logic circuitry processes monitoring signals from temperature, fans, fuses, etc. If a temperature trip or board power supply failure occurs, the IS200EHPAG1D stops firing outputs and enters a latched state until control power is cycled.
7. LED Status Indication
Multiple LED indicators on the front panel provide quick board status assessment:
Power LED (Green): Board power is normal.
Gate Command LEDs (Yellow): Firing commands received from ESEL.
Firing Output LEDs (Red): Firing pulses are being output to SCRs.
Alarm LED (Yellow): An alarm condition exists (e.g., fan fault, blown fuse, temperature exceedance).
Fault LED (Red): A trip condition exists (e.g., overtemperature, power supply failure).
Fan LED (Red): Indicates fan status (Note: blinking when bridge is not firing may not indicate failure, only that the fan is not running or its health is unknown).
Note: Two brief flashes of the yellow ALRM LED approximately every 10 seconds are normal, indicating a self-test. Longer flashes during this interval indicate an alarm is being reported to the control module.
8. EHFC Daughterboard Support
Certain revisions of the IS200EHPAG1D support the installation of an EHFC daughterboard for automatic control of bridge cooling fans or lead/lag control of redundant fans. Refer to document GEI-100548 for detailed interface and operation information.
III. System Applications
1. Application in EX2100 Excitation Control System
The IS200EHPAG1D is a critical interface board connecting control electronics and power electronics within the EX2100 Excitation Control System. Its roles within the system include:
Gate Driving: Amplifies low-level gate command signals from the ESEL board into high-energy firing pulses, ensuring reliable SCR conduction.
Status Feedback: Collects power bridge status including current conduction, temperature, cooling status, and fuse status, feeding this information back to the control system for closed-loop control and fault protection.
Fault Protection: Autonomously stops firing outputs upon detecting severe faults (e.g., overtemperature, power supply failure) to protect power devices.
System Monitoring: Provides status information and diagnostic means for field operation and maintenance personnel via LED indicators and test points.
2. Typical Application Scenarios
SCR power bridges for synchronous generator excitation systems
Voltage regulators for steam turbine generators
Power units for hydro turbine generator excitation
Excitation systems for gas turbines
Industrial high-power rectifiers
IV. Detailed Interface Description
1. SCR Firing Output Connectors J1-J6
Each connector corresponds to one SCR and uses a 2-pin design:
| Pin | Signal Description |
| 1 | SCR Cathode Connection |
| 2 | SCR Gate Connection |
Note: Connector numbers match SCR numbers (e.g., J3 connects to SCR3).
2. Power Input Connector J8
2-pin connector for main board power input:
| Pin | Signal Description |
| 1 | Power Input, 125 V dc (80-140 V dc) |
| 2 | Power Common (PSCOM) |
3. Control Signal Connector J7
39-pin connector connecting to the control system (ESEL and EMIO), carrying gate commands and feedback signals. Key pin assignments:
| Pin | Description | Pin | Description |
| 1 | Gate 1 Input Positive | 20 | Gate 1 Input Negative |
| 2 | Gate 6 Input Positive | 21 | Gate 6 Input Negative |
| 3 | Gate 2 Input Positive | 22 | Gate 2 Input Negative |
| 4 | Gate 4 Input Positive | 23 | Gate 4 Input Negative |
| 5 | Gate 3 Input Positive | 24 | Gate 3 Input Negative |
| 6 | Gate 5 Input Positive | 25 | Gate 5 Input Negative |
| 7 | Phase A Conduction Sensor Positive (to M1) | 26 | Phase A Conduction Sensor Negative (to M1) |
| 8 | Phase B Conduction Sensor Positive (to M1) | 27 | Phase B Conduction Sensor Negative (to M1) |
| 9 | Phase C Conduction Sensor Positive (to M1) | 28 | Phase C Conduction Sensor Negative (to M1) |
| 10 | Alarm Positive (to M1) | 29 | Alarm Negative (to M1) |
| 11 | Fault Positive (to M1) | 30 | Fault Negative (to M1) |
| 13 | Phase A Conduction Sensor Positive (to M2) | 32 | Phase A Conduction Sensor Negative (to M2) |
| 14 | Phase B Conduction Sensor Positive (to M2) | 33 | Phase B Conduction Sensor Negative (to M2) |
| 15 | Phase C Conduction Sensor Positive (to M2) | 34 | Phase C Conduction Sensor Negative (to M2) |
| 16 | Alarm Positive (to M2) | 35 | Alarm Negative (to M2) |
| 17 | Fault Positive (to M2) | 36 | Fault Negative (to M2) |
| 38 | Capacitance to Ground | 39 | Capacitance to Ground |
4. Current Sensor Connectors J9, J10, J11
4-pin connectors for Phase A, B, and C current sensors respectively:
| Pin | Signal Description |
| 1 | Sensor Power |
| 2 | Current Sensor Input |
| 3 | Power Common |
| 4 | Current Sensor Input |
5. Fan Sensor Connectors J12, J20
4-pin connectors for bridge cooling fan sensors and line filter fan sensor:
| Pin | Signal Description |
| 1 | Fan Sensor Power |
| 2 | Power Common |
| 3 | Fan Sensor Return |
| 4 | Not Connected |
6. Temperature Sensor Connector J13
6-pin connector for the RTD on the bridge:
| Pin | Signal Description |
| 1-4 | Not Used |
| 5 | RTD Power Supply |
| 6 | RTD Current Signal Return |
7. Fuse Status Connector J14
2-pin connector for monitoring line filter fuse status:
| Pin | Signal Description |
| 1 | Fuse Sensor Power (Contact) |
| 2 | Fuse Sensor Return (Contact) |
V. Configuration Jumpers and Test Points
1. Configuration Jumpers
| Jumper | Setting | Description |
| JP2 | Shorted | Enables fan 1 operation sensor (pulse train mode) |
| JP2 | Open | Disables fan 1 operation sensor (dry contact mode), also disables line filter fan sensor at J20 |
| JP3 | Shorted | Enables line filter fan sensor operation at J20 |
2. Test Points
Test points allow on-site measurement of key signal voltages:
| Test Point | Nomenclature | Description |
| TP40 | P1FAP | Power Supply Input Voltage |
| TP41 | N50 | -50 V Supply |
| TP42 | P8 | +8 V Supply |
| TP43 | P40 | +40 V Supply |
| TP44 | PCOM | 40 V Power Common |
| TP45 | P15 | +15 V Supply |
| TP46 | ACOM | 15 V Analog Common |
| TP47 | N15 | -15 V Supply |
| TP48 | DCOM | 5 V Digital Common |
| TP49 | P5 | +5 V Supply |
| TP50 | P12 | +12 V Supply |
| TP51 | PCOM | 12 V Power Common |
| TP54 | LINFILN | Line Filter Sensor Input (Closed = High) |
VI. Installation and Replacement
1. Mounting Location
The IS200EHPAG1D board is mounted inside the Power Conversion Cabinet of the EX2100 excitation system, located close to the power bridge to minimize firing pulse transmission paths. The board connects to SCRs, sensors, and the control system via its connectors.
2. Replacement Procedure
Important Safety Warnings:
EHPA boards are not online-maintainable unless the power converter section includes the online repair switch option. Power to the bridge and EHPA must be turned off before replacement.
Before replacing the board, follow the complete de-energizing procedures outlined in the Installation and Startup Guide (GEH-6631) and adhere to all local Lock-out/Tag-out practices. Allow time for capacitors to discharge.
Adhere to ESD (Electrostatic Discharge) precautions when handling the board. Wear a grounding strap and store boards in anti-static bags.
Replacement Steps:
Verify Power Off: Ensure the excitation system or power converter section is completely de-energized.
Open Cabinet Door: Open the Power Conversion Cabinet door and test electrical circuits to ensure power is off.
Verify LEDs Off: Check that all LEDs on the EHPA board to be replaced are off.
Label Cables: Verify all cables are correctly labeled according to the markings on the board for easy reconnection.
Disconnect Cables: Carefully disconnect all cables from the EHPA board. If an EHFC daughterboard is present, refer to document GEI-100548 for related steps.
Remove Old Board: Remove the old EHPA board from its mounting.
Inspect New Board: Verify that all jumpers on the replacement EHPA board are set identically to the original board (especially JP2, JP3).
Install New Board: Install the new board back into its original mounting position.
Reconnect Cables: Reconnect all cables to the new board as labeled and tighten connectors.
Restore Power: Close the cabinet door, restore power to the system following procedures, and test operation.
