GE IS200EGDMH1A Exciter Ground Detector Module

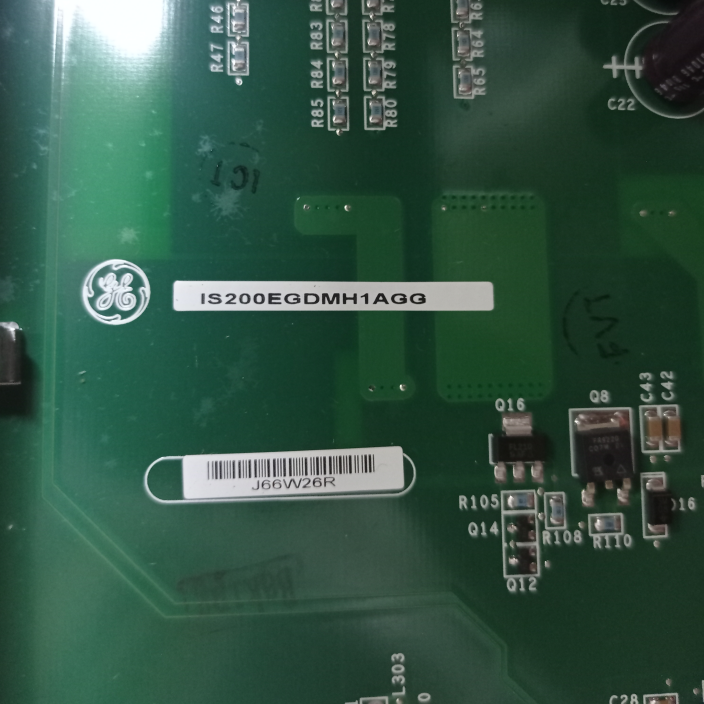

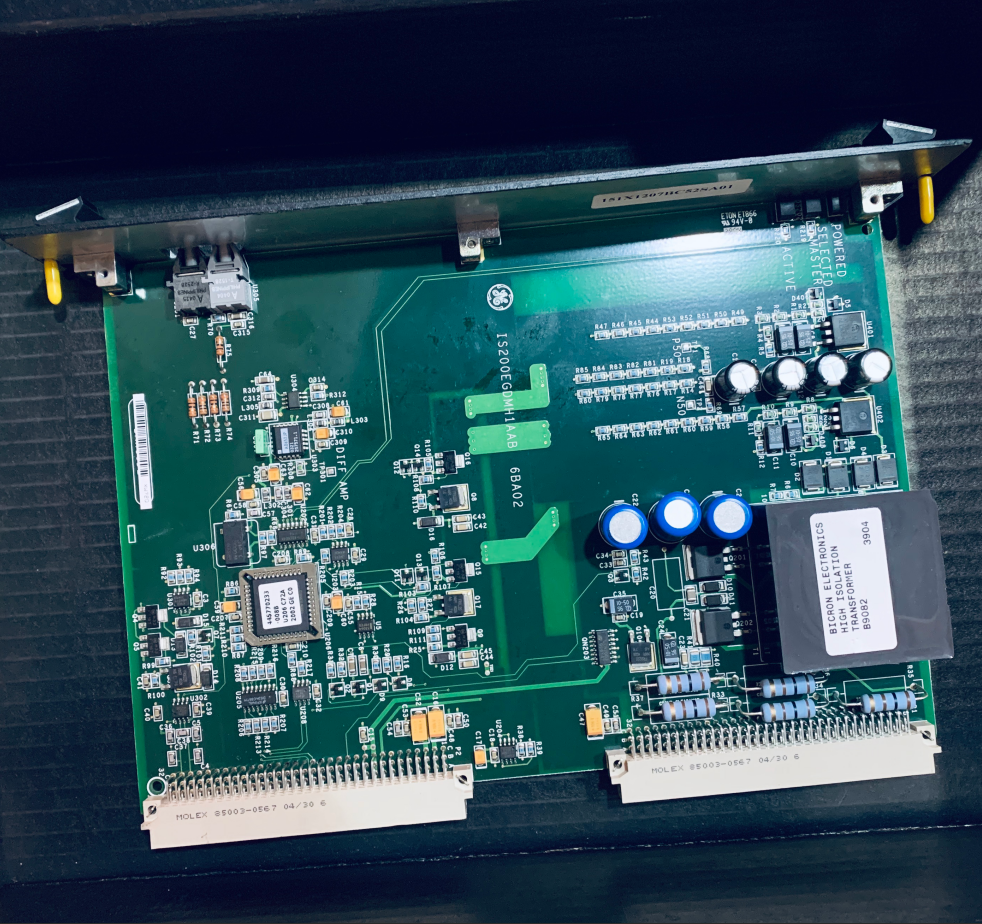

The IS200EGDMH1A is an Exciter Ground Detector Module designed by General Electric (GE) for its EX2100™ Excitation Control System. This board features a dual-slot, double-height (6U) form factor and mounts in the Exciter Power Backplane rack (EPBP). The primary function of the IS200EGDMH1A is to detect field leakage resistance between any point in the generator field circuit (either on the AC or DC side) and ground, providing critical insulation monitoring for the excitation system.

In a Simplex control system, one EGDM board is configured. In a Redundant control system, three EGDM boards are configured, serving as Controller C, Master 1 (M1), and Master 2 (M2). The EGDM board works in conjunction with the EXAM Attenuator Module, which is mounted in the High Voltage Module located in the Auxiliary Panel. The EXAM module senses the voltage across the ground sense resistor and sends the signal to the EGDM board(s) over a nine-conductor cable.

The IS200EGDMH1A board receives fiber optic signals from the DSPX board via the EISB board. Based on control logic, it determines the currently active master controller (M1 or M2). The active master generates a ±50 V square wave voltage, applied via cable to one end of the sense resistor in the EXAM module. The signal conditioner receives an attenuated (10:1) differential signal from the sense resistor. This signal passes through a unity gain differential amplifier with a high common-mode rejection ratio, then to a Voltage Controlled Oscillator (VCO) which converts it to a frequency signal. This signal is sent back to the EISB board via a fiber optic transmitter for the control system to calculate the ground resistance value.

The board features an isolated power supply, taking 24 V dc input from the EPBP backplane and using DC/DC converters to generate ±65 V dc (for the non-isolated power amplifier) and isolated +5 V dc and ±15 V dc (for the signal conditioning circuitry). The power amplifier output has an impedance of less than 1.0 Ω, outputs a ±50 V square wave with current limited to approximately 80 mA, and has a normal operating period of 5 seconds, reducing to 400 ms during test operation.

II. Main Functions

The primary functions of the IS200EGDMH1A include, but are not limited to, the following:

1. Ground Resistance Detection

Measures the leakage resistance from the generator field circuit to ground using the sense resistor in the EXAM Attenuator Module. The IS200EGDMH1A conditions, isolates, and digitizes the voltage signal across the sense resistor, transmitting the result via fiber optics to the control system for ground fault alarming or protection.

2. Redundant Control and Master/Slave Switching

In a redundant system, three EGDM boards are configured as C, M1, and M2. The C board receives control signals from the DSPX and determines whether M1 or M2 acts as the active master controller. The active master generates the test voltage and receives the detection signal. This design ensures continued system operation even if a single board fails.

3. Test Voltage Generation

The power amplifier in the active master generates a ±50 V square wave test voltage applied to the sense resistor in the EXAM module. This voltage features low output impedance (<1.0 Ω) and current limiting (approx. 80 mA) for safety and reliability. The normal operating period is 5 seconds, decreasing to 400 ms in test mode.

4. Signal Conditioning and Isolation

The differential signal from the sense resistor, attenuated 10:1, enters the IS200EGDMH1A's signal conditioning circuitry. This circuit uses a unity gain differential amplifier with high CMRR, followed by a VCO for frequency conversion. The entire signal conditioning circuit is powered by an isolated supply to handle potentially high common-mode voltage at the sense resistor, ensuring personnel and equipment safety.

5. Self-Test Function

The signal conditioning circuitry can, upon command from the control section, ground the bridge side of the attenuated sense resistor. This allows measurement of the power amplifier output level, implementing a self-test function.

6. Fiber Optic Communication

The IS200EGDMH1A is equipped with two fiber optic connectors:

• Lower Fiber Optic Connector (U201): HFBR2528 receiver, receives the oscillator signal from the EISB board.

• Upper Fiber Optic Connector (U305): HFBR1528 transmitter, sends the sense resistor signal back to the EISB board.

7. Status Indication

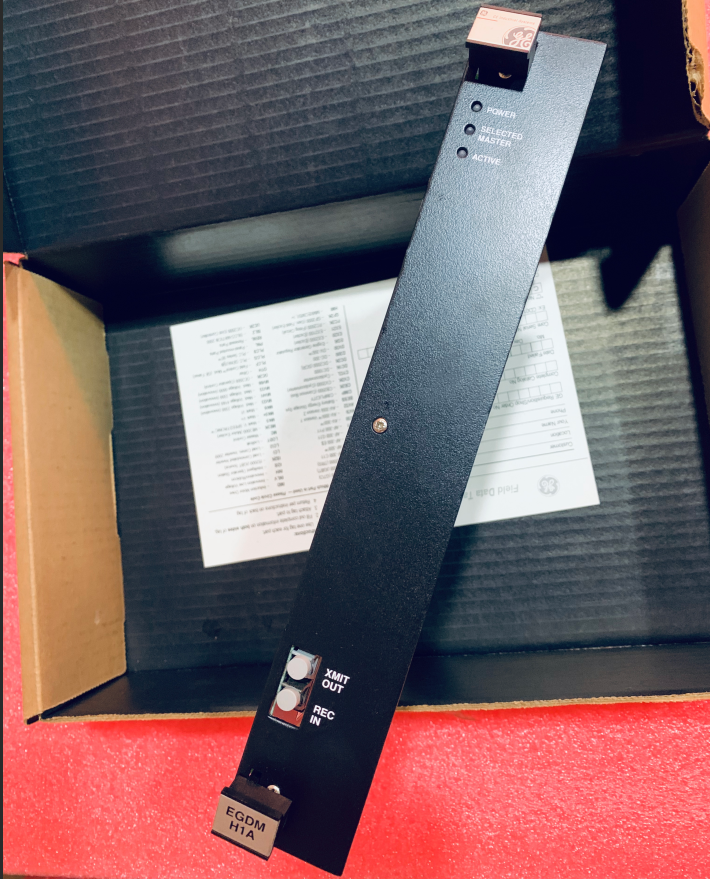

The front panel features three green LED indicators, showing power status, whether this board is selected as the master, and whether this master is actively sending the 50 V test signal.

III. System Applications

1. Application in EX2100 Excitation Control System

The IS200EGDMH1A is the core module for ground monitoring within the EX2100 Excitation Control System. Its roles within the system include:

• Ground Fault Monitoring: Continuously monitors the insulation condition of the generator field circuit to ground. If the ground resistance drops below a threshold, it initiates an alarm or triggers protective action to prevent fault escalation.

• Redundant Architecture Support: In redundant systems, three EGDMs work together. The C board dynamically selects M1 or M2 as the active master based on control logic, ensuring monitoring function continuity even if one board fails.

• High Voltage Isolation: Provides electrical isolation between the high-voltage side and the low-voltage control system through isolated power supplies and fiber optic communication, ensuring personnel safety.

• Self-Diagnosis: Built-in self-test function verifies the operational status of the signal conditioning circuit and power amplifier, enhancing system reliability.

2. Typical Application Scenarios

• Ground protection for synchronous generator excitation systems

• Rotor ground monitoring for steam turbine generators

• Insulation monitoring for hydro turbine generator field circuits

• Ground fault detection for gas turbine excitation systems

• Protection for industrial large motor excitation systems




IV. Detailed Interface Description

1. J2C Connector

J2C is a 9-pin connector for connection to the EXAM Attenuator Module, carrying detection and control signals. Pin assignments are as follows:

2. Fiber Optic Connectors

• Lower Fiber Optic Connector (U201): Receives the oscillator signal from the EISB board for synchronization and control.

• Upper Fiber Optic Connector (U305): Transmits the conditioned detection signal to the EISB board for processing by the control system.

3. Backplane Connectors (P1/P2)

The IS200EGDMH1A connects to the EPBP rack via backplane connectors P1 and P2, receiving 24 V dc power and using program pins on P2 to configure the board role (C, M1, or M2).

V. Indicators and Test Points

1. Front Panel Indicators

Three green LEDs located at the top of the front panel provide quick board status assessment:

In a redundant system during normal operation, one board (M1 or M2) should have its middle and lower LEDs lit, while the C board only has its upper LED lit.

2. Test Points

Test points are located on the front panel for on-site commissioning and troubleshooting. Refer to Figure 4 in the document for specific test point locations and signal definitions.

VI. Installation and Replacement

1. Mounting Location

The IS200EGDMH1A board inserts into the designated slot(s) in the EX2100 Exciter Power Backplane rack (EPBP). Simplex systems use one slot; redundant systems use three adjacent slots. Ensure the board is fully seated and the panel screws are tightened during installation.

2. Offline Replacement Procedure (System De-energized)

Safety Warnings:

• WARNING: To prevent electric shock, turn off power to the exciter and follow the complete de-energizing procedures outlined in the EX2100 Installation and Startup Guide (GEH-6631). Adhere to all local Lock-out/Tag-out practices.

• CAUTION: To prevent component damage caused by static electricity, treat all boards with static sensitive handling techniques. Wear a wrist grounding strap and store boards in anti-static bags.

Replacement Steps:

1. Verify Power Off: Before opening the control cabinet door, test electrical circuits to ensure power is off.

2. Label Cables: Verify all cables are correctly labeled for easy reconnection.

3. Disconnect Fiber Optics: Remove the two fiber optic connectors from the front of the board.

4. Remove Old Board:

• Loosen the screws at the top and bottom of the faceplate near the ejector tabs (screws are captive).

• Unseat the board by raising both ejector tabs.

• Gently pull the board straight out of the rack using both hands.

5. Install New Board:

• Align the new board with the correct slot and push it in along the guides.

• Using thumbs, firmly press the top and bottom of the faceplate simultaneously to initially seat the board.

• Alternately tighten the top and bottom faceplate screws evenly to ensure the board is squarely seated.

6. Reconnect Fiber Optics: Reconnect the two fiber optic cables to the new board as labeled.

7. Restore Power: Close the cabinet door, restore power to the excitation system following procedures, and test operation.

3. Online Replacement Procedure (Redundant System)

In a redundant control system, a failed EGDM board can be replaced while the exciter is running.

Risk Warning: During online replacement, other controllers, power supplies, and terminal boards remain energized and active. Extreme caution must be taken to avoid touching other live parts or causing short circuits.

Replacement Steps:

1. Identify Failed Board: Confirm the failed EGDM board using front panel indicators and Toolbox diagnostics.

2. De-energize Section: Turn off the output of the corresponding section in the EPDM (Exciter Power Distribution Module) that supplies power to the slot containing the failed board, de-energizing that section.

3. Verify De-energized: Check that the EGDM LEDs are off, confirming control has transferred to the other master. Check that the indicator for the corresponding EPDM section and the EPSM indicators are off.

4. Disconnect Fiber Optics: Remove the two fiber optic connectors from the front of the failed board.

5. Remove Failed Board: Same as offline procedure.

6. Install New Board: Same as offline procedure.

7. Reconnect Fiber Optics: Reconnect the fiber optic cables as labeled.

8. Restore Power: Re-apply power to the section from the EPDM. Check that the power indicator on the new EGDM board lights up, and that the green power LEDs on the corresponding controller boards light up.

9. Close Door: Close the control cabinet door after confirming normal operation.
