GE IS200ERIOH1AAA Exciter Regulator I O Board

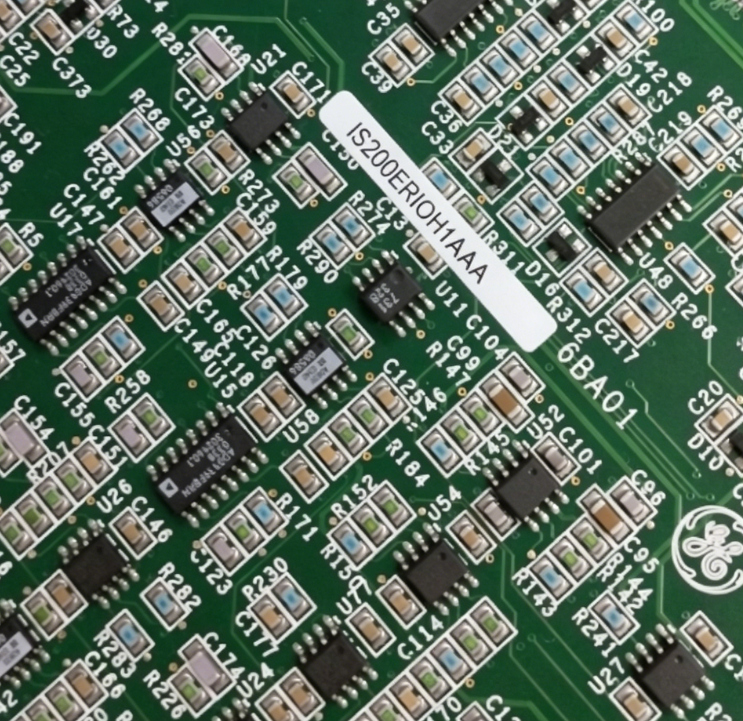

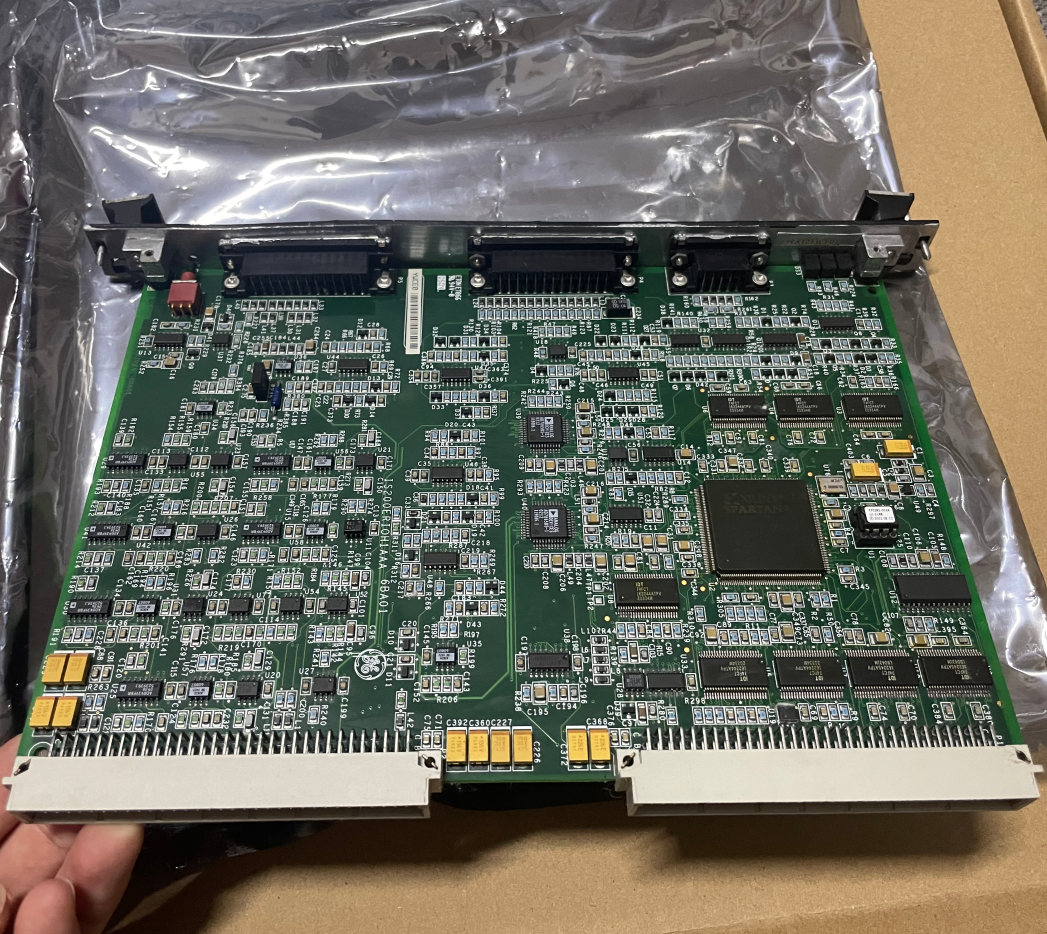

The IS200ERIOH1AAA is a core input/output interface board within the General Electric (GE) EX2100 and EX2100e excitation regulator control modules. As a specific configuration of the Exciter Regulator Input/Output (ERIO) board family, the IS200ERIOH1AAA shares the same fundamental architecture and functionality as the IS200ERIOH1A while incorporating specific component or firmware optimizations that distinguish it within the product line. The IS200ERIOH1AAA serves as the critical signal interface between the controller logic and the external excitation system equipment, enabling precise generator excitation control, comprehensive status monitoring, and reliable protection interlocking.

The IS200ERIOH1AAA is installed in the standard EX2100 control module rack and works in close coordination with the DSPX digital signal processor board and the ACLx application control layer board. Together, these boards complete the full excitation control chain, from field feedback signal acquisition and regulation algorithm execution to power bridge firing pulse output. On its stainless steel front panel, the IS200ERIOH1AAA provides a comprehensive suite of I/O interfaces, including analog inputs and outputs, digital inputs and outputs, and dedicated excitation control signal paths. In a redundant configuration, the M1 and M2 controller modules each contain one ERIO board, while the C controller monitors the operational status of both M1 and M2 through its own equivalent interface. The reliability of the IS200ERIOH1AAA directly determines the response speed and control accuracy of the entire excitation system.

System Positioning and Architecture Integration

Within the EX2100 control hierarchy, the IS200ERIOH1AAA occupies the critical bridge position between the application control layer (ACLx) and the power interface layer. Its operational model is as follows: it exchanges high-speed data with the DSPX board via the backplane ISBus, while the DSPX communicates with external networks and the Human-Machine Interface (HMI) through the ACLx board. The front-panel interfaces of the IS200ERIOH1AAA are responsible for connecting to a variety of external signals essential for excitation system operation:

• Analog Inputs: Receives generator voltage and current feedback signals from the PT/CT board (EPCT), as well as DC excitation voltage and current feedback signals from the EDCF board. These conditioned signals are used by the DSPX for Automatic Voltage Regulation (AVR), Power System Stabilizer (PSS) calculations, and various limiting and protection functions.

• Analog Outputs: Provides regulator status signals in standard industrial formats such as 4-20 mA or ±10 V DC, for external chart recorders, customer Distributed Control Systems (DCS), or local metering.

• Digital Inputs: Acquires discrete status signals such as relay auxiliary contacts, switch positions, and external protection inputs (e.g., 86G lockout, 52G circuit breaker status). These signals are critical for excitation system start/stop sequencing and protective interlocking.

• Digital Outputs: Drives external relays for alarm annunciation, trip signaling, and controls actuators such as the de-excitation module and field flashing contactors.

The IS200ERIOH1AAA incorporates galvanic isolation on all critical signal paths to safely separate field-level high-voltage signals from the low-voltage control electronics. Integrated overvoltage protection devices safeguard the inputs against transient surges. In a Triple Modular Redundant (TMR) configuration, three ERIO boards (one each in M1, M2, and C) operate independently, and critical discrete signals are validated through 2-out-of-3 voting logic implemented in the application software.

Detailed Core Functions

1. Analog Signal Acquisition and Conditioning

The IS200ERIOH1AAA provides multiple high-precision analog input channels capable of acquiring and processing both AC and DC signals. Generator AC voltage feedback (typically 115 V AC nominal) from the potential transformers (PTs) and AC current feedback (1 A or 5 A nominal) from the current transformers (CTs) are routed through the EPCT board to the ERIO. After passing through the onboard signal conditioning circuits—which include anti-aliasing filtering, precision scaling amplifiers, and isolation—the signals are converted to digital values by the A/D converters on the ERIO or the associated DSPX board. These digital values are then used by the AVR to maintain constant generator terminal voltage under varying load conditions.

Similarly, DC excitation current feedback from the field shunt and DC voltage feedback from the field voltage divider are acquired by the IS200ERIOH1AAA. These signals are fundamental for manual excitation current/voltage regulation modes (FCR/FVR), over-excitation limiting (OEL), and field temperature calculation. The A/D conversion accuracy and sampling rate of the IS200ERIOH1AAA ensure that rapid dynamic changes in the excitation circuit are captured accurately, enabling the voltage regulator to respond effectively to system disturbances.

2. Digital Input and Output Channels

The IS200ERIOH1AAA is equipped with a defined set of digital input and output channels. Digital inputs are used to monitor the status of internal excitation system components, including:

• DC contactor 41A/41B auxiliary contact feedback (close/trip status)

• Field flashing contactor 53A/53B status

• External generator protection signals (86G lockout relay)

• Customer general-purpose contact inputs via the ECTB terminal board

Digital outputs on the IS200ERIOH1AAA drive command relays for initiating field flashing, closing the DC contactor, and triggering alarm indicators. In TMR systems, the digital output states are voted before being applied to critical circuits such as the trip relay. If an onboard diagnostic detects an anomaly on a particular input channel—such as a disagreement with the voted value—the system generates a fault alarm (e.g., GPIN1_DIAG through GPIN6_DIAG, fault codes 153, 170-174) indicating a potential issue with the ERIO, the connecting cable, or the upstream terminal board.

3. High-Speed Backplane Communication Interface

The IS200ERIOH1AAA communicates with the DSPX processor board in real time over the ISBus, a high-speed synchronous serial backplane bus proprietary to the EX2100 system. The ISBus supports deterministic data transmission, which is critical for ensuring that feedback data required by the control loops is delivered within a single control cycle (typically 1 to 8 milliseconds, depending on the configured frame rate). The backplane also distributes the 28 V DC control power required by the IS200ERIOH1AAA, eliminating the need for separate power wiring and simplifying module design.

The ISBus frame rate and configuration are set through the ToolboxST application, and the IS200ERIOH1AAA automatically synchronizes with the bus timing established by the DSPX master. Loss of ISBus communication to any controller module triggers diagnostic alarms (AlrmNHrdM1, AlrmNHrdM2, or AlrmNHrdC3, fault codes 50-52) and may cause a controller failover in redundant configurations.

4. Onboard Diagnostics and Electronic Identification

Each IS200ERIOH1AAA board is equipped with an onboard read-only ID chip that stores the board type, serial number, and hardware revision. During the power-up initialization sequence, the DSPX reads this chip and compares the information against the system configuration loaded from flash memory. If a mismatch is detected—for example, if an incompatible board revision has been inadvertently installed—the system generates an "ERIO_Bad_" fault (fault code 191). This diagnostic prevents configuration errors and ensures that only compatible hardware is used in each controller slot.

In addition to identification verification, the IS200ERIOH1AAA continuously monitors its internal power supply rails, the integrity of the ISBus communication link, and the health of critical signal paths. If a communication loss or an out-of-range analog signal is detected, a diagnostic alarm is reported to the higher-level application software, and the associated outputs may be forced to a fail-safe state to protect the generator.

Reliability and Serviceability

The IS200ERIOH1AAA is designed for continuous, round-the-clock operation in the demanding environments typical of power generation facilities. Its printed circuit board features a conformal coating that resists moisture, dust, and mild chemical contaminants. The front panel is secured by two captive screws and features built-in ejector tabs, ensuring that the board remains firmly seated in the backplane connector even in high-vibration installations.

When used within a TMR control architecture, the IS200ERIOH1AAA contributes to a system-level Mean Time Between Forced Outage (MTBFO) of up to 175,000 hours. This is achieved because the failure of any single ERIO board (in M1, M2, or C) does not result in a system trip; the remaining two controllers continue to operate normally while the faulty board is replaced. Note, however, that the IS200ERIOH1AAA is not designed for hot-swap insertion. It can be replaced online only in specific redundant configurations and only after strictly following the safety procedures outlined in the EX2100 maintenance manual. In a simplex system, the entire controller must be shut down before replacing the board.

When a replacement is performed, the new IS200ERIOH1AAA must be configured using the ToolboxST application. This involves downloading the application code and parameter settings to the DSPX, which in turn configures the ERIO over the ISBus.

Diagnostic Fault Codes Related to ERIO Operation

The EX2100 diagnostic system reports several fault codes that can be directly traced to the IS200ERIOH1AAA. The following table lists some of the key diagnostic codes and their meanings.
