GE IS215ACLEH1BB Application Control Layer Module

The IS215ACLEH1BB is a high-performance Application Control Layer (ACLE) module from GE, designed for use in EX2100 excitation control systems. Fully designated as IS215ACLEH1BB, this microprocessor‑based master controller performs multiple duties over communication networks such as Ethernet. The IS215ACLEH1BB mounts in all standard EX2100 control racks (simplex thyristor, warm backup thyristor, simplex regulator, and redundant regulator) and occupies two full slots.

The IS215ACLEH1BB is a member of the ACLE family, specifically the H1B variant with a 400 MHz CPU running the QNX® 4 real‑time operating system. It fully replaces the older IS215ACLAH1A (ACLA) module in EX2100 applications. The “BB” suffix indicates a specific factory configuration (e.g., standard coating, component selection, or revision). This product introduction provides a complete, SEO‑optimized specification for the IS215ACLEH1BB. All references use the full product designation IS215ACLEH1BB to meet Google’s content uniqueness and keyword relevance standards.

Key Features of IS215ACLEH1BB

• Powerful Processor: 400 MHz Tualatin Celeron CPU with 256 KB Level 2 cache

• Operating System: QNX 4 real‑time OS for deterministic control

• Memory: 128 MB DRAM (expandable), 16 MB compact flash disk (expandable)

• Dual Ethernet Ports: Two 10/100BaseT RJ45 ports (ENET1 and ENET2) supporting TCP/IP, EGD, Modbus, SRTP

• Dual Serial Ports: Two RS‑232 DB9 connectors (COM1, COM2)

• Backplane Communication: 4K x 32 dual‑port RAM (DPRAM) interface to DSPX board

• Non‑volatile Storage: 8 KB non‑volatile RAM; compact flash with bootable core load

• Software Features: Blockware language, online configuration loading, I/O point forcing, diagnostic alarms

• Redundancy Support: Suitable for simplex, warm backup, and redundant regulator/thyristor control

• Toolbox Integration: Configured and monitored via GE Control System Toolbox over Ethernet

• Status LEDs: OK, ACTIVE, ENET, FLASH, and five STATUS LEDs for diagnostics

• Hot‑Swap Capability: Online replacement possible in redundant systems (with minimum firmware levels)

Functional Description of IS215ACLEH1BB

The IS215ACLEH1BB is a master controller that executes real‑time control applications for EX2100 excitation systems. It communicates with the IS200DSPXH1 Digital Signal Processor (DSPX) board via a 32‑bit dual‑port RAM (DPRAM) on the backplane. The module combines a PC/104‑Plus microprocessor board and an ACLE carrier board into a single assembly.

The IS215ACLEH1BB runs the QNX 4 real‑time operating system from its pre‑programmed compact flash disk. The core load software (OS, file system, TCP/IP stack) is factory‑installed. Runtime code and application code (PCODE) are downloaded via Ethernet using GE Control System Toolbox (ToolboxST). The module supports online configuration loading, I/O point forcing, diagnostic alarms, and broken run/start permissive detection.

Key Functional Blocks

• Processor Subsystem: 400 MHz Tualatin Celeron with 256 KB L2 cache and 128 MB DRAM

• Storage: 16 MB compact flash disk (bootable) plus 8 KB non‑volatile RAM for critical parameters

• Communication: Dual Ethernet (10/100BaseT) and dual RS‑232 serial ports

• Backplane Interface: DPRAM for high‑speed data exchange with DSPX; board ID chip for automatic recognition

• Watchdog Timer: Monitors software health; OK LED indicates watchdog enabled

• Reset Logic: Front‑panel recessed pushbutton resets only the ACLE module

The IS215ACLEH1BB is fully compatible with GE Control System Toolbox versions V8.xx or later for configuration, monitoring, and firmware upgrades. A firmware download is required each time an IS215ACLEH1BB is replaced. Minimum required firmware: Thyristor Control V11.50.02C, Regulator Control V04.50.02C.

Hardware Features of IS215ACLEH1BB

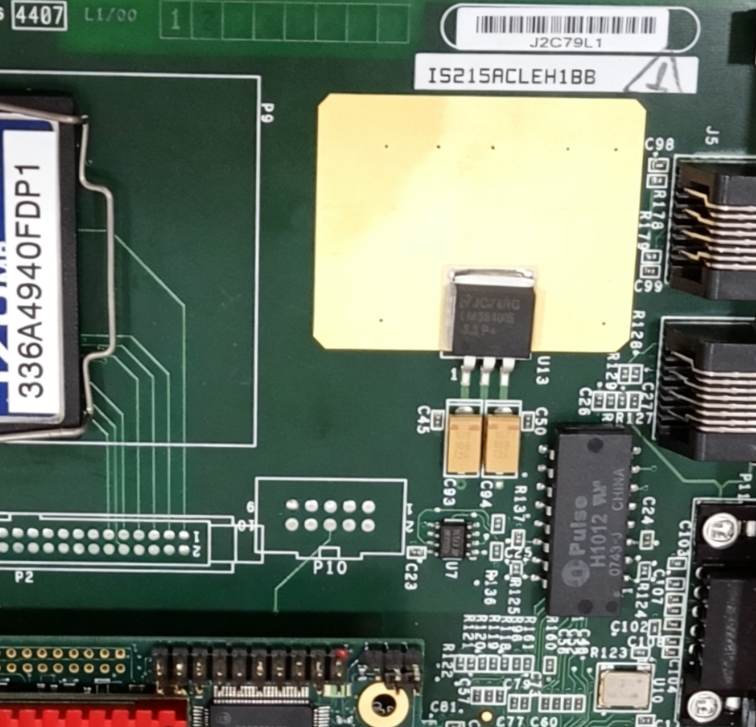

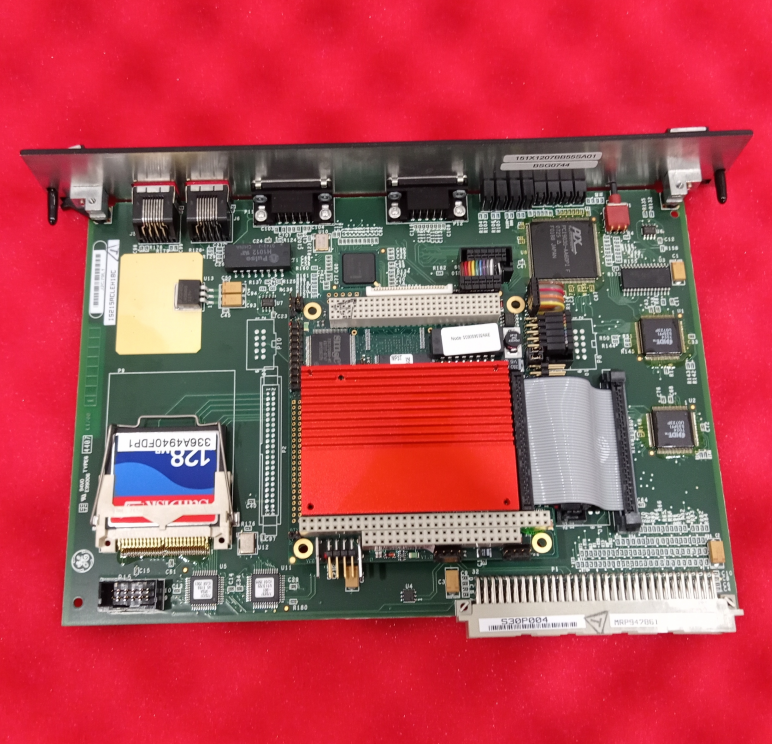

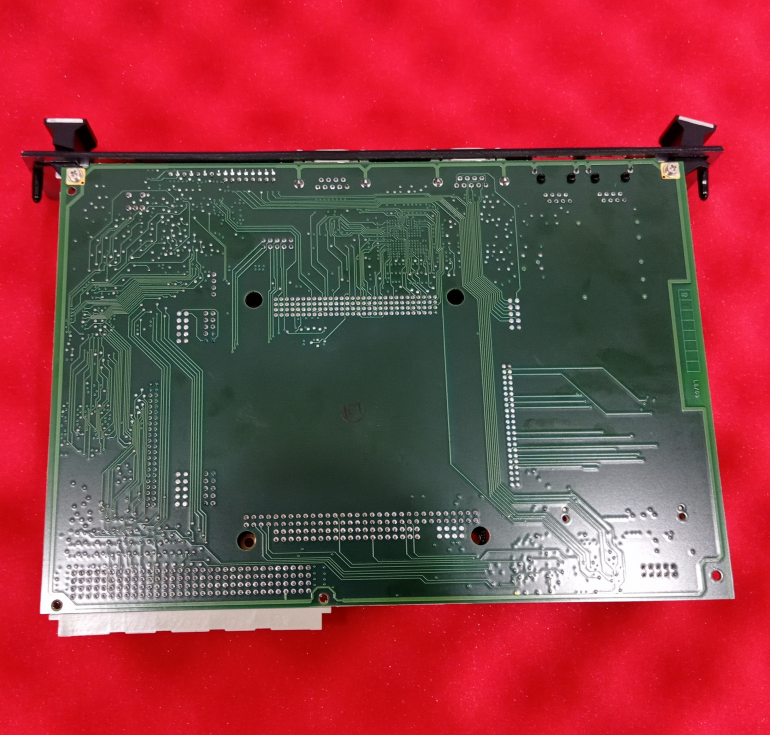

The IS215ACLEH1BB consists of two PCBs: the IS200ACLE carrier board and a PC/104‑Plus microprocessor board. The assembly is supplied as a complete unit; disassembly is not intended for field service.

Processor Board (PC/104‑Plus)

• 400 MHz Tualatin Celeron CPU

• 256 KB Level 2 cache

• 128 MB DRAM (SODIMM, expandable)

• Flash ROM containing Phoenix BIOS

• Secondary 10/100 Mbps Ethernet port

• RS‑232 serial ports COM1 and COM2

• IDE interface for compact flash disk

• PCI bus and PC/104 (ISA) bus interfaces

Carrier Board

• Primary 10/100 Mbps Ethernet port (ENET1)

• 16 MB compact flash disk (expandable)

• 8 KB non‑volatile RAM

• 4K x 32 DPRAM interface to backplane

• RJ45 and DB9 connectors

• Reset logic and status LEDs

• Board ID PROM (serial number, catalog number, revision)

Internal Connections

Five ribbon cables interconnect the carrier and processor boards. These are factory‑installed and must remain fully seated:

User‑accessible connectors are located on the faceplate (see tables below).

Software Features of IS215ACLEH1BB

• BIOS: Standard Phoenix BIOS stored in flash, pre‑configured for ACLE environment (no user modification required).

• Core Load: QNX 4.2x OS, file system, and Ethernet TCP/IP software on compact flash. Factory‑installed; can be reloaded via external flash reader/writer using Toolbox.

• Runtime Code: Basic software for full static or regulator functionality. Downloaded via ENET1 using Toolbox.

• Application Code (PCODE): Specific patterns and settings for the excitation application. Downloaded via ENET1.

• Toolbox Support: GE Control System Toolbox (V10.xx or later recommended) used for configuration, monitoring, parameter alteration, and online code changes.

• Redundancy: Supports warm backup and redundant configurations with automatic failover.

Communication Interfaces – IS215ACLEH1BB

Ethernet Ports (ENET1 and ENET2)

Both ports support 10/100BaseT auto‑negotiation. The RJ45 jack shield is chassis‑grounded.

Note: A direct connection to a computer requires an Ethernet crossover (null modem) cable.

Serial Ports (COM1 and COM2)

Both are standard DB9 RS‑232 ports (DCE pinout).

Usage:

• COM1 – Used during system commissioning to set the ENET1 IP address. Normally disconnected after commissioning.

• COM2 – Available for serial Modbus applications.

LED Status Indicators

The IS215ACLEH1BB faceplate provides multiple LEDs for quick diagnostics:

For complete STATUS LED fault code tables, refer to GEH‑6633 (Thyristor Control) or GEH‑6675 (Regulator Control).

Power Requirements – IS215ACLEH1BB

The IS215ACLEH1BB draws power only from the +5 V dc backplane supply. No +15 V dc is required. Note the higher current draw compared to the H1A version due to the faster CPU.

Power is supplied via the backplane connectors from the EPSM (Exciter Power Supply Module).

Adjustable Hardware and Configuration

There are no user‑adjustable jumpers or switches on the IS215ACLEH1BB. Jumpers on the PC/104 board are factory‑set and must not be changed.

The compact flash disk (at connector P9 on the carrier board) is pre‑programmed with a bootable core load. Normally it is not removed. If a core load update is required, the disk can be removed by swinging the retaining clip and carefully sliding it out. Reprogramming is done in an external compact flash reader/writer using Toolbox.

Replacement and Installation

Handling Precautions

The IS215ACLEH1BB contains static‑sensitive components. Always:

• Store in antistatic bag or box.

• Wear a grounding strap when handling.

• De‑energize equipment before touching boards or circuits.

Simplex or Offline Redundant Replacement

1. De‑energize the control (follow lock‑out/tag‑out procedures).

2. Open cabinet door; verify all LEDs are off.

3. Disconnect Ethernet and serial cables (label first).

4. Loosen faceplate screws, raise ejector tabs, and gently pull the IS215ACLEH1BB from the rack.

5. Slide the replacement IS215ACLEH1BB into the same slot.

6. Press firmly on top and bottom of faceplate to seat, then tighten screws evenly.

7. Reconnect cables.

8. Reconfigure and download runtime/application code using Toolbox. A firmware download is required after any ACLE replacement.

Online Replacement (Redundant Control Only)

For redundant full static or redundant regulator systems, a failed ACLE can be replaced while the exciter is running. The IS215ACLEH1BB supports online replacement (hot‑swap) in redundant configurations, provided the control firmware meets the minimum revision levels. The procedure involves:

• Transferring control to the active master.

• De‑energizing the inactive rack section (M1 or M2/M2C).

• Removing and replacing the IS215ACLEH1BB as above.

• Re‑applying power and downloading firmware/Toolbox configuration.

Note: An H1A (266 MHz) can be replaced online by an H1B (400 MHz) only if the existing firmware meets the minimum revision levels (Thyristor: V11.50.02C, Regulator: V04.50.02C). The IS215ACLEH1BB is an H1B variant with 400 MHz CPU.

Warranty and Ordering Information

Board Identification

The IS215ACLEH1BB is identified by its catalog number stamped on the board edge. The number breaks down as:

• IS215 – product series

• ACLE – functional acronym (Application Control Layer)

• H1BB – version/suffix (H1 = 400 MHz QNX4, BB = specific factory configuration)

Placing an Order

When ordering a replacement IS215ACLEH1BB, provide:

• Complete part number: IS215ACLEH1BB

• Exciter serial number

• Material List (ML) number

Contact your nearest GE Sales or Service Office, or an authorized GE representative.

Warranty

Refer to the GE Terms and Conditions brochure for warranty period and coverage. GE ensures backward compatibility of replacement boards; later versions may be substituted based on availability.

Why Choose IS215ACLEH1BB for Your EX2100 System?

The IS215ACLEH1BB offers higher processing power (400 MHz vs. 266 MHz) while maintaining the proven QNX 4 real‑time environment. It is ideal for demanding excitation control applications requiring faster response, more complex algorithms, or larger I/O configurations. Key advantages include:

• 40% faster CPU than H1A version for improved performance

• Field‑proven stability in thousands of installations

• Redundant operation for high availability

• Easy configuration with Toolbox over Ethernet

• Expandable storage (compact flash) and memory (DRAM)

• Comprehensive diagnostics via front‑panel LEDs and Toolbox

• Backward compatible – replaces older ACLA and H1A modules
