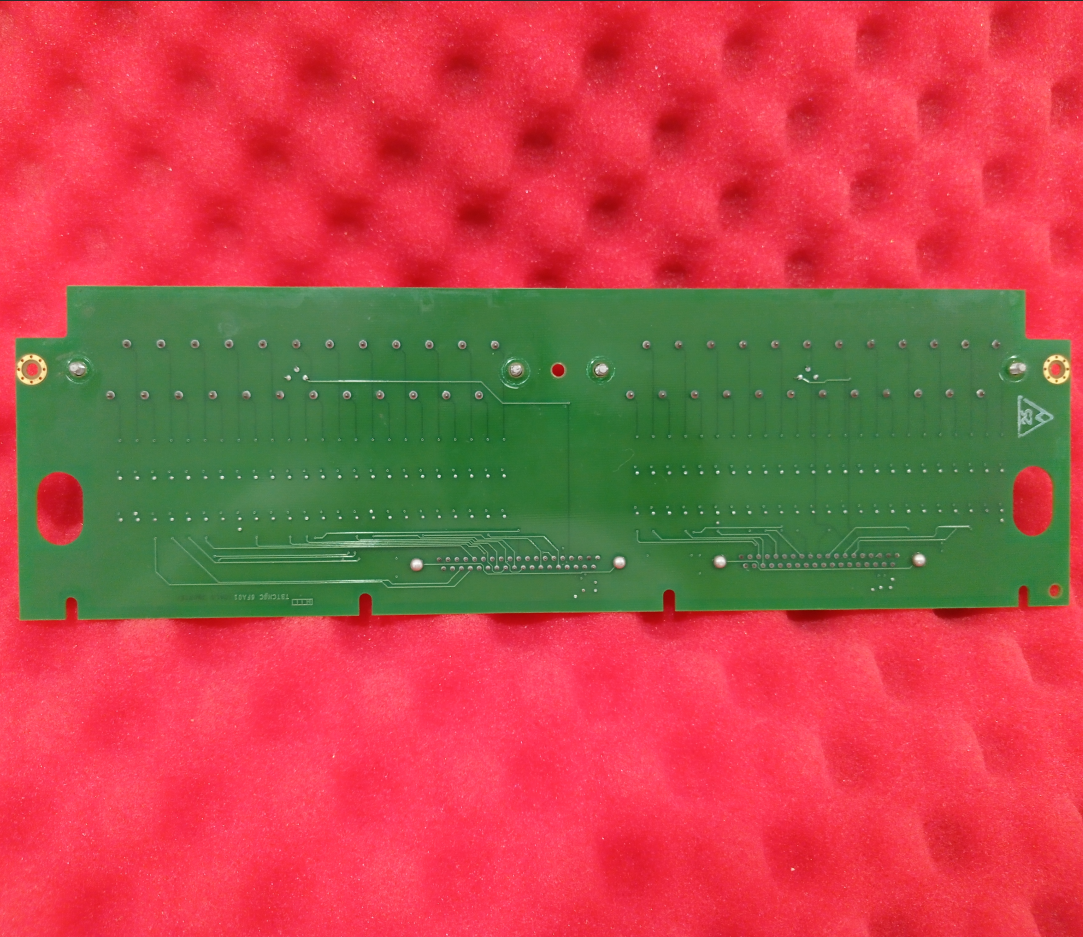

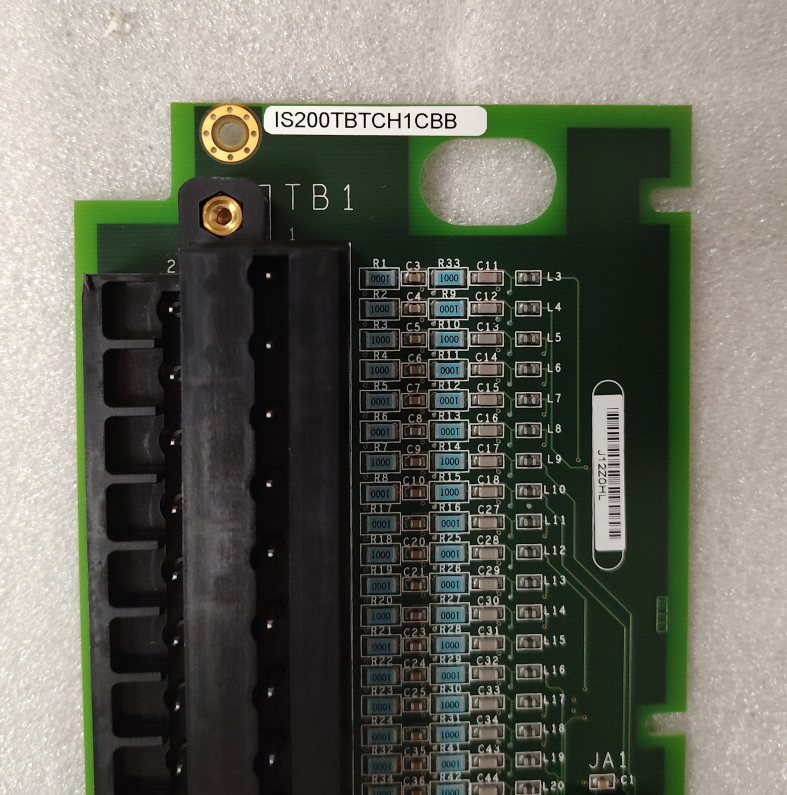

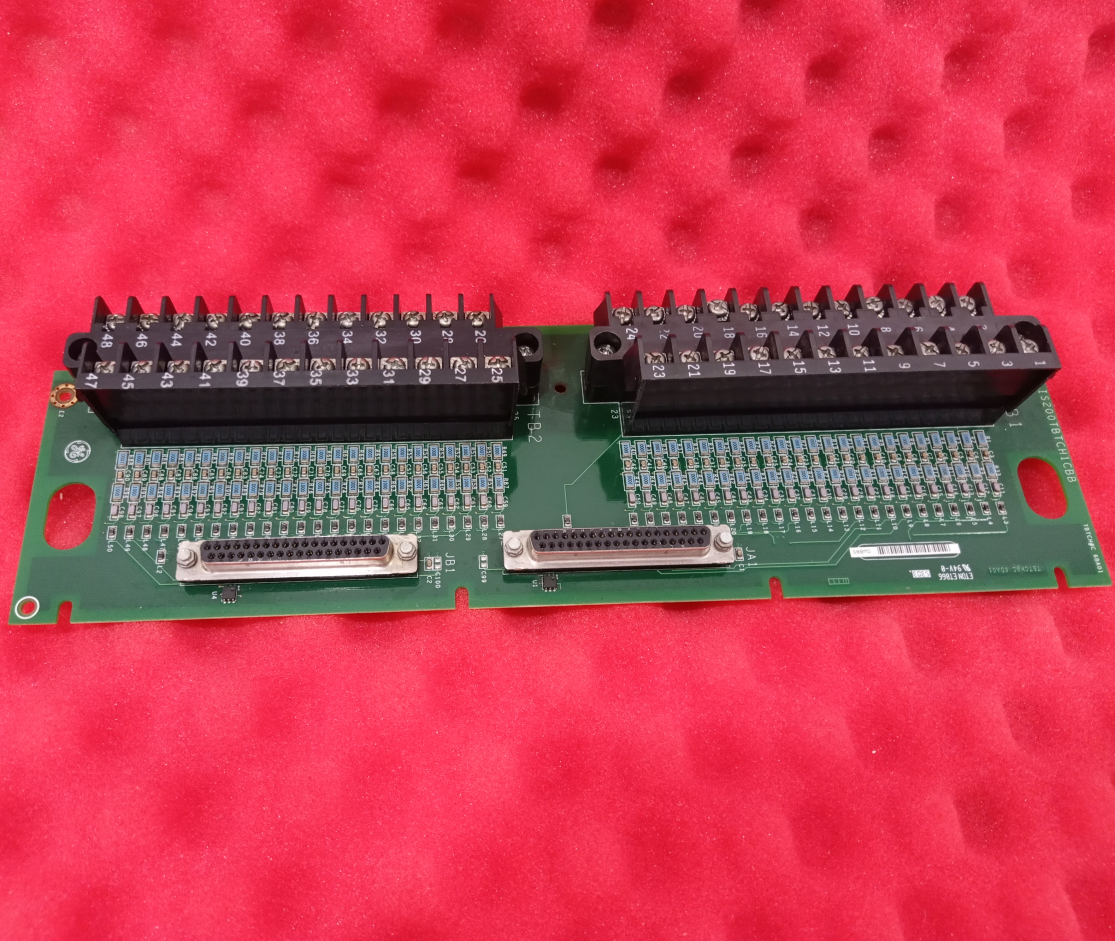

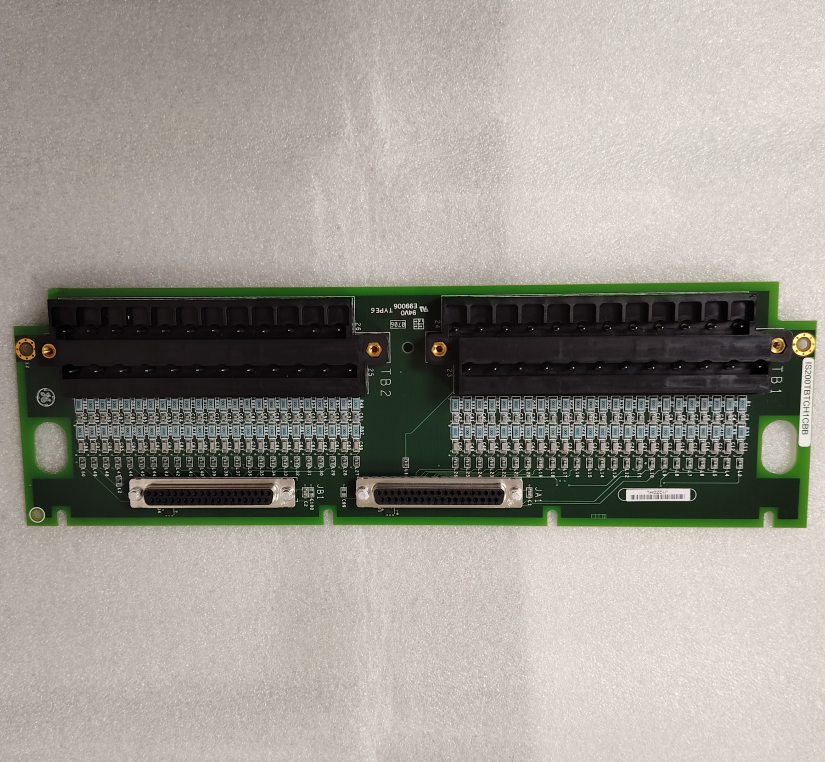

The IS200TBTCH1C is a critical terminal board component used for thermocouple signal input within the General Electric (GE) Mark VIe control system. This board is specifically designed for simplex applications, supporting up to 24 thermocouple inputs compatible with common thermocouple types such as E, J, K, S, and T. By working in conjunction with the PTCC I/O processor, the IS200TBTCH1C efficiently and reliably converts field temperature signals into electrical signals processable by the control system. It is widely used in high-temperature monitoring applications such as gas turbines, steam turbines, and industrial boilers.
The IS200TBTCH1C is a representative model of the TBTC_IC series, featuring two DC-type connectors (JRA and JTB) for communication with the I/O processor. Its compact structure, ease of installation, high precision, high reliability, and excellent noise immunity make it a robust solution.
II. Key Features
24-Channel Thermocouple Input: Supports E, J, K, S, T thermocouple types, compatible with various industrial standards.
Seamless Integration with PTCC I/O Processor: Connects directly to two PTCC I/O packs via JRA and JTB interfaces to utilize all 24 input channels.
Cold Junction Compensation (CJC): Integrated dual cold junction sensors on the board provide real-time reference junction temperature measurement, ensuring temperature measurement accuracy.
Hardware Limit Checking (HLC): Each channel features preset hardware high/low limit detection. Exceeding these limits triggers an alarm and stops scanning for that channel.
Open Circuit Detection: Detects thermocouple open circuit faults by injecting a small current, ensuring system integrity.
Onboard ID Chip: Each connector includes a read-only chip storing serial number, board type, revision, and J-connector location, enabling automatic identification and matching by the I/O board.
Jumperless Design: All configuration is done via software, simplifying installation and maintenance.
III. System Integration and Application
The IS200TBTCH1C is primarily used in simplex configurations within Mark VIe control systems. It works with the PTCC I/O processor to form a complete thermocouple signal acquisition channel. Each I/O processor handles 12 channels of signal processing. By inserting two I/O packs into the JRA and JRB connectors respectively, the board achieves full 24-channel data acquisition.
This board also supports integration with VTCC or PTCC series I/O packs to suit different control system requirements. For applications requiring higher accuracy or additional thermocouple types, the IS200TBTCH1C can be used with PTCC H2 to support extended types like B, N, and R.
IV. Cold Junction Compensation (CJC) Mechanism
The IS200TBTCH1C is equipped with two cold junction sensors located at opposite ends of the board to measure the reference junction temperature. The control system typically uses the average of the two readings for compensation. The value from each sensor is accessible for system monitoring. If any sensor reading falls outside the preset acceptable range (e.g., -40°C to 85°C), the system flags that sensor as faulty and automatically switches to a backup value or a configured default value, ensuring measurement continuity.
Cold junction compensation error directly impacts thermocouple measurement accuracy: a 1°F error in CJ compensation results in a 1°F error in the thermocouple reading. Therefore, the IS200TBTCH1C utilizes high-precision sensors and stable circuit design to ensure CJ accuracy within ±1.1°C.
V. Diagnostic and Self-Test Functions
The IS200TBTCH1C provides comprehensive diagnostic functions to ensure high system reliability and maintainability:
Hardware Limit Checking (HLC): Each thermocouple channel has preset high/low limits. Exceeding these limits triggers an alarm and stops scanning for that specific channel.
Open Circuit Detection: Injects a small current to verify thermocouple loop integrity. An open circuit is detected and the channel is marked as faulty.
Onboard ID Recognition: The I/O processor reads the onboard ID chip to automatically identify the terminal board type, revision, and interface location. A mismatch generates a hardware incompatibility fault.
Calibration Voltage and Zero Detection: The system periodically checks internal calibration voltages and zero references to ensure acquisition accuracy.
Composite Alarm: If any channel triggers a hardware limit, the system generates a composite diagnostic alarm for quick fault localization.
VI. Installation and Wiring Guide
Installation of the IS200TBTCH1C is straightforward:
Board Mounting: Secure the terminal board to the mounting panel using screws.
Thermocouple Wiring: Connect thermocouple wires directly to the removable terminal blocks. Each block has 24 terminals accepting up to #12 AWG wires.
Shield Grounding: A shield terminal strip is located on the left side of each terminal block. Connect thermocouple shields here and attach to chassis ground to minimize electromagnetic interference.
I/O Processor Installation: Plug the PTCC I/O packs directly into the JRA and JRB connectors on the IS200TBTCH1C, ensuring a secure connection.
System Identification: Upon power-up, the I/O processor automatically reads the onboard ID to complete configuration matching.
VII. Configuration Method
The IS200TBTCH1C features a jumperless design; all configuration is performed via software, including:
Thermocouple type selection
Cold junction compensation method
Limit alarm values
Open circuit detection enable/disable
Channel enable/disable
Configuration can be performed using Mark VIe engineering tools (such as ToolboxST), supporting online modification and download, greatly enhancing system flexibility.
VIII. Typical Applications
Gas Turbine Exhaust Temperature Monitoring
Steam Turbine Inlet/Outlet Temperature Measurement
Industrial Boiler Furnace Temperature Monitoring
Combined Heat and Power (CHP) System Temperature Acquisition
Laboratory High-Temperature Test Platforms
