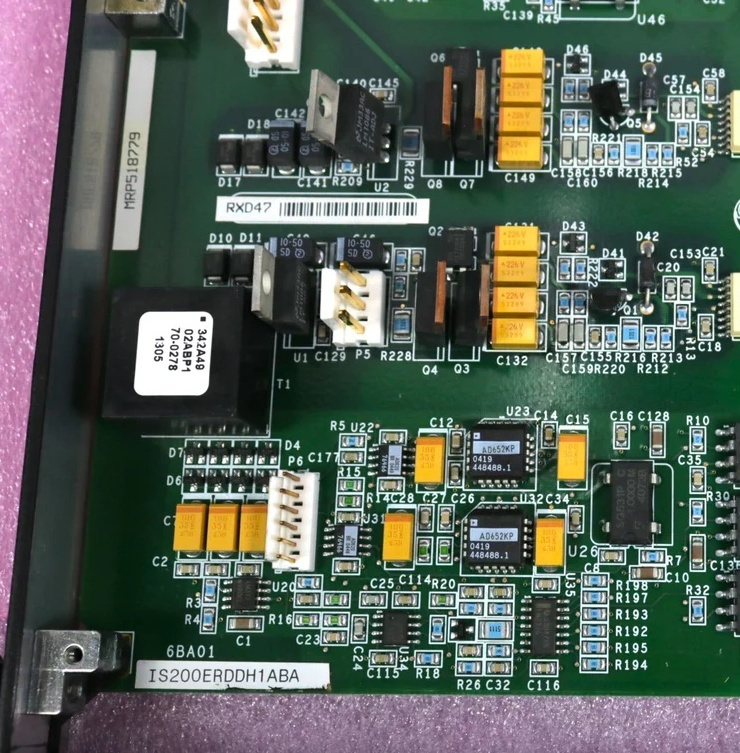

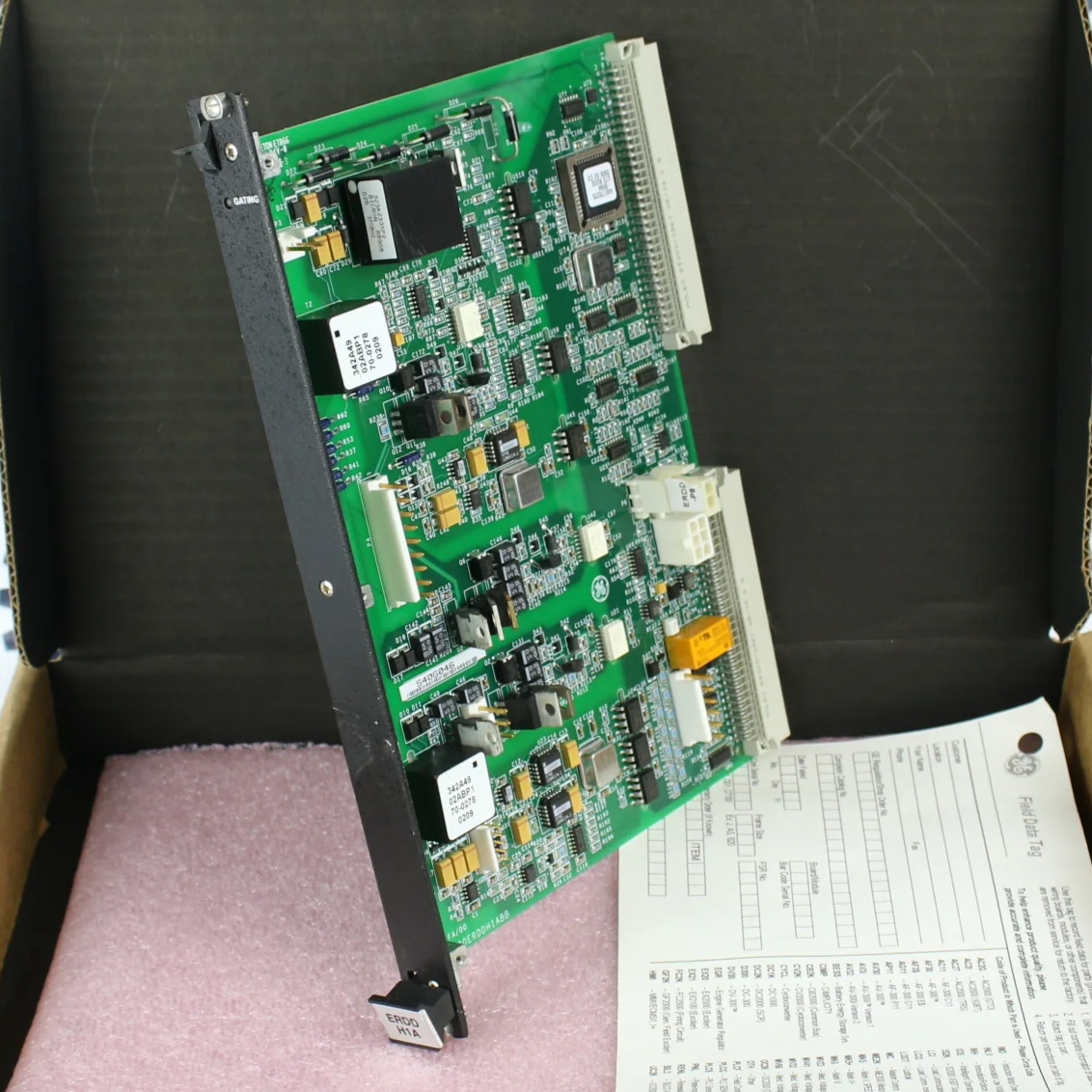

The IS200ERDDH1ABA is a specialized power protection board within the General Electric (GE) EX2100 excitation regulator control module. As the Exciter Regulator Dynamic Discharge board (ERDD), the core mission of the IS200ERDDH1ABA is to provide a controlled dissipation path for the energy stored in the DC link capacitors when the excitation system trips, shuts down, or when the DC bus voltage rises abnormally. It rapidly and safely releases excess energy as heat through an external high-power discharge resistor. The IS200ERDDH1ABA is installed inside the power conversion module (Ensemble de convertisseur électrique) of the excitation regulator, directly connected to the DC link, the discharge resistor, and the control backplane. It serves as a critical protection link for ensuring the safety of both the excitation system equipment and personnel.
In the EX2100 excitation regulator, electrical power is converted from an AC source into controlled DC excitation current through a power converter (SCR or IGBT bridge). During a normal generator shutdown, the excitation current is fed back to the AC source via the inverting bridge. However, during an emergency trip or system fault, if the energy on the DC link cannot be rapidly dissipated, the DC bus voltage will rise sharply, potentially damaging the DC filter capacitors, power semiconductor devices, and even the entire control module. It is precisely at this moment that the IS200ERDDH1ABA acts accurately, connecting the discharge resistor circuit to allow the DC bus voltage to decay at a controlled rate, thus protecting the system from damaging overvoltage.
System Positioning and Architecture Integration
Within the EX2100 excitation regulator control module, the IS200ERDDH1ABA is located inside the power conversion module, adjacent to the DC link and filter capacitors. This power conversion module contains the heatsink, power devices, DC bus terminals, and wiring harnesses connecting to the control backplane. The IS200ERDDH1ABA exchanges signals with the DSPX digital signal processor board and the ERBP power backplane via backplane connectors, receiving control commands and sending back status feedback.
In a redundant configuration, the M1 controller module and the M2/C controller module each have their own independent power conversion module, and each module contains one IS200ERDDH1ABA board. The DC links of the two modules are physically independent of each other, therefore their respective dynamic discharge circuits are also completely independent. This ensures that even if one module fails, the other can still perform a safe shutdown.
Detailed Core Functions
1. DC Link Energy Dissipation and Overvoltage Protection
The IS200ERDDH1ABA monitors the DC bus voltage in real time. When the excitation regulator is operating normally, the DC bus voltage is regulated within a set operating range (typically 125 V DC or higher, depending on the application), and the discharge circuit remains in an open state. The IS200ERDDH1ABA will trigger dynamic discharge when any of the following conditions occurs:
System Trip or Shutdown: Upon a generator protection trip, a manual shutdown of the excitation regulator, or a fault shutdown, the control software sends a discharge command to the IS200ERDDH1ABA via the backplane, connecting the discharge resistor.
DC Bus Overvoltage: If the DC bus voltage exceeds a preset threshold due to grid fluctuations, sudden load changes, or other abnormalities, the hardware detection circuit on the IS200ERDDH1ABA will autonomously trigger the discharge, independent of software commands, achieving hardware-level fast protection.
Loss of Control Power: If the control power for the excitation regulator (such as 28 V DC) is unexpectedly interrupted, the IS200ERDDH1ABA enters a fail-safe mode, defaulting to connect the discharge circuit, ensuring that the system can safely dissipate energy even in an uncontrolled state.
The triggering of the discharge action can be initiated either by a command signal via the control backplane (software control) or by the onboard hardware overvoltage detection circuit (hardware protection). This dual mechanism ensures that the DC link energy can be reliably dissipated under all circumstances.
2. Dynamic Braking and Voltage Ramp Control
The IS200ERDDH1ABA is not merely a simple switch controller; it also integrates a voltage ramp control function. Once a discharge command is triggered, the control circuit on the board gradually increases the duty cycle connecting the discharge resistor in a controlled manner. This avoids excessive stress on the discharge resistor and DC link capacitors caused by a sudden large inrush current. This soft-start characteristic helps extend the service life of the discharge resistor and associated wiring, while also reducing electromagnetic interference.
During the discharge process, the IS200ERDDH1ABA continuously monitors the DC bus voltage. When the voltage drops below a safe threshold (e.g., below 50 V DC), the discharge circuit automatically disconnects or maintains a minimal holding current to ensure complete discharge. The duration of the entire discharge process depends on the capacity of the DC link capacitors and the resistance of the discharge resistor, typically ranging from a few seconds to several tens of seconds.
3. Status Feedback and Diagnostics
The IS200ERDDH1ABA feeds back the discharge status to the DSPX controller. Feedback signals include whether the discharge circuit is activated, the current DC bus voltage, and the presence of faults (such as discharge resistor overheating, shorted or open switching devices, etc.). This information is integrated into the diagnostic system of the EX2100 and can be viewed via the ToolboxST application or the control panel keypad.
In the documentation, diagnostic fault codes related to the dynamic discharge function include:
SS_DD_Test (Fault Code 190): The dynamic discharge circuit failed its test during the startup sequence.
RDFD_Trip_1 (Fault Code 195): A rotating diode fault was detected based on harmonic level 1 (related to dynamic discharge).
RDFD_Trip_2 (Fault Code 196): A rotating diode fault was detected based on harmonic level 2.
DDCmdFbkDif (Fault Code 200): A difference between the dynamic discharge command and the status feedback has occurred, indicating the discharge circuit may not have operated as expected.
When these faults occur, maintenance personnel should first check the integrity of the discharge resistor connections, ensure the IS200ERDDH1ABA board is firmly seated in its backplane connector, and examine detailed diagnostic information via ToolboxST.
4. Thermal Management
The dynamic discharge process involves the release of a significant amount of energy as heat. Therefore, the discharge resistor is typically designed as a power resistor capable of withstanding short-term high-power surges. The documentation mentions a typical discharge resistor value of 17 Ω, 600 W, and warns that it can become very hot. For this reason, the maintenance manual specifically cautions that before replacing the discharge resistor module or the IS200ERDDH1ABA board, one must wait at least one hour to allow the resistor to cool sufficiently to ambient temperature.
The IS200ERDDH1ABA board may integrate a temperature monitoring function. When the discharge resistor temperature exceeds a safe limit, an alarm signal is generated to prevent resistor damage from overheating or fire hazards.
Installation and Maintenance
The IS200ERDDH1ABA is installed inside the power conversion module. Replacing this board requires first removing the hinged access cover of the power conversion module. The standard replacement procedure is as follows (must be performed only after confirming the system is completely de-energized and Lockout/Tagout procedures are executed):
Confirm all AC and DC power sources are disconnected.
Open the control cabinet door and use high-voltage detection equipment to verify the absence of voltage.
Loosen the two knurled screws on the hinged cover plate of the power conversion module and swing the cover to the open position.
On the IS200ERDDH1ABA board, disconnect all cables and connectors leading to the power conversion module. Be sure to label each cable before removal for correct subsequent reconnection.
Carefully unplug the IS200ERDDH1ABA board from its backplane connector.
Insert the new board into the backplane connector in the same orientation, ensuring it is fully seated.
Reconnect all cables to their correct connectors and check that they are secure.
Close the hinged cover plate and tighten the knurled screws.
Close the cabinet door and restore power.
Verify correct board identification via ToolboxST and perform necessary functional tests.
Caution: The IS200ERDDH1ABA board and its associated discharge resistor may be at high temperatures after operation. Sufficient cooling time must be allowed before maintenance.
