GE IS215ACLEH1B Application Control Layer Module

The IS215ACLEH1B Application Control Layer Module (ACLE) is a high-performance, microprocessor-based master controller developed by GE Energy for its EX2100 Excitation Control System. As a core intelligent unit of the EX2100 series, the ACLE module is responsible for executing complex control algorithms, managing data communications, and coordinating the functions of various boards within the system. It is a critical component ensuring stable and efficient operation of the generator excitation system.

The module features a compact design, occupying two slots in a standard EX2100 control rack. It can be installed in racks with various backplane configurations, including simplex thyristor control racks (with IS200ESBP backplane), warm backup thyristor control racks (with IS200EBKP backplane), simplex regulator control racks (with IS200ERBP backplane), and redundant regulator control racks (with IS200ERRB backplane), demonstrating excellent compatibility and flexibility. As a complete replacement for the earlier IS215ACLAH1A (ACLA) module, the IS215ACLEH1B features significant upgrades in performance, storage, and processing capability to meet more complex control demands and harsher industrial environments. The IS215ACLEH1B model specifically refers to a version equipped with a 400 MHz high-performance processor and the QNX 4 real-time operating system, designed to provide powerful computational support and reliable real-time response capabilities for the EX2100 system.

Its core function is to achieve data exchange with engineering stations, plant-level monitoring systems, and remote I/O stations through various communication networks such as Ethernet, execute control logic, and monitor the entire excitation system's status. It runs specialized control block languages and libraries, supports online configuration loading, I/O point forcing, comprehensive diagnostic functions, and non-volatile event logging, providing engineers with powerful debugging and maintenance tools. Combined with GE's Control System Toolbox software, configuring, upgrading firmware, and modifying application logic for the ACLE module becomes intuitive and efficient, significantly enhancing engineering implementation and maintenance convenience.

2. Core Functions and Features

The design of the IS215ACLEH1B module fully considers the stringent requirements of industrial control, integrating multiple advanced features to ensure system reliability, real-time performance, and maintainability.

• Powerful Processor Platform: Equipped with a 400 MHz high-performance Central Processing Unit (on a PC/104-Plus board), it provides significantly higher computational power compared to earlier versions, enabling rapid execution of complex control algorithms and processing of large amounts of I/O data, meeting the high-performance demands of modern large generator sets for excitation control. The processor is equipped with 256 KB of L2 cache, effectively improving data throughput efficiency.

• Mature Real-Time Operating System: Runs the QNX 4 real-time operating system, renowned in the industrial control field for its high reliability, determinism, and microkernel architecture, ensuring real-time execution of control tasks and long-term stable system operation, particularly suitable for power generation applications with high safety and availability requirements.

• Rich Communication Interfaces: Standard features include two 10/100BaseT auto-negotiating Ethernet ports and two RS-232 serial communication ports. The Ethernet ports support protocols such as TCP/IP, Ethernet Global Data (EGD), and Modbus TCP/IP. They can be used to connect to engineering stations for configuration and monitoring, access the plant-level Unit Data Highway, and expand remote I/O stations like GE Fanuc VersaMax via the EGD protocol. The serial ports can be used for system debugging or as a backup for Modbus RTU communication.

• Modularity and Expandability: The ACLE module itself consists of a carrier board and a high-performance PC/104-Plus processor board, resulting in a compact structure. Via its Ethernet interface, it can easily build distributed control systems, flexibly meeting the needs of different scale applications.

• Large Local Storage: Onboard 16 MB CompactFlash non-volatile flash memory stores the QNX operating system, file system, Ethernet stack (Core Load software), runtime code, and application configuration files. Even if the system loses power, all data is safely preserved, ensuring quick and reliable system startup.

• Real-time Performance and Determinism: Through dedicated hardware logic on the backplane and 4k x 32 Dual Port RAM (DPRAM), the ACLE performs high-speed, deterministic data exchange with the Digital Signal Processor board (DSPX) in the same rack, avoiding bus contention. Additionally, it provides a precise 1 ms periodic time synchronization signal to the DSPX board via the INT_LAN signal, ensuring the real-time performance of the entire control loop.

• Comprehensive Diagnostics and Status Indication: The front panel features multiple LED status indicators, including OK, ACTIVE, ENET, FLASH, and a set of STATUS LEDs. These intuitively display the module's operating status, network activity, flash memory operations, and fault codes during the startup process, greatly facilitating on-site fault troubleshooting. For example, the STATUS LEDs display a walking pattern during startup to indicate BIOS execution steps, and flash specific codes when a fault occurs, helping maintenance personnel locate issues.

• High Reliability and Redundancy Support: Supports online hot-swap replacement in redundant control systems (subject to specific firmware conditions), allowing for the replacement of a faulty module without shutting down the system. This minimizes the impact of a single point of failure on system operation, significantly improving the overall availability of the excitation control system. In redundant systems, H1A and H1B modules can be mixed, provided the minimum firmware version requirements are met (Thyristor Control V11.50.02C, Regulator Control V04.50.02C).

3. Hardware Architecture and Components

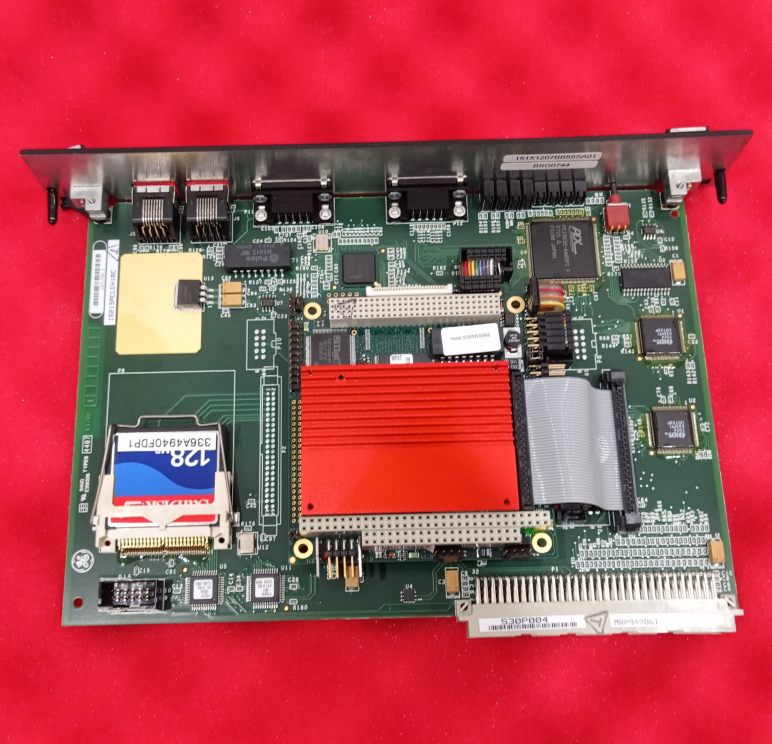

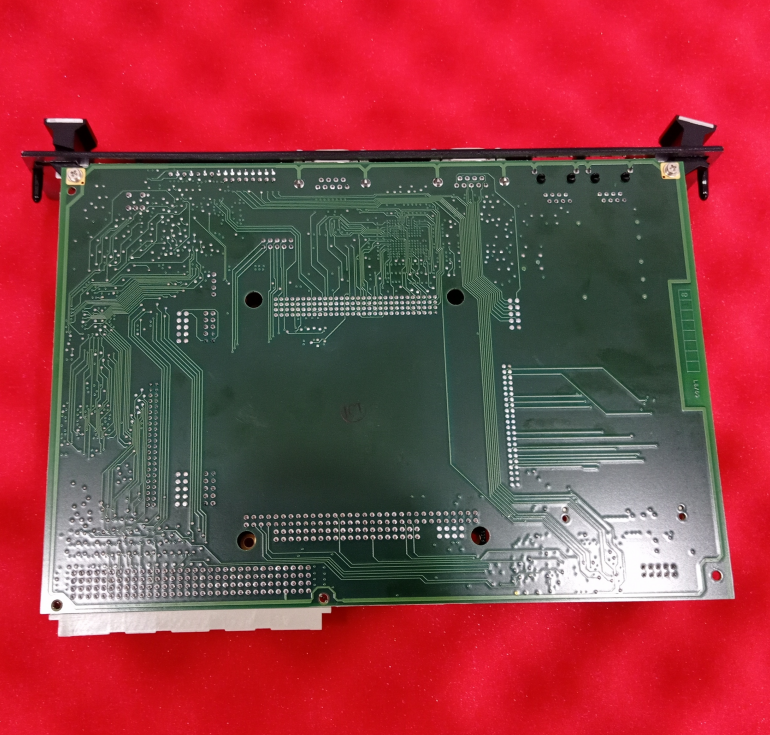

The IS215ACLEH1B module adopts a two-board architecture: an IS200ACLE carrier board and a PC/104-Plus format processor board. This design separates the core computing unit from I/O interfaces and backplane communication logic, ensuring both advanced performance and good stability. The module is supplied as a complete assembly and is not intended for user disassembly to access internal boards or DRAM separately.

• Processor Board: This board integrates the system's core computing unit. It features a 400 MHz high-performance Central Processing Unit (such as Tualatin Celeron), equipped with 256 KB of L2 cache. It has 128 MB of SODIMM Dynamic Random Access Memory seated in a socket on the underside of the processor board, used for running programs and storing temporary data (DRAM is expandable). Additionally, the processor board includes flash memory for the Phoenix BIOS, PCI bus interface, PC/104 (ISA) bus interface, a secondary 10/100 Mbps Ethernet port (for ENET2 on the carrier board), and other standard PC/AT compatible components. Jumpers on the processor board are preset at the factory and require no field adjustment.

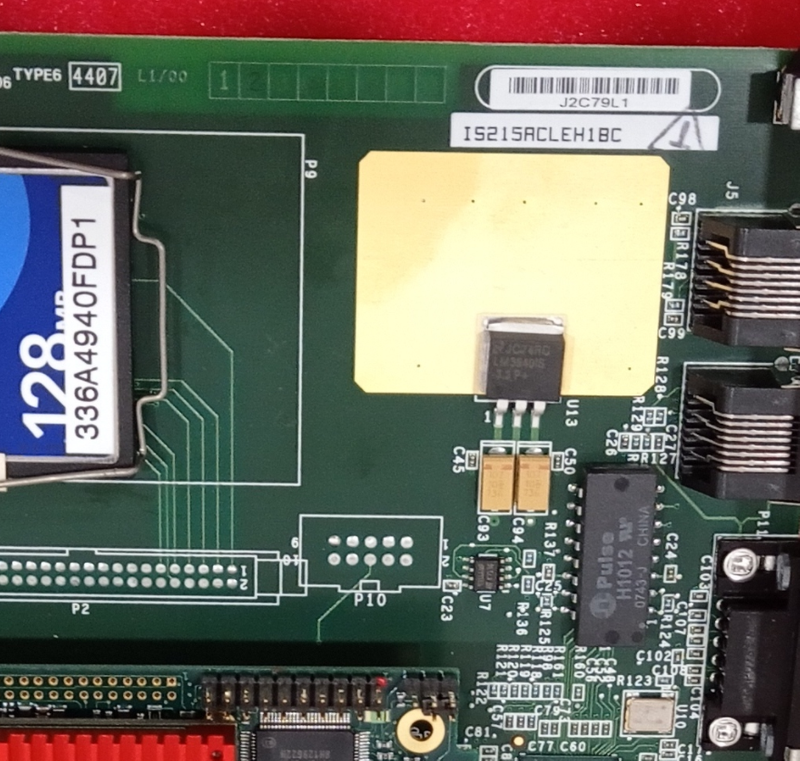

• Carrier Board: Serving as the bridge connecting the processor board to other parts of the EX2100 system, the carrier board provides a wealth of functional interfaces. It integrates the 16 MB CompactFlash disk (plugged into connector P9), the primary Ethernet port (ENET1) with its RJ45 connector, the 4k x 32 Dual Port RAM (DPRAM) for backplane communication, 8 KB of Non-Volatile RAM, reset logic, a board ID chip, and status LED drive circuits. The carrier board also contains internal ribbon cable headers for connecting to the processor board, including P6 (10-pin Reset interface), P3 (44-pin CF Card interface), P13 (4-pin ENET2 interface), P5 (10-pin COM1 interface), and P4 (10-pin COM2 interface). All connections are correctly installed and secured at the factory.

4. Interfaces and Communication Capabilities

The IS215ACLEH1B module offers a variety of physical interfaces, enabling flexible integration into various control system architectures. All user interfaces are located on the front panel for easy connection.

• Front Panel Interfaces:

• Serial Ports COM1 and COM2: Two standard 9-pin D-sub male connectors (DB9). COM1 is primarily used during system commissioning. A dedicated serial cable (Part Number 336A3582P1) connects a laptop to configure the TCP/IP address of ENET1 using the Toolbox software's serial loader feature. This port is typically unused during normal operation and should be disconnected. COM2 can be used for serial Modbus communication applications. Pin definitions for both ports follow standard RS-232 specifications (including DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI).

• Ethernet Ports ENET1 and ENET2: Two standard RJ45 connectors supporting 10/100 Mbps auto-negotiating networks. ENET1 is typically used to connect the Toolbox software and the plant-level Unit Data Highway. ENET2 can be used to expand I/O on a private network, for example, connecting to GE Fanuc VersaMax remote I/O stations via the EGD protocol. The shields of both ports are connected to the system chassis ground, but this feature is unused when Unshielded Twisted Pair (UTP) cables are employed. Port pin definitions follow standard Ethernet specifications (1-TPTD+, 2-TPTD-, 3-TPRD+, 6-TPRD-).

• Backplane Interface:

• P1 Connector: Through this connector, the IS215ACLEH1B plugs into the EX2100 rack's backplane. Its primary function is high-speed data exchange with the DSPX board in the same rack via the onboard DPRAM. Hardware automatically arbitrates simultaneous access attempts to the same DPRAM address by holding off one board in a wait state (for a maximum of 100 ns) to ensure data integrity. Additionally, it sends a 1 ms periodic time synchronization signal to the DSPX board via the INT_LAN signal. The signals on this interface are complex and require a special extender board for measurement, which is not part of standard field maintenance procedures.

• Internal Connections: As mentioned earlier, multiple ribbon cables connect the carrier board and the processor board. These connections are factory-installed and require no user intervention. However, the CompactFlash disk on connector P9 can be carefully removed by maintenance personnel if a new core load is required, reprogrammed using an external reader/writer, and then reinserted.

5. Software Functions and Configuration

The functionality of the IS215ACLEH1B is defined not only by its hardware but also by a layered software system. This software is structured into several levels, ensuring system flexibility, maintainability, and security.

• Basic Input/Output System (BIOS): This is the standard industrial-grade Phoenix BIOS stored in the flash memory of the processor board. It is responsible for hardware initialization, identification, and providing low-level services for operating system loading. The BIOS is pre-programmed at the factory, and its configuration parameters are stored in EEROM. These settings are specific parameters required for the PC/104 processor board to work correctly in the ACLE environment. Users typically do not need and are not required to modify them. Reprogramming of the BIOS by the user is not supported by GE.

• Core Load Software: Stored on the CompactFlash disk, this includes the QNX 4 real-time operating system, the file system, and the Ethernet TCP/IP stack. This forms the foundation for system startup, enabling the ACLE with basic network and serial communication capabilities. After a successful startup with only the core load software (before loading runtime and application code), the STATUS LEDs on the front panel display a walking pattern (lights walking one after another), indicating the system is ready to communicate via COM1 with the Toolbox's serial loader feature to receive Ethernet settings. This software is pre-installed on the CF card at the factory.

• Runtime Code: This is the essential software required for the IS215ACLEH1B to support full static exciter or regulator functionality. It contains core components like the control scheduler and function block libraries. The runtime code needs to be downloaded to the module via the Toolbox software through Ethernet port ENET1.

• Application Code (PCODE): This contains the specific control logic, parameters, and settings for a particular application. It is stored in a binary format called PCODE and is also downloaded by the Toolbox software via ENET1. The Toolbox supports online parameter modification and minor logic adjustments, saving the changes to the module's flash memory.

All software configuration, downloading, and upgrades are managed through GE's Control System Toolbox software. Running on the Windows platform and communicating with the ACLE via Ethernet, it provides engineers with a unified engineering environment. It is important to note that any time an ACLE module is replaced, a firmware download is required. For the IS215ACLEH1B, its runtime code must be compatible with the firmware version of the DSPX board (Thyristor Control minimum V11.50.02C, Regulator Control minimum V04.50.02C).

6. Installation, Maintenance, and Replacement

The IS215ACLEH1B module is designed with industrial environment installation convenience and maintenance needs in mind.

• Installation: Before inserting the module into the rack, ensure all internal ribbon cables are securely connected. To install, first slide the module along the rack guides, then use your thumbs to press simultaneously on the top and bottom of the front panel to initially seat the module into the backplane connector. Finally, alternately tighten the top and bottom captive screws on the front panel assembly to ensure even pressure and full, square seating of the module.

• Status Indication and Fault Diagnosis: The front panel LEDs are the primary indicators for determining the module's operating status.

• OK LED: Solid green indicates the watchdog timer is enabled and functioning correctly. It is off during startup and turns on solid after startup completes.

• ACTIVE LED: Green, blinks when the CPU accesses memory. It blinks during startup and may blink or remain solid after the application starts running.

• ENET LED: Green, blinks when the ENET1 port is connected and activity is detected.

• FLASH LED: Red, lights solid during CompactFlash read/write operations (e.g., during startup or software downloads). Special Note: Never turn off module power when this LED is on, as it may corrupt the file system, requiring a core load reload. This LED does not come on during normal operation.

• STATUS LEDs: A group of green LEDs displaying BIOS steps during startup or fault codes during application loading. After proper initialization, the LEDs light sequentially for 0.5 seconds each, forming a walking pattern. If an LED remains lit, the ACLE has stalled. If a fault occurs during OS startup or application code loading, the LEDs flash a specific pattern indicating a fault code.

• Replacement Procedure:

• Handling Precautions: The ACLE module contains static-sensitive components. Always follow static-sensitive handling techniques, wear a wrist-grounding strap when handling boards, and store boards in antistatic bags.

• Simplex or Offline Redundant Systems: Before replacement, power down the entire control cabinet and verify all power indicators (including those on the EPSM) are off. Disconnect all front panel cables, loosen the top and bottom captive screws on the front panel, lift the ejector tabs, and pull the module out of the rack. After installing the new module and reconnecting cables, the runtime code and application configuration file (PCODE) must be re-downloaded using the Toolbox software.

• Online Replacement in Redundant Systems: For redundant systems supporting online hot-swap (such as redundant full static or redundant regulator systems), a faulty ACLE can be replaced without shutting down the system. Before operating, verify that the section containing the module to be replaced (M1 or M2) is not the active master, using the ACTIVE LED on the ESEL board (for full static) or the GATING LED on the ERDD board (for regulator). Then, for full static control, power off that specific section using the corresponding EPDM module; for regulators, turn off all AC and DC power sources for the corresponding rack. After confirming all power indicator LEDs on boards in that section are off, disconnect cables and remove the old module. After installing the new module and restoring power, use the Toolbox software to configure and download data to it. Finally, test the new module's functionality by transferring control from the active master. In redundant systems, H1B can be mixed with H1A provided the control rack firmware meets the minimum requirements.
