GE IS200EXIBG1A IGCT Exciter Bridge Interface Board

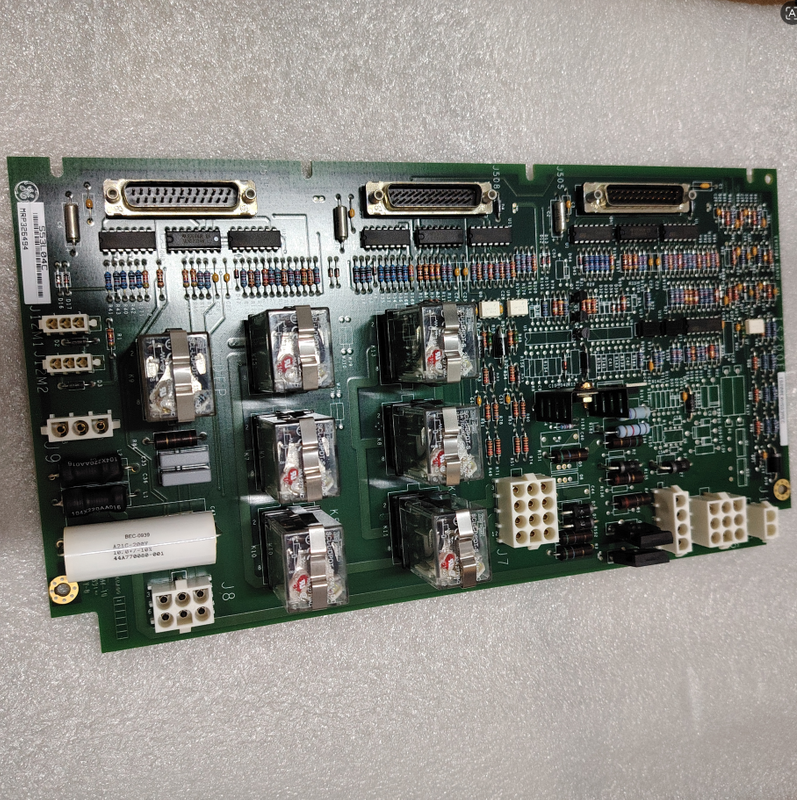

The IS200EXIBG1A is a core interface board between the excitation bridge and the control system within the General Electric (GE) Innovation Series™ Medium Voltage variable frequency drive system. As the Exciter Bridge Interface Board (EXIB), the IS200EXIBG1A undertakes the critical tasks of safely converting various high-voltage feedback signals from the excitation SCR bridge into low-voltage control signals, and converting gate commands from the controller into SCR firing pulses. This board is mounted on the backside of the hinged panel on which the EXIC (Exciter Control Interface Board) is installed, working closely with the EXIC board via a multi-conductor cable, J1, to jointly fulfill all interface functions for the excitation bridge. The IS200EXIBG1A is applicable to both the 3300 V and 6600 V versions of the drive system.

The IS200EXIBG1A integrates five core functional modules: AC and DC voltage feedback signal conditioning, excitation current feedback signal conversion, Metal Oxide Varistor (MOV) fuse loss detection, six isolated SCR gate pulse driver circuits, and overvoltage protection gating. This highly integrated design significantly reduces the number of interconnection cables between the excitation bridge and the control boards, enhancing the system's noise immunity and maintainability.

System Positioning and Architecture Integration

In the Innovation Series™ medium voltage drive system, the excitation bridge is the power conversion core that generates the generator's excitation current. The IS200EXIBG1A is located at the interface layer between the excitation bridge and the control electronics. Its forward channel receives six TTL logic-level gate commands (GATE1C through GATE6C) from the EXIC control board, converting them into isolated gate pulses with sufficient drive capability to directly drive the six SCRs of the excitation bridge. Its feedback channel receives five voltage feedback signals, one current shunt signal, and three MOV fuse status signals from the excitation bridge. After conditioning, these are sent to the EXIC board via the J1 cable for use by the control software for voltage regulation, current regulation, and protection decisions.

The board is powered by a 120 V AC supply via connector J12. An onboard power supply module generates various DC voltages, including +24 V, -24 V, +5 V, and ±12 V, to power all functional circuits on the board. Additionally, connector J15 introduces +24 V, -24 V, and +5 V DC power from the EXIC board as backup or supplementary power.

Detailed Core Functions

1. Voltage Feedback Signal Conditioning

The IS200EXIBG1A receives high-voltage feedback signals directly from the excitation SCR bridge through five vertical stab connectors (E1 through E5):

• E1 (VA), E2 (VB), E3 (VC): Three-phase AC line-to-line voltage inputs, nominal range 240 to 600 V rms, 50/60 Hz.

• E4 (VP): DC positive bus voltage input, whose maximum voltage level is determined by the three-phase AC input voltage.

• E5 (VN): DC negative bus voltage input.

Each of the five voltage signals passes through an independent resistive voltage divider network for conditioning, with each network referenced to chassis ground. The divided analog signals, proportional to the bridge voltages, are sent to the EXIC board via the corresponding pins of the J1 multi-conductor cable (measurable online at TP502 through TP506). This passive voltage division method requires no additional isolation amplifiers, resulting in a simple and robust structure.

2. Excitation Current Feedback

The excitation current feedback signal is introduced through connector J2. This signal originates from a DC shunt connected in series with the positive DC output terminal of the excitation bridge. The shunt output characteristic is: 100 mV output corresponds to 100% of its rated current (current flows in one direction only).

The shunt signal undergoes the following processing chain on the IS200EXIBG1A board:

• Noise Filter: Suppresses high-frequency interference.

• Voltage Amplifier: Amplifies the mV-level signal to a level suitable for processing.

• Voltage-to-Frequency Converter (V-F Converter): Linearly converts the analog voltage into a frequency signal.

The board outputs two logic-level frequency signals:

• Current Feedback Signal (IFB, measurable at TP509): Provides feedback to the field current regulator, with a range of approximately 2.5 PU corresponding to 2 MHz.

• Timed Overcurrent Model Feedback Signal (ITOC, measurable at TP510): Has twice the range of the current feedback signal, approximately 5.0 PU corresponding to 2 MHz, used for overcurrent protection modeling.

Both signals are sent to the EXIC board via the J1 cable.

3. MOV Fuse Loss Detection

Three Metal Oxide Varistors (MOVs) are located in the excitation SCR bridge, connected across the three-phase AC lines to absorb commutation overvoltages. Each MOV has a protective fuse in its input line. The IS200EXIBG1A collects the line voltage signals on the load side of the three fuses through three vertical stab connectors (E10 for VMA, E11 for VMB, E12 for VMC), ranging from 240 to 600 V rms at 50/60 Hz.

An onboard fuse loss detection circuit continuously compares the three-phase voltage status. If any one of the three fuses blows, the corresponding detection circuit changes its output logic state, reporting the fault to the EXIC board via the MOV signal line in the J1 cable (measurable at TP508, low level indicates fuse OK). Two LED indicators are provided on the front panel: the red MNOK light (DS41) illuminates to indicate a fuse has blown, and the green MOK light (DS42) illuminates when the fuse is OK, providing an intuitive status check for on-site inspection.

4. SCR Gate Drive

The IS200EXIBG1A board integrates six fully isolated SCR gate pulse amplifier circuits. Each circuit receives a TTL logic-level gate command from the EXIC board (GATE1C through GATE6C, corresponding to SCR1 through SCR6) via the J1 cable. After opto-isolation and power amplification, it drives the corresponding SCR via the six gate output connectors J3 through J8.

The output characteristics of each gate driver circuit are:

• Load Impedance: 12 Ω load line

• Peak Open-Circuit Voltage: 24 V

• Peak Short-Circuit Current: 2.0 A

This robust drive capability ensures the SCR fires reliably under all operating conditions. Six yellow LED indicators (DS31 through DS36, labeled G1 through G6) are on the front panel. They illuminate when the gate pulse output for the corresponding SCR is active, providing an intuitive display of gate pulse status for debugging and troubleshooting.

5. Overvoltage Protection Gate Triggering

The IS200EXIBG1A board also integrates an overvoltage protection circuit. When the DC output voltage of the excitation bridge exceeds a safe threshold, the protection circuit automatically generates a gate firing pulse, forcing the SCR into conduction to dissipate the excess energy through a discharge path, thereby preventing overvoltage damage to power devices and insulation. This function complements the external protection provided by the EDEX de-excitation board, forming a multi-layered overvoltage protection system for the excitation bridge.

Front Panel LED Indicators

The IS200EXIBG1A front panel features 11 LED indicators, providing maintenance personnel with rich information about the board's operating status:

Testpoints

The IS200EXIBG1A board features an extensive set of testpoints covering key nodes such as the current feedback chain, voltage feedback outputs, MOV detection signals, gate commands, and power supply status. Testpoints with an "H" suffix are floating at high potential above ground and must not be grounded for measurement. Key testpoints are as follows:

* Testpoints with an H suffix are floating at high potential above ground. Do not ground these testpoints.

Connector Interface Summary

Safety Precautions

The IS200EXIBG1A is directly connected to high-voltage feedback signals from the excitation bridge (up to 600 V rms AC), and multiple high-voltage floating areas exist on the board. The following must be observed during operation:

• All testpoints with an "H" suffix are floating at high potential; grounding them is strictly prohibited, as it may cause equipment damage or personal injury.

• Strict de-energization and Lockout/Tagout procedures must be performed before board replacement.

• The board contains many static-sensitive components; an anti-static wrist strap must be worn during handling, and spare boards must be stored in anti-static bags.

• Care must be taken when opening and closing the hinged panel to avoid damaging the connecting cables.
