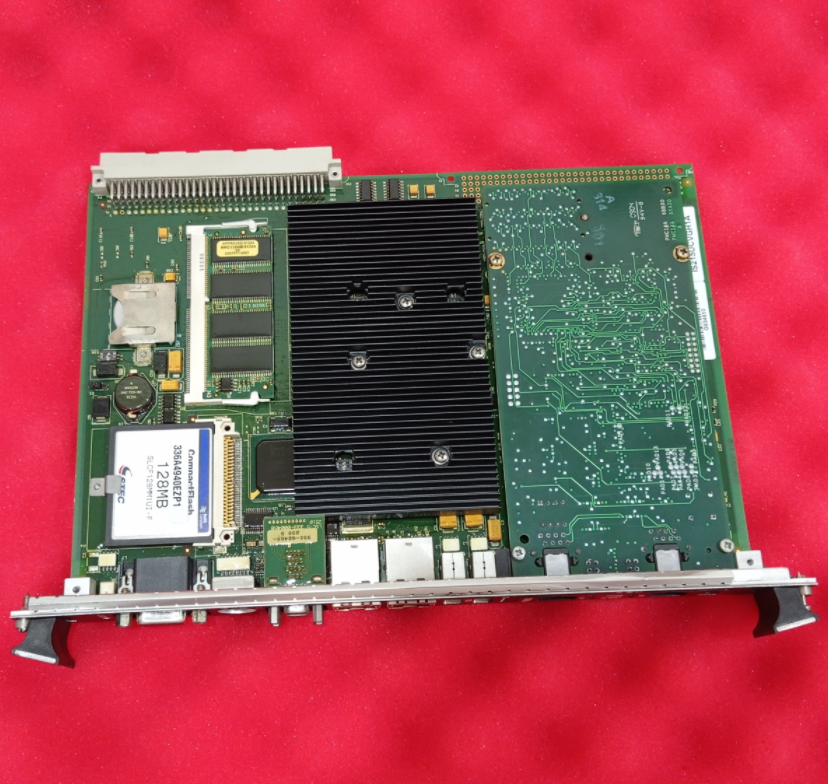

The IS215UCVGH1A IS215UCVGM06A (hereinafter referred to as UCVG) Controller is a core control component of GE’s Mark VI Turbine Control System, representing a high-performance, highly reliable industrial-grade single-slot control board. It is equipped with an Intel® Ultra Low Voltage Celeron™ 650 MHz processor, 128 MB of flash memory, and 128 MB of SDRAM. Featuring dual Ethernet ports, multiple serial ports, and USB interfaces, it supports various industrial communication protocols. It is designed for real-time monitoring and control of rotating machinery such as gas turbines and steam turbines.
With broad application prospects in industrial automation, power generation, and process control, the UCVG balances performance, reliability, and expandability, meeting the demands for long-term stable operation in harsh industrial environments.
II. Key Features and Advantages
1. High-Performance Processing Core
Utilizes an Intel® Ultra Low Voltage Celeron™ 650 MHz processor with 256 KB of Advanced Transfer Cache, providing excellent real-time computing capability.
Low-power design suitable for continuous operation, reducing system thermal load.
2. Dual Ethernet Architecture with Network Isolation
ETHERNET 1: The primary Ethernet port for connection to the Unit Data Highway (UDH), supporting toolbox configuration and peer-to-peer communication.
ETHERNET 2: The secondary Ethernet port can be used on a separate IP logical subnet, supporting Modbus or private Ethernet Global Data (EGD) networks.
The dual-port design enables physical isolation between the control network and data network, enhancing system security and reliability.
3. Rich Communication Interfaces
Two RS-232C serial ports (COM1, COM2) for initial setup and serial Modbus communication, respectively.
Two USB ports for connecting input devices or storage peripherals.
Supports a PMC expansion site (IEEE 1386.1 5V PCI) for functional expansion.
4. Stable Storage and Operating Environment
128 MB Compact Flash module serves as system storage, offering vibration resistance and high-temperature tolerance suitable for industrial settings.
Runs on the QNX real-time operating system, ensuring fast response and high reliability.
Supports control block programming language with analog and discrete processing capabilities, and Boolean logic represented in relay ladder diagram format.
5. Comprehensive Status Indication and Maintenance Support
Multiple status LEDs on the front panel display real-time information for power, booting, IDE activity, reset, etc.
Each Ethernet port has independent link and activity indicators for network diagnostics.
A reset switch on the front panel allows for manual system reset, facilitating maintenance.
III. Detailed Hardware Specifications
1. Processor and Memory
Microprocessor: Intel Ultra Low Voltage Celeron 650 MHz
Memory: 128 MB SDRAM
Storage: 128 MB Compact Flash Module
Cache: 256 KB Advanced Transfer Cache
2. Communication Interfaces
Ethernet Interfaces: 2 × 10BaseT/100BaseTX, RJ-45 connectors
Ethernet 1: Supports TCP/IP and EGD protocols for toolbox, HMI, and PLC communication.
Ethernet 2: Supports EGD and Modbus TCP/IP for third-party DCS or private networks.
Serial Ports:
COM1: Reserved for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit.
COM2: Used for serial Modbus communication, supports 9600 or 19200 baud.
USB Ports: 2 × standard USB Type-A connectors.
3. Power Requirements
+5 V DC, typical current 4 A, maximum 5.4 A
±12 V DC, typical current less than 1 mA
Suitable for standard industrial power environments.
4. Environmental Specifications
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 80°C (-40°F to 176°F)
Complies with industrial-grade environmental endurance standards.
5. Battery and Power Management
Integrated 3.3 V, 200 mA Lithium battery (Type 1) for maintaining real-time clock and system configuration.
The battery is disabled by default from the factory; can be enabled via the SW10 switch.
Note: Only an equivalent battery type should be used for replacement.
IV. Software and Programming Support
1. Operating System
Runs on the QNX real-time operating system, providing high reliability, real-time performance, and multi-tasking capabilities.
2. Programming Language and Data Types
Supports control block language, including analog and discrete processing modules.
Boolean logic can be represented in relay ladder diagram format, facilitating understanding and maintenance by electrical engineers.
Supported data types include:
3. Communication Protocol Support
EGD (Ethernet Global Data): Used for communication with CIMPLICITY® HMI and Series 90-70 PLCs.
Modbus TCP/IP: Supports integration with third-party DCS systems.
Serial Modbus: Supports legacy device connectivity via COM2.
V. Typical Application Scenarios
1. Gas and Steam Turbine Control
2. Industrial Process Automation
3. Energy Management Systems
4. Equipment Networking and Remote Monitoring
Enables device networking via Ethernet ports, supporting remote configuration, diagnostics, and data upload.
VI. Installation and Maintenance Guide
1. Installation Notes
The controller should be installed in a well-ventilated environment free of corrosive gases.
Ensure stable power supply voltage and proper grounding.
Ethernet cabling should be routed away from sources of strong electrical interference.
2. Battery Enable Procedure
Ensure the controller is powered off.
Locate the SW10 switch on the side.
Set the switch to the closed position (pins 1-4 closed).
Restore power; the system will automatically recognize the battery status.
3. Routine Maintenance
Regularly check status LEDs to ensure normal operation.
Clean ventilation openings to prevent dust accumulation and overheating.
Periodically back up system configurations to prevent data loss.
4. Troubleshooting
Connect a diagnostic tool to the COM1 port to retrieve system logs.
Use Ethernet status LEDs to determine network connection status.
In case of system lock-up, use the front panel reset switch to restart.
