Product Overview

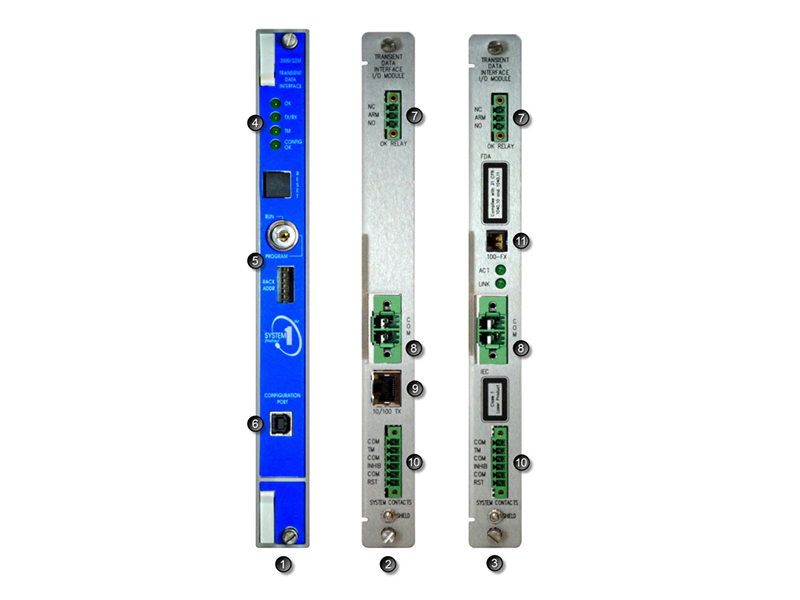

Housed in Slot 1 of the 3500 rack—adjacent to power supplies—the TDI component merges the functionality of a 3500/20 Rack Interface Module (RIM) with the data-gathering prowess of a communication processor like TDXnet. It interfaces with M series monitors (e.g., 3500/40M, 3500/42M) to collect steady-state metrics, transient waveforms, and dynamic data, which are then transmitted via Ethernet to host software for real-time analysis.
Crucially, the 3500-22M operates outside the critical monitoring path, ensuring it never compromises the 3500 system’s core machinery protection capabilities. Every 3500 rack requires either a TDI or RIM, making this module indispensable for system completeness. The I/O Module enhances usability by offering rear-panel connections, enabling remote activation of key functions such as System Reset, Trip Multiply, and Rack Alarm Inhibit.
Product Specifications
Model Breakdown: 3500/22-AA-BB-CC
The part number’s structure (AA-BB-CC) defines critical configurations, as outlined below:
Parameter | Code | Description |
A (TDI Type) | 01 | Standard (optimized for general monitoring scenarios) |
B (I/O Module Type) | 01 | 10Base-T/100Base-TX Ethernet (copper interface) |
| 02 | 100Base-FX (Fiber Optic) Ethernet (for extended distance applications) |
| 03 | 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts (enhanced durability) |
| 04 | 100Base-FX (Fiber Optic) Ethernet with gold-plated OK Relay contacts (extended life) |
C (Agency Approval) | 00 | No specific certifications |
| 01 | CSA/NRTL/C (Class 1, Division 2 – suitable for hazardous locations) |
| 02 | Multi (CSA, ATEX, IECEx – globally recognized for diverse industrial settings) |
Spare Components
Part Number | Description |
288055-01 | New Standard Transient Data Interface Module with USB cable |
138607-01 | Legacy Standard Transient Data Interface Module with USB cable |
146031-01 | 10Base-T/100Base-TX I/O Module (copper) |
146031-02 | 100Base-FX (Fiber Optic) I/O Module |
146031-03 | 10Base-T/100Base-TX I/O Module with gold plating |
146031-04 | 100Base-FX (Fiber Optic) I/O Module with gold plating |
Features
Dual-Function Integration: Combines TDI and I/O capabilities in a single module, reducing rack space usage and simplifying system setup.
Software Synergy: Natively compatible with System 1 software and 3500 System Configuration software, ensuring smooth data synchronization and system customization.
Scalable Data Capture: Default static data logging; optional Channel Enabling Disk unlocks dynamic and high-resolution transient data capture for in-depth diagnostics.
Versatile Connectivity: Supports both copper (10Base-T/100Base-TX) and fiber optic (100Base-FX) Ethernet, with gold-plated relay contacts available for harsh environments.
Global Compliance: Offers certifications including CSA/NRTL/C, ATEX, and IECEx, making it suitable for hazardous and regulated industries worldwide.
Remote Operational Control: Rear-panel ports enable remote triggering of System Reset, Trip Multiply, and Rack Alarm Inhibit, minimizing on-site intervention.
Safety-First Design: Operates independently of critical protection paths, ensuring uninterrupted machinery safety monitoring.
Applications
The 3500-22M TDI and IO Module is engineered to support 3500 Machinery Protection Systems across industries reliant on rotating equipment:
Power Generation: Monitors steam turbines, gas turbines, and generators in coal, natural gas, and renewable energy plants, preventing unplanned outages.
Oil & Gas: Safeguards centrifugal compressors, pipeline pumps, and drilling rig motors in upstream, midstream, and downstream operations.
Chemical & Petrochemical: Tracks agitators, mixers, and process pumps in facilities handling volatile materials, ensuring compliance with safety protocols.
Heavy Manufacturing: Oversees industrial fans, conveyor systems, and motor-driven machinery in automotive, steel, and pulp & paper plants, reducing maintenance costs.
By facilitating real-time data transmission and remote control, it enhances operational efficiency and extends equipment lifespan.
FAQ
What makes the 3500-22M essential for 3500 Machinery Protection Systems?
The 3500-22M serves as the critical data bridge between the 3500 system and host software, collecting and transmitting vital machinery data. Its I/O capabilities also enable remote control of key functions, making it a linchpin for system operation.
Will installing the 3500-22M impact the system’s protective functions?
No. The module is designed to operate outside the critical monitoring path, so it never interferes with the 3500 system’s ability to trigger automatic machinery protection measures.
How do I enable dynamic transient data capture?
Dynamic and high-resolution transient data capture is not standard. Users must install an optional Channel Enabling Disk to unlock this feature, allowing deeper analysis of machinery behavior.
What Ethernet type is best for my facility?
Choose 10Base-T/100Base-TX (copper) for short-distance, cost-effective setups. Opt for 100Base-FX (fiber optic) for longer distances or environments with electromagnetic interference. Gold-plated contacts are ideal for high-vibration or corrosive settings.
Is the 3500-22M suitable for use in explosive environments?
Yes, when configured with Code 01 (CSA/NRTL/C Class 1, Division 2) or Code 02 (multi-certification including ATEX and IECEx), it meets safety standards for hazardous locations.
The 3500-22M TDI and IO Module from Bently Nevada delivers unmatched integration, reliability, and flexibility, making it a vital component for industrial machinery monitoring and protection.
