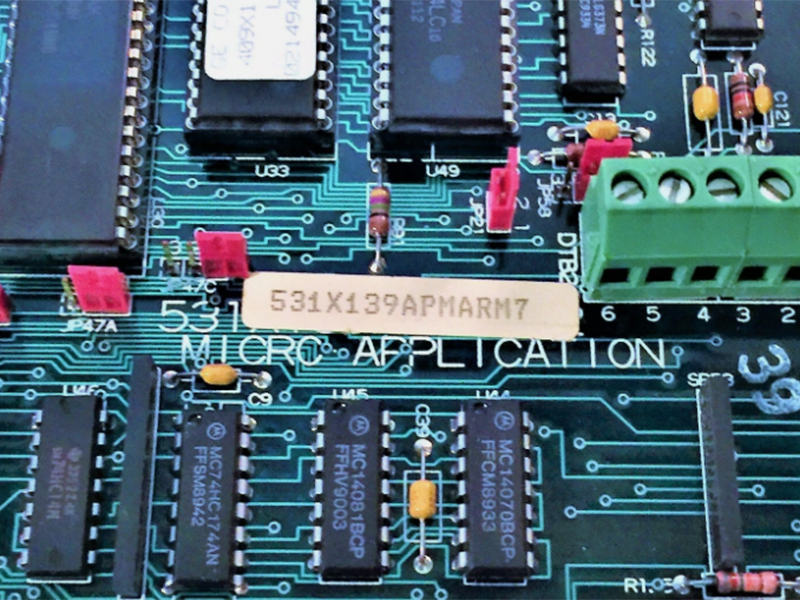

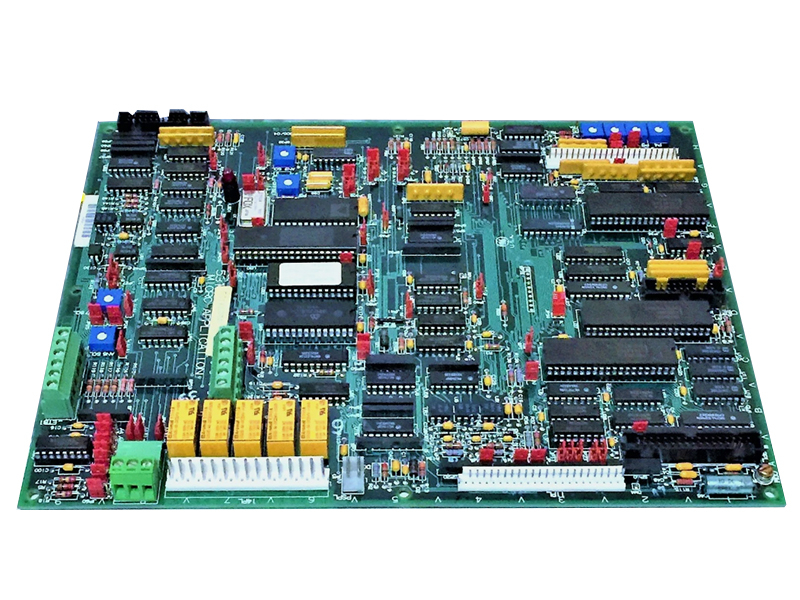

531X139APMARM7 GE ISO Micro Application Card

The 531X139APMARM7 constitutes a General Electric-manufactured ISO Micro Application Card, operating as a core component within the 531X control system.

Pre-Installation Protocol

Before commencing drive board installation, rigorously validate all specified configuration parameters. Adherence to these procedures minimizes equipment failure risks:

Inspection Procedure:

Wiring Verification

Confirm CT/PT polarities align with exciter schematic diagrams

Ensure cabling conforms to IEC 60364-5-52 installation standards

Terminal Assessment

Inspect all electrical terminations for specified torque compliance

Conductor Integrity Check

Replace conductors exhibiting insulation damage or strand exposure

Storage Requirements

Maintain equipment preservation through compliant storage practices:

Environmental Controls:

Utilize breathable canvas protective covers (non-synthetic materials)

Prohibit plastic sheeting due to condensation risks

Label all items per identification protocols

Storage Enclosure Parameters:

Condition Specification

Ambient Temperature： -20°C (-4°F) to +55°C (131°F)

Airborne Contaminants： Zero conductive/dust particles

Relative Humidity ：   5% to 95% non-condensing
