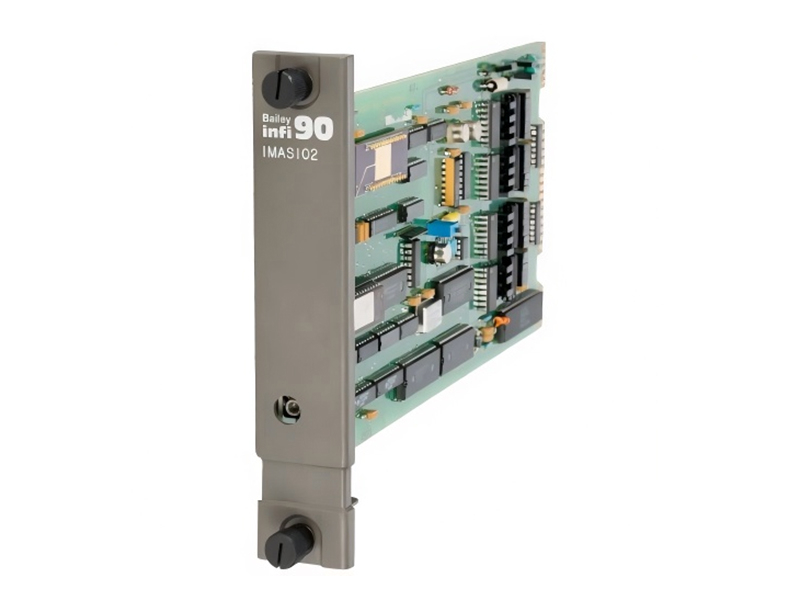

IMASI02 ABB Bailey INFI 90 Analog Slave Input Module

The IMASI02 is a Analog Slave Input Module and belong to ABB Bailey INFI 90 System.

The Analog Slave Input Module (IMASI02) inputs 15 channels of analog signals to the Multi-Function Processor (IMMFP01/02) or Network 90 Multi-Function Controllers. It is a dedicated slave module that connects field equipment and Bailey smart transmitters to the master modules in the Infi 90/Network 90 System.

The slave also provides a signal path from an Infi 90 operator interface such as Operator Interface Station (OIS), or Configuration and Tuning Terminal (CTT) to the Bailey Controls smart transmitters. The OIS or CTT connects to the Bailey Controls smart transmitters through the MFP and the ASI.

It supplies fifteen separate process field signals into the Infi 90 Process Management System. These analog inputs are used by the Multi-Function Processor Module (MFP) to monitor and control a process. The slave can also send operating commands it receives from the MFP or the Smart Transmitter Terminal (STT) to Bailey Controls smart transmitters.
