Product Overview
Compared to previous iterations, the 330102 probe integrates innovative engineering: the patented TipLoc molding method creates a stronger bond between the probe tip and body, enhancing durability. Its cable features the patented CableLoc design, which delivers a pull strength of 330 N (75 lbf) to secure the cable and tip connection. For specialized environments, an optional FluidLoc cable is available, preventing oil and other liquids from leaking through the cable interior—ideal for machinery with fluid exposure.
Product Specifications
Physical Dimensions
Probe tip diameter: 8.0 mm (0.31 in)
Cable impedance: 75 Ω
Standard cable outer diameter: 3.68 mm (0.145 in)
FluidLoc cable outer diameter: 3.94 mm (0.155 in)
Armor outer diameter: 7.67 mm (0.302 in)
Armor ferrule maximum diameter: 9.5 mm (0.38 in)
Connector outer diameter: 7.24 mm (0.285 in)
Part Number Breakdown (AA-BB-CC-DD-EE)
Parameter | Details |
AA (Unthreaded Length) | Range: 0.0 in – 8.8 in (minimum 0.8 in less than case length); increments of 0.1 in (e.g., 0 4 = 0.4 in). |
BB (Case Length) | Range: 0.8 in – 9.6 in; increments of 0.1 in (e.g., 2 4 = 2.4 in). |
CC (Total Length) | Options: 05 (0.5m/1.6ft), 10 (1.0m/3.3ft), 15 (1.5m/4.9ft), 20 (2.0m/6.6ft), 30 (3.0m/9.8ft), 50 (5.0m/16.4ft), 90 (9.0m/29.5ft). Note: 3m length is exclusive to 330101 probes; 5m probes pair with 5m Proximitor sensors. |
DD (Connector & Cable Type) | 01: Miniature coaxial ClickLoc with protector (standard cable); 02: Miniature coaxial ClickLoc (standard cable); 11: Miniature coaxial ClickLoc with protector (FluidLoc cable); 12: Miniature coaxial ClickLoc (FluidLoc cable). |
EE (Agency Approvals) | 00: No approvals; 05: CSA, ATEX, IECEx approvals. |
Features
Enhanced Durability: The TipLoc molding method ensures a robust bond between the probe tip and body, reducing wear and extending service life in high-vibration environments.
Secure Cable Attachment: The CableLoc design provides a pull strength of 330 N (75 lbf), minimizing cable detachment risks during operation or maintenance.
Fluid Resistance: Optional FluidLoc cable prevents liquid leakage through the cable, making it suitable for machinery with oil or coolant exposure.
Precision Sensing: 8 mm tip diameter enables accurate vibration and position measurements, critical for monitoring fluid-film bearing performance.
Versatile Configurations: Multiple length and connector options (e.g., 0.5m to 9.0m cables, ClickLoc connectors) allow customization for diverse industrial setups.
Certified Options: Available with CSA, ATEX, and IECEx approvals (EE=05), ensuring compliance with global safety standards for hazardous environments.
Applications
The 330102 Bently Nevada 3300 XL 8 mm Armored Proximity Probe is engineered for:
Fluid-film bearing machines: Monitoring vibration and shaft position to prevent machinery failure and optimize performance.
Keyphasor reference: Synchronizing vibration data with shaft rotation for precise diagnostic analysis.
Speed measurement: Providing real-time rotational speed data for process control and safety systems.
Industrial machinery: Suitable for turbines, pumps, compressors, and other heavy-duty equipment requiring continuous condition monitoring.
FAQ
What is the difference between the 330102 and non-armored probes (e.g., 330101)?
The 330102 features an armored cable for added protection against physical damage, making it ideal for harsh environments. Non-armored models like the 330101 are better suited for controlled settings with minimal abrasion risks.
Can the 330102 probe be used with 3500 Machinery Protection Systems?
Yes, the 330102 is fully compatible with Bently Nevada 3500 Machinery Protection Systems, as part of the 3300 XL transducer ecosystem.
What is the maximum operating temperature for the 330102?
The probe is designed to operate in industrial temperature ranges typical for Bently Nevada 3300 XL systems (consult the datasheet for exact limits based on cable type).
How often should the 330102 probe be calibrated?
Calibration intervals depend on application conditions, but we recommend annual checks to maintain measurement accuracy, especially in high-vibration or corrosive environments.
Is the FluidLoc cable option mandatory for oil-based machinery?
No, but the FluidLoc cable is highly recommended for machinery with oil or fluid exposure to prevent leaks and extend cable life.
The 330102 Bently Nevada 3300 XL 8 mm Armored Proximity Probe combines precision, durability, and versatility, making it a trusted choice for critical machinery monitoring. With customizable configurations and industry approvals, it meets the demands of diverse industrial applications.

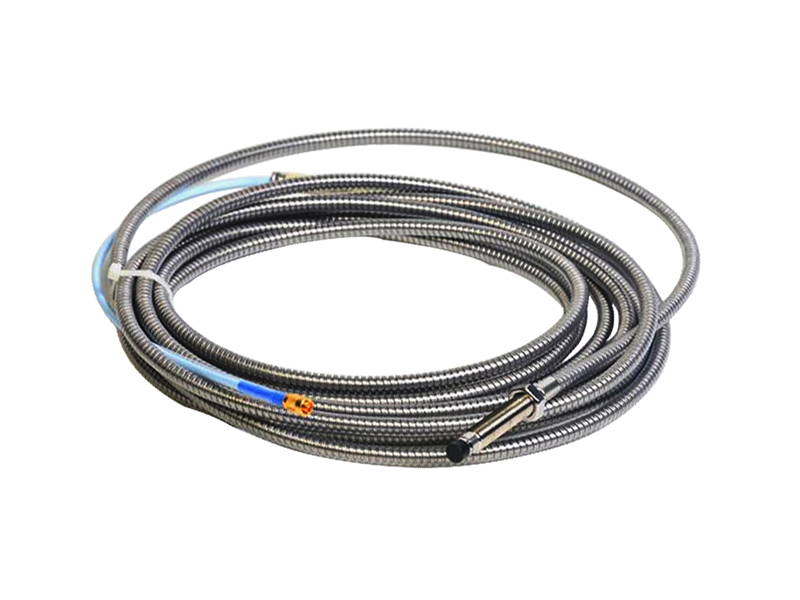

![330102 Bently Nevada 3300 XL 8 mm Armored Proximity Probe]( "330102 Bently Nevada 3300 XL 8 mm Armored Proximity Probe")
1. Probe tip, 8.0 mm (0.31 in) diameter
2. 9/16 in for 3/8-24 threads, M17 for M10 threads (see Note 2)
3. Case thread
4. 5/16 in wrench flats for 3/8-24 threads; 8mm wrench flats for M10 threads.
5. 75 Ω cable, 3.68 mm (0.145 in) maximum outside diameter, 3.94 mm (0.155 in) maximum outside
diameter for FluidLoc cable, 7.67 mm (0.302 in) outside diameter of armor, 9.5 mm (0.38 in)
maximum diameter of armor ferrule
6. Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D”
7. Unthreaded length “A”
8. Case length “B”
9. 6.0 mm (0.235 in) maximum
10. Total length “C”, +30%, -0%
