For spares, order the complete catalog number as described below. This includes a front panel assembly, monitor PWAs with sheet metal, and appropriate relay module. This unit is optioned, tested and ready to install in your system. Spare relay modules can be ordered separately.

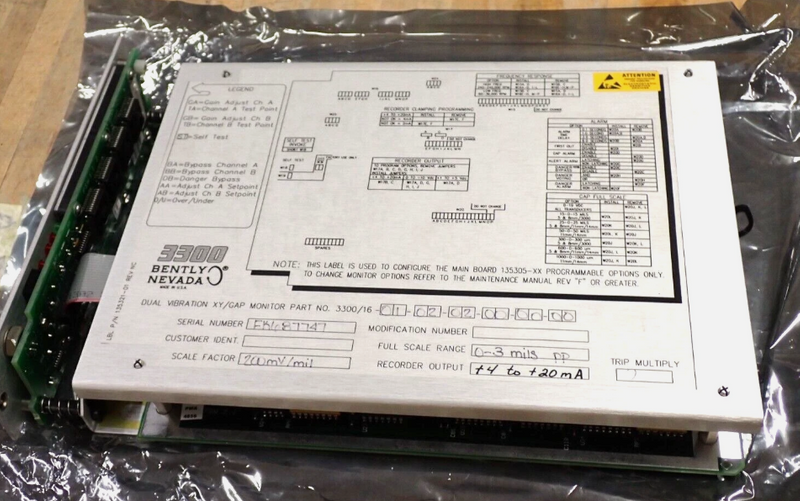

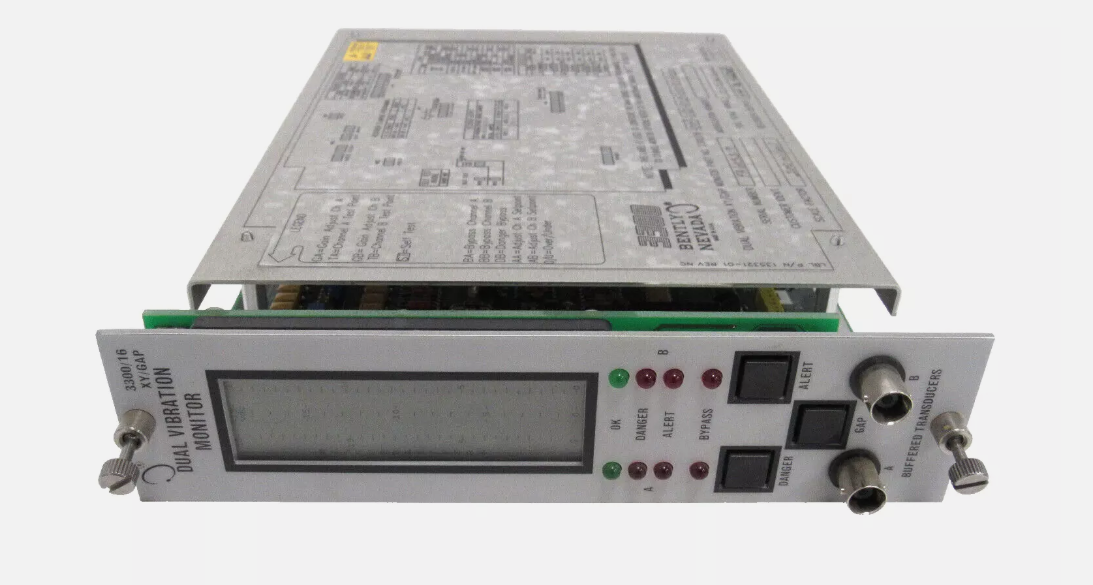

XY/GAP Dual Vibration Monitor
3300/16-AXX-BXX-CXX-DXX-EXX-FXX
Option Descriptions
A: Full-scale Range Option
01 0-3 mils peak-to-peak (pp)
02 0-5 mils pp
03 0-10 mils pp
04 0-15 mils pp
05 0-20 mils pp
11 0-100 µm pp
12 0-150 µm pp
13 0-200 µm pp
14 0-400 µm pp
15 0-500 µm pp
B: Transducer Input Option
01 3300 8 mm, 3300 XL 8mm or 7200 5 mm and 8 mm Proximitor Sensor, 200 mV/mil
02 3000 Proximitor Sensor, 200 mV/mil (Transducer Output Voltage in power supply must be set for –18 Vdc or use a power converter.)
03 7200 11 mm Proximitor Sensor(not XL), 100 mV/mil
04 3300 XL 11 mm or 7200 14 mm or 3300 HTPS Proximitor Sensor, 100 mV/mil
05 3300XL NSv and 3300 RAM Proximitor Sensor, 200 mV/mil
Note: Contact your local office if 3000 series transducers are to be used in the monitoring system which also uses 3300 and/or 7200 Series transducers.
C: Alarm Relay Option
00 No Relays
01 Epoxy-sealed
02 Hermetically-sealed
03 Quad Relay (Epoxy-sealed only)
04 Spare Monitor – No SIM/SIRM
Notes:
1. AND voting logic is not available with Quad Relays.
2. At least one relay module must be ordered with each 3300 System. If one common relay module per system has been ordered, all monitors of this type must be jumper programmed at the factory to activate a relay
bus. Order SCK (Special Configuration Kit) 157516-122 & -123 for bus one or 157516-124 & -125 for bus two.
3. Agency approval places limitations on the relay module. Refer to the Relay Module data sheet for information.
4. Quad Relays are not available with the Internal Safety Barriers option.
D: Agency Approval Option
00 Not required
01 CSA/NRTL/C
02 ATEX self certification
Note: ATEX approval requires the monitor rack be installed in a weatherproof housing.
E: Safety Barrier Option
00 None
01 External
02 Internal
Notes:
1. External Safety Barriers must be ordered separately.
2. Quad Relays are not available with the Internal Safety Barriers option.
F: Trip Multiply Option
00 None
01 2X
02 3X
