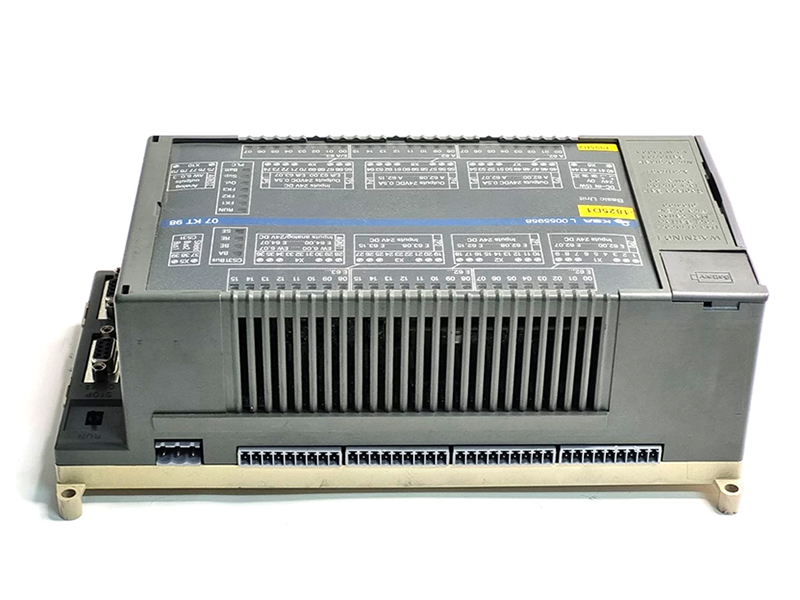

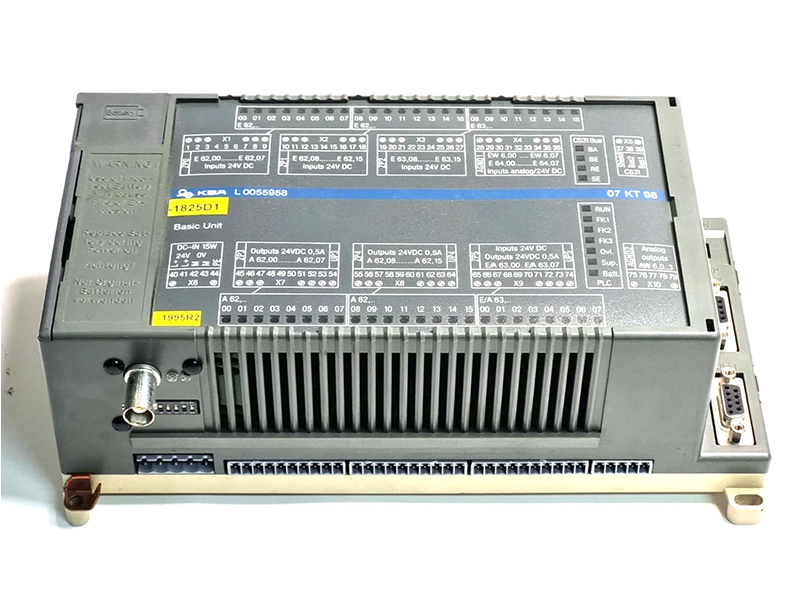

Product Overview
As a flagship product from ABB—a global leader in industrial technology—the 07KT98 is designed for scalability, supporting multiple communication protocols and expansion modules. With in-stock availability and a competitive price range of $2500~$5000, it delivers cost-efficiency without compromising on reliability. Identified by the item number GJR5 2531 00 R0, it ensures straightforward ordering and technical assistance.
Product Specifications
Parameter | Details |
Power Supply | 24 V DC |
Digital Inputs | 24 inputs with LED status displays |
Digital Outputs | 16 transistor outputs with LED indicators |
Configurable Digital I/O | 8 bidirectional ports with LED feedback |
Analog Inputs | 8 customizable channels (supports 0...10 V, 0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, Pt100 (2-wire/3-wire), differential inputs; can switch to digital input mode) |
Analog Outputs | 4 adjustable outputs (compatible with ±10 V, 0...20 mA, 4...20 mA) |
Counters | 2 high-speed counters (up to 50 kHz) with 7 programmable operating modes |
Interfaces | 1 CS31 system bus for expansion; 1 port for communication modules (e.g., 07 KP 90); 2 serial interfaces (COM1, COM2) for MODBUS, programming, and custom functions |
Memory Solutions | Integrated Flash EPROM; removable SmartMedia Card 07 MC 90 |
Backup System | Compatible with 07 LE 90 lithium battery (preserves RETAIN data and real-time clock) |
Mounting Options | DIN rail installation or screw fastening |
Features
Adaptive Operational Modes
The 07KT98 excels in flexibility, functioning as a bus master to coordinate decentralized systems, a slave unit to extend control networks, or a stand-alone solution for compact setups. This adaptability eliminates the need for multiple specialized components, streamlining industrial setups.
Comprehensive I/O Capabilities
Equipped with 24 digital inputs, 16 digital outputs, and 8 configurable digital I/O ports—each with LED displays—users gain instant visibility into signal status. The 8 analog inputs accommodate diverse signal types (voltage, current, temperature via Pt100), while 4 analog outputs adapt to precise control needs, making it ideal for mixed-signal environments like manufacturing lines.
Advanced Connectivity
A CS31 system bus interface enables seamless integration with external modules, expanding system capabilities. Two serial interfaces (COM1, COM2) support MODBUS and custom programming, ensuring compatibility with legacy and modern industrial networks. Optional variants add PROFIBUS-DP, ARCNET, Ethernet, or CANopen, catering to specific communication requirements.
Reliable Diagnostics & Safety
Built-in diagnostics include self-checks for the unit, CS31 bus, and connected modules. LED indicators (RUN, FK1-FK3 error classes, bus activity) provide real-time system health updates. Overload/short-circuit protection and a dedicated supply voltage LED enhance operational safety, minimizing downtime.
Intuitive Operation & Data Retention
A RUN/STOP switch allows quick program control, while online modifications (via AC31 software) enable real-time adjustments without halting operations. Data is safeguarded by Flash EPROM and an optional 07 LE 90 battery, ensuring critical information (e.g., flag status, clock data) persists during power cycles. The SmartMedia Card 07 MC 90 simplifies user data storage and system updates.
Applications
The 07KT98 ABB Basic Unit finds utility across industries requiring precise automation:
Manufacturing: Manages assembly lines, regulating conveyor speeds and robotic interactions in automotive and electronics plants.
Energy Sector: Integrates with Advant Controller 31 to monitor and control power generation equipment, ensuring stable output in thermal or hydroelectric facilities.
Water & Wastewater: Acts as a slave unit to collect data from distributed sensors, optimizing pump operations and chemical dosing.
Pharmaceuticals: Controls temperature and pressure in production environments, adhering to strict regulatory standards for batch consistency.
Food & Beverage: Operates as a stand-alone unit in packaging systems, coordinating filling and sealing processes with minimal human intervention.
FAQ
What software is needed to program the 07KT98?
Programming requires AC31 software, compatible with standard IBM-compatible PCs (see documentation for 907 AC 1131 for detailed guidelines).
Is the battery mandatory for operation?
No, but the 07 LE 90 lithium battery is recommended to preserve RETAIN data and the real-time clock during power interruptions, ensuring system continuity.
Which communication protocols are supported?
Base models include MODBUS and CS31 bus. Specific variants (e.g., R0270 for Ethernet, R0280 for CANopen) add advanced protocols to suit network needs.
How quickly can the unit be delivered?
The 07KT98 is in stock, with delivery timelines varying by location. Shipments typically depart from Xiamen port, with standard transit times ranging from 3–10 business days.
Can it be installed in harsh industrial environments?
Yes, its robust design (including DIN rail mounting and screw fastening) suits control cabinets in environments with moderate vibration and temperature fluctuations (operating range: -10°C to 60°C).
The 07KT98 ABB Basic Unit redefines industrial automation with its adaptability, robust connectivity, and user-centric design. Whether deployed in large-scale manufacturing or compact setups, it delivers consistent performance, making it an indispensable tool for modern industrial control systems.
