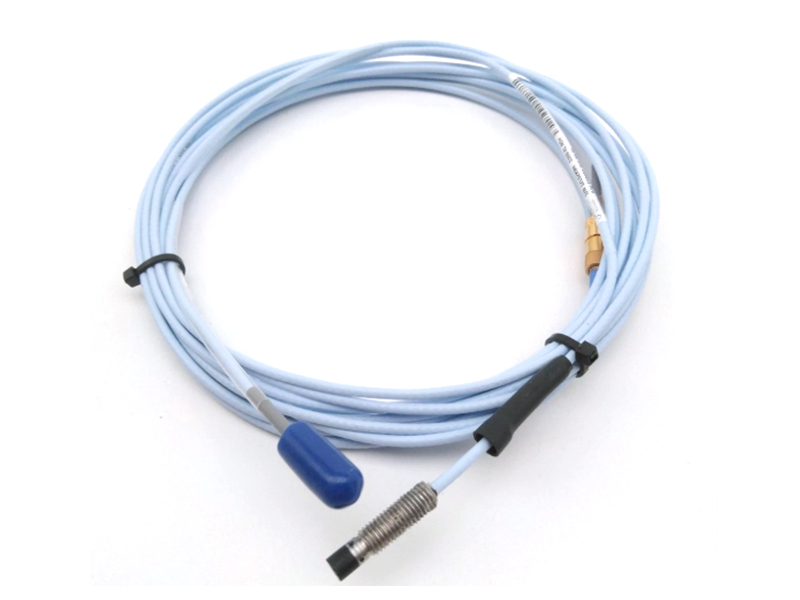

330171 Bently Nevada 3300 XL 5mm Proximity Probe

330171 Series belong to the 3300 XL 5mm Proximity Transducer System. It features 1/4-28 UNF threaded connection without armored construction.

The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.

The product schematic diagram is shown below:

1. Probe tip, 5.2mm [0,21 in] diameter

2. 11.1 mm [7/16in] for 1/4-28 threads, 13.0mm [0.51in] for M8

thread. See Note 3.

3. Case thread

4. 5.6 [7/32] wrench flats for 1/4-28 threads, 7.0 [0.28] for M8

threads

5. 75Ω cable, 2.8mm [0.11 in] maximum outside diameter,

7.6mm [0.3 in] outside diameter of armor, 9.0mm [0.35in]

maximum diameter of armor ferrule.

6. Miniature male coaxial connector, 7.23mm [0.285 in]

maximum outside diameter “D”

7. 3.2 [0.13in]

8. Unthreaded length “A”

9. Case length “B”

10. 6.0mm [0.235in] maximum

11. Total length “C”, =30%, -0%. See Note.
