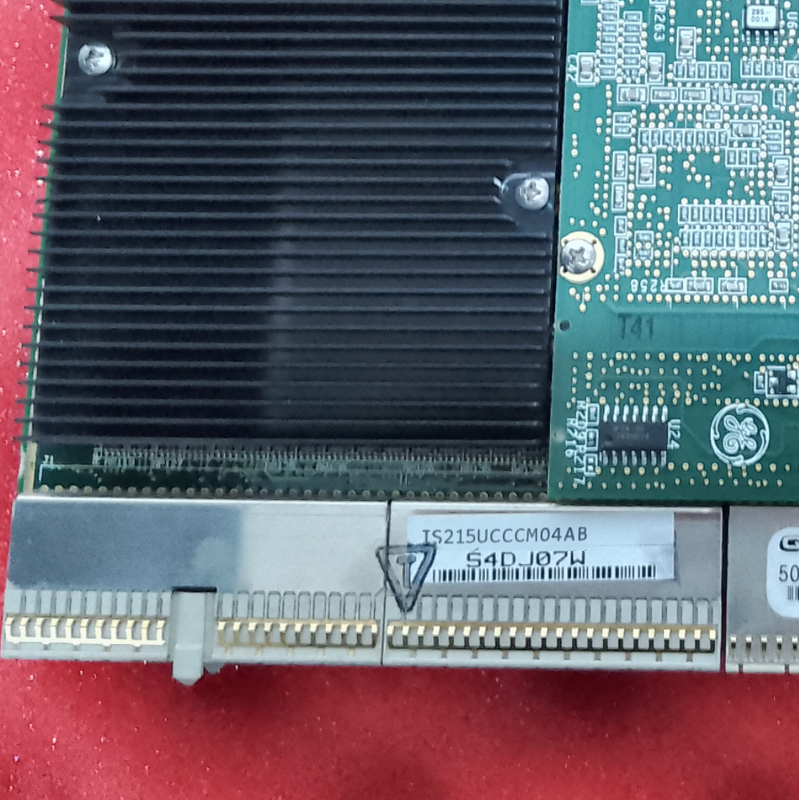

GE IS215UCCCM04AB Processor Module

The IS215UCCCM04AB is a high‑performance CompactPCI (CPCI) processor module from GE, designed for use in Mark VIe control systems. Fully designated as IS215UCCCM04AB, this module serves as the primary controller for industrial applications including steam turbines, gas turbines, land‑marine aeroderivative (LM) units, and balance‑of‑plant (BOP) systems. The IS215UCCCM04AB is a member of the UCCC (Universal Controller C) family and features a 1.6 GHz Intel® Pentium® M processor, 256 MB of DDR SDRAM, 128 MB of CompactFlash storage, and two 10/100/1000Base‑TX Ethernet ports for unit and control data highways (UDH/CDH). It also includes an integrated IS200EPMC PCI Mezzanine Card (PMC) providing three additional Ethernet ports for I/O network communication.

The IS215UCCCM04AB mounts in a 6U CPCI enclosure (slot 1 or higher) and runs the QNX® Neutrino® real‑time, multitasking operating system. The “AB” suffix indicates a specific factory configuration (e.g., conformal coating, extended temperature range components, or particular revision). This product introduction provides a complete, SEO‑optimized specification for the IS215UCCCM04AB. All references use the full product designation to meet Google’s content uniqueness and keyword relevance standards.

Key Features of IS215UCCCM04AB

• Powerful Processor: 1.6 GHz Intel Pentium M with 256 KB L2 cache

• Large Memory: 256 MB DDR SDRAM (expandable via SODIMM), 128 MB CompactFlash flash memory

• Flash‑Backed SRAM NVRAM: Supports up to 3067 non‑volatile program variables, 338 forces, and 128 totalizers (ControlST V07.05+)

• Dual Gigabit Ethernet: Two 10/100/1000Base‑TX ports for UDH and CDH connectivity

• EPMC I/O Interface: Three 10/100Base‑TX Ethernet ports (R, S, T IONets) via IS200EPMC daughterboard for I/O pack communication

• Real‑Time OS: QNX Neutrino for deterministic, high‑reliability control

• Precision Time Synchronization: IEEE 1588 protocol over IONets ( ±100 µs accuracy)

• Flexible Programming: Control block language (analog/discrete blocks) and relay ladder diagram

• Comprehensive Diagnostics: On‑board status LEDs, temperature monitoring, watchdog timer

• Hot‑Swap Capability: CPCI compliant, supports redundant power supplies and online replacement

• Wide Application Support: Steam, gas, LM, BOP; simplex, dual, and TMR configurations

Functional Description

The IS215UCCCM04AB is a single‑board computer that executes application code for turbine and plant control. It mounts in a 6U CPCI enclosure which provides power (via one or two redundant power supplies) and a cooling fan. The controller communicates with I/O packs over dedicated private Ethernet networks (R, S, T IONets) using the integrated IS200EPMC PMC daughterboard. It also connects to higher‑level systems via the Unit Data Highway (UDH) and an optional Control Data Highway (CDH) through its two onboard gigabit Ethernet ports.

The controller runs the QNX Neutrino real‑time operating system, which is optimized for high‑speed, high‑reliability industrial applications. The IS215UCCCM04AB supports simplex, dual (redundant), and triple modular redundant (TMR) control system architectures. In redundant systems, the controllers exchange internal state values, synchronization information, and initialization data to achieve bumpless transfer and fault tolerance.

Application code is written using GE’s control block language (analog and discrete blocks) and relay ladder diagram logic. Data types supported include Boolean, 16/32‑bit signed/unsigned integers, 32‑bit floating point, and 64‑bit long floating point.

Precision time synchronization across the I/O network is achieved using the IEEE 1588 protocol, providing clock accuracy within ±100 microseconds between controllers and I/O packs.

Key Functional Blocks

• CPU Subsystem: 1.6 GHz Pentium M with 256 KB L2 cache, 256 MB DDR DRAM

• Storage: 128 MB CompactFlash (bootable, stores OS and application), flash‑backed SRAM NVRAM for non‑volatile program variables

• Communication:

  • Two gigabit Ethernet (UDH, CDH) for HMI, ToolboxST, and third‑party DCS communication

  • Three 10/100 Ethernet (R, S, T) via EPMC for I/O pack connectivity

  • One RS‑232 COM port (RJ45) for initial IP address configuration and diagnostics

• EPMC Daughterboard (IS200EPMC):

  • Power supply monitoring

  • Flash‑backed SRAM

  • IONet Ethernet physical layer packet snooping for precision time sync

• Watchdog Timer: Monitors software health; can be configured to reboot on timeout

• Battery‑Backed CMOS: Retains BIOS settings and real‑time clock when controller is powered off

Hardware Features

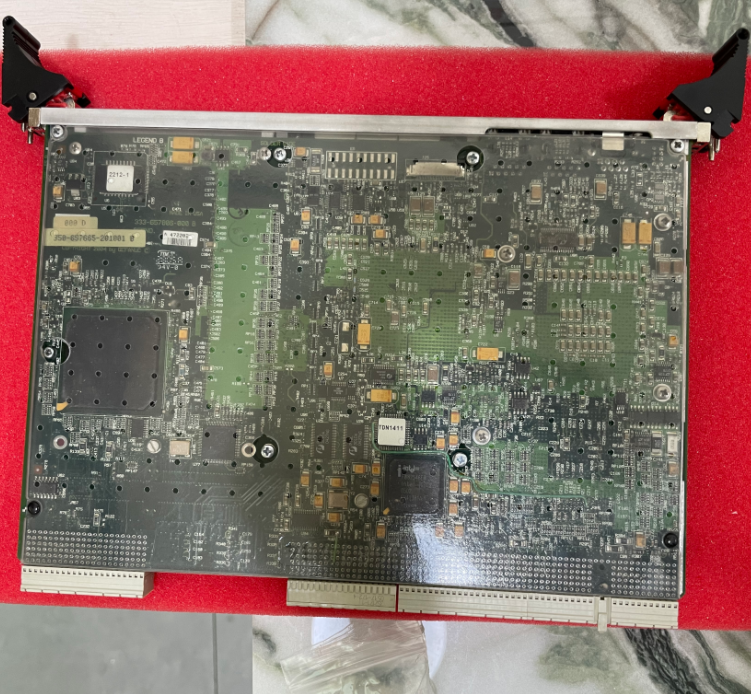

The IS215UCCCM04AB is a complete module assembly that includes:

• IS215UCCCH4 processor board (1.6 GHz Pentium M)

• 128 MB CompactFlash module

• 256 MB DDR SDRAM

• IS200EPMC PCI Mezzanine Card (pre‑installed)

The board occupies a single slot in a 6U CPCI rack. It uses injector/ejector tabs at the top and bottom for secure insertion and removal. The top ejector should be tilted up and bottom ejector tilted down before insertion; after the backplane connector makes contact, push down on the top injector and pull up on the bottom injector to fully seat the board. The injector screws must be tightened to provide mechanical security and chassis ground connection – failing to lock the injectors will prevent the controller from booting.

Connectors and Interfaces

Status LEDs

The IS215UCCCM04AB front panel provides multiple LEDs (refer to the UCCC LED figure in the manual) for at‑a‑glance diagnostics. Typical indications include:

• Power – Indicates presence of operating voltages

• Status / Run – Controller health and execution state

• Link/Activity – Ethernet port activity (UDH, CDH, and IONets)

• Watchdog – Watchdog timer status

• Temperature – Over‑temperature warning (can be configured to reboot into low‑power failure state)

Software Features

• Operating System: QNX Neutrino – real‑time, multitasking, high‑reliability

• Programming: Control block language (analog/discrete blocks) and relay ladder diagram

• Data Types: Boolean, int16, uint16, int32, uint32, float32, float64

• Non‑Volatile Storage: Flash‑backed SRAM retains up to 3067 program variables, 338 forces, and 128 totalizers (ControlST V07.05 and higher)

• Communication Protocols:

  • EGD – For application variable exchange with CIMPLICITY HMI and Series 90‑70 PLCs

  • Modbus (Ethernet) – For third‑party DCS integration

  • TCP/IP – ToolboxST configuration, alarm communication

  • SRTP – Service Request Transport Protocol

• Precision Time Protocol: IEEE 1588 over IONets ( ±100 µs accuracy)

• ToolboxST Integration: Used for configuration, firmware upgrades, application download, real‑time monitoring, and online code modifications

• Redundancy Support: Simplex, dual (redundant), and TMR configurations; automatic failover, state synchronization

• Safety Support: With Mark VIeS Safety controller, application code branding required after download (refer to GEH‑6723)

Installation and Replacement

Handling Precautions

The IS215UCCCM04AB contains static‑sensitive components. Always:

• Store in antistatic bag or box.

• Wear a grounding strap when handling.

• De‑energize the CPCI rack before installation or removal (unless performing online replacement in a redundant system).

Battery Connection

The CMOS battery is disconnected during storage to extend life. Before installing the board, you must reinstall the battery jumper (refer to the UCCC jumper diagram in the manual). The battery supplies power to CMOS RAM settings and the real‑time clock. Default CMOS settings are stored in flash, so only the real‑time clock needs to be set after battery replacement. Use ToolboxST or an NTP server to set date and time.

Installation Steps

1. Ensure the CPCI rack is powered off.

2. If the board is to be installed in slot 1 (system board), ensure no other boards are present or that power is removed.

3. Tilt top ejector up and bottom ejector down.

4. Slide the IS215UCCCM04AB into the slot until the backplane connector just touches.

5. Push down on the top injector and pull up on the bottom injector to fully seat the board.

6. Tighten the top and bottom injector/ejector screws.

7. Apply power. The controller will boot from CompactFlash.

8. Configure the IP address via COM1 using ToolboxST before connecting Ethernet cables to the UDH/CDH (to avoid address conflicts).

Replacement

• Simplex system – Power down the rack, remove the old board, install the new IS215UCCCM04AB, and reconfigure/download application code.

• Dual/TMR redundant system – The inactive controller can be replaced online. Transfer control to the active master, de‑energize the rack section containing the failed controller (or remove power if independent supplies), replace the board, reapply power, and restore synchronization.

After replacement, the real‑time clock must be reset, and the application code (including branding for Mark VIeS Safety) must be downloaded via ToolboxST.

Cooling Fan Replacement

The CPCI rack includes a cooling fan tray at the bottom. The fan can be replaced without removing power: loosen screws, open the door, slide out the old fan assembly (no cables – it plugs directly into the backplane), insert new fan, and close the door.

Diagnostics and Fault Monitoring

The IS215UCCCM04AB provides several diagnostic features:

• LED status indicators – Power, run, watchdog, link/activity, temperature warning

• Temperature monitoring – CPU core temperature; can be configured (via TEMP_STATUS block) to continue running or reboot into low‑power failure state

• Watchdog timer – If software fails to reset the watchdog, the board will reboot

• EPMC power supply monitoring – Alerts on voltage deviations

• IONet packet snooping – For time synchronization health

For detailed LED fault code information, refer to GEH‑6721 (Mark VIe Control System manuals).

Ordering and Warranty Information

Board Identification

The IS215UCCCM04AB is identified by its catalog number:

• IS215 – product series

• UCCCM04 – Universal Controller C, M04 variant (1.6 GHz Pentium M)

• AB – specific factory configuration (e.g., conformal coating, extended temperature, or particular revision)

Placing an Order

When ordering a replacement IS215UCCCM04AB, provide:

• Complete part number: IS215UCCCM04AB

• System serial number

• Material List (ML) number

Contact your nearest GE Sales or Service Office, or an authorized GE representative.

Warranty

Refer to the GE Terms and Conditions brochure for warranty period and coverage. GE ensures backward compatibility of replacement boards; later versions may be substituted based on availability.

Why Choose IS215UCCCM04AB for Your Mark VIe System?

The IS215UCCCM04AB offers a powerful, scalable controller for demanding turbine and balance‑of‑plant applications. Its 1.6 GHz processor, 256 MB of RAM, and three dedicated I/O Ethernet networks provide ample performance for complex control algorithms and large I/O counts. Key advantages include:

• High computational throughput – 1.6 GHz Pentium M with 256 KB cache

• Redundant and TMR ready – Supports high‑availability configurations

• Precision time sync – IEEE 1588 ensures coordinated I/O sampling

• Flexible programming – Blockware or ladder logic

• Industrial hardened – Wide temperature range (0–50°C), shock/vibration tolerant

• Easy maintenance – Hot‑swap capable, field‑replaceable battery and cooling fan

• Backward compatible – Replaces earlier UCCC modules (confirm firmware requirements)
