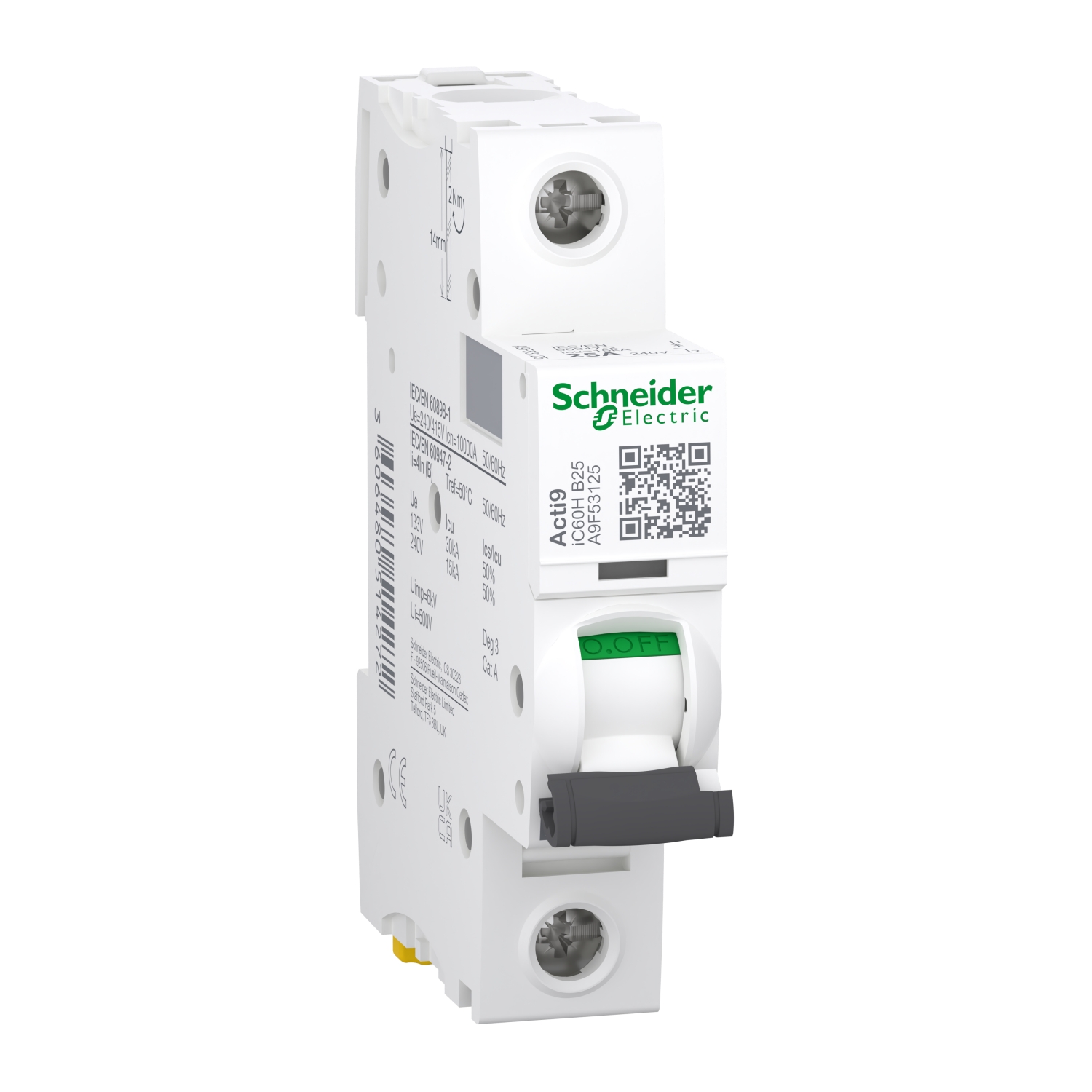

The A9F53125 from Schneider Electric’s Acti9 iC60H series is a single‑pole miniature circuit breaker rated at 25A with a B‑curve tripping characteristic, purpose‑built for safeguarding branch circuits in commercial, industrial, and residential environments. Its thermal‑magnetic trip unit delivers precise protection against both overloads and short‑circuits, while the B‑curve (4x In ±20% magnetic threshold) makes it particularly suitable for circuits with moderate inrush currents, such as heating systems, distribution boards, and general power outlets. What sets this MCB apart is its dual‑standard compliance – fully certified to EN/IEC 60947‑2 for industrial applications and EN/IEC 60898‑1 for household installations – offering ultimate flexibility for panel builders and specifiers. The device integrates user‑centric safety features: the VisiTrip fault‑finder window clearly identifies the tripped pole, drastically reducing downtime during troubleshooting, and the VisiSafe green strip provides a visible proof of contact opening, ensuring absolute safety for electricians performing downstream work. The robust quick‑close mechanism, independent of handle position, guarantees consistent switching performance and contributes to a long operational life of 10,000 electrical and 20,000 mechanical cycles. With a compact 2‑module width (18mm) and DIN‑rail clip‑on mounting, it optimises cabinet space, while the double‑tunnel terminals accommodate rigid conductors up to 25mm² and flexible up to 25mm², easing installation. Designed for harsh conditions, it operates reliably from -35°C to +70°C and is rated IP20 for terminal protection. Sustainability is also addressed: the product uses halogen‑free and PVC‑free plastics, achieves 54% recyclability, and its lifecycle carbon footprint is quantified at 17 kg CO₂ eq., aligning with Schneider Electric’s net‑zero roadmap.
