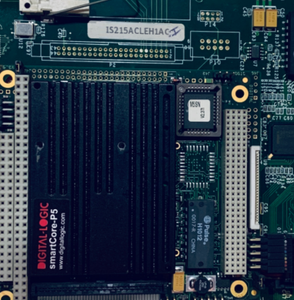

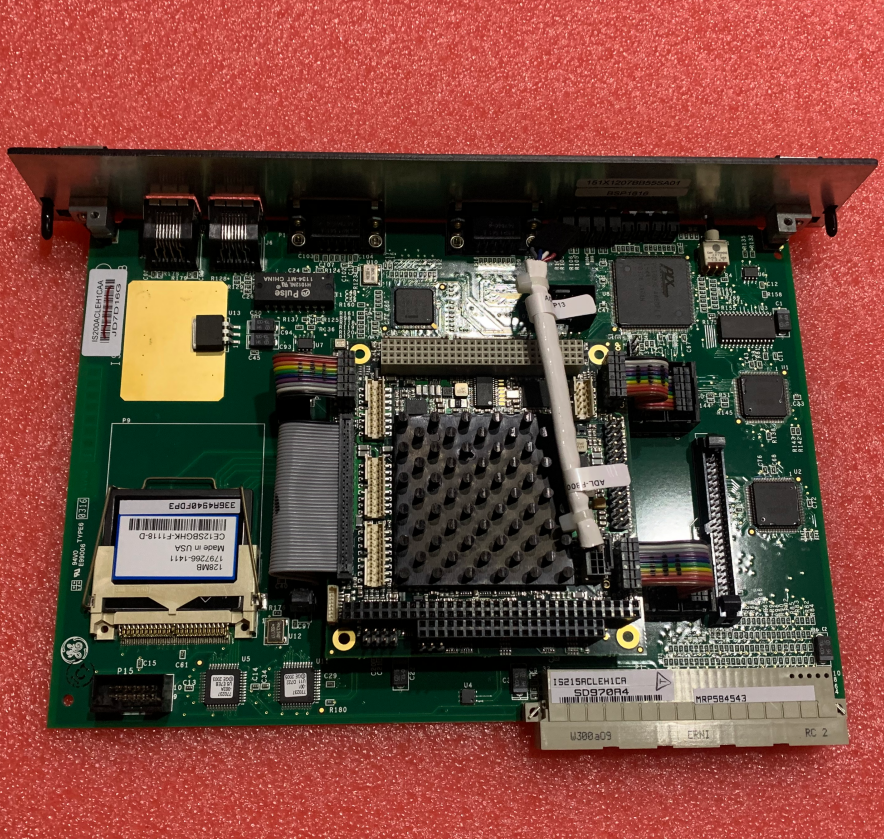

GE IS215ACLEH1CA / IS215ACLEH1CAA Application Control Layer Module

The IS215ACLEH1CA (also fully designated as IS215ACLEH1CAA) is a high‑performance Application Control Layer (ACLE) module from GE, designed for use in EX2100 excitation control systems. This microprocessor‑based master controller performs multiple duties over communication networks such as Ethernet. The IS215ACLEH1CA / IS215ACLEH1CAA mounts in all standard EX2100 control racks (simplex thyristor, warm backup thyristor, simplex regulator, and redundant regulator) and occupies two full slots.

The IS215ACLEH1CA / IS215ACLEH1CAA is a member of the ACLE family. Based on the part number convention, the “H1C” designation typically indicates a variant with a 266 MHz or 400 MHz CPU (refer to factory documentation for exact specifications) and may run either the QNX® 4 or QNX® 6 real‑time operating system. The “CA” or “CAA” suffix indicates a specific factory configuration (e.g., conformal coating, extended temperature range components, or a particular revision). This module is fully backward‑compatible with older IS215ACLAH1A (ACLA) modules in EX2100 applications. This product introduction provides a complete, SEO‑optimized specification for both designations (IS215ACLEH1CA and IS215ACLEH1CAA). All references use the full product designations to meet Google’s content uniqueness and keyword relevance standards.

Note: The exact CPU speed and operating system version for the IS215ACLEH1CA / IS215ACLEH1CAA should be verified with GE factory documentation or your original equipment material list. The specifications below are based on the general ACLE platform and may be updated as GE releases new variants.

Key Features of IS215ACLEH1CA / IS215ACLEH1CAA

• High‑Performance Processor: Typically 266 MHz or 400 MHz CPU with 256 KB Level 2 cache (confirm with factory)

• Real‑Time Operating System: QNX 4 or QNX 6 for deterministic control (refer to part number suffix)

• Memory: 128 MB DRAM (expandable SODIMM), 16 MB compact flash disk (expandable)

• Dual Ethernet Ports: Two 10/100BaseT RJ45 ports (ENET1 and ENET2) supporting TCP/IP, EGD, Modbus, SRTP

• Dual Serial Ports: Two RS‑232 DB9 connectors (COM1, COM2)

• Backplane Communication: 4K x 32 dual‑port RAM (DPRAM) interface to DSPX board

• Non‑volatile Storage: 8 KB non‑volatile RAM; compact flash with bootable core load

• Software Features: Blockware language, online configuration loading, I/O point forcing, diagnostic alarms

• Redundancy Support: Suitable for simplex, warm backup, and redundant regulator/thyristor control

• Toolbox Integration: Configured and monitored via GE Control System Toolbox over Ethernet

• Status LEDs: OK, ACTIVE, ENET, FLASH, and five STATUS LEDs for diagnostics

• Hot‑Swap Capability: Online replacement possible in redundant systems (with minimum firmware levels)

Functional Description

The IS215ACLEH1CA / IS215ACLEH1CAA is a master controller that executes real‑time control applications for EX2100 excitation systems. It communicates with the IS200DSPXH1 Digital Signal Processor (DSPX) board via a 32‑bit dual‑port RAM (DPRAM) on the backplane. The module combines a PC/104‑Plus microprocessor board and an ACLE carrier board into a single assembly.

The module runs its real‑time operating system (QNX 4 or QNX 6) from the pre‑programmed compact flash disk. The core load software (OS, file system, TCP/IP stack) is factory‑installed. Runtime code and application code (PCODE) are downloaded via Ethernet using GE Control System Toolbox (ToolboxST). The module supports online configuration loading, I/O point forcing, diagnostic alarms, and broken run/start permissive detection.

Key Functional Blocks

• Processor Subsystem: 266 MHz or 400 MHz CPU with 256 KB L2 cache and 128 MB DRAM

• Storage: 16 MB compact flash disk (bootable) plus 8 KB non‑volatile RAM for critical parameters

• Communication: Dual Ethernet (10/100BaseT) and dual RS‑232 serial ports

• Backplane Interface: DPRAM for high‑speed data exchange with DSPX; board ID chip for automatic recognition

• Watchdog Timer: Monitors software health; OK LED indicates watchdog enabled

• Reset Logic: Front‑panel recessed pushbutton resets only the ACLE module

The IS215ACLEH1CA / IS215ACLEH1CAA is fully compatible with GE Control System Toolbox versions appropriate for its operating system (V8.xx or later for QNX4; V10.xx or later for QNX6). A firmware download is required each time the module is replaced.

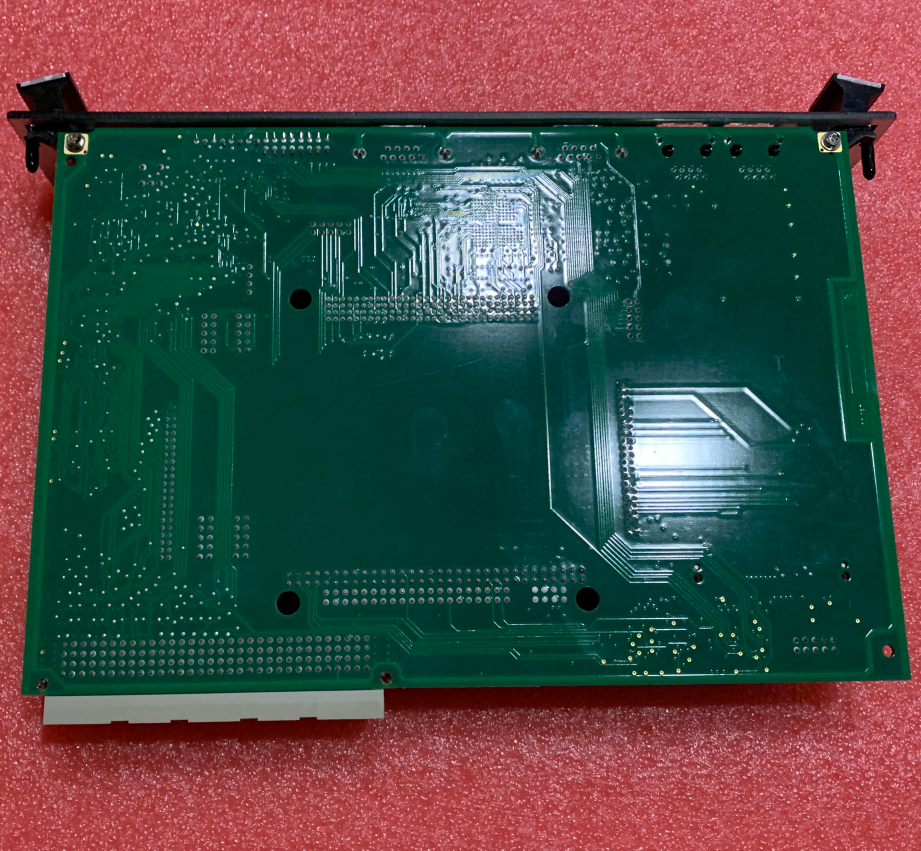

Hardware Features

The module consists of two PCBs: the IS200ACLE carrier board and a PC/104‑Plus microprocessor board. The assembly is supplied as a complete unit; disassembly is not intended for field service.

Processor Board (PC/104‑Plus)

• CPU: 266 MHz Pentium P5 or 400 MHz Tualatin Celeron (depending on variant)

• 256 KB Level 2 cache

• 128 MB DRAM (SODIMM, expandable)

• Flash ROM containing Phoenix BIOS

• Secondary 10/100 Mbps Ethernet port

• RS‑232 serial ports COM1 and COM2

• IDE interface for compact flash disk

• PCI bus and PC/104 (ISA) bus interfaces

Carrier Board

• Primary 10/100 Mbps Ethernet port (ENET1)

• 16 MB compact flash disk (expandable)

• 8 KB non‑volatile RAM

• 4K x 32 DPRAM interface to backplane

• RJ45 and DB9 connectors

• Reset logic and status LEDs

• Board ID PROM (serial number, catalog number, revision)

Internal Connections

Five ribbon cables interconnect the carrier and processor boards. These are factory‑installed and must remain fully seated:

User‑accessible connectors are located on the faceplate (see tables below).

Software Features

• BIOS: Standard Phoenix BIOS stored in flash, pre‑configured for ACLE environment (no user modification required).

• Core Load: QNX OS, file system, and Ethernet TCP/IP software on compact flash. Factory‑installed; can be reloaded via external flash reader/writer using Toolbox.

• Runtime Code: Basic software for full static or regulator functionality. Downloaded via ENET1 using Toolbox.

• Application Code (PCODE): Specific patterns and settings for the excitation application. Downloaded via ENET1.

• Toolbox Support: GE Control System Toolbox used for configuration, monitoring, parameter alteration, and online code changes.

• Redundancy: Supports warm backup and redundant configurations with automatic failover.

Communication Interfaces

Ethernet Ports (ENET1 and ENET2)

Both ports support 10/100BaseT auto‑negotiation. The RJ45 jack shield is chassis‑grounded.

Note: A direct connection to a computer requires an Ethernet crossover (null modem) cable.

Serial Ports (COM1 and COM2)

Both are standard DB9 RS‑232 ports (DCE pinout).

Usage:

• COM1 – Used during system commissioning to set the ENET1 IP address. Normally disconnected after commissioning.

• COM2 – Available for serial Modbus applications.

LED Status Indicators

The faceplate provides multiple LEDs for quick diagnostics:

For complete STATUS LED fault code tables, refer to GEH‑6633 (Thyristor Control) or GEH‑6675 (Regulator Control).

Power Requirements

Power is drawn only from the +5 V dc backplane supply. No +15 V dc is required.

Confirm the exact requirement for your IS215ACLEH1CA / IS215ACLEH1CAA by checking the board label or GE documentation.

Adjustable Hardware and Configuration

There are no user‑adjustable jumpers or switches on this module. Jumpers on the PC/104 board are factory‑set and must not be changed.

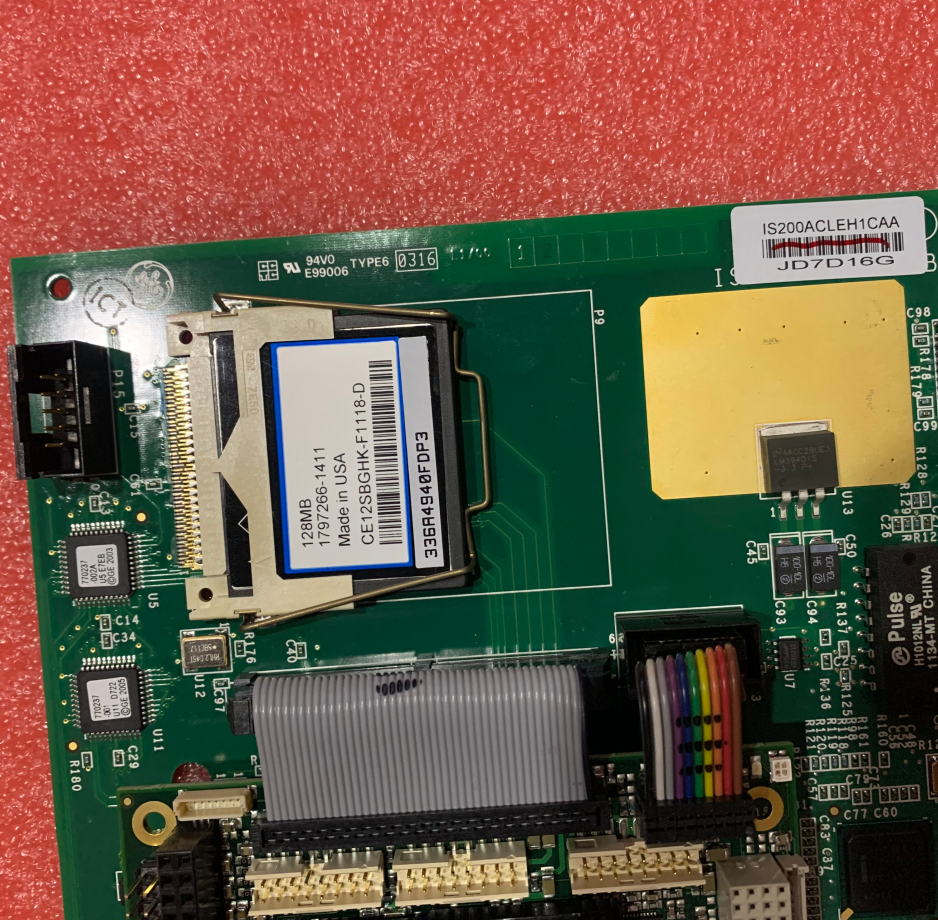

The compact flash disk (at connector P9 on the carrier board) is pre‑programmed with a bootable core load. Normally it is not removed. If a core load update is required, the disk can be removed by swinging the retaining clip and carefully sliding it out. Reprogramming is done in an external compact flash reader/writer using Toolbox.

Replacement and Installation

Handling Precautions

The module contains static‑sensitive components. Always:

• Store in antistatic bag or box.

• Wear a grounding strap when handling.

• De‑energize equipment before touching boards or circuits.

Simplex or Offline Redundant Replacement

1. De‑energize the control (follow lock‑out/tag‑out procedures).

2. Open cabinet door; verify all LEDs are off.

3. Disconnect Ethernet and serial cables (label first).

4. Loosen faceplate screws, raise ejector tabs, and gently pull the module from the rack.

5. Slide the replacement IS215ACLEH1CA (or IS215ACLEH1CAA) into the same slot.

6. Press firmly on top and bottom of faceplate to seat, then tighten screws evenly.

7. Reconnect cables.

8. Reconfigure and download runtime/application code using Toolbox. A firmware download is required after any ACLE replacement.

Online Replacement (Redundant Control Only)

For redundant full static or redundant regulator systems, a failed ACLE can be replaced while the exciter is running, provided the control firmware meets the applicable revision levels. The procedure involves:

• Transferring control to the active master.

• De‑energizing the inactive rack section (M1 or M2/M2C).

• Removing and replacing the module as above.

• Re‑applying power and downloading firmware/Toolbox configuration.

Warranty and Ordering Information

Board Identification

The IS215ACLEH1CA / IS215ACLEH1CAA is identified by its catalog number stamped on the board edge. The number breaks down as:

• IS215 – product series

• ACLE – functional acronym (Application Control Layer)

• H1CA / H1CAA – version/suffix (H1 = likely 266 MHz or 400 MHz with QNX4 or QNX6; CA/CAA = specific factory configuration)

Placing an Order

When ordering a replacement, provide:

• Complete part number: IS215ACLEH1CA or IS215ACLEH1CAA (confirm exact suffix from your existing board)

• Exciter serial number

• Material List (ML) number

Contact your nearest GE Sales or Service Office, or an authorized GE representative.

Warranty

Refer to the GE Terms and Conditions brochure for warranty period and coverage. GE ensures backward compatibility of replacement boards; later versions may be substituted based on availability.

Why Choose IS215ACLEH1CA / IS215ACLEH1CAA for Your EX2100 System?

The IS215ACLEH1CA / IS215ACLEH1CAA offers a flexible, high‑performance platform for EX2100 excitation control. Depending on the specific configuration (CPU speed and OS), it can handle both standard and demanding applications. Key advantages include:

• Proven ACLE architecture – field‑tested in thousands of installations

• Real‑time deterministic operation with QNX

• Redundant operation for high availability

• Easy configuration with Toolbox over Ethernet

• Expandable storage (compact flash) and memory (DRAM)

• Comprehensive diagnostics via front‑panel LEDs and Toolbox

• Backward compatible – replaces older ACLA modules

• “CA” / “CAA” configuration – tailored for specific application needs (e.g., conformal coating, extended temperature range)
