The Bently Nevada 16925 Series Interconnect Cable is a fundamental component of the robust machinery condition monitoring ecosystem, specifically designed to seamlessly integrate with the 177230 Seismic Transmitter. In the realm of industrial plant asset management, the reliability of data acquisition is paramount. The 16925 cable serves as the critical communication bridge between the harsh physical environment of rotating machinery and the precise digital inputs of Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), and Supervisory Control and Data Acquisition (SCADA) systems. While the 177230 Seismic Transmitter acts as the sensory organ—converting physical vibration into measurable electrical signals—the 16925 Interconnect Cable is the nervous system, ensuring that this vital data reaches the control room without degradation or interference.
The Bently Nevada 177230 Seismic Transmitter is a simple, loop-powered device engineered for quick and easy installation. It helps plant operators better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets. The 16925 cable is specifically tailored to support this mission. As an unarmored interconnect cable, it provides a flexible, cost-effective, and highly reliable wiring solution for connecting the transmitter to plant control systems. By utilizing the 16925 cable, operators can leverage the transmitter's robust CM (Condition Monitoring) design, which implements an industry-standard 4 to 20 mA loop-powered architecture, ensuring accurate and repeatable data transmission.
Product Overview and System Architecture
The 16925 Series is designed to interface directly with the 3-pin MIL-C-5015 electrical connector located on the 177230 Seismic Transmitter. This connector is constructed from 316L stainless steel, matching the hermetically sealed, 316L stainless steel case of the transmitter itself, to withstand the most demanding industrial environments. The transmitter requires no field configuration or adjustments, and the 16925 cable reflects this philosophy of simplicity and reliability. It requires only a short learning curve for operations and maintenance personnel, as it utilizes a familiar interface similar to that for connecting other PLC or control system inputs.
The seamless integration provided by the 16925 cable supports a variety of essential monitoring capabilities. The 177230 transmitter provides a 4 to 20 mA current loop output from Pin A to Pin B, where 4 mA equals 0.0 mm/s and 20 mA equals the full-scale range. Simultaneously, the system can provide a raw dynamic acceleration signal from Pin C, referenced to Pin B. The 16925 cable is designed with a three-conductor configuration with a shield, perfectly accommodating these multiple signal pathways. This design ensures that both the standard loop-powered velocity output and the unbuffered dynamic acceleration signal can be transmitted simultaneously, providing plant engineers with both the overall vibration levels and the raw waveform data necessary for in-depth verification and analysis.
Configuration and Ordering Flexibility for the 16925 Series

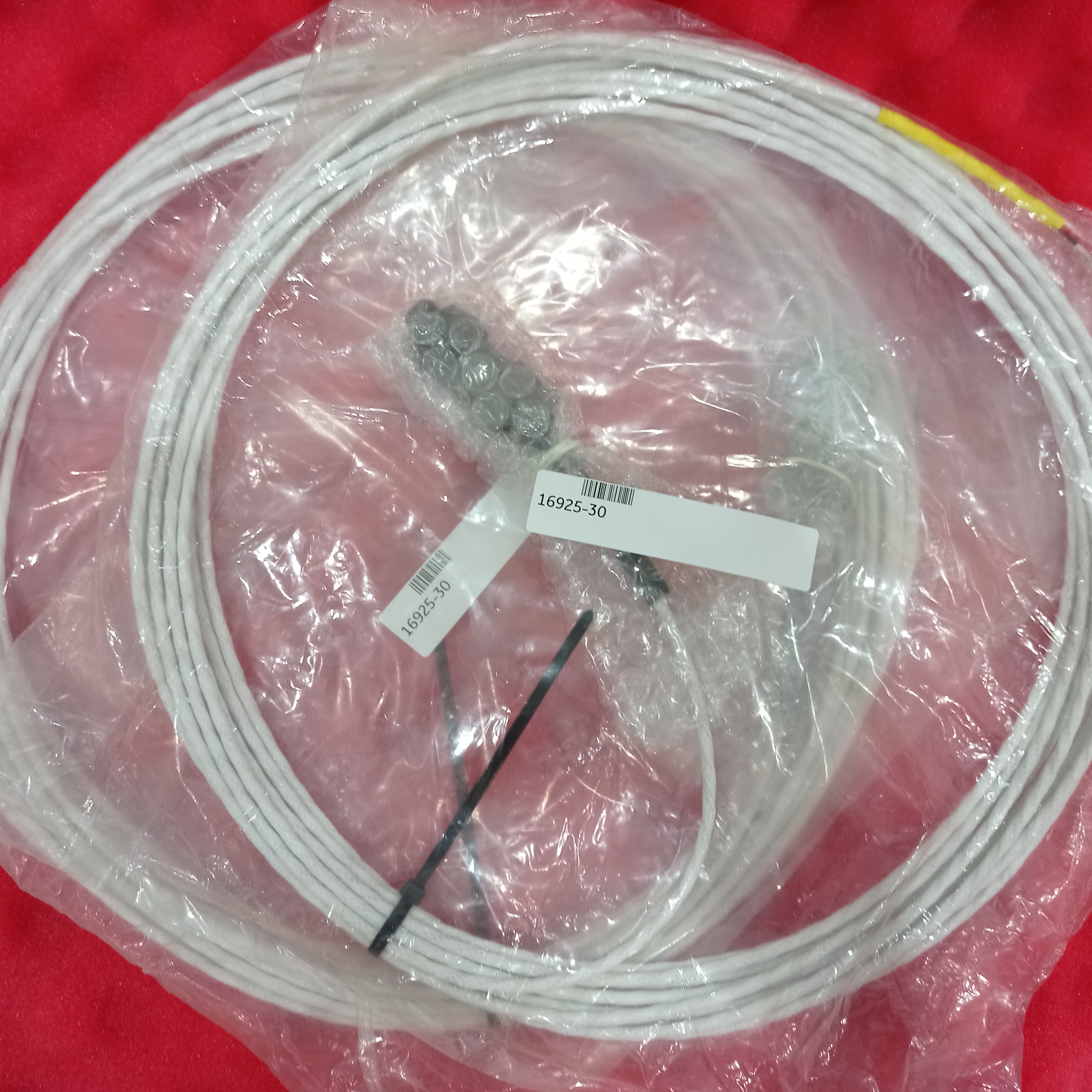

The 16925 Interconnect Cable without Armor is designed with user flexibility in mind, allowing for precise customization to fit any plant layout or machinery installation scenario. The ordering information for this product follows a straightforward model number format: 16925-AA, where the "AA" represents the length of the cable in feet.
Engineers and maintenance planners can order the cable in precise 1-foot (0.3 m) increments, ensuring that there is no excess cable that could introduce unnecessary noise or require complicated cable management, nor is there a risk of ordering a cable that is too short. The minimum orderable length is 3 feet (0.91 m), which is ideal for localized installations where the transmitter is mounted in close proximity to a junction box or local PLC cabinet. At the other end of the spectrum, the maximum orderable length is 99 feet (30.2 m), which provides ample reach for routing cables across large machine trains or through cable trays to distant control rooms.
For standard installations and rapid procurement, Bently Nevada offers a range of standard lengths. These include 10 feet (3.1 m), 12 feet (3.6 m), 15 feet (4.5 m), 17 feet (5.0 m), 20 feet (6.0 m), 25 feet (7.6 m), 30 feet (9.0 m), and the maximum standard length of 99 feet (30.0 m). If a specific custom length is required for a unique application, the cable can be ordered at additional cost. This level of flexibility ensures that the 16925 cable can accommodate both standard OEM machinery packages and highly customized retrofits with equal ease.
Wiring Conventions and Installation Best Practices
The successful operation of the 177230 Seismic Transmitter relies heavily on the proper wiring of the 16925 Interconnect Cable. The 3-pin MIL-C-5015 connector uses a specific wiring convention that must be strictly observed to ensure both data integrity and system safety. Pin A carries the 4-20 mA Positive Loop, which is positive with reference to Pin B. Pin B serves as the 4-20 mA Loop Return and is also the common reference for the Dynamic Signal. Pin C transmits the Dynamic Acceleration Signal, which is unbuffered and referenced to Pin B.
A critical installation warning must be heeded during the wiring process: The Dynamic Signal Negative (Pin B) requires isolation from any grounding. If this terminal is grounded, the 4-20 mA loop will short, resulting in no output from the transmitter. Therefore, the 16925 cable, which features a shield with a minimum of 80% coverage, must be terminated correctly to ensure that the shield is grounded only at the designated control system end, and not inadvertently at the transmitter end if such a ground would contact Pin B.
The physical characteristics of the 16925 cable are specified to ensure robust signal integrity in industrial environments. The cable requires three-conductor wires sized between 18 and 22 AWG. The outer jacket and inner wire insulation must have a minimum thickness of 0.01 inches, and the insulation rating should be a minimum of 600 V. This high insulation rating is crucial for protecting the signal from electrical noise and ensuring the safety of personnel. The 80% minimum coverage shield is essential for rejecting electromagnetic interference (EMI) and radio-frequency interference (RFI), which are prevalent in plants with large motors, variable frequency drives, and heavy electrical machinery.
Furthermore, when mounting the associated 177230 Seismic Transmitter, care must be taken to avoid damaging the electronics. The transmitter typically mounts directly to the machine via a stud. While a magnetic base can be used, operators must avoid "snapping" the unit onto the machine, as this action can create a very large spike signal that may damage the electronics. Rolling the magnetic base onto the machine is the recommended practice to reduce the spike signal. The 16925 cable should be routed with appropriate strain relief to prevent tension on the MIL-C-5015 connector, and it should be kept away from high-voltage power cables to maintain the integrity of the low-level vibration signals.
Hazardous Area Approvals and Environmental Resilience
Both the 177230 Seismic Transmitter and the 16925 Interconnect Cable are designed to operate in some of the most demanding and hazardous industrial environments. The system complies with strict international standards, including cNRTLus, ATEX, and IECEx, ensuring safe operation in explosive atmospheres.
For cNRTLus, the system is approved for Ex nL IIC T4, AEx nA IIC T4 (Class I, Div 2, Groups A, B, C, D), and Ex ia IIC T4, AEx ia IIC T4 (Class I, Div 1, Groups A, B, C, D; Class II, Div 1, Groups E, F, G; Class III, Div 1). For ATEX/IECEx, the system meets the requirements for II 1G Ex ia IIC T4 Ga and II 3 G Ex na IIC T4 Gc, with a temperature rating of T4 at an ambient temperature range of -40°C to 80°C.
When installed in hazardous areas (Zone 0, 1, or 2), the 16925 cable must be connected to equipment that meets the specified entity parameters. The entity parameters for the system are Ui = 28 V, Ii = 120 mA, Pi = 1 W, Ci = 0, and Li = 121.06 μh. The cables used, such as the 16925 type A or B (in compliance with EN 60079-25), must respect these cable parameters. For Zone 2 installations, the supply electrical parameters shall not exceed these values. The 16925 cable's high-quality insulation and shielding are critical in these environments to prevent sparking and ensure intrinsic safety.
The environmental resilience of the system is equally impressive. The transmitter operates flawlessly in temperatures ranging from -40°C to +85°C. It features an electrical isolation greater than 10^8 ohms and an isolation breakdown voltage of 600 Vrms with less than 1 mA leakage current. The sensor is hermetically sealed and can withstand relative humidity up to 100% (non-submerged). Furthermore, the system has excellent shock survivability, enduring a maximum drop test of 9,810 m/s² (1,000 g peak). The 16925 cable, being unarmored, offers flexibility, but its robust jacket and insulation ensure it can withstand the environmental rigors of industrial plants, including exposure to moisture, oil, and mechanical vibration.
Applications and Data Quality in Industrial Environments
The primary application of the 16925 Interconnect Cable is to facilitate the integration of the 177230 Seismic Transmitter with PLCs, DCS, and SCADA systems. These control systems typically have internal power supplies that are current-limited in the range of 30 mA to 35 mA, and the 16925 cable provides a reliable, low-impedance pathway for this loop power. The transmitter uses a ceramic/shear sensing element type, which provides accurate and repeatable data. The 16925 cable ensures that this high-quality data is transmitted without corruption, providing a raw vibration signal for verification and analysis.
In practical applications, such as monitoring cooling tower fans, centrifugal pumps, or large electric motors, the 16925 cable connects the transmitter to the plant's asset condition monitoring solution. The 4-20 mA loop output is proportional to the RMS vibration levels (for the 01 frequency response option) or peak vibration levels (for the 02 frequency response option), allowing operators to set alarms and shutdown limits easily in their PLC. Simultaneously, the dynamic acceleration signal on Pin C can be fed into a dedicated vibration analyzer for detailed frequency analysis, enabling the early detection of bearing defects, misalignment, or imbalance.
The use of the 16925 cable minimizes the need for additional parts for a complete system. It is available in standard or common configurations, with custom lengths available upon request. The integration with systems like SCADA allows for remote monitoring of machinery health, reducing the need for manual route-based data collection. By providing a continuous stream of accurate data, the 16925 cable helps plant personnel avoid unforeseen catastrophic failures, optimize maintenance planning, and ultimately reduce operational downtime. The system also includes self-test capabilities and a protected interface, ensuring that the electronics are safeguarded against fault conditions.
