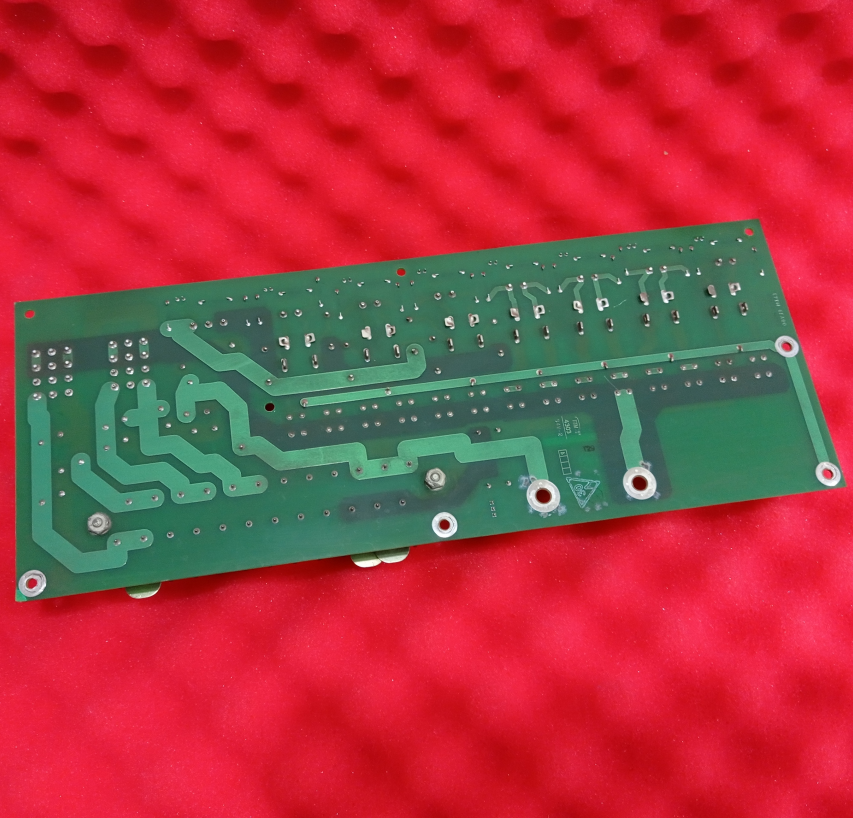

GE IS200EPDMG1A Exciter Power Distribution Module

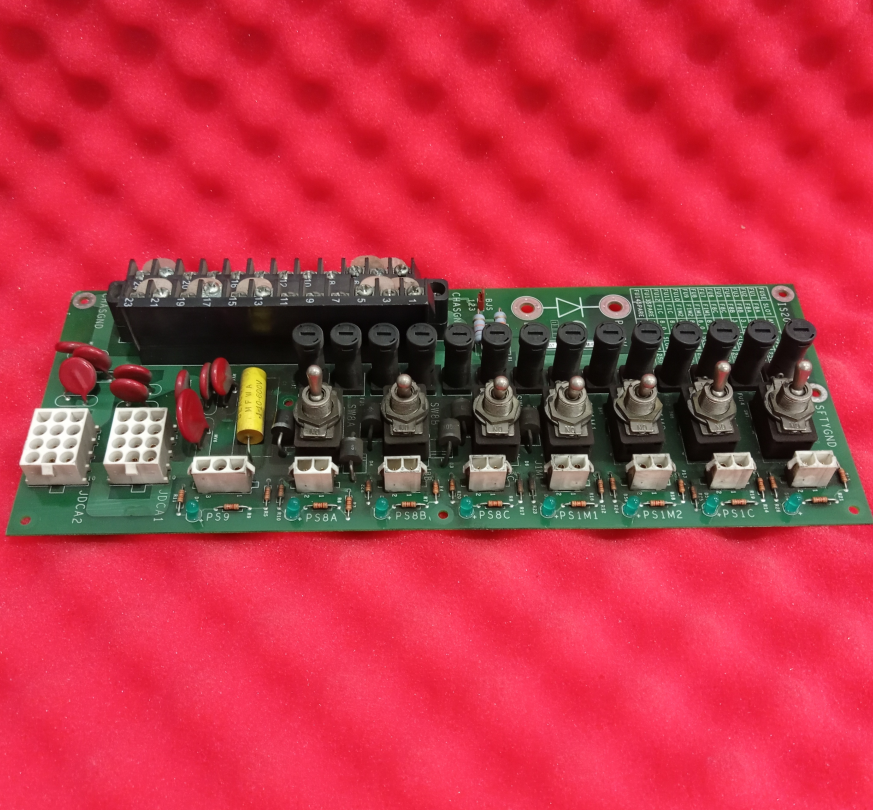

The IS200EPDMG1A Exciter Power Distribution Module (EPDM) is a critical power distribution component designed by General Electric (GE) for the EX2100™ Excitation Control System. This module is mounted on the side of the IS200EPBP Exciter Power Backplane (EPBP). It is responsible for receiving 125V DC power from the station battery and can accept one or two 120V AC backup power inputs. After rectification by external AC/DC converters (DACA or DACB), it provides stable and reliable DC power to the control, I/O, and protection boards.

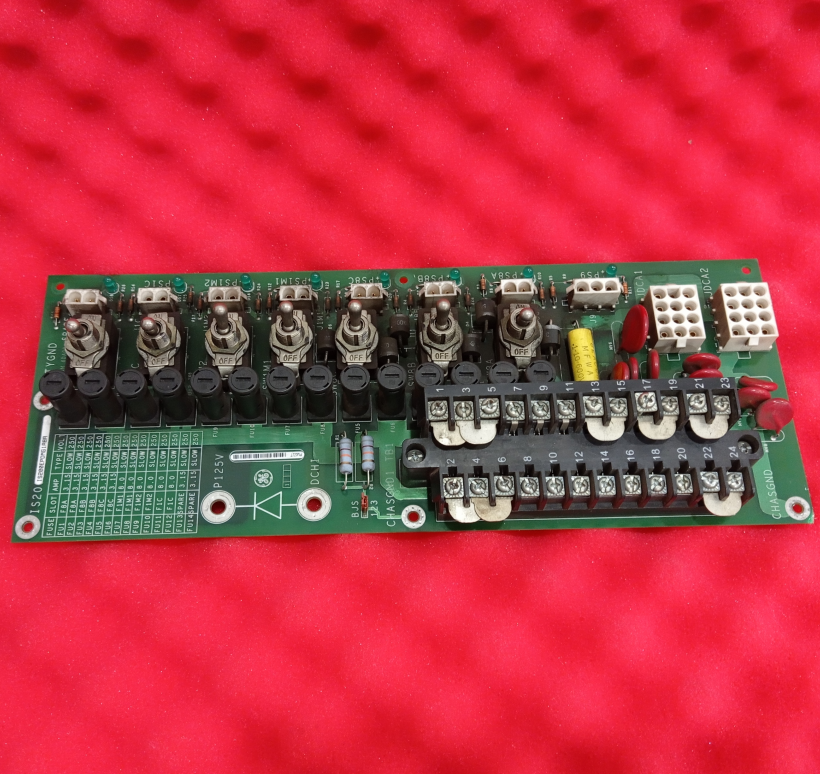

The EPDM module receives all filtered power inputs through an onboard terminal block (TB1) and distributes power to various functional boards via multiple dedicated connectors. These boards include the Exciter Gate Pulse Amplifier (EGPA), the Exciter Terminal Board (EXTB), and the Exciter Power Supply Modules (EPSM) corresponding to three controllers. The module features comprehensive protection and indication functions. Each output branch is equipped with a fuse, an on/off toggle switch (except for EXTB), and a green LED indicator, allowing field maintenance personnel to quickly understand the power status.

II. Key Features

• Multiple Power Inputs: Supports one 125V DC input (from station battery) and up to two 120V AC (or 230V AC, converted via DACA/DACB) inputs, providing redundancy.

• Centralized Power Distribution: Supplies 125V DC power to up to six EGPA boards, one EXTB board, three EPSM modules (powering M1, M2, and C controllers respectively), and two auxiliary outputs.

• Comprehensive Protection Mechanism: Each output branch is protected by a fuse for overcurrent protection and equipped with an on/off toggle switch (except for EXTB), allowing individual power disconnection for maintenance.

• Status Indication: Each power branch has a green LED indicator, visually showing whether the power for that branch is normal.

• Ground Reference Selection: Equipped with an adjustable jumper (BJS) to isolate the ground reference on systems with external reference.

• High-Reliability Connections: All connectors are rated at 600V AC/DC, the terminal block is rated at 300V (10A per pin), and switches are rated at 125V DC, 6A.

• Chassis Ground and Safety Ground: Achieved through four mounting holes on the board.

III. Detailed Application Data

3.1 Terminal Block and Connector Description

The EPDM module front panel (or side panel) features various connectors, switches, and indicators. Their specific functions are detailed in the table below:

Note: The AC input voltage selection must be set via the connector on the DACA or DACB power supply module to match the proper turns ratio of the transformer for the actual line voltage. EPOM boards revision B and later can accept either 120V or 230V AC power inputs.

3.2 Switches and Fuses

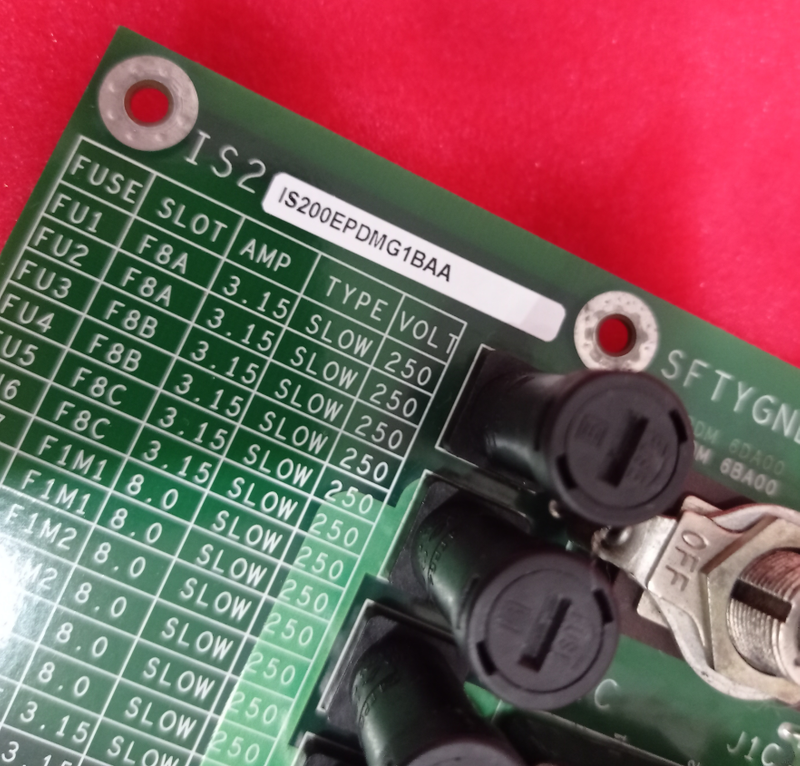

The module has 7 toggle switches corresponding to each main output branch (EGPA1-3, EPSM M1/M2/C, Spare output, etc.), but the EXTB branch has no switch. Each switch is rated at 125V DC, 6A, used to disconnect power to the corresponding branch when needed. All output branches (including EXTB) are protected by a fuse in series, providing overcurrent protection. The fuse specifications must refer to the specific system design; replacements must use fuses of the same type and rating.

3.3 LED Indicators

10 green LED indicators correspond to each output branch. When the power for a branch is normal, its LED lights up. This provides an intuitive basis for rapid on-site diagnosis of power failures.

3.4 Current Demand Data

According to the steady-state current data provided in the document, the maximum total current required from the 125V DC source is 8.0A, detailed as follows:

The maximum total current required from the 120V AC sources (AC1, AC2) is 10A per branch (corresponding to DACA#1 and DACA#2):

IV. Installation and Replacement

4.1 Handling Precautions

Electric Shock Hazard: Before touching the board or any connected circuits, turn off power to the exciter and verify that no power exists.
Equipment Damage Hazard: Do not remove, insert, or adjust board connections while power is applied to the equipment.
Static Sensitive Devices: When handling boards, use static-sensitive handling techniques. Wear a wrist-grounding strap and store boards in antistatic bags.
Prevent Foreign Object Entry: When replacing the module, avoid dropping any mounting hardware into the equipment to prevent damage or personal injury when power is reapplied.

4.2 Replacement Procedure (EPDM module does not support online maintenance; offline replacement required)

1. Ensure the exciter has been de-energized: Follow the complete de-energizing procedures in the EX2100 Installation and Startup Guide (GEH-6631 or GEH-6694) and comply with all local lock-out/tag-out practices.

2. Open the control cabinet door and test any electrical circuits using equipment designed for high voltages to ensure power is off before touching them.

3. Record the position of all switches on the original module, then set them all to the "OFF" position.

4. Carefully disconnect all cables: Unplug each cable connector from the EPDM module. Verify that all cables are labeled with the correct connector name (as marked on the board) to simplify reconnection.

5. Remove the terminal board TB1: Unscrew the captive screws at each end and pull the entire terminal board (with all wiring intact) from the module. Note that TB1 is a pluggable terminal board; do not remove individual connections from the terminals.

6. Remove the seven mounting nuts securing the EPDM module to the metal standoffs, then remove the module.

7. Install the new module: Orient the new EPDM module in the same position as the original, and secure it to the metal standoffs with the seven nuts removed in step 6.

8. Inspect the new module: Verify that all switches are in the "OFF" position and that all fuses are present and in good condition.

9. Reconnect all cables: Plug the cables back into the corresponding connectors as recorded in step 4.

10. Reinstall the terminal board: Align the TB1 terminal board (with wiring intact) with the socket on the new module, press it into place, and tighten the mounting screws at each end.

11. After power is reapplied, set all switches to the positions recorded in step 3.

12. Close the control cabinet door, completing the replacement.

V. Board Identification and Ordering Information

5.1 Board Identification

A printed wiring board is identified by an alphanumeric part (catalog) number located near its edge. The GE part number naming convention is as follows:

• IS200EPDMG1A: Where "200" indicates a base-level board, "EPDM" is the functional acronym (Exciter Power Distribution Module), and "G1A" denotes the specific hardware revision.

Important Note: When ordering or replacing a board, provide the complete part number and description, ensuring all digits are accurate. The factory may substitute later versions of replacement boards based on availability and design enhancements. However, GE Energy ensures backward compatibility of replacement boards.

5.2 Warranty Terms

The GE Terms and Conditions brochure details product warranty information, including warranty period and parts and service coverage. The brochure is included with customer documentation. It may be obtained separately from the nearest GE Sales Office or authorized GE Sales Representative.
