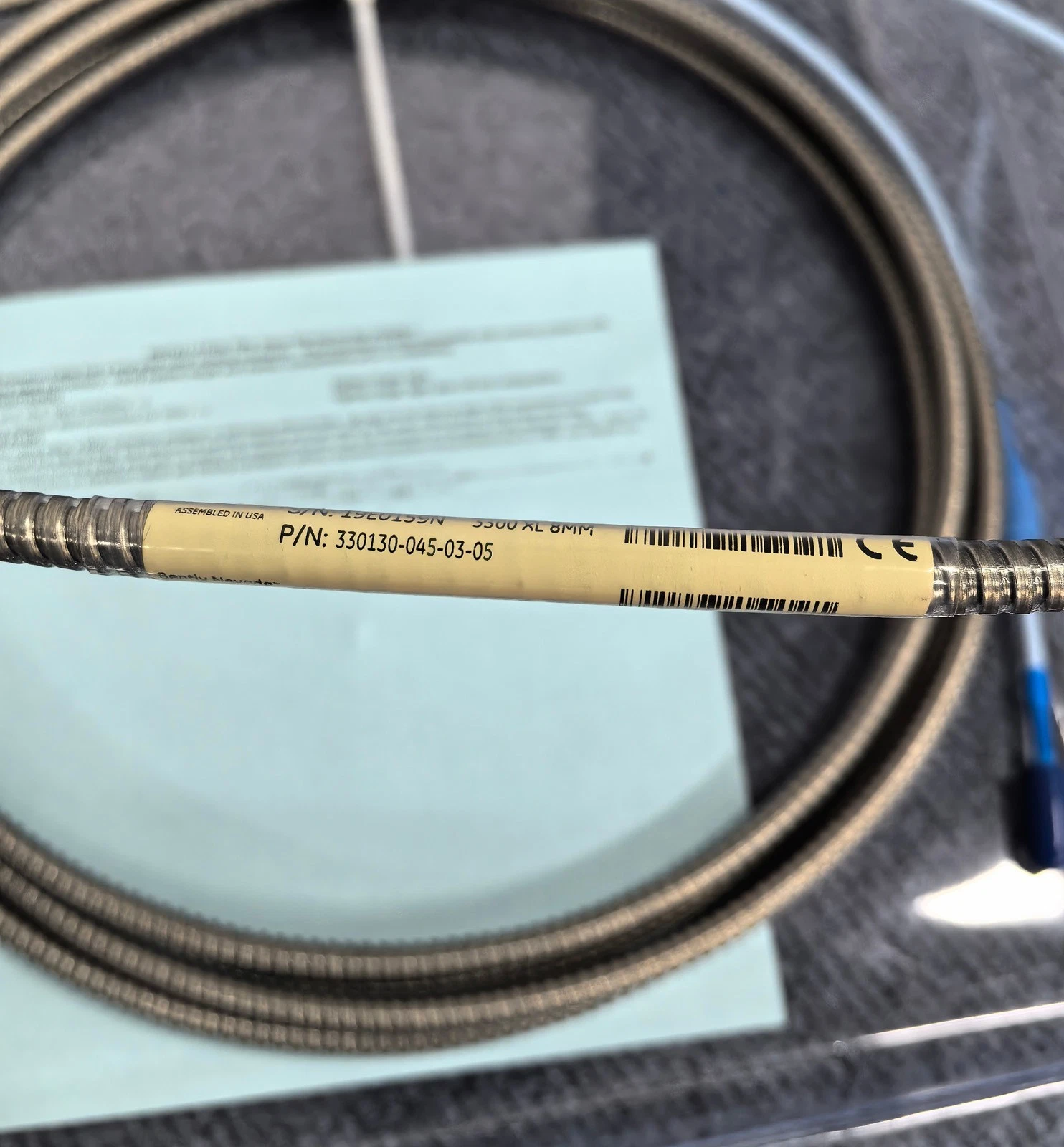

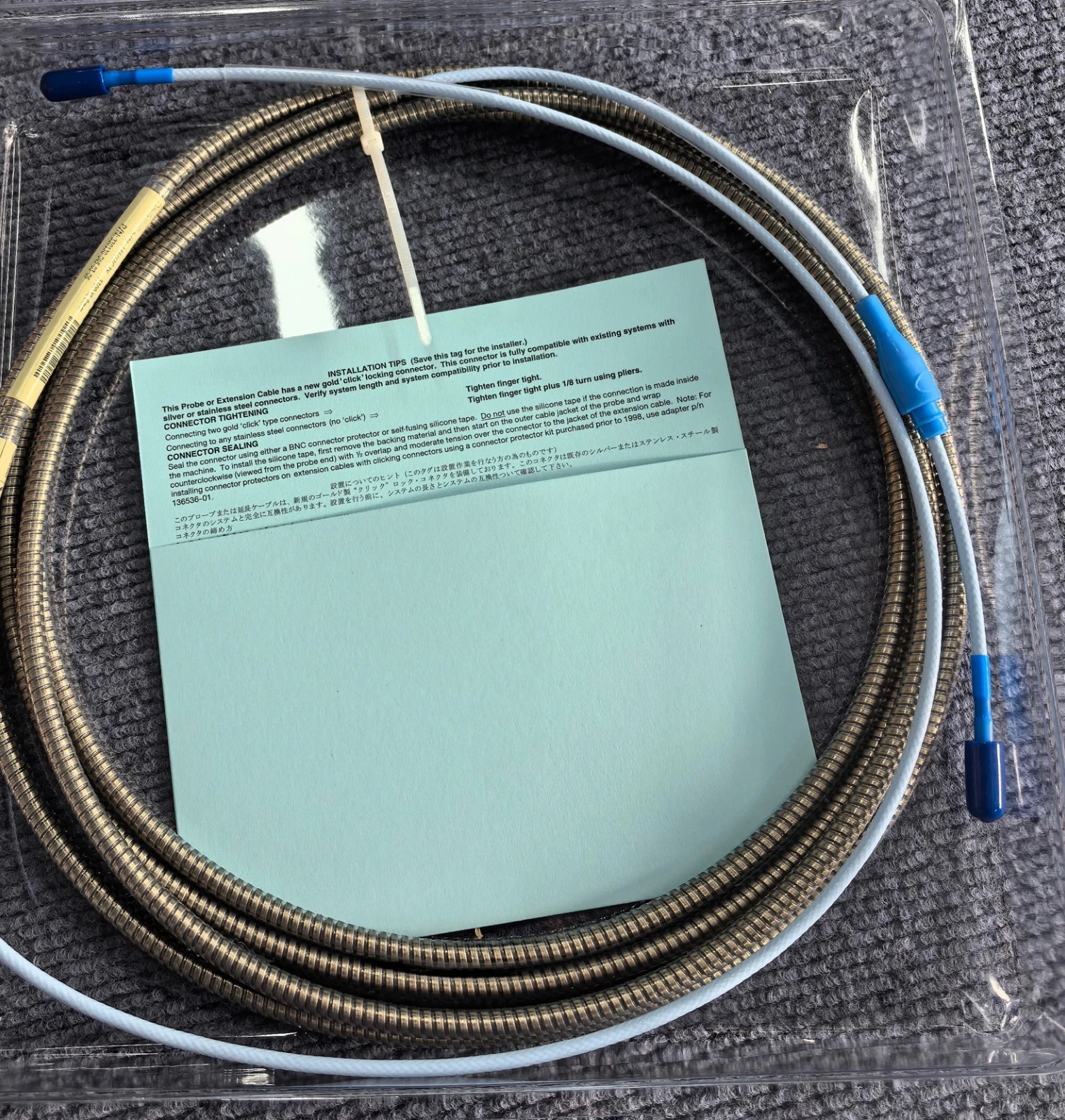

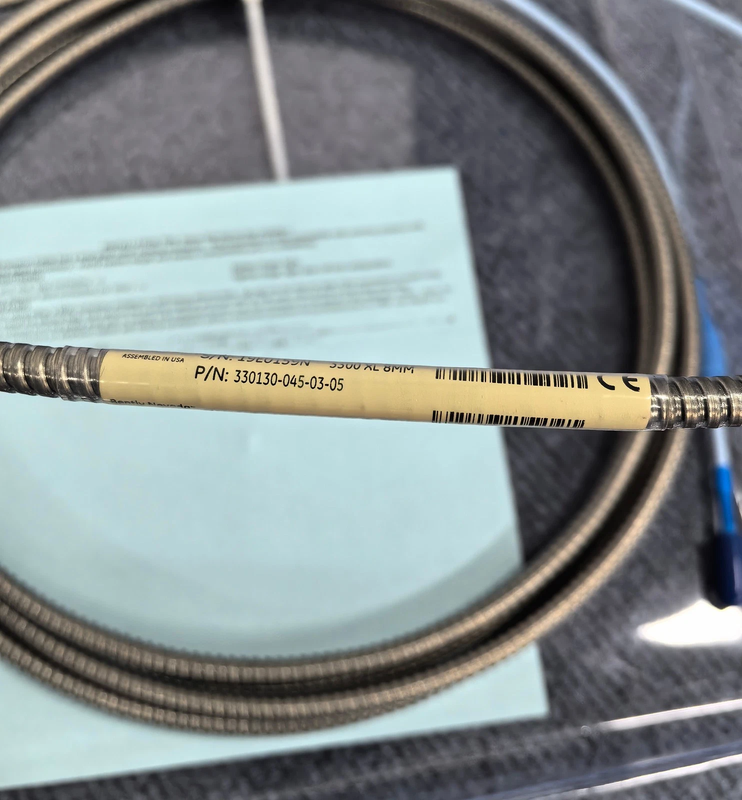

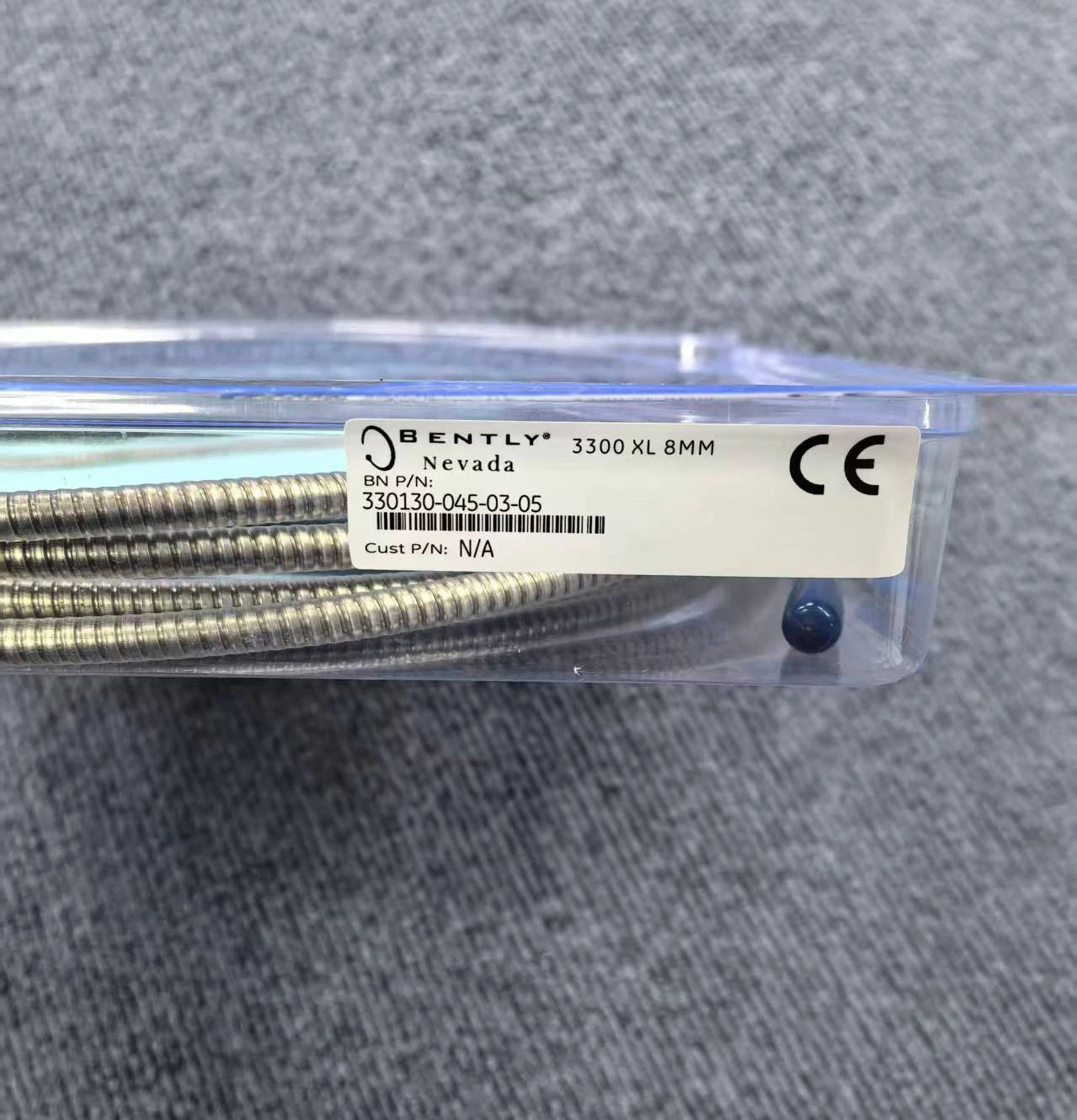

330130-045-03-05 Armored Cable with Connector Protector

  • Bently Nevada

  • 330130-045-03-05

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

330130-045-03-05 is a full-featured, ultimate protection Bently Nevada 3300 XL series extension cable with a total length of 4.5 meters (14.8 feet). This model integrates three core protection technologies: stainless steel armor for superior mechanical protection, pre-installed connector protectors for reliable environmental sealing, and CSA, ATEX, and IECEx hazardous area approvals for safe use in explosive atmospheres.

It is an essential component of the 3300 XL 8 mm eddy current probe system, designed for applications requiring the precise 4.5 meter length to match a 0.5 meter hazardous area approved probe to form a complete 5 meter intrinsically safe system, along with mechanical protection, environmental sealing, and intrinsic safety in extremely harsh industrial environments. Typical applications include turbine bearing housings, compressors, and gearboxes in Zone 0 and Zone 1 hazardous areas such as refineries, petrochemical plants, and natural gas facilities, where lubricating oil leakage risk, mechanical stress, oil mist, moisture, and intrinsic safety requirements are all present. When using a 0.5 meter hazardous area approved probe (e.g., 330101-XX-05-XX-05), a 4.5 meter hazardous area approved extension cable is required to form a complete 5 m IS system (0.5 m + 4.5 m = 5 m). This model meets this precise total length matching requirement while providing stainless steel armor, connector protectors, and hazardous area approvals – comprehensive mechanical protection, environmental sealing, and intrinsic safety for the cable and connectors in hazardous areas. It represents the ultimate protection configuration for 5 m IS systems using a 0.5 m probe.

Model Breakdown: 330130-045-03-05 Configuration Details

Following Bently Nevada’s part number coding system (refer to datasheet Pages 18-19), the fields in this model number represent the following:

Field

Code

Parameter

Description

Base Model

330130

3300 XL Standard Extension Cable

Compatible with 3300 XL 8 mm and 3300 5 mm series probes

Length Option

045

4.5 meters (14.8 ft)

Total cable length for precise system total length matching (pairs with 0.5 m probe)

Cable Option

03

Armored Cable with Connector Protector

Stainless steel armor provides mechanical protection; pre-installed connector protector provides environmental sealing

Agency Approval

05

CSA, ATEX, IECEx Hazardous Area Approvals

Certified for intrinsically safe installations in explosive atmospheres

Key Configuration Note: The combination of 045, 03, and 05 is the defining feature of this model. In a 3300 XL intrinsically safe system, when using a 0.5 meter hazardous area approved probe (e.g., 330101-XX-05-XX-05), a 4.5 meter hazardous area approved extension cable is required to form a complete 5 m IS system (0.5 m + 4.5 m = 5 m). This model meets this precise total length matching requirement while providing stainless steel armor, connector protectors, and hazardous area approvals – comprehensive mechanical protection, environmental sealing, and intrinsic safety for the cable and connectors in hazardous areas. It represents the ultimate protection configuration for 5 m IS systems using a 0.5 m probe.

Triple Protection Details: Armor + Connector Protector + Hazardous Area Approvals

1. Stainless Steel Armor — Mechanical Protection

The armor layer consists of flexible AISI 302 or 304 stainless steel braid, covered with an FEP outer jacket, providing the following protection:

  • Crush Resistance: Prevents cable damage from compression during installation or operation

  • Tensile Strength: Enhances overall cable pull strength for conduit routing

  • Abrasion Resistance: Prevents insulation damage from friction against metal conduits or equipment edges

  • Cut Resistance: Protects internal conductors from accidental cuts or sharp object damage

In hazardous area environments, the armor not only provides mechanical protection but also serves as an additional safety barrier against external impact that could compromise cable integrity, thereby maintaining intrinsic safety system integrity.

2. Connector Protector — Environmental Sealing

This model includes pre-installed fluorosilicone connector protectors, which provide:

  • Environmental Sealing: Prevents turbine oil, moisture, and dust from penetrating the connector interface, reducing the risk of signal degradation or short circuits

  • Enhanced Connection Reliability: Forms a sealed sleeve after connector mating, ensuring long-term connection stability

  • Media Ingress Prevention: In oil mist environments, the protector prevents oil from seeping through the connector threads

  • Intrinsic Safety Integrity: In hazardous areas, connector protectors help maintain sealing at the connection point, preventing media ingress that could affect intrinsic safety performance

The datasheet specifically notes that silicone tape is not recommended for applications where the probe-to-extension cable connection will be exposed to turbine oil, and connector protectors are the recommended alternative. This model, with both armor and protectors, is the ideal choice for turbine oil environments in hazardous areas.

3. Hazardous Area Approvals — Intrinsic Safety

This model carries ATEX, IECEx, and CSA intrinsically safe approvals for use in Zone 0, Zone 1, and Zone 2 hazardous areas, ensuring safe operation in explosive gas atmospheres.

Comparison with Related Models

Feature

Standard IS (00-05)

Armor IS (01-05)

Protector IS (02-05)

This Model (03-05)

Mechanical Protection (Armor)

No

Yes

No

Yes

Environmental Sealing (Protector)

No

No

Yes

Yes

Hazardous Area Approvals

Yes

Yes

Yes

Yes

Typical Applications

Dry, clean hazardous areas

High mechanical stress hazardous areas

Oil mist/moisture hazardous areas

High mechanical stress + oil mist/moisture hazardous areas

Selection Tip: This model is the ultimate solution for hazardous area applications requiring both mechanical protection and environmental sealing. It is suitable for extreme environments such as turbine bearing housings in classified areas. It represents the highest protection level extension cable configuration for 5 m IS systems using a 0.5 m probe.

Approvals & Conditions of Safe Use

Hazardous Area Certifications

330130-045-03-05 carries the following hazardous area approvals, suitable for installations in major industrial regions worldwide:

Certification

Type

Area Classification

Temperature Class

ATEX / IECEx

Ex ia IIC T4/T5 Ga

Zone 0, 1, 2

T5 @ Ta = -55°C to +40°C
T4 @ Ta = -55°C to +80°C

cNRTLus

Class I, Zone 0, AEx/Ex ia IIC T4/T5 Ga

Class I, Groups A, B, C, D

Same as above

Conditions of Safe Use (Intrinsically Safe Systems)

When used in an intrinsically safe system, the following conditions must be observed:

  • Barriers/Isolators: Must be installed with intrinsically safe zener barriers per Bently Nevada drawing 141092, or with galvanic isolators.

  • Entity Parameters (when connected to approved Proximitor Sensor):

    • Ui = -28V

    • Ii = 140 mA

    • Pi = 0.91 W

    • Ci = 47 nF

    • Li = 1460 μH

  • Installation Environment: The Proximitor Sensor must be installed in a non-hazardous area or within an approved explosion-proof enclosure.

Important: This cable must be used with hazardous area approved probes (e.g., 330101-XX-05-XX-05) and Proximitor Sensors (e.g., 330180-50-05) to maintain a complete intrinsically safe system. Mixing with non-approved components will void the hazardous area certification.

Application Scenarios & Selection Guide

330130-045-03-05 is suitable for the following typical applications:

  1. Precise Total Length Matching for 5 m IS Systems (0.5 m Hazardous Area Probe) + Triple Protection: When using a 0.5 meter hazardous area approved probe, a 4.5 meter hazardous area approved extension cable is required to form a complete 5 m IS system (0.5 m + 4.5 m = 5 m). This model meets this precise total length matching requirement while providing armor, protector, and hazardous area approvals – the ideal choice for extreme environments such as turbine bearing housings in hazardous areas.

  2. Turbomachinery Bearing Housings in Hazardous Areas: Steam turbines, compressors, and gas turbines in refineries and petrochemical plants have lubricating oil circulating inside bearing housings and are often located in Zone 1 or Zone 2 areas. Armor protects against mechanical damage, connector protectors prevent oil mist from penetrating the connector interface, and hazardous area approvals ensure safety compliance.

  3. High Mechanical Stress + Oil Mist/Moisture Environments in Hazardous Areas: Gearboxes, pumps, and similar equipment in classified areas may expose cables to strong vibration, friction, oil mist, or moisture. Triple protection provides comprehensive security.

  4. Conduit Routing + Oil/Moisture Contamination in Hazardous Areas: When cables must be routed through metal conduit in wet, oily conditions, armor protects against sharp edges at conduit ends, protectors ensure connector sealing, and hazardous area approvals maintain system integrity.

Selection Notes:

  • Total Length Matching: Probe length + extension cable length = Proximitor Sensor total system length (5 m or 9 m). Verify your probe length: if using a 0.5 m hazardous area approved probe, select this model (4.5 m); if using a 1.0 m hazardous area approved probe, select a 4.0 m armored + protector hazardous area cable (e.g., 330130-040-03-05).

  • System Integrity: All components entering the hazardous area (probe, extension cable, connector protectors) must carry the same hazardous area approval rating. This model includes pre-installed protectors and hazardous area approvals, meeting system requirements.

  • Slightly Larger Diameters: Armored section diameter is 7.67 mm; protector outer diameter is 12.4 mm. Verify clearance when routing through conduit or tight spaces.

  • Bend Radius: The minimum bend radius for armored cable remains 25.4 mm (1.0 in), but armor increases stiffness. Allow adequate clearance.

  • Weight: Armored cable weighs approximately 103 g/m. Consider tensile load on connectors and probes during installation.

  • Ambient Temperature: If the application environment exceeds +177°C, consider the ETR (Extended Temperature Range) armored + protector hazardous area cable series (e.g., 330190-045-03-05).

Comparison with Common Lengths

Model

Length

Armor

Protector

Approvals

Typical Matching Probe

System

330130-040-03-05

4.0 m

Yes

Yes

ATEX/IECEx

1.0 m hazardous area probe

5 m IS system

330130-045-03-05

4.5 m

Yes

Yes

ATEX/IECEx

0.5 m hazardous area probe

5 m IS system

330130-080-03-05

8.0 m

Yes

Yes

ATEX/IECEx

1.0 m hazardous area probe

9 m IS system

330130-085-03-05

8.5 m

Yes

Yes

ATEX/IECEx

0.5 m hazardous area probe

9 m IS system

Standard 5 m intrinsically safe systems are typically composed of a 1.0 m hazardous area probe + 4.0 m hazardous area cable, or a 0.5 m hazardous area probe + 4.5 m hazardous area cable. Choose the extension cable length that matches your probe. This model represents the ultimate protection configuration for 5 m IS systems using a 0.5 m probe, integrating mechanical protection, environmental sealing, and hazardous area approvals.

Mechanical Dimensions & Installation

  • Cable Outer Diameter:

    • Armored section: 7.67 mm (0.302 in) maximum

    • Armor ferrule: 10.2 mm (0.40 in) maximum

    • Non-armored section (near connector end): 3.68 mm (0.145 in) standard cable diameter

  • Connector Protector Outer Diameter: 12.4 mm (0.49 in) maximum

  • Connector: Features the ClickLoc design. Finger-tighten until an audible "click" is heard — no special tools are required. The protector automatically forms a seal when tightened.

  • Installation Drawing: Intrinsically safe system installation must strictly follow Bently Nevada drawing 141092, including barrier selection, grounding, and wiring practices.

  • Installation Tips: When routing through conduit in hazardous areas, use a pull rope or fish tape attached to the cable jacket (not the connector protector) to avoid stress. The armored section can withstand higher pulling forces, but it is still recommended to attach pulling lines to the cable jacket rather than the connector end. After installation, inspect the connector area to ensure the seal is intact.

Related Products & Compatible Configurations

For other lengths or configurations of ultimate protection hazardous area extension cables, refer to the following options:

Model

Length

Cable Option

Approvals

Application

330130-040-03-05

4.0 m

Armored + Protector

ATEX/IECEx

Pairs with 1.0 m hazardous area probe, 5 m IS system, triple protection

330130-045-03-05

4.5 m

Armored + Protector

ATEX/IECEx

Current model, pairs with 0.5 m hazardous area probe, 5 m IS system, triple protection

330130-080-03-05

8.0 m

Armored + Protector

ATEX/IECEx

Pairs with 1.0 m hazardous area probe, 9 m IS system, triple protection

330130-045-02-05

4.5 m

Standard + Protector

ATEX/IECEx

Environmental sealing + approvals only, no mechanical protection (0.5 m probe)

330130-045-01-05

4.5 m

Armored Cable

ATEX/IECEx

Mechanical protection + approvals only, no environmental sealing (0.5 m probe)

Matching Probe: This cable is commonly used with 330101 series 0.5 m hazardous area approved probes (total length option 05, approval option 05).

Inquiry & Technical Support

330130-045-03-05 is an ultimate protection hazardous area model in the Bently Nevada product line. For pricing, lead time, or technical drawings, please contact us:

  • Online Inquiry: Click the “Request a Quote” button and provide the model number for a prompt response.

  • Technical Support: If you need assistance verifying whether this configuration meets your hazardous area extreme harsh environment protection requirements, please describe your installation environment (hazardous area classification, mechanical stress level, oil mist, moisture, conduit routing, etc.) and we will help recommend the optimal cable configuration and confirm system certification integrity.

Specification

Value

Cable Type

75Ω triaxial, FEP insulation, with stainless steel armor

Overall Length

4.5 meters (14.8 ft)

Armor Material

Flexible AISI 302 or 304 stainless steel, FEP outer jacket

Armor Outer Diameter

7.67 mm (0.302 in) maximum

Armor Ferrule Outer Diameter

10.2 mm (0.40 in) maximum

Connector Type

ClickLoc gold-plated brass/beryllium copper (male)

Connector Protector

Pre-installed, fluorosilicone material, provides environmental sealing

Connector Torque

Finger-tight until "click"; maximum 0.565 N·m (5 in·lbf)

DC Resistance (Center to Center)

0.99 Ω ± 0.15 (based on 4.5 m length)

DC Resistance (Outer to Outer)

0.30 Ω ± 0.06 (based on 4.5 m length)

Nominal Capacitance

69.9 pF/m (21.3 pF/ft)

Operating Temperature Range

-52°C to +177°C (-62°F to +350°F)

Minimum Bend Radius

25.4 mm (1.0 in)

Tensile Strength

270 N (60 lbf) rated at connector

Compatible Probes

3300 XL 8 mm series, 3300 5 mm series probes (must be approved versions)

Matching Proximitor Sensors

3300 XL 5 m system Proximitor Sensors with hazardous area approvals (e.g., 330180-50-05)

DC Resistance Note: Based on datasheet Pages 4-5, the center conductor resistance for a 4.5 m extension cable is approximately 0.99 Ω (derived from 4.0 m value of 0.88Ω), and the outer conductor resistance is approximately 0.30 Ω (derived from 4.0 m value of 0.26Ω). Consult official specifications for exact values.
