Parameter | Details |
General | |

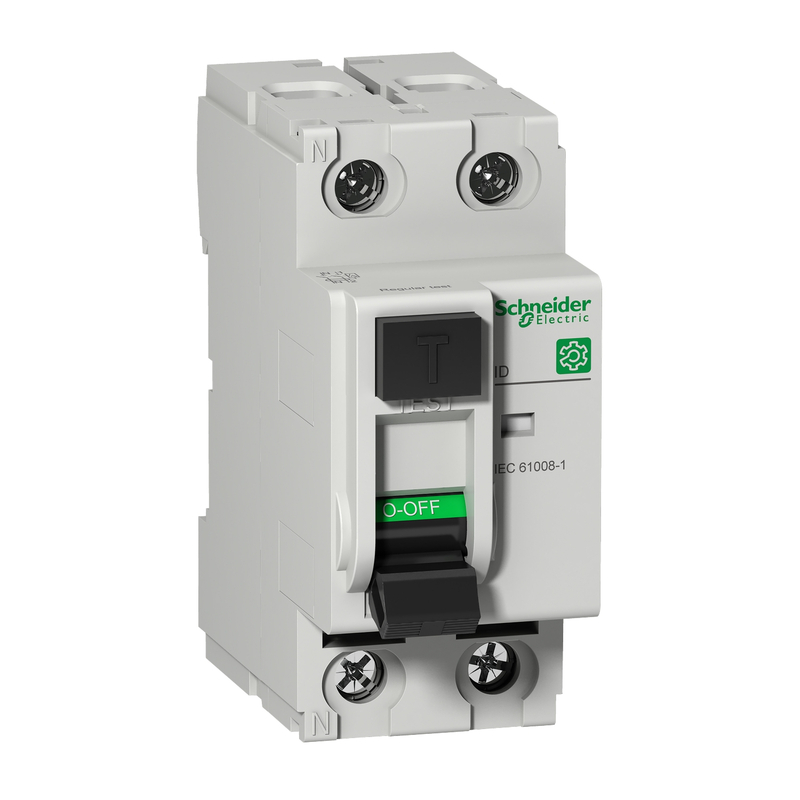

Product Model | M9R31240 |
Range | Multi9 |
Product Name | Multi9 ID |
Product or Component Type | Residual current circuit breaker (RCCB) |
Device Short Name | ID |
Device Application | Distribution |
Poles Description | 2P |
Neutral Position | Left |
Line Rated Current | 40 A |
Network Type | AC |
Earth-leakage Sensitivity | 30 mA |
Earth-leakage Protection Time Delay | Instantaneous |
Earth-leakage Protection Class | Type A-SI (Super Immunised) |
Standards | EN/IEC 61008-1 |
Product Certifications | CE |
Complementary | |
Network Frequency | 50 Hz |
Rated Operational Voltage (Ue) | 220…240 V AC 50 Hz |
Residual Current Tripping Technology | Voltage independent |
Rated Breaking and Making Capacity (Idm) | 400 A conforming to EN/IEC 61008-1 |
Rated Conditional Short-circuit Current (Inc) | 10 kA |
Rated Insulation Voltage (Ui) | 440 V AC 50 Hz conforming to EN/IEC 61008-1 |
Rated Impulse Withstand Voltage (Uimp) | 6 kV conforming to EN/IEC 61008-1 |
Surge Current | 3000 A |
Contact Position Indicator | Yes |
Control Type | Toggle |
Local Signalling | ON, OFF, fault trip |
Mounting Mode | Clip-on |
Mounting Support | DIN rail |
9 mm Pitches | 4 |
Height | 81 mm |
Width | 36 mm |
Depth | 73 mm |
Net Weight | 0.23 kg |
Colour | Grey |
Mechanical Durability | 20,000 cycles |
Electrical Durability | 2,000 cycles |
Locking Options Description | Padlocking device |
Connections – Terminals | |
Connection Type | Tunnel type terminal (top or bottom) |
Rigid Conductor | 1…35 mm² |
Flexible Conductor | 1…25 mm² |
Rigid Conductor (3 cables) | 16 mm² |
Flexible Conductor (3 cables) | 10 mm² |
Flexible with Ferrule | 1…25 mm² |
Wire Stripping Length | 15 mm for top or bottom connection |
Tightening Torque | 3.5 N·m top or bottom |
Environment | |
IP Degree of Protection | IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529 |
Pollution Degree | 3 |
Electromagnetic Compatibility | 8/20 μs impulse withstand, 3000 A conforming to EN/IEC 61008-1 |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative Humidity | 95% at 55 °C |
Ambient Air Temperature for Operation | -25…40 °C |
Ambient Air Temperature for Storage | -40…60 °C |
Ordering and Shipping | |
GTIN | 3606480578342 |
Package 1 (PCE) | 1 unit; H 8.700 cm × W 4.000 cm × L 9.000 cm; weight 206.000 g |
Package 2 (S03) | 54 units; H 30.000 cm × W 30.000 cm × L 40.000 cm; weight 11.565 kg |
Package 3 (P12) | 432 units; H 44.400 cm × W 80.000 cm × L 120.000 cm; weight 104.520 kg |
Warranty | 18 months |
Environmental Data | |
Total Lifecycle Carbon Footprint | 42 kg CO₂ eq. |
Manufacturing Phase (A1–A3) | 3 kg CO₂ eq. |
Distribution Phase (A4) | 0 kg CO₂ eq. |
Installation Phase (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 39 kg CO₂ eq. |
End-of-life Phase (C1–C4) | 0.7 kg CO₂ eq. |
Recyclability Potential | 59% |
SCIP Number | 81454b7e-fcdf-4818-a481-efccd54a351f |
EU RoHS Directive | Compliant By Exemption |
REACH Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. |
OECD PFAS Regulation | Item contains PFAS Chemicals |
Halogen Content Performance | Halogen free plastic parts product |
PVC Free | Yes |
WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
