The IS200JPDPG1A is a key component within the Power Distribution Module (PDM) family of the General Electric (GE) Mark VIe control system. As a Local Power Distribution Board (JPDP), the IS200JPDPG1A's core function is to receive 28 V DC bus power (Pbus) from the upstream JPDM (Main Power Distribution Module) and distribute it in a Triple Modular Redundant (TMR) manner to multiple JPDL (Local I/O Pack DC Power Distribution) boards, which in turn supply stable and reliable operating power to the I/O pack population of the control system. Additionally, the IS200JPDPG1A provides dedicated output channels for powering Ethernet switches, ensuring the power redundancy and continuity of the control system's communication network.
The design of the IS200JPDPG1A fully embodies the Mark VIe control system's ultimate pursuit of power availability and modular installation. Through a single compact board, it distributes three independent Pbus feeds (Red R, Blue S, Black T) from the JPDM to downstream JPDL boards and Ethernet switches, achieving physical isolation of the three control sections (R, S, T) at the power level. Furthermore, the board itself features no jumpers and no switch settings, supporting true plug-and-play operation, which simplifies field installation and maintenance. The IS200JPDPG1A is designed for DIN-rail mounting, allowing flexible integration into the power distribution area within a standard control cabinet.
System Positioning and Architecture Integration
Within the power distribution hierarchy of the Mark VIe control system, the IS200JPDPG1A is situated at the mid-stream distribution stage, connecting the upstream main power module and the downstream terminal distribution modules:
Upstream Interface: The IS200JPDPG1A receives three independent 28 V DC Pbus feeds from the JPDM board via a single 6-pin Mate-N-Lok connector. As the core of the entire PDM system, the JPDM board converts 125 V DC (derived from batteries and/or AC power conversion) to 28 V DC and outputs it through redundant channels. The Red, Blue, and Black feeds received by the IS200JPDPG1A correspond to the R, S, and T redundant sections respectively, ensuring that if any single upstream converter or feed branch fails, the remaining channels can still sustain system power.
Downstream Interface: The IS200JPDPG1A outputs three independent 28 V DC power channels to multiple JPDL boards (each via a 5-pin Mate-N-Lok connector). The JPDL boards then further distribute power to individual I/O packs. Simultaneously, the IS200JPDPG1A provides six 2-pin outputs dedicated to powering Ethernet switches (two outputs assigned to each feed channel).
Mechanical Integration: The IS200JPDPG1A is installed in a plastic holder, which snaps onto a standard DIN-rail and can be mounted side-by-side with other power distribution boards. This mounting method requires no additional racks or fixed holes, greatly enhancing the flexibility of in-cabinet layout.
Core Functional Features
1. Triple Modular Redundant Pbus Input and Distribution

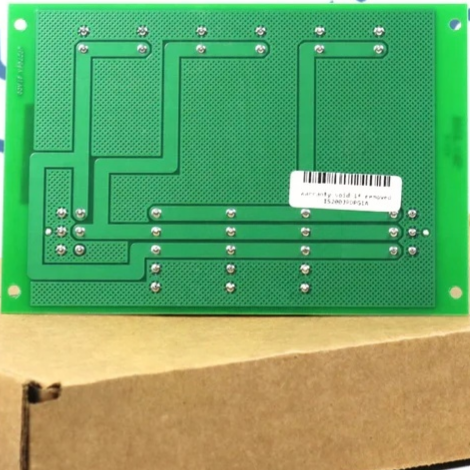

The input side of the IS200JPDPG1A receives three entirely independent 28 V DC Pbus feeds, designated Red (R), Blue (S), and Black (T). These three feeds are physically isolated from one another, originating from independent 28 V DC converter channels within the JPDM board. Three separate power traces are routed on the board internally, each capable of carrying a continuous 7.5 A current with a peak capability of up to 15 A, ensuring sufficient current margin under fully loaded I/O configurations.
The Triple Modular Redundant design is the cornerstone of the Mark VIe control system's high availability. In a TMR architecture, the three controller sections, M1, M2, and C, each possess an independent set of hardware and power supply circuits. The R, S, and T outputs of the IS200JPDPG1A correspond exactly to these sections: the Red channel powers R-section equipment, the Blue channel powers S-section equipment, and the Black channel powers T-section equipment. This partitioned powering strategy means that a fault in any single power channel only affects the equipment in the corresponding section. The control loops and I/O signal acquisition for the remaining two sections remain intact, allowing the system to continue normal operation or perform a safe shutdown.
2. Cascaded Distribution Outputs for JPDL Boards

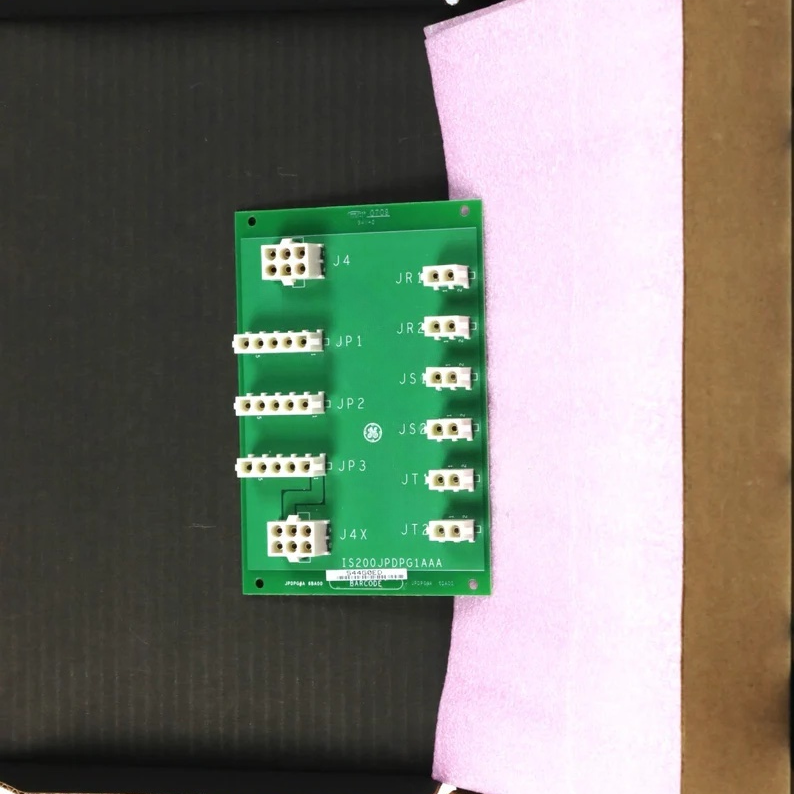

The IS200JPDPG1A provides three 5-pin Mate-N-Lok output connectors, each corresponding to a feed channel (Red/Blue/Black), for connecting to downstream JPDL boards. Within each 5-pin connector, three pins carry the 28 V DC positive for the respective channel, and the remaining two pins serve as the common Pbus return path. Upon receiving the three power feeds, the JPDL board distributes them to six I/O packs (with each channel supplying two I/O packs) and can further daisy-chain to additional JPDL boards.
This four-tier distribution architecture—JPDM → JPDP → JPDL → I/O Pack—decouples the power distribution functions by layer: the JPDM handles total power conversion and redundant combining, the IS200JPDPG1A distributes the bus power to JPDL boards in different zones, and the JPDL boards handle the final fine-grained distribution and branch protection to the I/O packs. The layered architecture results in clear system wiring, convenient fault isolation, and flexible expansion.
3. Dedicated Power Supply for Ethernet Switches
Ethernet switches are critical nodes in the communication network of the Mark VIe control system, and the reliability of their power supply directly impacts the real-time transmission of control data. The IS200JPDPG1A provides six 2-pin Mate-N-Lok output connectors dedicated to supplying 28 V DC power to Ethernet switches. These six outputs are evenly assigned to the three feed channels: the Red channel powers two switch ports, the Blue channel powers two, and the Black channel powers two.
This design ensures that even if the power supply for one channel fails, the other channels can continue to maintain switch operation, preventing a communication outage caused by a single power supply failure. Moreover, sharing the switch power supply and I/O pack power distribution on the same IS200JPDPG1A board reduces the number of independent power supply modules, lowering cost and saving space inside the cabinet.
4. Minimalist Design with No Configuration Required
The IS200JPDPG1A adopts a "zero-configuration" design philosophy: there are no jumpers, switches, or adjustable hardware on the board; it automatically enters the working state upon installation. Input and output connectors are all keyed Mate-N-Lok plug-in types, effectively preventing reverse polarity or incorrect connections. The board provides no active diagnostic functions—all monitoring and alarm functions are centrally implemented by the upstream JPDM/JPDS through the PPDA I/O pack. The IS200JPDPG1A itself focuses purely on reliable power transfer, introducing no additional complexity or potential failure points.
This design philosophy is particularly suitable for large-scale, standardized deployments of industrial control systems: field engineers do not need to perform specific setup and testing for each power distribution board, significantly shortening the installation and commissioning cycle, while also reducing the risk of system failures caused by human configuration errors.
Applicable Environments and Safety Standards
The operating temperature range of the IS200JPDPG1A is -30 to 65 °C (-22 to 149 °F), covering extreme environmental conditions ranging from outdoor cabinets in frigid northern winter regions to high-temperature indoor cabinets in tropical areas. The board design meets the overall environmental specifications of the Mark VIe control system and is suitable for various industrial process control applications such as power plants, petrochemical, steel, and pulp and paper industries.
The board complies with the safety and electromagnetic compatibility standards for GE industrial control equipment. Within the framework of the Mark VIe system, it works in coordination with the entire PDM system to jointly meet the system-level safety certification requirements.
Installation and Physical Characteristics
The IS200JPDPG1A is installed in a plastic holder designed to snap onto a 35 mm standard DIN-rail. Installation only requires hooking the top edge of the holder onto the rail and then pressing down until it clicks into place. For removal, a screwdriver is used to pry the latch at the bottom of the holder. This screw-less mounting method makes arranging and replacing boards within the control cabinet extremely convenient.
The board dimensions are 15.875 cm high by 10.795 cm wide (6.25 x 4.25 inches). Its compact form factor allows it to be mounted side-by-side with other power distribution boards, such as JPDM, JPDL, and JPDS, within limited space. Power input cables enter from the back, and output cables exit from the front, naturally separating the wiring directions for easier cable management within the cabinet. All connectors are locking-type Mate-N-Lok plugs capable of withstanding vibration and shock in industrial environments, ensuring long-term connection reliability.
