The IS200JPDLG1A is a key component for local I/O pack DC power distribution within the General Electric (GE) Mark VIe control system. As a Local I/O Pack DC Power Distribution board (JPDL), the IS200JPDLG1A's core mission is to establish a reliable and orderly power delivery path between the control power source (such as a JDPD or JPDS power distribution board) and multiple I/O packs. It simultaneously supports daisy-chaining to multiple downstream JPDL boards, providing a simple and efficient power distribution solution for large-scale distributed I/O deployments.
The design of the IS200JPDLG1A is closely aligned with the requirements of a Triple Modular Redundant (TMR) control architecture, integrating three mutually independent control power distribution channels (corresponding to the R, S, and T redundant sections) on a single compact board. Each channel supplies power to two I/O packs, supporting a total of six I/O pack connections. Each output branch is configured with a positive temperature coefficient (PTC) resettable fuse, providing precise branch circuit protection coordinated with the capacity of the connecting wires between the IS200JPDLG1A and the I/O packs. This ensures rapid isolation during a fault while avoiding the maintenance effort of replacing traditional blown fuses.
System Positioning and Architecture Integration
Within the power distribution hierarchy of the Mark VIe control system, the IS200JPDLG1A is situated at the mid-stream distribution stage. Its upstream source is typically a main power distribution board such as JDPD or JPDS, from which it receives redundant 28 V DC feeds. Its downstream side directly supplies operating power to various Mark VIe I/O packs, such as PDIA, PDOA, PAIC, PAOC, and PRTD. In applications requiring more I/O packs, the IS200JPDLG1A can also daisy-chain the three 28 V DC power channels to the next JPDL board via a dedicated 5-pin output connector, enabling flexible expansion of power distribution without needing to run new cables from the main power board.
The IS200JPDLG1A is mounted vertically on a metal bracket next to the I/O packs. Power input cables enter from the back, and output cables exit from the front. All connections use Mate-N-Lok plug-type connectors, ensuring connection reliability and maintenance convenience. This structural design naturally separates power and signal wires, avoiding interference, while also facilitating on-site wiring and future maintenance.
Detailed Core Functions
1. Triple Modular Redundant (TMR) Power Distribution

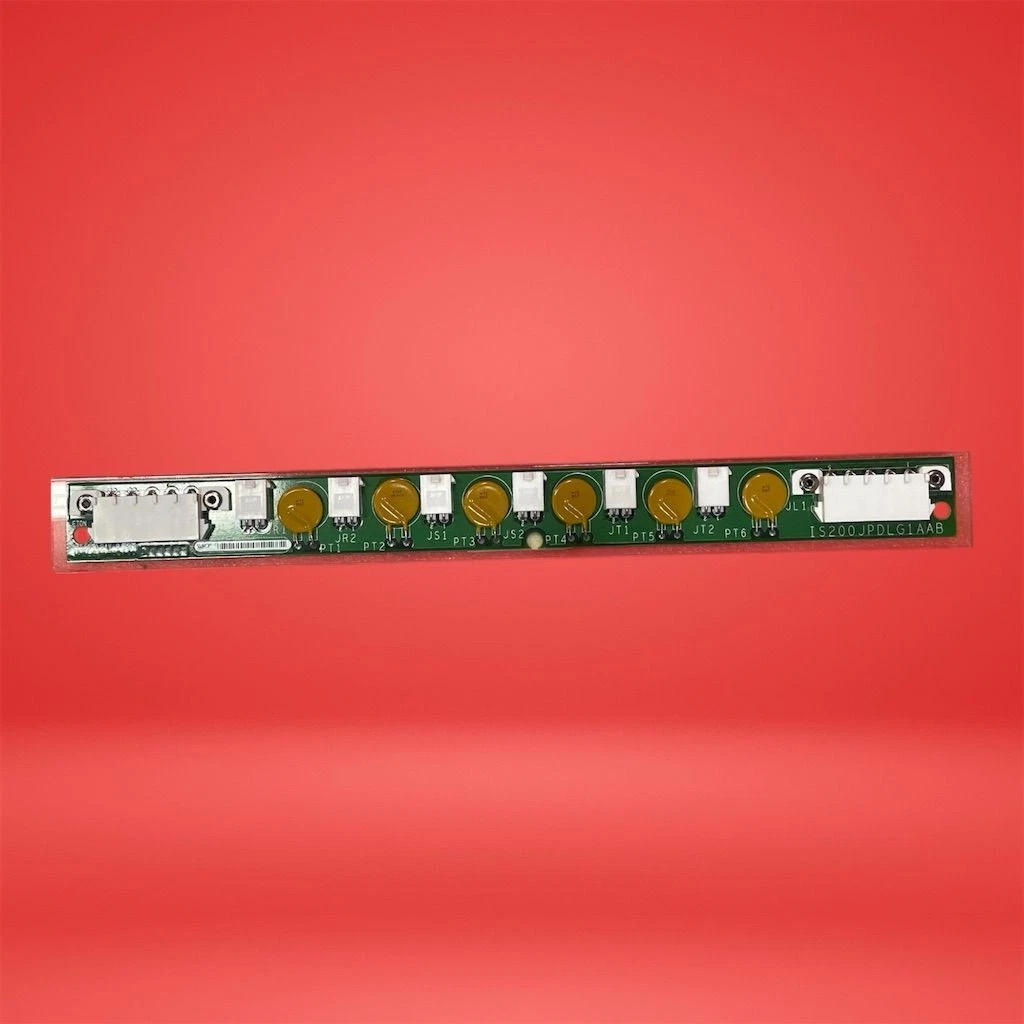

The most distinctive feature of the IS200JPDLG1A is the centralized distribution of three independent power channels—designated R (Red), S (Blue), and T (Black)—on a single board. The input side uses one 5-pin Mate-N-Lok connector, where three dedicated pins receive the three independent 28 V DC feeds from the upstream power board, and the remaining two pins serve as the common return path for all three feeds. The power traces for the three input channels are completely independent and isolated from each other on the board, perfectly matching the partitioned power supply architecture for R, S, and T hardware in a TMR system.
On the output side, the six I/O pack supply ports are evenly distributed among the three input channels: the Red channel feeds two I/O packs, the Blue channel feeds two, and the Black channel feeds two. This symmetrical distribution ensures balanced loading across channels. It also means that a fault in any one distribution channel only affects the I/O packs in the corresponding section, leaving equipment in the other sections unaffected. This provides physical power isolation for the independent supply and signal acquisition of the system controllers (M1/M2/C).
2. Positive Temperature Coefficient (PTC) Resettable Fuse Protection

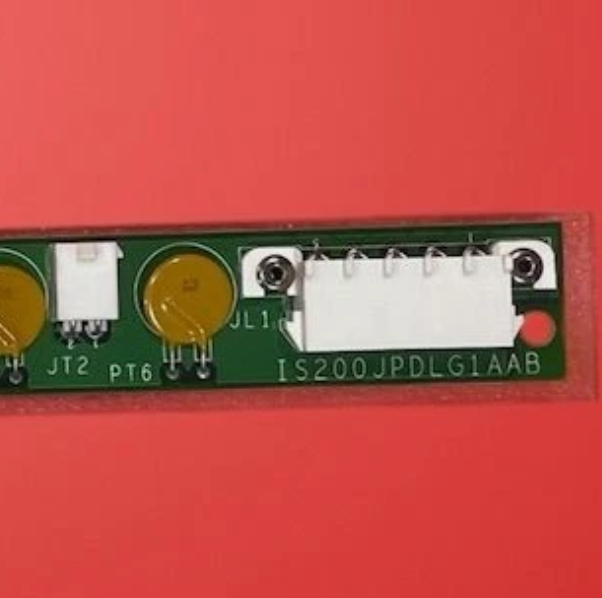

Each output branch of the IS200JPDLG1A has a positive temperature coefficient fuse (labeled CL for Current Limit) connected in series. Unlike traditional single-use fuses, a PTC fuse exhibits a sharp increase in resistance as its temperature rises during an overcurrent fault, limiting the fault current to a very low level to provide protection. Once the fault is cleared and the temperature drops, the PTC fuse automatically resets to a low-resistance state, restoring normal power to the branch. This feature significantly simplifies field maintenance—service personnel do not need to locate and replace a blown fuse; power is automatically restored once the root cause of the overcurrent is resolved.
Each PTC fuse is rated for a protection current of 2 A, a rating coordinated with the capacity of the connecting wires between the IS200JPDLG1A and the I/O packs. This ensures that in an overcurrent or short-circuit event on the branch, the fuse acts before the wires overheat or melt, effectively preventing fire hazards and equipment damage.
3. Daisy-Chain Expansion
The IS200JPDLG1A provides a dedicated 5-pin output connector for passing the R, S, and T 28 V DC power channels to the next downstream JPDL board. This daisy-chain connection method allows for a scenario with multiple rows of I/O packs where a cable needs to be run from the main power board only to the first JPDL board. Subsequent JPDL boards are then connected sequentially with short cables, greatly reducing the amount of long-distance wiring work, lowering cable costs, and saving space inside the cabinet.
4. Coordinated Operation with the Upstream JDPD Power Board
In a typical system configuration, the input power for the IS200JPDLG1A originates from a JDPD power distribution board. The JP1, JP2, and JP3 connectors on the JDPD board provide the R, S, and T 28 V DC feeds, respectively. These three feeds are transmitted to the IS200JPDLG1A via a single 5-pin cable, where they are centrally distributed. This design results in a clear power distribution hierarchy and standardized interfaces, facilitating modular system design, standardized installation, and rapid fault location.
Applicable Environments and Safety Certifications
The IS200JPDLG1A is certified to the UL 1604 safety standard, making it suitable for use in Class I, Division 2 potentially hazardous environments. This means the IS200JPDLG1A can be safely used in industrial locations such as petrochemical plants, natural gas processing facilities, and mines where flammable gases or vapors may be present. Its operating temperature range is -30 to 65 °C (-22 to 149 °F), covering harsh industrial environments from extreme cold to high heat, meeting installation needs across various global climate regions.
Installation and Physical Characteristics

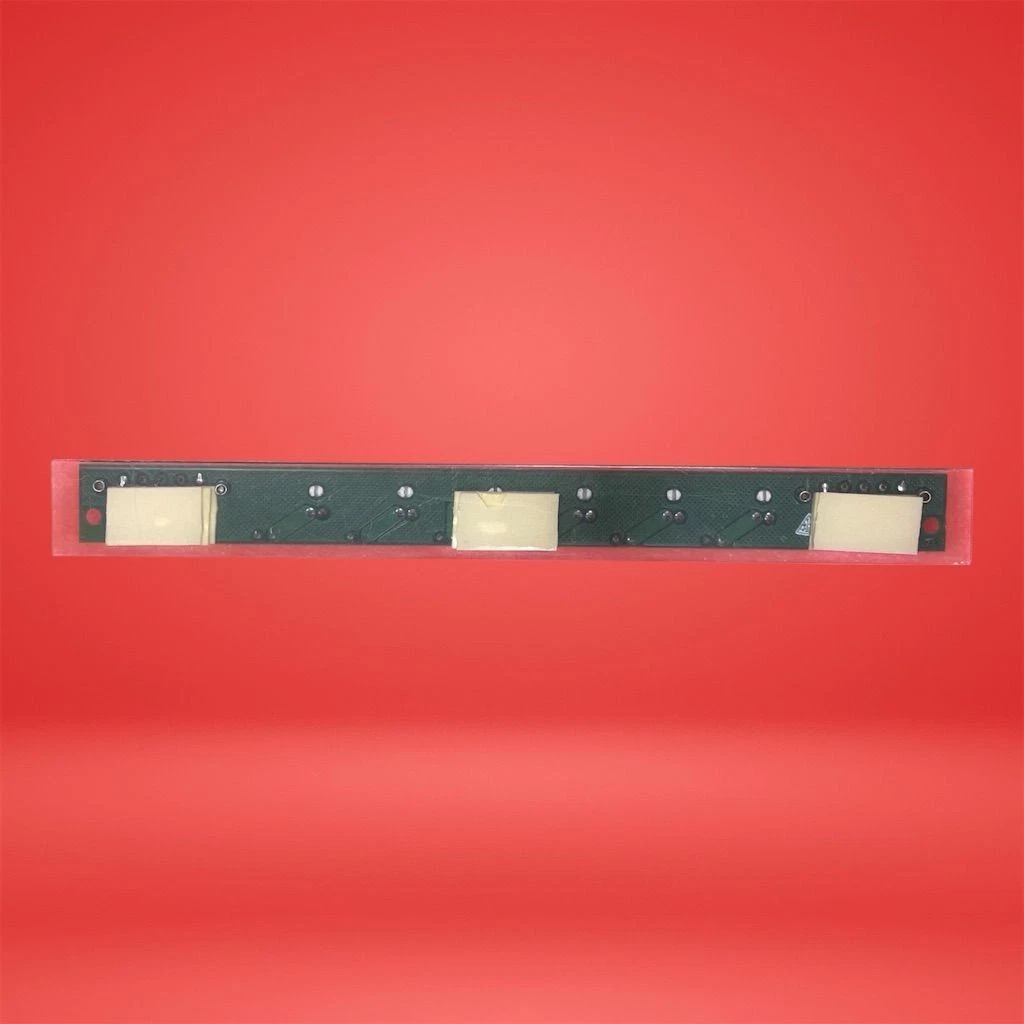

The IS200JPDLG1A features a compact, elongated board design, measuring 29.21 cm high and 2.54 cm wide (11.5 x 1.0 inches). It is secured with screws via three mounting holes next to the I/O pack mounting bracket. Its ultra-narrow width allows it to be installed tightly against the I/O packs within limited space, without consuming extra room in the cabinet. The board has no jumpers or hardware configuration switches, allowing true plug-and-play operation without any on-site configuration, which greatly reduces installation and commissioning complexity.
All connectors are Mate-N-Lok plug-type connectors offering good mechanical robustness and reliable electrical contact. The input connector is on the back side of the board, and the output connectors are on the front side, naturally separating the wiring directions for easier cable management and organization within the cabinet.
