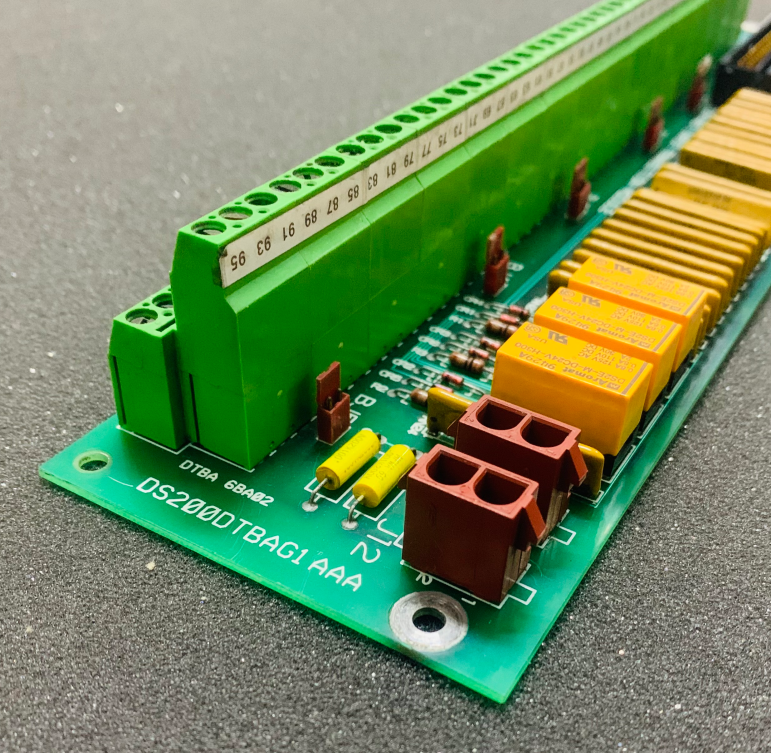

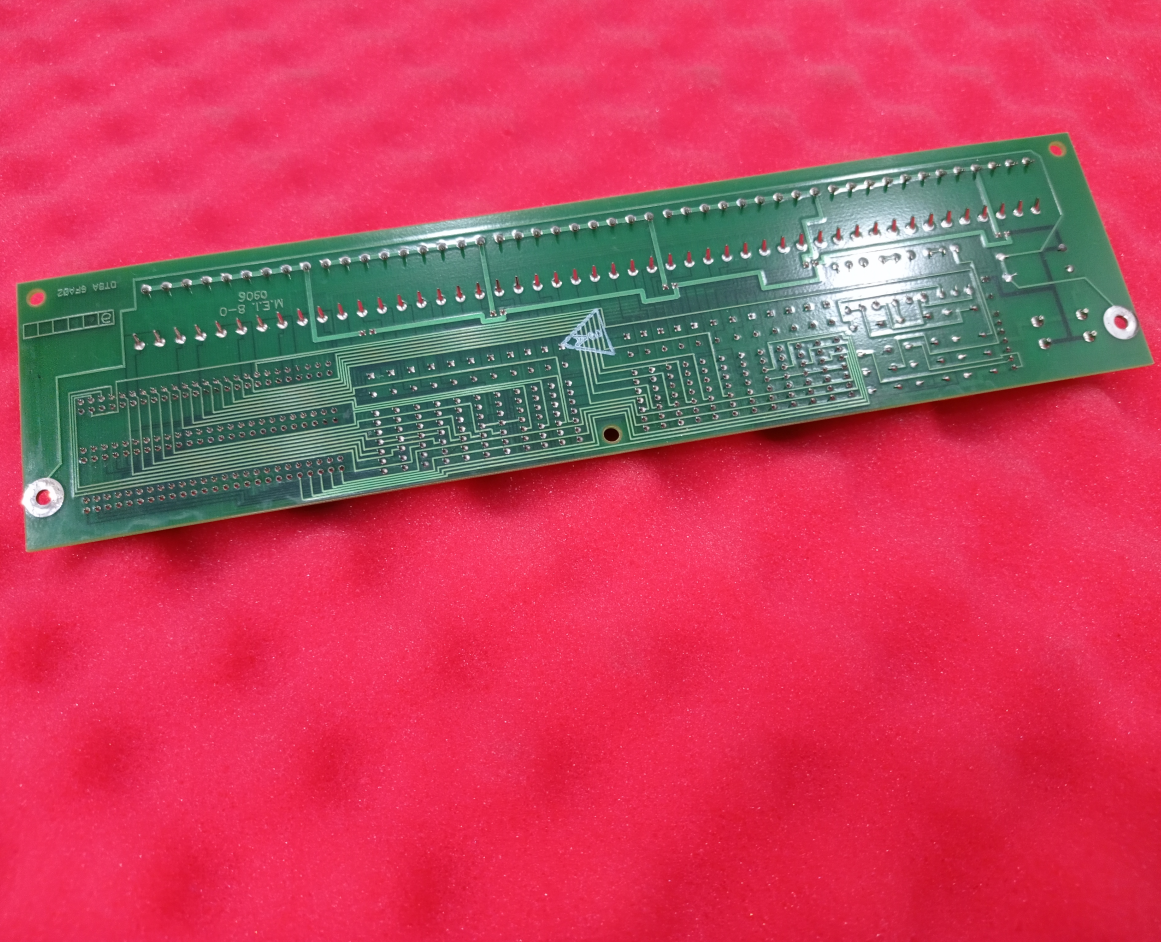

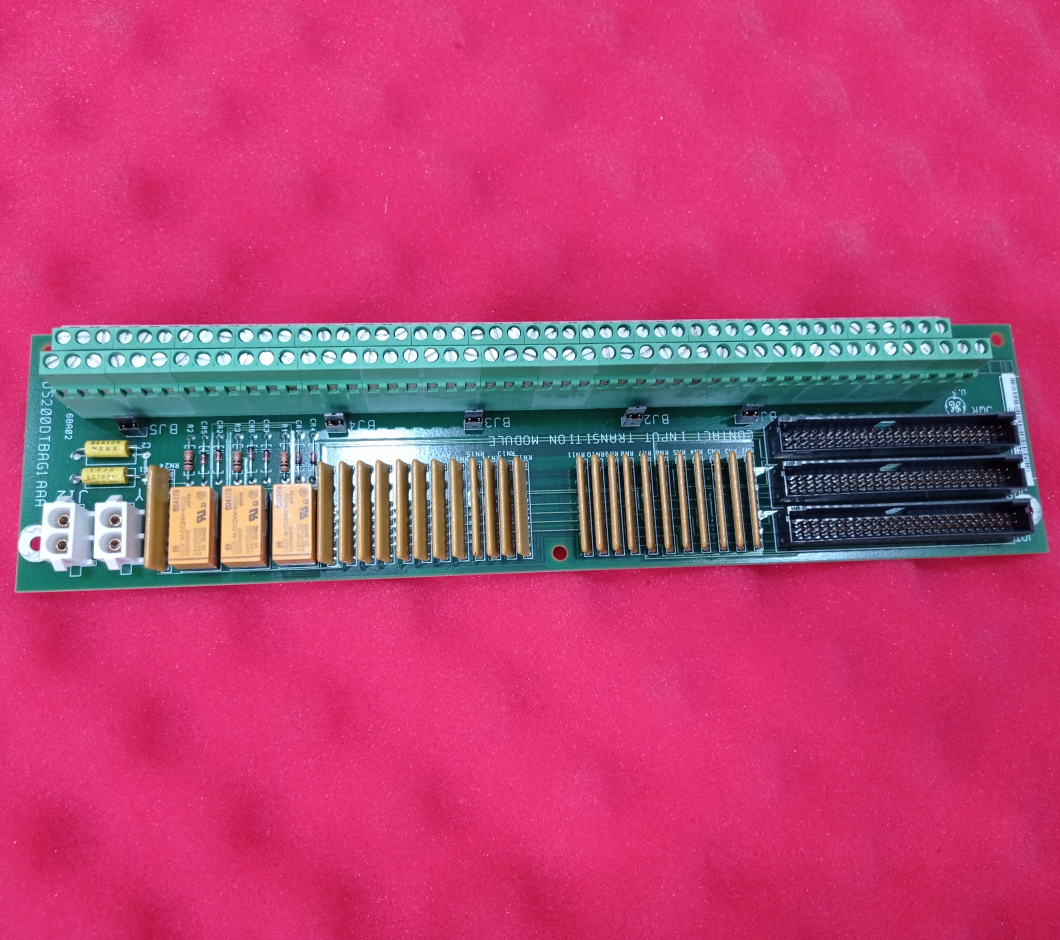

GE DS200DTBAG1AAA Contact Input Termination

  • GE

  • DS200DTBAG1AAA

  • $1200

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The GE DS200DTBAG1AAA Terminal Board is a discrete terminal board used within GE Industrial Control Systems drive and exciter platforms for the termination and conditioning of discrete input and output signals. The DS200DTBAG1AAA provides a marshalling and interface point between field wiring and the drive control electronics, performing signal level conversion, isolation, filtering, and termination functions that are essential for reliable discrete signal transmission in electrically demanding industrial environments.

The DS200DTBAG1AAA Terminal Board is designed for use within the Speedtronic and EX2000 family of control systems, where it serves as a discrete input/output interface board. It accepts discrete field signals from pushbuttons, selector switches, limit switches, relay contacts, and proximity sensors, and presents these signals in a conditioned form to the drive control cards for processing. Conversely, the DS200DTBAG1AAA can drive discrete output devices such as pilot relays, indicator lamps, and interposing relays based on commands received from the control processor.

The DS200DTBAG1AAA is identified by the part number convention used throughout the GE Industrial Control Systems product line. The "DS200" prefix identifies the board as a GE Industrial Control Systems product that does not contain firmware, with "200" specifically indicating the absence of onboard firmware. The "DTBA" acronym identifies the board's functional designation as a discrete terminal board, while the "G1" group designation indicates the board group, and the "AAA" suffix identifies the specific revision level. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware.

The DS200DTBAG1AAA Terminal Board is typically mounted in the board rack or carrier assembly alongside the drive control cards, where it interfaces with the main control processor through ribbon cables and backplane connections. The board provides screw terminal connections for field wiring, allowing maintenance personnel to terminate and troubleshoot discrete signal circuits without disturbing the control electronics.

This product introduction provides detailed technical information, functional descriptions, configuration guidance, and comprehensive specifications for the GE DS200DTBAG1AAA Terminal Board, serving as an essential reference for drive engineers, maintenance technicians, and system integrators working with GE industrial control equipment.

Functional Architecture and Signal Processing

The DS200DTBAG1AAA Terminal Board is built around a robust architecture for discrete signal handling, with each input and output channel designed to provide reliable operation in industrial environments characterized by electrical noise, voltage transients, and ground potential differences. The board's signal processing chain includes input filtering, level detection, optical isolation, and output driver stages that together ensure accurate and safe signal interfacing between the field and the control system.

For discrete input channels, the DS200DTBAG1AAA accepts field signals at the nominal control voltage level, typically 24 V DC or 125 V DC depending on the application and system configuration. Each input is protected against overvoltage and reverse polarity conditions, and incorporates a hardware filter that attenuates high-frequency noise and suppresses transient voltage spikes. The filtering time constant is selected to provide adequate noise immunity without introducing excessive delay in signal detection.

The input detection threshold is set to a level that provides reliable discrimination between the on and off states while maintaining immunity to induced noise. Input current is limited to a value that provides adequate wetting current for dry contacts while minimizing power dissipation in the input circuitry. The discrete input signals are then passed through optical isolators, which provide galvanic isolation between the field wiring and the control system electronics. This isolation is critical for protecting the control processor from ground loops, common-mode voltages, and electrical transients that may be present on the field wiring.

Once isolated, the discrete input signals are presented to the drive control cards through the backplane or ribbon cable interface. The control processor reads the status of each input channel and uses this information in the drive control logic, protection functions, and sequencing operations. The DS200DTBAG1AAA also provides diagnostic feedback to the control system, allowing the processor to detect conditions such as loss of field excitation voltage, open circuits in the field wiring, or failures within the board itself.

For discrete output channels, the DS200DTBAG1AAA receives command signals from the drive control processor and drives the corresponding output devices. The output drivers are designed to sink or source sufficient current to operate pilot relays, indicator lamps, and interposing relays. Each output channel is protected against short circuits and overcurrent conditions, and may include transient suppression to protect against inductive kickback from relay coils and other inductive loads. The output status is typically fed back to the control processor for verification and diagnostic purposes.

Physical Design and Mounting

The DS200DTBAG1AAA Terminal Board is designed for mounting within the drive's board rack or carrier assembly. Its form factor is compatible with the standard GE board mounting system, which uses plastic snaps and holders to secure the board in position. The board is typically located behind or adjacent to the drive control cards, and is accessible by tilting the front board carrier forward after releasing the lock tabs on the board rack.

The board includes screw terminal blocks for field wiring connections. These terminal blocks are designed to accept standard wire sizes used in industrial control applications, typically up to #14 AWG or #12 AWG for power circuits and #16 AWG or #18 AWG for signal circuits. Each terminal position is clearly identified by a designation printed on the board, allowing maintenance personnel to quickly identify and terminate the correct circuits.

The DS200DTBAG1AAA connects to the drive control electronics through ribbon cables and backplane connectors. The ribbon cable connectors are keyed to prevent incorrect insertion, and the backplane interface provides power and signal connections to the control processor. The board may also include test points that allow maintenance personnel to measure voltages and verify signal status without disconnecting field wiring.

The board's physical dimensions are compatible with the standard GE board rack, with a height and width that allow it to be mounted alongside other control cards without interference. The board is constructed using industrial-grade materials and conformal coating is applied where specified by the part number suffix, providing protection against moisture, dust, and chemical contaminants that may be present in the drive environment.

Discrete Input and Output Channels

The DS200DTBAG1AAA Terminal Board provides multiple discrete input and output channels, configured according to the specific drive application and system requirements. The exact number and arrangement of channels depends on the board revision and the drive model in which it is installed, but the board family is designed to provide a flexible and scalable discrete I/O interface.

Discrete input channels on the DS200DTBAG1AAA are used to monitor field devices such as:

  • Pushbuttons and selector switches for operator control

  • Limit switches and position sensors for machine sequencing

  • Pressure switches, level switches, and temperature switches for process monitoring

  • Relay contacts from external interlock and protection circuits

  • Proximity sensors and photoelectric sensors for part detection and positioning

  • Emergency stop pushbuttons and safety interlock switches

Each input channel is individually filtered and isolated, ensuring that noise or faults on one channel do not affect the operation of other channels or the control processor. The input status is reported to the control processor through the backplane interface, where it is used in the drive control logic.

Discrete output channels on the DS200DTBAG1AAA are used to drive field devices such as:

  • Pilot relays and interposing relays for controlling contactors and motor starters

  • Indicator lamps and annunciators for operator feedback

  • Solenoid valves and actuators for process control

  • External alarm and signaling devices

  • Control relays for sequencing and interlocking functions

Each output channel is individually protected and may include status feedback to the control processor. The output drivers are designed to handle the inrush current associated with relay coils and lamp loads, and to withstand the inductive kickback that occurs when inductive loads are de-energized.

Isolation and Protection

The DS200DTBAG1AAA Terminal Board incorporates comprehensive isolation and protection features that ensure reliable operation and protect both the field wiring and the control electronics from electrical hazards.

Optical isolation is provided on all discrete input channels, creating a galvanic barrier between the field wiring and the control system electronics. This isolation prevents ground loops from causing measurement errors, protects the control processor from common-mode voltages that may be present on the field wiring, and ensures that faults on the field side do not propagate to the control side. The isolation voltage rating is typically several hundred volts, providing adequate protection for most industrial applications.

Overvoltage protection is provided on both input and output channels to protect against transient voltage spikes caused by lightning, inductive switching, and electrostatic discharge. The protection circuits clamp the voltage to a safe level and dissipate the transient energy without damaging the board's sensitive components. Reverse polarity protection prevents damage if the field wiring is inadvertently connected with incorrect polarity.

Short-circuit protection is provided on discrete output channels to protect the output drivers from damage if the field wiring is shorted or if the load exceeds the rated current. The protection circuit limits the output current to a safe value and may provide automatic recovery once the fault condition is removed. Status feedback allows the control processor to detect and report output faults to the operator.

Filtering is provided on discrete input channels to attenuate high-frequency noise and prevent false signal detection. The filter time constant is selected to provide adequate noise immunity while maintaining acceptable response time for the drive control logic. Additional surge suppression may be provided at the point of signal entry to protect against high-energy transients.

Configuration and Setup

The DS200DTBAG1AAA Terminal Board is configured according to the specific drive application and system requirements. Configuration may involve setting jumpers or DIP switches on the board, selecting the appropriate input voltage range, and configuring the control software to recognize the connected field devices.

Jumper and DIP switch settings on the DS200DTBAG1AAA are typically factory-set according to the drive configuration and should be verified against the test data sheets supplied with the controller. When replacing a DS200DTBAG1AAA board, the jumpers and switches on the new board must be set in the same position as on the board being replaced, unless the instructions state otherwise.

The control software is configured to recognize the discrete input and output channels provided by the DS200DTBAG1AAA and to assign them to the appropriate control functions. This configuration is typically performed using the GE Control System Toolbox or the drive's programming interface. The software configuration must match the physical configuration of the board and the field wiring to ensure correct operation.

Diagnostics and Fault Detection

The DS200DTBAG1AAA Terminal Board supports comprehensive diagnostic capabilities that enable the control system to detect and report faults in the discrete I/O circuits. These diagnostics include monitoring of the field excitation voltage, detection of open circuits in the field wiring, verification of output driver operation, and reporting of board identification information.

Loss of field excitation voltage is detected by monitoring the voltage supplied to the input channels. If the excitation voltage drops below a threshold value, the control system generates a diagnostic alarm and may force the associated inputs to a fail-safe state. This feature ensures that the drive does not respond incorrectly to invalid input signals when the field power supply is lost.

Open circuit detection is provided on input channels that are configured for current-sensing operation. If the field wiring is broken or if the field device fails open, the input current drops to zero and the control system detects the open circuit condition. This diagnostic is particularly valuable for safety-related inputs where a failed-open condition must be detected and reported.

Output driver verification is provided on discrete output channels. The control processor can compare the commanded output state with the actual output state, as reported by feedback circuitry on the DS200DTBAG1AAA. If a discrepancy is detected, a fault is generated, alerting the operator to a failure in the output driver or the field wiring.

Board identification is provided by a read-only chip or hardwired identification circuit on the DS200DTBAG1AAA. The control processor interrogates this identification circuit during system initialization and verifies that the correct board type and revision are installed. If a mismatch is detected, a hardware incompatibility fault is generated, preventing the drive from operating with incorrect or mismatched hardware.

Application Suitability and System Integration

The DS200DTBAG1AAA Terminal Board is an integral component of GE's industrial control systems, providing the discrete I/O interface that connects the drive control processor to the field devices that monitor and control the driven equipment. Its applications span the full range of GE drive and exciter products, including DC drives, AC drives, and excitation control systems.

In DC drive applications, the DS200DTBAG1AAA provides the discrete interface for operator controls, interlock circuits, and auxiliary equipment. The discrete inputs monitor the status of contactors, circuit breakers, and protective relays, while the discrete outputs control pilot relays, indicator lamps, and annunciators. The board's isolation and filtering ensure reliable operation even in the electrically noisy environment of a DC drive power bridge.

In AC drive applications, the DS200DTBAG1AAA performs similar functions, interfacing with the discrete field devices associated with the drive, motor, and driven load. The board's fast response time and robust noise immunity are essential for capturing transient events and ensuring correct sequencing of the drive's startup, running, and shutdown operations.

In excitation control applications, the DS200DTBAG1AAA provides the discrete interface for the exciter's control and protection circuits. The board monitors the status of field breakers, cooling equipment, and protective relays, and controls the exciter's contactors and indicating devices. The board's high isolation voltage rating is particularly important in excitation applications, where the field circuit may be at a high potential relative to ground.

The DS200DTBAG1AAA is designed for easy integration into the drive system. Its standard mounting hardware, keyed connectors, and clearly marked terminals simplify installation and maintenance. The board's diagnostic capabilities, including excitation monitoring, open circuit detection, and output verification, contribute to high system availability and reduce troubleshooting time when faults occur.

Maintenance and Lifecycle

The DS200DTBAG1AAA Terminal Board is designed for long service life with minimal maintenance. The board contains no moving parts or user-adjustable components (other than factory-set jumpers and switches), and its solid-state construction ensures high reliability in continuous industrial operation.

Routine maintenance consists of periodic visual inspection of the terminal connections, cable integrity, and board cleanliness. Terminal screws should be checked for tightness, particularly in high-vibration environments. Field wiring should be inspected for signs of damage, corrosion, or overheating. The board should be kept free of dust and debris, which can cause insulation breakdown or interfere with heat dissipation.

If a board fails, replacement is straightforward. After turning off all power to the drive and verifying that no power exists on the board, disconnect the field wiring (after marking terminal assignments), disconnect the ribbon cables and backplane connectors, release the plastic snaps, and remove the board from the carrier. Install the replacement DS200DTBAG1AAA board in the reverse order, ensuring that all jumpers and switches are set identically to the original board. Reconnect all cables and field wiring, then apply power and verify correct operation.

GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement DS200DTBAG1AAA, provide the complete part number, the equipment serial number and model number, and the board number and description. The factory may substitute later revisions based on availability, but functional compatibility is guaranteed.

Conclusion

The GE DS200DTBAG1AAA Terminal Board is a reliable, robust, and versatile discrete I/O interface for GE industrial control systems. Its comprehensive isolation, filtering, and protection features ensure accurate and safe signal transmission between field devices and the drive control processor, even in the most demanding industrial environments. The board's diagnostic capabilities, including excitation monitoring, open circuit detection, and board identification, contribute to high system availability and simplified maintenance.

With its standard mounting hardware, clearly marked terminals, and compatibility with the full range of GE drive and exciter products, the DS200DTBAG1AAA is an essential component in countless industrial installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the DS200DTBAG1AAA continues to deliver the performance, durability, and ease of use that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the DS200DTBAG1AAA provides the discrete I/O functionality required for reliable and efficient industrial control.

Specification Category

Parameter

Value / Description

General

Product Name

GE DS200DTBAG1AAA Terminal Board

Board Family

DTBA (Discrete Terminal Board)

Board Type

Discrete input/output terminal board

Group / Revision

G1 group, AAA revision suffix

Applications

GE Industrial Control Systems drives and exciters

Board Identification

Alphanumeric part number stamped on board edge

Firmware

None (DS200 prefix indicates no firmware)

Discrete Inputs

Number of Input Channels

Application-dependent; configured per drive model

Input Voltage Range

24 V DC or 125 V DC nominal (system-dependent)

Input Threshold

Typically 50% of nominal excitation voltage

Input Current

Adequate wetting current for dry contacts

Input Filtering

Hardware filter for noise attenuation

Isolation

Optical isolation on all input channels

Overvoltage Protection

Clamping and transient suppression

Reverse Polarity Protection

Provided

Discrete Outputs

Number of Output Channels

Application-dependent; configured per drive model

Output Type

Sink or source, depending on configuration

Output Current Rating

Sufficient for pilot relays, lamps, and interposing relays

Short Circuit Protection

Provided with automatic recovery

Inductive Kickback Protection

Transient suppression provided

Status Feedback

Output status reported to control processor

Isolation and Protection

Galvanic Isolation

Optical isolation between field and control

Isolation Voltage

Several hundred volts (typical)

Common-Mode Rejection

High, due to optical isolation

Surge Suppression

Provided at input and output channels

Grounding

Field and control grounds separated

Connectors and Terminals

Field Wiring Terminals

Screw terminal blocks

Wire Size

Up to #14 AWG (power), #16–#18 AWG (signal)

Terminal Identification

Clearly marked designations

Backplane Connection

Ribbon cable and backplane interface

Test Points

Provided for voltage and signal verification

Configuration

Jumpers

Factory-set per drive configuration

DIP Switches

Factory-set per drive configuration

Software Configuration

Via GE Control System Toolbox or drive programming interface

Replacement Note

Verify all jumper and switch settings match original board

Diagnostics

Excitation Voltage Monitoring

Loss of excitation generates alarm

Open Circuit Detection

Provided on current-sensing inputs

Output Driver Verification

Feedback comparison with commanded state

Board Identification

Read-only chip or hardwired circuit

Incompatibility Fault

Generated on board type or revision mismatch

Environmental

Operating Temperature

0 °C to +60 °C (32 °F to 140 °F)

Storage Temperature

-40 °C to +85 °C (-40 °F to +185 °F)

Humidity

5% to 95% non-condensing

Conformal Coating

Applied where specified by part number suffix

Physical

Mounting

Board rack or carrier assembly

Mounting Hardware

Plastic snaps and holders

Access

Front board carrier tilts forward after releasing lock tabs

Warranty and Support

Replaceable Components

Application-dependent; refer to documentation

Warranty

As per GE Industrial Control Systems Terms and Conditions

Support Contact

Nearest GE Service Office

Required Info

GE requisition or shop order number, equipment serial and model number, board number and description

Ordering Information

Part Number

DS200DTBAG1AAA

Part Number Breakdown

DS = GE Industrial Control Systems; 200 = no firmware; DTBA = board acronym; G1 = group; AAA = revision level

Ordering Note

All digits are important; factory may substitute later revisions with backward compatibility
