The Bently Nevada 3500 is a crucial system for protecting critical machinery. It's used widely in industries like petrochemical, hydroelectric, and wind farms. The system detects and prevents both false and missed trips, ensuring machinery stays protected. In this article, we'll explore what the Bently Nevada 3500 is, its key features, and how it benefits various industries.
What is the Bently, Nevada 3500 System?
Definition and Key Features
The Bently Nevada 3500 is an advanced system designed to protect critical machinery. It monitors various machinery parameters, such as vibration, temperature, and speed, to ensure safe operation. The system is essential for industries like petrochemicals, wind farms, and hydroelectric plants, where machinery uptime is crucial.
It provides protection by detecting abnormal conditions and preventing false alarms. This minimizes downtime and ensures reliable performance of equipment like turbines, motors, and compressors. The 3500 is trusted for its flexibility and scalability, handling both small and large-scale operations.
Core Technologies and Mechanisms
The 3500 uses cutting-edge technology to ensure continuous monitoring of machinery. With its real-time data collection, it detects any signs of malfunction early. This helps operators avoid catastrophic failures and reduce unexpected downtime.
One of its standout features is the ability to integrate with System 1 software, which further analyzes machine data for proactive maintenance. This connection allows operators to monitor their equipment in real time, identifying potential issues before they cause damage.
System Architecture
The Bently Nevada 3500 features a modular, rack-based design. It consists of several key components, each with a specific function.
● Instrument Rack: Houses all system modules and enables internal communication.
● Power Supplies: Ensure that the system has a reliable power source, with options for both AC and DC inputs.
● Monitor Modules: These modules are responsible for measuring parameters like vibration and temperature. They process data from sensors and send it to the system for analysis.
● Communication Gateway: Enables communication between the 3500 system and external systems, such as DCS (Distributed Control Systems) for centralized monitoring.
Each component is replaceable and upgradable, offering flexibility and scalability for different industrial setups. This modular architecture makes it easy to expand the system to monitor additional machines or adjust to different monitoring needs.
How Does the Bently, Nevada 3500 Work?
Vibration Monitoring
Vibration is one of the most critical indicators of machinery health. The Bently Nevada 3500 system uses specialized vibration sensors to monitor machinery in real time. These sensors track vibrations at various points in the machinery, helping detect any abnormal movements or imbalances. If the system detects excessive vibrations, it triggers an alarm to prevent further damage.
By continuously analyzing vibration data, the system ensures that machinery stays within safe operating limits. Early detection of vibration issues allows operators to address problems before they lead to expensive repairs or catastrophic failure.
Multi-parameter Monitoring
The Bently Nevada 3500 doesn’t just monitor vibrations; it keeps track of several other key machine parameters. These include temperature, position, and speed. By measuring these parameters, the system provides a full picture of the machinery’s condition.
For example, monitoring temperature can help prevent overheating, while tracking speed ensures that machines are operating at optimal levels. Position monitoring can detect any misalignment or wear that might affect machine performance. The combination of these measurements gives the 3500 its comprehensive protection capability.
Communication with System 1 Software
To enhance its monitoring capabilities, the Bently Nevada 3500 integrates seamlessly with System 1 software. This software allows the system to perform deeper data analysis and facilitate proactive maintenance.
System 1 provides detailed insights by processing the data collected from the 3500 system, helping operators make informed decisions. With this integration, the system can predict future failures, allowing for maintenance to be planned before problems occur. It also helps reduce the time spent on unnecessary maintenance by filtering out non-critical data.

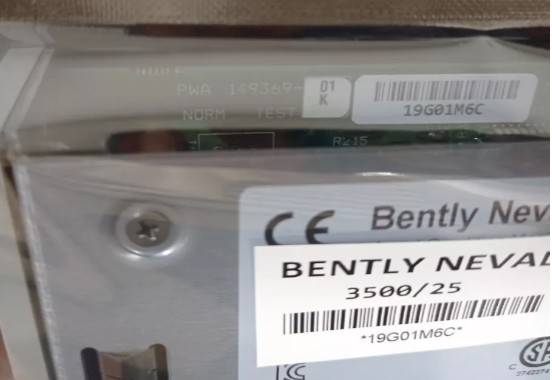

![Bently Nevada 3500]( "Bently Nevada 3500")
Applications of Bently, Nevada 3500
In Refineries and Petrochemical Plants
In industries like refineries and petrochemical plants, the Bently Nevada 3500 plays a critical role in ensuring equipment reliability. It monitors key machinery, such as compressors, turbines, and pumps, all of which are essential for continuous production.
The system detects any unusual vibrations, temperature spikes, or speed fluctuations that could indicate potential failures. By catching issues early, it helps prevent costly downtimes and minimizes the risk of catastrophic equipment failures, ensuring smoother operations.
In Renewable Energy
Bently Nevada 3500 is also used in renewable energy sectors, particularly in wind farms and hydroelectric facilities. These plants rely on complex machinery, such as turbines and generators, to generate electricity. Any malfunction in these systems can result in lost energy production and revenue.
The 3500 ensures that critical components are constantly monitored, protecting them from unexpected failures. Whether it’s a wind turbine or a hydroelectric generator, the system helps maintain optimal performance, preventing unnecessary repairs and reducing unplanned outages.
Cross-Industry Versatility
The Bently Nevada 3500 is not just limited to one type of industry. Its modular and flexible design allows it to be used in various machinery across industries. From manufacturing to power plants, the system can be adapted to monitor different types of equipment.
This versatility makes it a great choice for companies looking to standardize machinery protection and condition monitoring across different assets. Its scalability ensures that it can grow with the needs of an expanding operation, providing reliable protection across diverse environments.
Industry | Machinery Monitored | Benefits |
Refineries & Petrochemical | Compressors, turbines, pumps | Prevents downtime, reduces repairs |
Renewable Energy | Wind turbines, hydro turbines | Enhances performance, ensures reliability |
Cross-Industry | Various machinery types | Flexible, scalable, and adaptable |
Tip: For industries operating in high-risk environments like refineries or wind farms, the Bently Nevada 3500 provides essential protection. By integrating it with other system monitoring tools, you can create a comprehensive, proactive maintenance plan to ensure the longevity of critical machinery.
Advantages of Using Bently, Nevada 3500
Preventing False and Missed Trips
One of the key advantages of the Bently Nevada 3500 system is its ability to prevent both false and missed trips. False trips, where equipment is unnecessarily shut down, can cause costly downtime. Missed trips, where potential issues go undetected, can lead to catastrophic failures. The system ensures that machinery only trips when absolutely necessary by continuously monitoring critical parameters like vibration, temperature, and speed. This precision helps reduce downtime and avoid unnecessary shutdowns, keeping operations running smoothly.
Enhanced Asset Reliability and Efficiency
The Bently Nevada 3500 significantly enhances the reliability and efficiency of your machinery. By monitoring critical machinery components in real-time, it reduces unplanned downtime caused by unexpected failures. This means that equipment operates more efficiently and lasts longer. Early detection of potential issues allows operators to address problems before they escalate, thus extending the life of expensive assets like turbines, pumps, and compressors.
Proactive Maintenance
Real-time condition monitoring is another benefit of using the Bently Nevada 3500 system. It provides detailed insights into the health of your machinery, allowing for better planning of maintenance activities. Instead of relying on reactive maintenance, the system enables a proactive approach. This means that maintenance can be scheduled before major failures occur, saving both time and money. With this approach, companies can avoid emergency repairs, reduce maintenance costs, and improve overall asset management.
Advantage | Benefit | Result |
Preventing False and Missed Trips | Accurate monitoring ensures machinery trips only when needed | Reduced downtime and operational costs |
Enhanced Asset Reliability | Continuous monitoring increases equipment reliability | Longer equipment lifespan, fewer failures |
Proactive Maintenance | Real-time data allows for better maintenance planning | Cost savings and fewer unplanned repairs |
![Bently Nevada 3500]( "Bently Nevada 3500")
Key Components of the Bently, Nevada 3500 System
Instrument Racks and Power Supplies
The Bently Nevada 3500 system operates using modular instrument racks and power supply modules. The instrument racks house all the system’s monitoring modules, providing a secure and organized setup. These racks come in two sizes: a full-size 19-inch rack and a mini-rack for smaller spaces. The racks provide power to the modules and ensure seamless communication between components.
Power supplies are vital for keeping the system running smoothly. The 3500 offers both AC and DC power supply options, ensuring compatibility with various operational environments. Redundant power supplies are available to ensure continuous operation in case one fails, making the system highly reliable and fault-tolerant.
Transient Data Interface (TDI) Module
The Transient Data Interface (TDI) module plays a crucial role in data collection. It interfaces the 3500 system with other systems, including Bently Nevada's System 1 software. The TDI module collects real-time data from all the system’s components and transmits it for further analysis.
It acts as the primary communication hub, gathering and sending data through Ethernet connections. This data can include vibration readings, temperature measurements, and more. The TDI module also handles communication between different system parts, ensuring that all components work together efficiently.
Relay and Keyphasor Modules
Relay and Keyphasor modules are essential for real-time protection and diagnostics. The relay modules provide alarm and trip signals based on preset conditions. These modules can be customized to trigger different alarms based on specific parameters, such as vibration levels or temperature thresholds.
The Keyphasor module, on the other hand, is used to measure rotational speed and position. It provides critical data for machinery such as turbines and motors, ensuring they operate within safe limits. This data is crucial for preventing damage from misalignment or other mechanical issues.
Component | Function | Benefit |
Instrument Racks and Power Supplies | Houses monitoring modules, provides power and communication | Ensures reliable operation and easy integration |
Transient Data Interface (TDI) Module | Collects and transmits data to external systems | Facilitates real-time monitoring and analysis |
Relay and Keyphasor Modules | Provides alarm signals, monitors rotational speed and position | Offers real-time diagnostics and protection |
Bently, Nevada 3500: A Historical Overview and Evolution
Early Developments and System Evolution
The Bently Nevada 3500 system was first introduced in 1995 as a cutting-edge solution for machinery protection and condition monitoring. Initially designed to monitor vibration in critical machinery like turbines and compressors, the system quickly gained popularity in various industries.
Over the years, Bently Nevada continuously improved the 3500, expanding its capabilities to include temperature monitoring, speed measurement, and other essential parameters. As industries' needs grew, so did the system, with regular updates to enhance its performance and reliability.
Major Upgrades and New Features
The Bently Nevada 3500 has undergone significant upgrades since its initial release. Some of the key advancements include the introduction of additional monitor cards, which allowed for the measurement of new parameters like temperature and position.
One of the biggest upgrades was the integration of the Transient Data Interface (TDI) module, which enabled the system to interface with other software like System 1. This allowed for high-speed data collection and deeper analysis, providing real-time diagnostics and predictive maintenance capabilities. More recently, enhancements to vibration and temperature monitoring have been made, ensuring that the system continues to meet the growing demands of industries worldwide.
Product Life Cycle and Future Outlook
Bently Nevada is committed to providing long-term support for the 3500 system. With over 60,000 units installed globally, the system has proven its reliability and flexibility over two decades. The product’s life cycle includes continuous updates, ensuring that it remains effective and competitive in an ever-changing market.
Looking ahead, Bently Nevada plans to keep enhancing the 3500 series with new features, better integration capabilities, and ongoing compliance with industry standards. This long-term investment in product development means that the 3500 will continue to be a trusted solution for machinery protection for years to come.
Maintenance and Support for Bently, Nevada 3500
On-Site Commissioning and Troubleshooting
Bently Nevada provides comprehensive on-site commissioning and troubleshooting services for the 3500 system. This support ensures that the system is installed and configured correctly for optimal performance. Technicians are available to assist with setup, calibration, and testing to ensure everything runs smoothly from day one.
If issues arise, on-site troubleshooting is available to address any problems quickly. This reduces downtime and minimizes disruptions to operations. Bently Nevada’s expert team can identify and resolve issues promptly, ensuring that machinery protection remains continuous and reliable.
System 1 Software for Continuous Monitoring
Bently Nevada's System 1 software plays a key role in enhancing the 3500 system’s capabilities. It provides continuous, real-time monitoring by collecting and analyzing data from the 3500 system. The software allows operators to monitor machinery conditions from anywhere, offering insights into vibrations, temperature, and other key parameters.
System 1's advanced analytics help users identify early signs of potential issues, making predictive maintenance possible. By streamlining data collection and reducing manual analysis, it enables more efficient maintenance planning and better decision-making for the health of critical machinery.
Training and Operational Courses
To ensure the proper operation and maintenance of the Bently Nevada 3500 system, Bently Nevada offers specialized training programs. These courses cover everything from system setup to troubleshooting and advanced diagnostics. They are designed for technicians and operators to gain in-depth knowledge of the 3500 system’s features and functions.
Training programs are customizable to meet the needs of different industries and applications. Whether you’re working in petrochemical, renewable energy, or manufacturing, Bently Nevada’s courses provide the skills necessary to maximize the system’s performance and minimize unplanned downtime.
Conclusion
The Bently, Nevada 3500 system is crucial for machinery protection and condition monitoring. It ensures reliable operation by preventing unnecessary downtimes and equipment failures. With its advanced capabilities, it helps industries improve efficiency and reduce repair costs. Consider adopting the Bently, Nevada 3500 system for better machinery reliability and proactive maintenance. Exstar offers this high-quality solution, ensuring optimal performance for critical assets.
FAQ
Q: What is the Bently, Nevada 3500 system?
A: The Bently, Nevada 3500 is a machinery protection and condition monitoring system that ensures reliable operation by detecting and preventing failures in critical machinery.
Q: How does the Bently, Nevada 3500 work?
A: The system continuously monitors machinery parameters like vibration, temperature, and speed, helping prevent false trips and missed failures.
Q: What are the benefits of using the Bently, Nevada 3500?
A: It enhances asset reliability, reduces downtime, and provides real-time data for proactive maintenance, improving overall efficiency.
Q: Is Bently, Nevada 3500 suitable for all industries?
A: Yes, it’s adaptable to a wide range of industries, including petrochemical, renewable energy, and manufacturing, providing flexible monitoring solutions.
