Top Troubleshooting Tips for GE Mark VIe Discrete Input Modules

Views: 0     Author: Site Editor     Publish Time: 2026-05-12      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Understanding the Role of Discrete Input Modules in Mark VIe Systems

The GE Mark VIe Control System is a cornerstone of modern industrial automation and turbine control. It is widely deployed in power generation, petrochemical, and manufacturing industries, where reliable digital control is paramount. Among the key components, Discrete Input Modules (DIMs) stand out for their role in converting physical on/off signals into a digital format that the main controller can interpret. These signals can originate from switches, relays, or safety devices and are essential for real-time system monitoring and control.

The reliability of a Mark VIe Control System heavily depends on the accuracy of discrete input modules. Any misreading or delay in signal acquisition can affect the system’s response time and operational efficiency. Therefore, understanding the function and troubleshooting of these modules is crucial for engineers and technicians.

Key Features of GE Mark VIe Discrete Input Modules

The Mark VIe Discrete Input Modules are designed for high-performance environments. They provide:

⦁ High-Speed Scanning: Inputs are processed rapidly to ensure real-time data delivery to the controller, essential for turbine control and industrial processes where milliseconds matter.

⦁ Wide Voltage Compatibility: Modules support multiple voltage levels, enabling integration with diverse sensor types and legacy field devices without compromising system stability.

⦁ TMR (Triple Modular Redundancy) Support: Critical for applications requiring high reliability, TMR ensures that single-point failures do not compromise system operation.

⦁ Environmental Robustness: Designed to operate under electrical noise, vibration, and temperature fluctuations commonly encountered in industrial control cabinets.

⦁ Modular Design: Allows for quick replacement or expansion without disrupting other modules, enhancing maintenance efficiency and system scalability.

Applications of Discrete Input Modules

Discrete input modules are applied across several industrial scenarios:

⦁ Turbine Monitoring: Inputs from safety switches, start/stop circuits, and alarms are captured accurately to protect the turbine and prevent unscheduled shutdowns.

⦁ Process Control Systems: Real-time signal acquisition from sensors and devices ensures that the GE Mark VIe Control System maintains precise process operations.

⦁ Industrial Automation: Discrete inputs feed operational status and interlock conditions into the central controller, enabling automated responses to changing system conditions.



Preparing for Troubleshooting GE Mark VIe Discrete Input Modules

Prior to initiating troubleshooting, careful preparation is essential. Proper preparation ensures technician safety, preserves module integrity, and improves the efficiency of the diagnostic process.

Safety and Operational Precautions

Maintaining safety is the first step in any troubleshooting procedure:

⦁ System Shutdown: Ensure that the system is powered down following OEM-recommended procedures to prevent electrical hazards and avoid accidental system interference.

⦁ Electrostatic Discharge (ESD) Precautions: ESD protection is critical when handling sensitive electronic components. Always wear grounding straps and use anti-static mats.

⦁ Lockout/Tagout: Implement lockout/tagout procedures to prevent accidental activation of turbines or control systems during maintenance.

⦁ Environmental Awareness: Check for high-temperature or high-humidity conditions that may affect both personnel safety and module performance.

Tools and Equipment Required

Effective troubleshooting requires specialized tools to verify both electrical and digital signals. The table below summarizes essential equipment:

Tool

Purpose

Additional Notes

Digital Multimeter

Measure voltage, current, and continuity

Use for both DC and AC signals; check calibration regularly

Oscilloscope

Verify waveform integrity and detect transient spikes

Essential for high-speed signal analysis

Mark VIe Diagnostic Software

View module status, perform real-time diagnostics, log events

Connect via Ethernet or USB interface; supports TMR diagnostics

Signal Simulator

Replicate discrete input signals without affecting live system

Enables safe testing without disrupting turbine operations

Screwdriver/Terminal Tools

Inspect and tighten wiring connections

Recommended torque specifications to avoid loose connections

These tools provide both quantitative and qualitative insight into module performance, enabling accurate troubleshooting and system optimization.

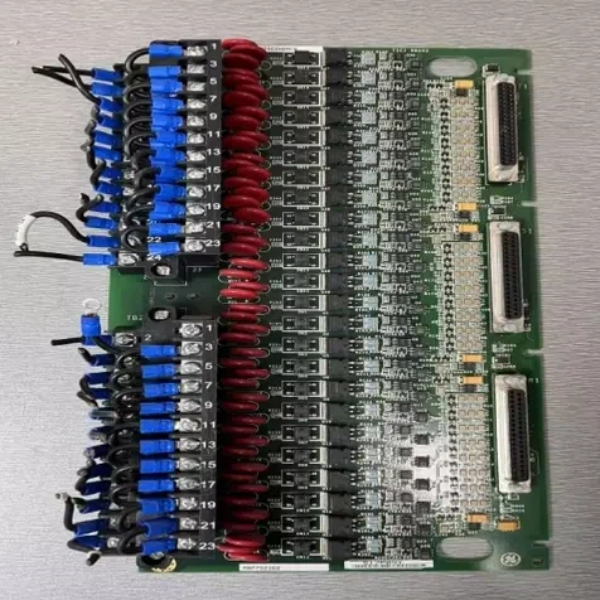

GE Mark VIe Control System (4).jpg



Step-by-Step Troubleshooting Techniques

Module Status Verification

The first step in troubleshooting is to assess the health of the discrete input module. This can be done via:

⦁ LED Indicators: Each DIM includes LEDs to signal power, input activity, and fault status. Understanding the meaning of each LED state is essential for rapid diagnostics.

⦁ Mark VIe Software Interface: The module can be monitored digitally via software, showing real-time input counts, error messages, and historical trends. This digital verification helps identify intermittent faults that may not be apparent via visual inspection alone.

⦁ Redundancy Status Checks: For modules in TMR configurations, confirm that all redundant channels are operational. Any discrepancies between channels may indicate wiring or module-level issues.

Signal Verification

Proper signal verification is essential to confirm that the module receives the expected input:

⦁ Input Signal Testing: Use a signal simulator to replicate on/off conditions and validate the module response.

⦁ Wiring and Polarity Checks: Inspect for correct wiring connections and proper signal polarity. Incorrect connections can result in false readings or delayed system responses.

⦁ Electrical Noise Assessment: Identify sources of interference such as nearby high-power equipment or improperly grounded cables. Correcting noise sources can improve module reliability.

Controller Communication Check

Discrete input modules communicate with the Mark VIe controller to deliver timely and accurate signals. Troubleshooting communication involves:

⦁ Network Configuration Verification: Confirm that the module’s network settings match the controller configuration, including IP addressing, TMR routing, and redundancy settings.

⦁ Module Recognition: Ensure that the controller recognizes each discrete input module in its system configuration. Modules not recognized may indicate firmware mismatches or configuration issues.

⦁ Data Consistency Monitoring: Check input signal consistency across multiple modules, especially in TMR setups where synchronization is critical for safety and process control.

Power Supply and Grounding Assessment

A stable power supply and proper grounding are fundamental to module operation:

⦁ Voltage Stability Check: Measure supply voltage at each module using a digital multimeter, ensuring it falls within the recommended range.

⦁ Grounding Verification: Confirm that grounding paths are intact and continuous. Poor grounding can lead to signal noise, erratic inputs, and potential module failure.

⦁ Environmental Isolation: Ensure modules are shielded from high electromagnetic interference (EMI) environments.



Preventive Tips to Minimize Input Module Issues

Proactive maintenance helps reduce downtime and enhance system reliability:

⦁ Temperature and Humidity Control: Maintain a controlled environment within the control cabinet to prevent condensation or overheating.

⦁ Routine Wiring Inspection: Check terminal connections for looseness, corrosion, or oxidation.

⦁ Firmware Updates: Regularly update the Mark VIe modules to benefit from improved diagnostics and enhanced signal processing.

⦁ Functional Testing: Schedule quarterly or semi-annual functional tests to ensure the module operates within OEM specifications.

⦁ Documentation Maintenance: Keep wiring diagrams, module manuals, and diagnostic reports updated for efficient troubleshooting.



Monitoring and Diagnostic Tools for GE Mark VIe

Using Mark VIe Software Utilities

The Mark VIe Control System includes sophisticated diagnostic tools:

⦁ Real-Time Module Diagnostics: Track input status, error logs, and communication health.

⦁ Trend Analysis: Evaluate long-term signal patterns to detect early signs of module degradation.

⦁ Event Logging: Maintain historical records of module activity for compliance and analysis purposes.

Remote Monitoring Options

⦁ Ethernet-Enabled Monitoring: Allows engineers to monitor modules remotely, improving response time for maintenance.

⦁ Integration with Central Control Systems: Modules can communicate with plant-wide control networks, enabling centralized monitoring and alerting.

⦁ Automated Alerts: Set thresholds and notifications for unusual signal behavior to preempt potential system interruptions.



Best Practices for Module Maintenance

Implementing best practices ensures the longevity of discrete input modules and system efficiency:

⦁ Clear Channel Labeling: Identify all input channels clearly to simplify troubleshooting and prevent wiring errors.

⦁ Documentation Accessibility: Keep module manuals and wiring diagrams available at all times.

⦁ Scheduled Replacements: Replace aging modules according to OEM recommendations to maintain system reliability.

⦁ Personnel Training: Ensure engineers and technicians are trained on module handling, signal testing, and diagnostic procedures.

⦁ Controlled Environment: Maintain proper airflow and temperature regulation in control cabinets.



Conclusion

The GE Mark VIe Control System depends on discrete input modules to ensure precise real-time signal acquisition and maintain overall system reliability. Effective troubleshooting requires a thorough understanding of module functions, strict adherence to safety protocols, careful verification of signals and communication, and consistent preventive maintenance. By leveraging the full capabilities of Mark VIe diagnostics software, controlling environmental conditions, and following structured maintenance schedules, engineers can optimize module performance, minimize downtime, and enhance operational efficiency.

At Exstar Automation Services Co., Ltd., we provide expert support, high-quality replacement modules, and professional guidance specifically for Mark VIe Control Systems. Our team is equipped to assist with troubleshooting strategies, module selection, and system optimization, ensuring reliable and efficient operation of your industrial automation systems. Connect with us to explore how our solutions can enhance the performance, longevity, and dependability of your Mark VIe modules, helping your operations run smoothly and efficiently.



FAQ

1. What is the purpose of a discrete input module in the Mark VIe system?
Discrete input modules convert physical on/off signals into digital inputs, enabling the controller to monitor and respond to system events effectively.

2. How can I verify a discrete input module is working properly?
Check LED indicators, use diagnostic software, and test input signals with a signal simulator or multimeter.

3. What safety precautions should I follow when troubleshooting Mark VIe modules?
Ensure system shutdown, implement lockout/tagout procedures, and follow ESD guidelines.

4. Can modules be tested without shutting down the turbine?
Some online diagnostics allow monitoring without full shutdown, but physical inspection usually requires power-down for safety.

5. How often should discrete input modules be inspected or tested?
Routine preventive maintenance is recommended quarterly or according to OEM guidelines to maintain reliable operation.
